8D–412

WIRING SYSTEM

Programing With Tech 2 (SOUTH AFRICA)

General Description

When the anti-theft and keyless entry control unit and / or
the transmitters (remote keys) are replaced, the security
codes and / or transmitter ID codes must be programed
by using the Tech 2. The following pages show the
procedures to program in regard to the anti-theft and
keyless entry system. Please refer to Tech 2 scan tool
user`s guide in detail.

1

5

4

3

2

901RW180

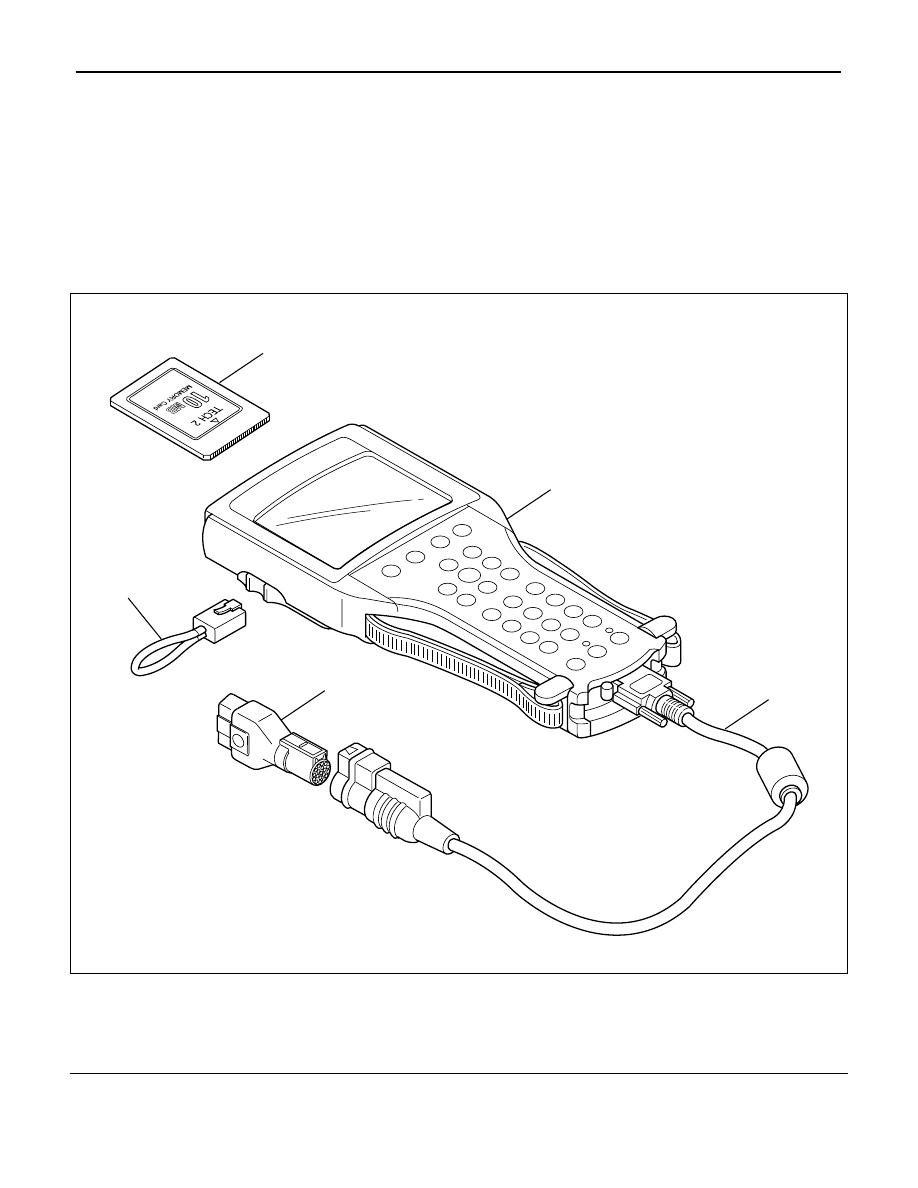

Legend

(1) PCMCIA Card
(2) RS 232 Loop Back Connector

(3) SAE 16/19 Adaptor
(4) DLC Cable
(5) Tech 2

WIRING SYSTEM

8D–413

Programing Anti-Theft Warning

When the anti-theft and keyless entry control unit is
replaced, the security code must be programed after
installation.

1. Insert the Isuzu system PCMCIA card into the Tech 2.
2. Connect the SAE 16/19 adaptor to the data link

connector (DLC) cable.

3. Connect the DLC cable to the Tech 2.
4. Confirm that the starter switch is off.
5. Connect the Tech 2 SAE 16/19 adaptor to the vehicle

DLC.

6. Verify the Tech 2 power up display.

7. Press the enter key.
8. Select " F0 : Diagnostics " and press the enter key.
9. Select the model year and press the enter key.

10. Select the vehicle type and press the enter key.
11. Select " F2 : Body " and press the enter key.
12. Select " Anti Theft Warning " and press the enter key.
13. Turn the starter switch on and press the confirm key

(soft key).

14. Confirm " Partnumber " , " Country Code " and "

Production Date " and press the confirm key (soft key).

15. Select " F4 : Programing " and press the enter key.
16. Select " F2 : Program Anti Theft Warning " and press

the enter key.

17. Press the confirm key (soft key).
18. Press the confirm key (soft key).
19. Enter the security code and press the enter key.
20. Press the okey key (soft key).
21. Enter the security code and press the enter key.
22. Press the okey key (soft key).
23. Press the soft key to select " Remote Key ".
24. Select country code and press the enter key.
25. Press the confirm key (soft key).

Programing Remote Key

When the anti-theft and keyless entry control unit is
replaced and / or the new transmitter (remote key) is
supplied, the ID code of the transmitter must be
programed by the following procedure.

1. Perform the step 1. to 15. of " Programing Anti Theft

Warning ".

2. Select " F1 : Program Remote Key " and press the

enter key.

3. Press the confirm key (soft key).
4. Press the lock button of the transmitter until the

display changes.

5. Press the confirm key (soft key).
6. Press the Yes or No key (soft key).

Erasing Remote Keys

All the ID code stored in the control unit can be erased by
the following procedure.

1. Perform the step 1. to 15. of " Programing Anti Theft

Warning ".

2. Select " F0 : Erase Remote Keys " and press the enter

key.

3. Press the confirm key (soft key).
4. Press the confirm key (soft key).
5. Press the confirm key (soft key).

060RW009

Press (ENTER) To Continue

8D–414

WIRING SYSTEM

Meter and Warning/Indicator Light

General Description

The circuit consists of meter assembly vehicle speed
sensor, engine coolant temperature sensor, seat belt
switch, oil pressure switch, brake fluid switch, park-
ing brake switch and other some switches and sen-
sors.
Meter assembly contains speedometer, tachometer,
voltmeter, engine coolant temperature gauge, oil
pressure gauge, fuel gauge, warning/indicator light
and illumination light.

WIRING SYSTEM

8D–415

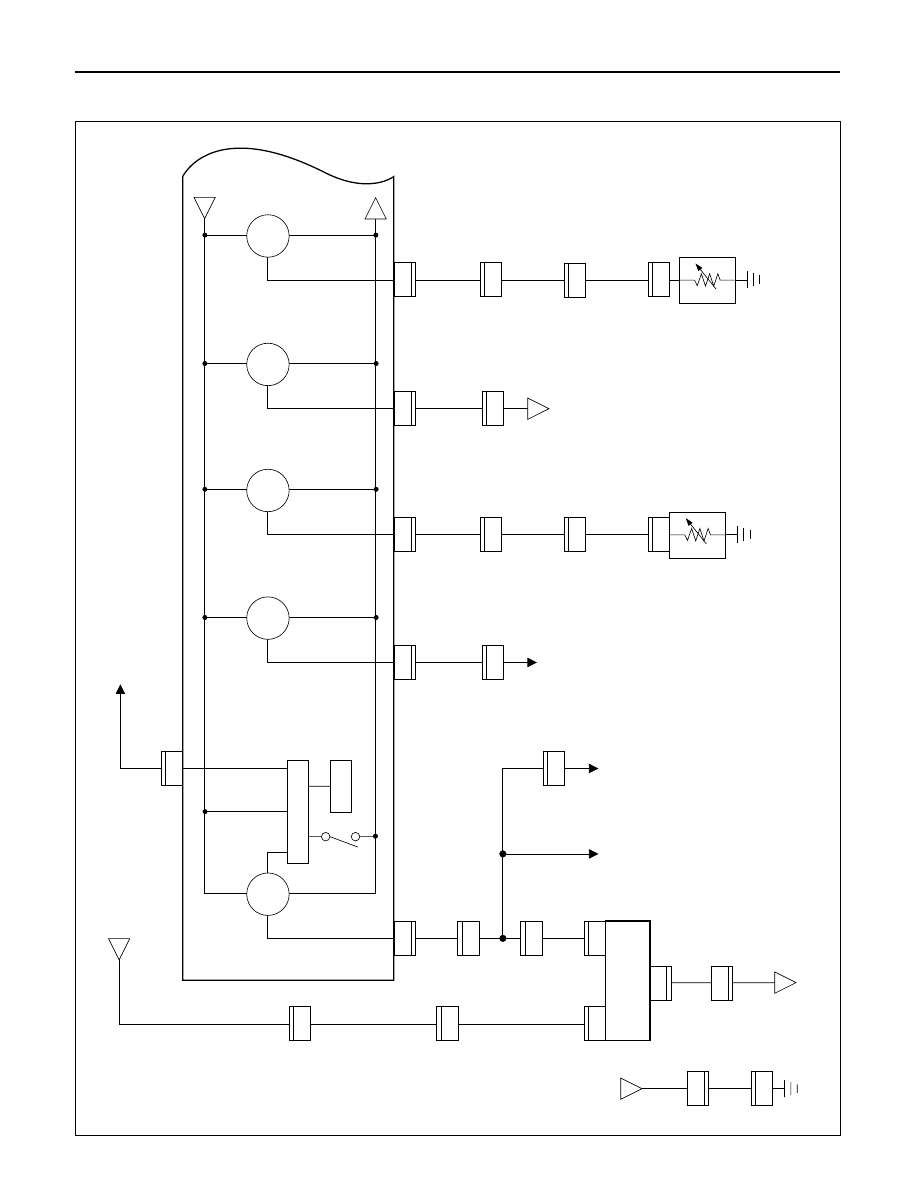

Circuit Diagram (RHD 6V*1 W/O T.O.D)-1

D08RW722

3

C-39

10

H-42

0.5

B/R

0.5

B/R

0.5

B/R

B

D

C

A

FENDER-RH

H-10

4

M-10

2

A

I

0.5

L/Y

0.5

L/Y

0.5

L/Y

1

M-10

9

H-10

3

H-9

0.5

LG/W

0.5

LG/W

0.5

LG/W

0.5

LG/W

0.5

LG/W

0.5

R/W

SPEEDO-

METER

RESET

SW

TACHOMETER

ENGINE

COOLANT

TEMPERATURE

GAUGE

FUEL

GAUGE

OIL

PRESSURE

GAUGE

FUSE C-15

3

M-10

12

5

H-9

11

H-10

VEHICLE

SPEED SENSOR

I-10

0.5

Y/B

0.5

Y/B

0.5

Y/B

1

E-19

1

4

H-24

11

H-6

I-10

2

H-8

PCM

(D7)

CRUISE CONTROL

UNIT(9)

0.5

B/R

15

H-9

PCM

(C10)

9

I-9

0.5

Y/R

14

H-25

20

I-10

ENGINE

COOLANT

TEMPERATURE

UNIT

0.5

Y/G

0.5

Y/V

0.5

Y/B

1

E-2

17

19

H-9

10

H-6

I-10

OIL

PRESSURE

UNIT

8

I-10

METER

ODO/TRIP

METER
