8D–372

WIRING SYSTEM

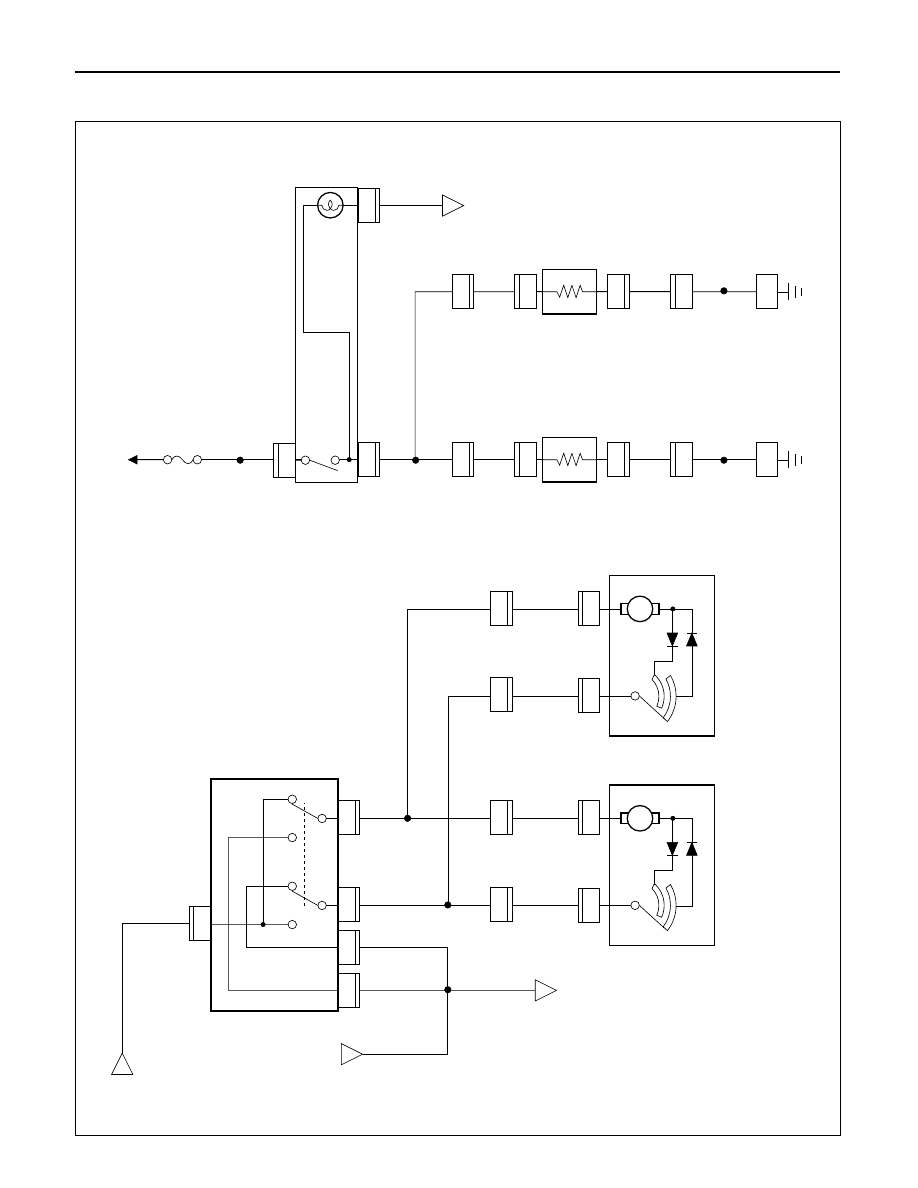

Circuit Diagram (LHD)-2

D08RW088

0.5

B/L

B

0.5

W/G

0.5

B/W

4

6

D-3

C

F

M

M

MIRROR

-LH

RIGHT

LEFT

DOWN

UP

D-3

0.5

B/G

D

0.5

W/B

0.5

B/W

4

6

D-12

E

G

M

M

MIRROR

-RH

RIGHT

LEFT

DOWN

UP

D-12

5

D-3

5

D-12

WIRING SYSTEM

8D–373

Circuit Diagram (LHD)-3

D08RY00233

A

B-56

6

B-56

5

B-56

8

B-56

7

B-56

4

H-22

17

H-22

16

CLOSE

OPEN

0.5

O/G

0.5

B

H

0.5

B

2.0

B

0.5

GR/L

0.5

GR/L

0.5

GR/G

0.5

GR/G

0.5

B

D-3

2

D-3

7

M

MIRROR-LH

H-18

17

H-18

16

0.5

GR/L

0.5

GR/G

0.5

GR/L

0.5

GR/G

D-12

2

D-12

7

M

MIRROR-RH

MIRROR DEFOGGER SW

MIRROR

DEFOGGER

-LH

MIRROR

FOLDING SW

3.0

B/Y

0.5

L/W

0.5

L/W

C-4  15A

ELEC. IGN.

STARTER SW

(IG1)

8

H-22

B-18

1.25

B

0.5

B

0.5

B

0.5

P/W

0.5

P/W

D-3

5

B-57

B-57

7

H-22

1.25

B

0.5

B

5

D-3

3

B-57

4

MIRROR

DEFOGGER

-RH

8

H-18

B-1

BODY-LH

BODY-RH

0.5

B

0.5

P/W

0.5

P/W

0.5

B

D-12

7

H-18

5

D-12

3

I

3

I

8D–374

WIRING SYSTEM

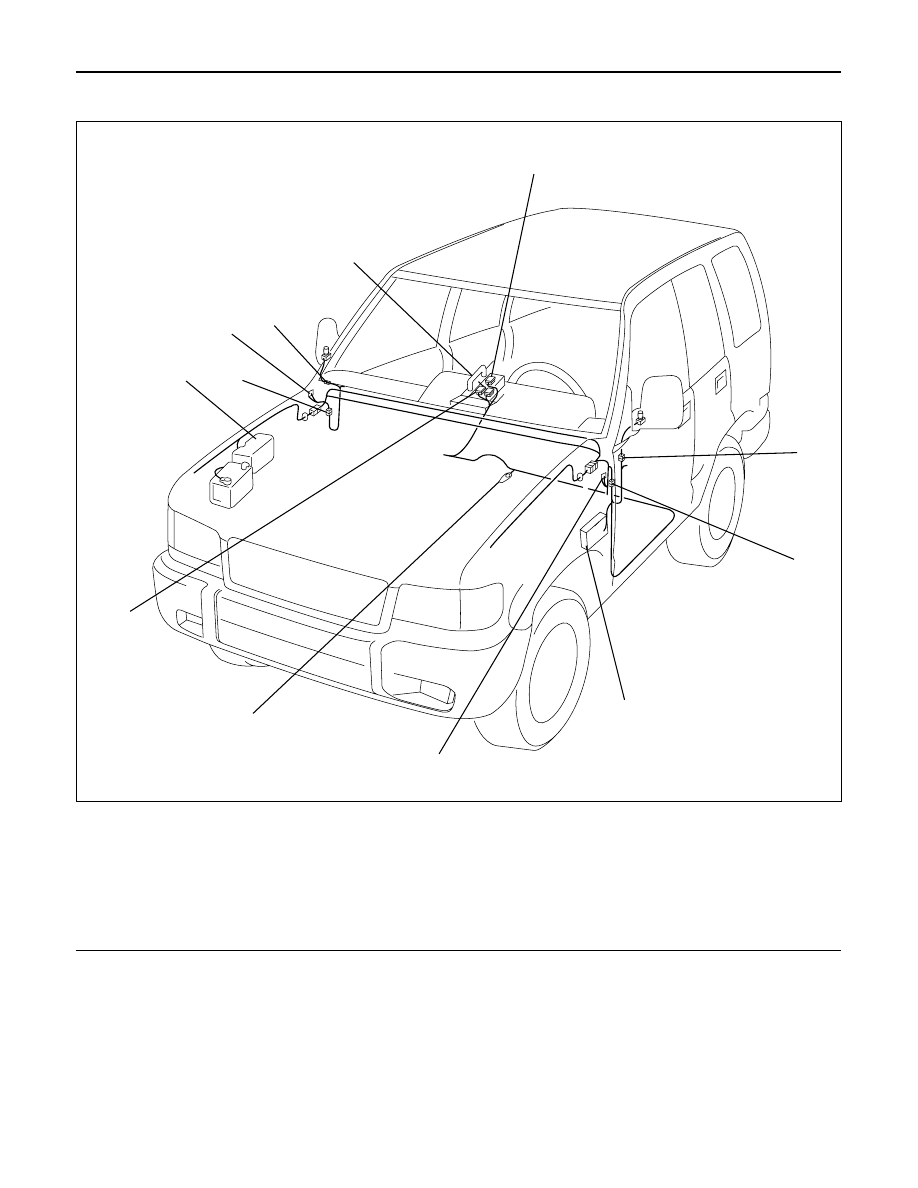

Parts Location (LHD)

Legend

(1) B-55
(2) D-3
(3) H-22
(4) Fuse Box
(5) B-18
(6) B-26

(7) B-57
(8) Relay and Fuse Box
(9) H-18

(10) B-1, B-2
(11) D-12
(12) B-56

D08RW380

2

1

10

11

12

9

8

7

6

5

4

3

WIRING SYSTEM

8D–375

Diagnosis

Quick Chart for Check Points

2.

Mirrors on both sides do not operate

3.

Mirror on the left (or right) side does
not operate

4.

Mirrors on both sides operate only in
the vertical (or horizontal) direction

5.

Mirror on the left side operates only
in the vertical (or horizontal) direction

6.

Mirror on the right side operates only
in the vertical (or horizontal) direction

7.

Folding mechanism of the both
mirrors does not operate

8.

Folding mechanism of the mirror on
the left (or right) side does not operate

9.

Mirror defoggers on both sides do not
operate

Mirror defogger on the left (or right)
side does not operate

Control

switch

Folding

switch

Defogger

switch

C-4

(15A)

C-11

(10A)

SW

LH

RH

Trouble mode

Check point

Door mirror

Door mirror SW

Cable

harness

1.

Fuse

Defogger

Folding

Control
