8A–26

LIGHTING SYSTEM

Illumination Controller

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly(1).

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the lower cluster assembly(2).

Refer to the Instrument Panel Assembly in Body
Structure section.

4. Remove the instrument panel driver lower cover

assembly(3).
Refer to the Instrument Panel Assembly in Body
Structure section.

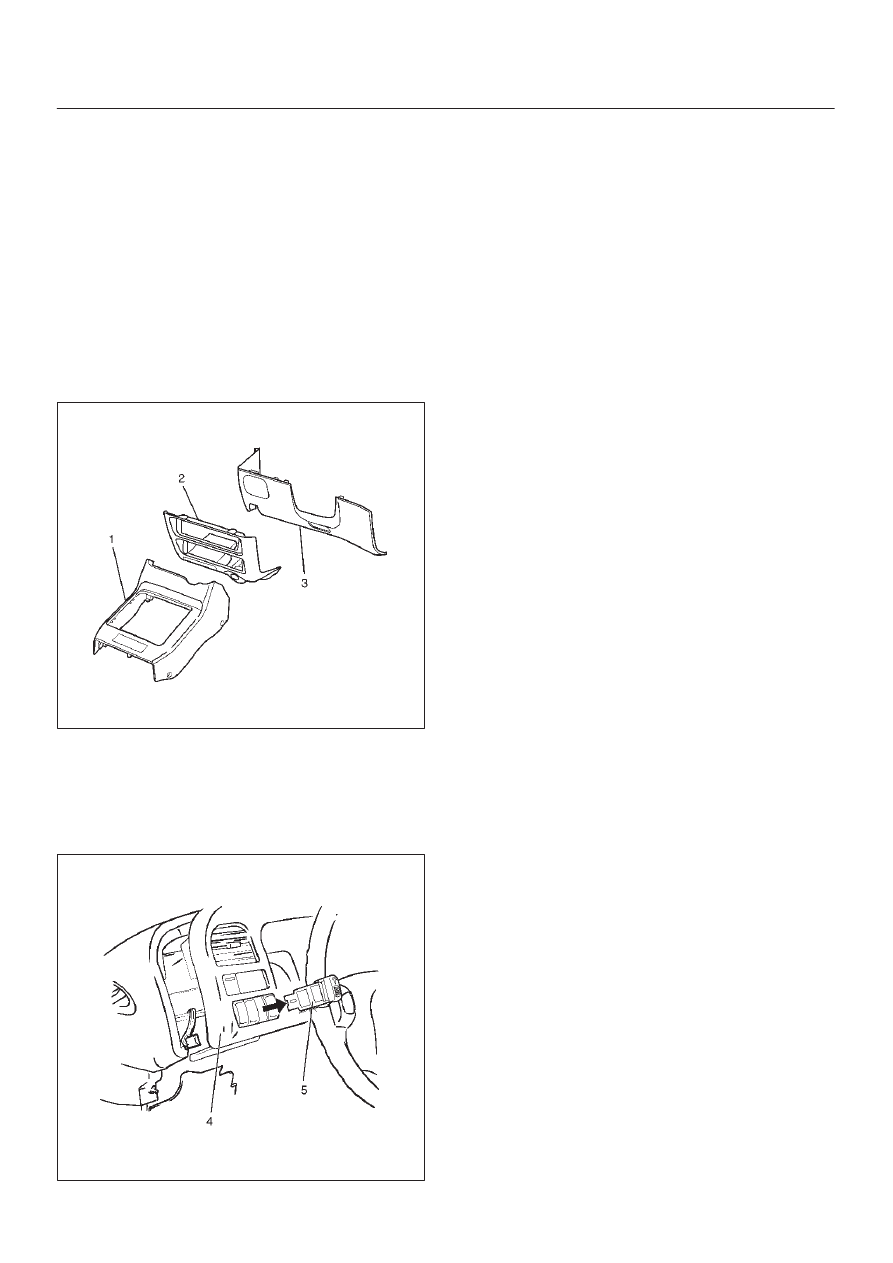

821RW024

5. Remove the instrument panel cluster assembly(4).

Refer to the Instrument Panel Assembly in Body
Structure section.

6. Disconnect the connector and push the lock from the

back side of the instrument panel cluster assembly to
remove the illumination controller(5).

825RW026

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Push in the switch with your fingers until the switch is

locked securely.

LIGHTING SYSTEM

8A–27

Power/Winter Switch

Removal

1. Disconnect the battery ground cable.
2. Remove four fixing screws and disconnect the switch

connectors to remove the front console assembly(4).

3. Push the lock from the back side of the front console

assembly to remove the power/winter switch(5).

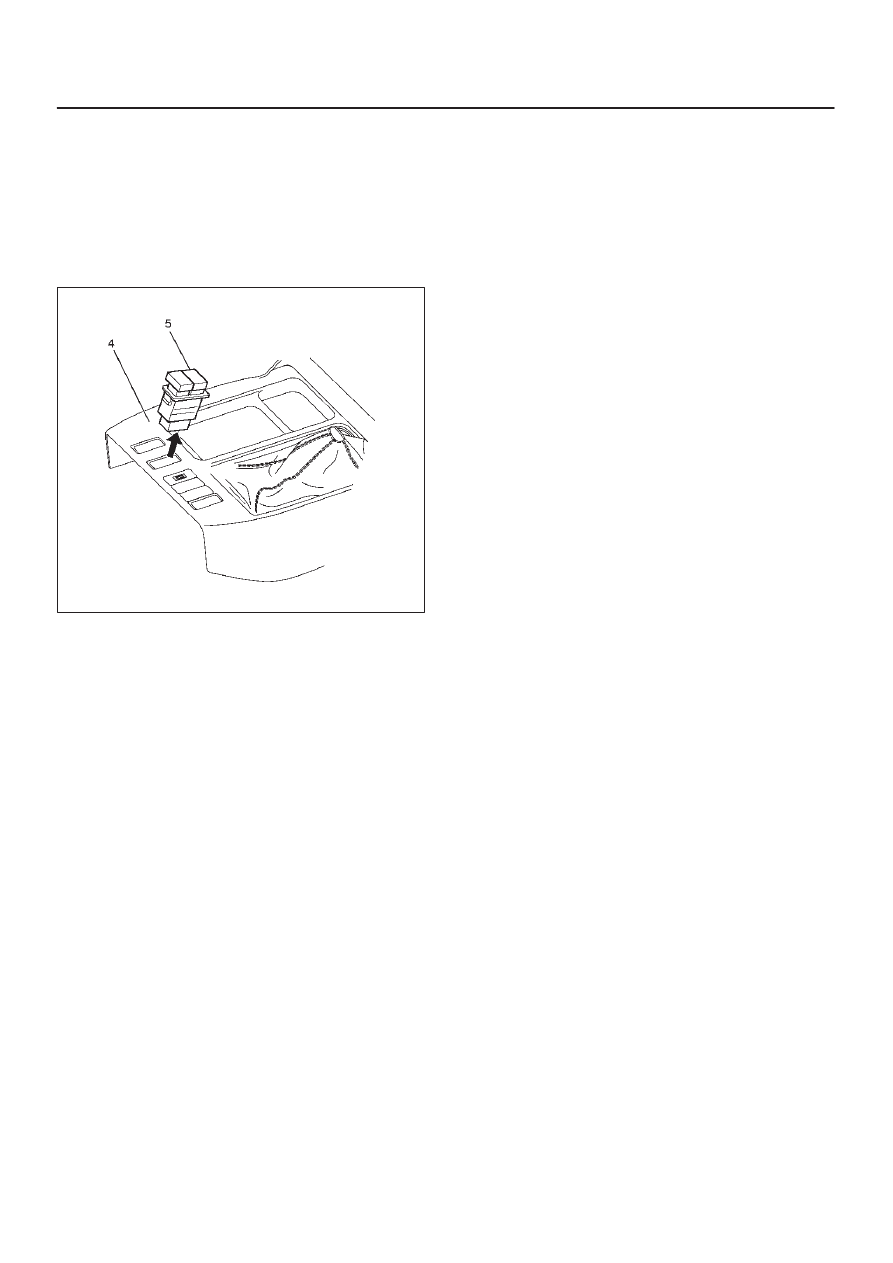

825RW204

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Push the switch with your fingers until it locks

securely.

8A–28

LIGHTING SYSTEM

Main Data and Specifications

Light and Bulb Specifications

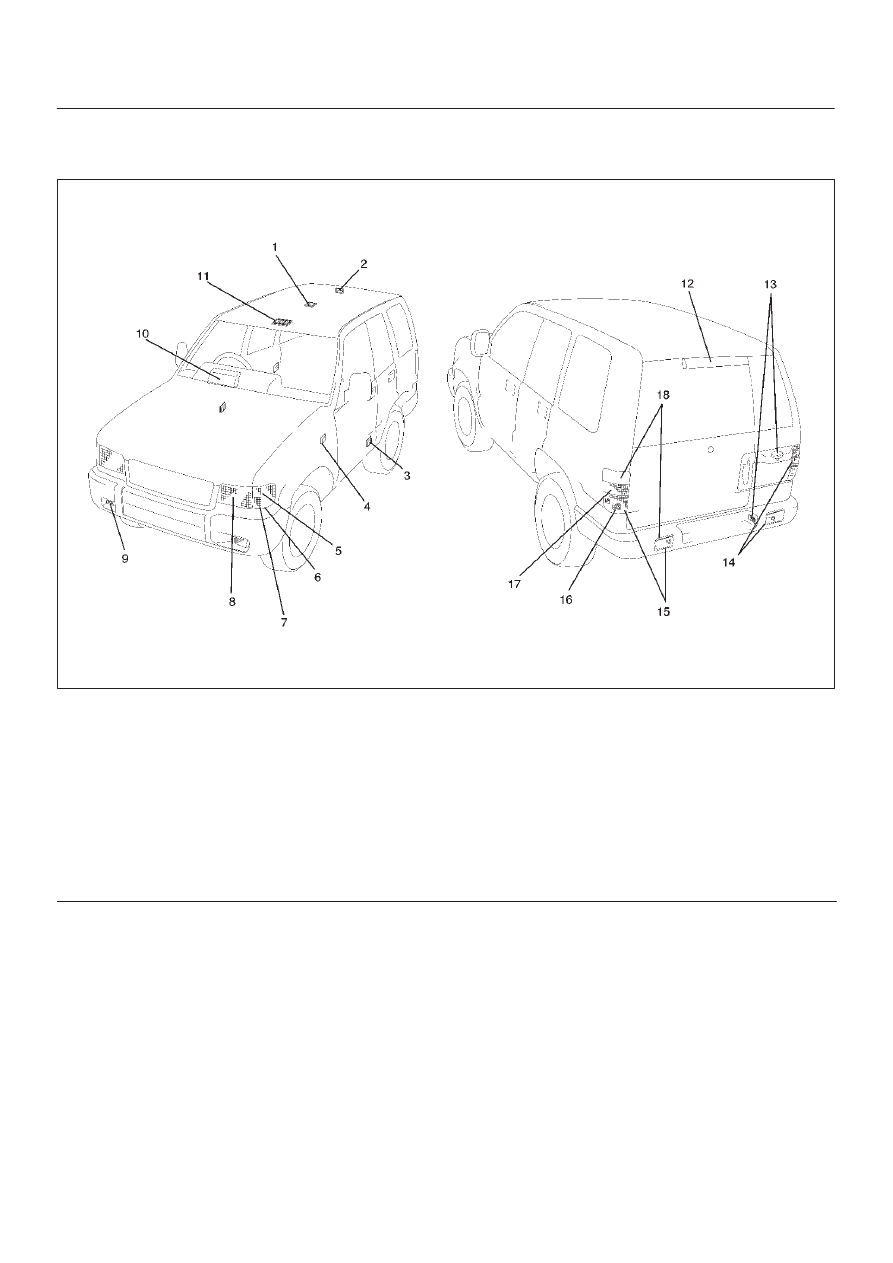

D08RW539

Legend

(1) Dome Light
(2) Luggage Room Light
(3) Courtesy Light
(4) Side Turn Signal Light
(5) Front Turn Signal Light
(6) Clearance Light
(7) Front Combination Light
(8) Headlight
(9) Fog Light

(10) Meter

(11) Map Light

(12) High Mount Step Light
(13) License Plate Light
(14) Rear combination Light
(15) Taillight/Stoplight
(16) Rear Fog Light
(17) Backup Light
(18) Rear Turn Signal Light.

LIGHTING SYSTEM

8A–29

Light Name

Rated Power

Number of

Bulbs

Lens Color

Remarks

Headlight

60w/55w

2

White

Halogen

Front

Turn signal light

21w

2

White

combination

light

Clearance light

5w

2

Amber

FRT fog light

55w

2

White

Halogen

Taillight/Stoplight

5w/21w

2

Red

Rear

Bumper

Turn signal light

21w

2

Amber

combination

light

Taillight/Stoplight

5w/21w

2

Red

Body

Turn signal light

21w

2

Amber

Backup light

21w

2

White

RR fog light

21w

2

Red

Side turn signal light

5w

2

Amber

License plate light

Bumper

5w

2

White

Body

5W

1

White

High mount stoplight

Red

LED

Map light

5w

2

White

Dome light

10w

1

White

Luggage room light

8w

1

White

Courtesy light

3.8w

2

White

A/C SW

60mA

1

RR defogger SW

0.84w

1

Mirror defogger SW

0.84w

1

FRT fog light SW

0.7w

1

RR fog light SW

0.7w

1

Cruise (Set)

1.4w

1

Meter

Cruise (Main)

1.4w

1

Meter

Check trans

3w

1

Meter

Anti-theft

3w

1

Warning box

Turn signal

1.4w

2

Meter

Golw

1.4w

1

Meter

Water sedimenter

1.4w

1

Meter

Indicator/

High beam

1.4w

1

Meter

Warning

light

ABS

1.4w

1

Meter

Check engine

1.4w

1

Meter

Low fuel

1.4w

1

Meter

4WD

1.4w

1

Meter

Oil Pressure

1.4w

1

Meter

Brake system

1.4w

1

Meter

Charge

1.4w

1

Meter

Seat belt

2w

1

Meter

A/T shift position

0.91w

7

Meter

A/T oil temp

3w

1

Meter
