TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–59

DTC P0730 Gear Error Without Input Speed  (Cont’d)

Step

No

Yes

Action

5

Perform line pressure check.

D

Refer to Line Pressure Test in Automatic Transmission
(4L30–E) section.

Was condition found and corrected?

Go to Step 7

Go to Step 6

6

Check for possible clutch slippage.

D

Refer to Chart 6: Diagnostic Trouble Code (DTC) P0730 of
Mechanical/Hydraulic Diagnosis Symptoms Index in
Automatic Transmission (4L30–E) section.

Was condition found and corrected?

Go to Step 7

—

7

1. After the repair is complete, use the scan tool to select “DTC”,

then “Clear info” function.

2. Operate the vehicle under the following conditions:

D

Drive the vehicle in D4 with the engine speed greater than
3,500 rpm to obtain anyone of the following gear ratios for
seven seconds.

1st 1:2.73 – 1:2.99

2nd 1:1.54 – 1:1.71

3rd 1:0.93 – 1:1.05

4th 1:0.66 – 1:0.78

Has the  last test failed?

Begin diagnosis

again

Go to Step 1

Repair verified
Exit DTC table

7A1–60 TRANSMISSION CONTROL SYSTEM (4L30–E)

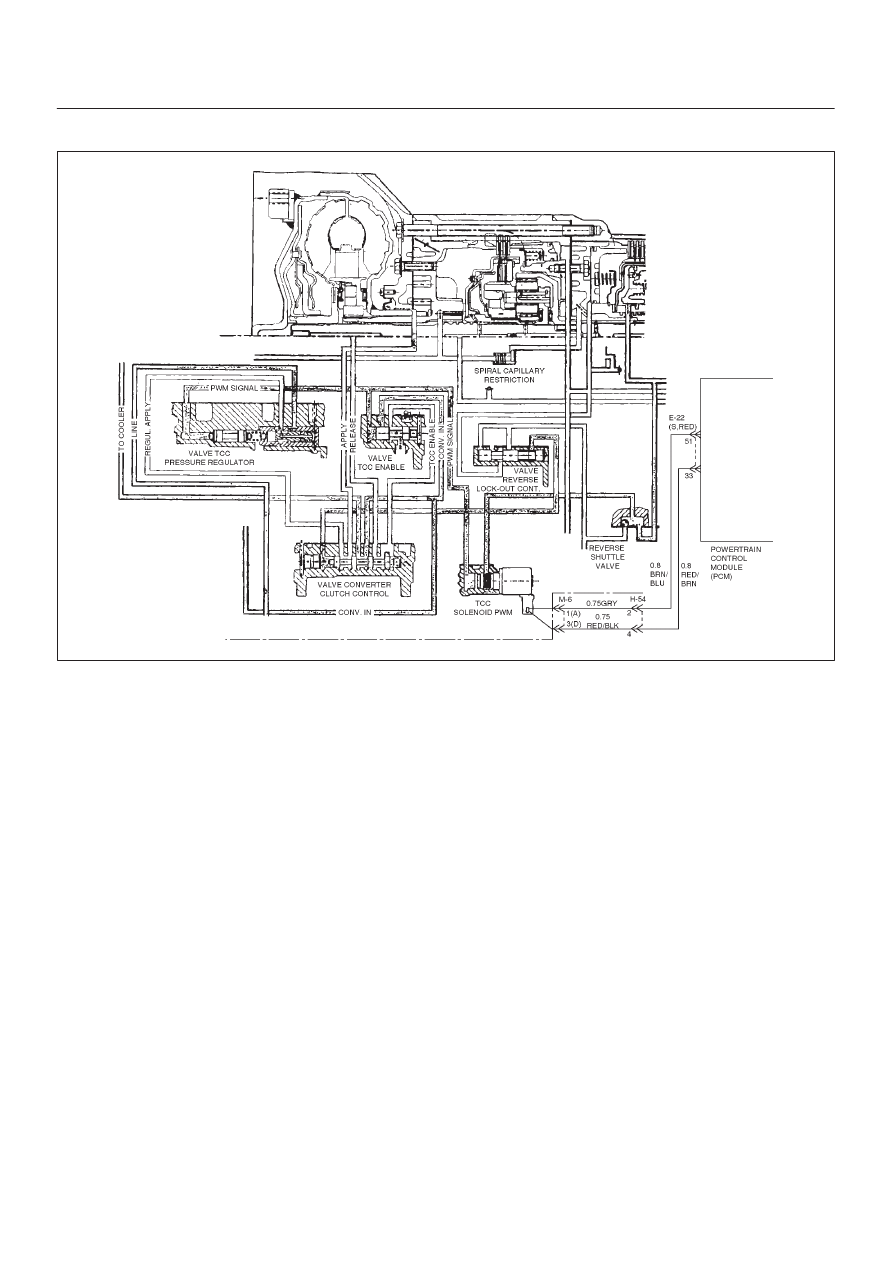

DTC P0742 Torque Converter Clutch (TCC) System Stuck On

D07R200051

Circuit Description

The PCM energizes the TCC solenoid by creating an
ignition voltage on circuit BRN/BLU.  When ignition
voltage is energized by the PCM, the TCC solenoid stops
converter signal oil from exhausting.  This causes
converter signal oil pressure to increase and move the
TCC valve.  The TCC solenoid will deenergize when the
PCM no longer provides  ignition voltage.  When the TCC
solenoid is deenergized, it will exhaust fluid and release
the TCC.
This DTC detects low torque converter slip when the TCC
is commanded “off”.  This is a type “B” DTC.

Conditions For Setting The DTC

The following conditions occur once per TCC cycle, three
consecutive times:

D

No TPS DTCs P0122 or P0123.

D

No OSS DTCs P0722 or P0723.

D

No TCC solenoid DTC P1860.

D

TP angle is greater than 20%.

D

Engine speed is greater than 500 rpm and less than
3,000 rpm.

D

Engine vacuum is between 0 and 70 kPa.

D

Commanded gear is not 1st.

D

Gear range is D4.

D

TCC is commanded “off”.

D

No TCC Stuck off DTC P1870.

D

TCC slip speed is between –20 and 40 rpm for 2
seconds.

D

Vehicle speed is greater than 25 km/h (15 mph) and
less than 120 km/h (75 mph).

D

Speed ratio is greater than 0.9 and less than 2.0.

Action Taken When The DTC Sets

D

For lamp illuminate refer to DTC type definition (type
B).

D

Inhibit TCC engagement.

Conditions For Clearing The MIL/DTC

D

The PCM will turn off the MIL and CHECK TRANS
Lamp after three consecutive ignition cycles without a
failure reported.

D

The DTC can be cleared from the PCM history by
using a scan tool.

D

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

D

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled “off”
long enough to power down the PCM.

TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–61

Diagnostic Aids

D

If the TCC is mechanically stuck “on” with the parking
brake applied and any gear range selected, the TCC
fluid will mechanically apply the TCC, possibly
causing an engine stall.

Test Description

The number below refers to the step number on the
diagnostic chart:
3. This test checks the mechanical state of the TCC.

(When the PCM commands the TCC solenoid “off”,
the slip speed should increase).

DTC P0742 Torque Converter Clutch (TCC) System Stuck On

Step

Action

Yes

No

1

Were you sent here from the “Powertrain On–Board Diagnostic
(OBD) System Check”?

Go to Step 2

Go to OBD

System Check

Refer to

Driveability and

Emissions in

Engine section

2

1. Install the scan tool.
2. With the engine “off”, turn the ignition switch “on”.

NOTE: Before clearing DTC(s), use the scan tool to record “Freeze
Frame” and “Failure Records” for reference, as data will be lost
when the “Clear Info” function is used.

3. Record the DTC “Freeze Frame” and “Failure Records”.
4. Using the scan tool, verify the “TP Sensor” operation.

Are the “TP Sensor” values within 0.6 – 5.0 volts?

Go to Step 3

Go to Diagnostic

Aids

3

Drive the vehicle in the D4 drive range in fourth gear under steady
acceleration, with a TP angle greater than 20%.

Does the scan tool display “TCC Slip Speed” between –30 and
+30 rpm, while the displayed TCC solenoid state is “off”?

Go to Step 4

Go to Diagnostic

Aids

4

The TCC is mechanically stuck “on”.  Check the following items:

D

Clogged exhaust orifice in the TCC solenoid.

D

Converter clutch apply valve stuck in the apply position.

D

Misaligned or damaged valve body gasket.

D

Restricted release passage.

Was a problem found and corrected?

Go to Step 5

—

5

1. After the repair is complete, use the scan tool to select “DTC”,

then “Clear Info” function and ensure the following conditions
are met:
TCC slip speed must be between 200 and 2,500 rpm for 4
seconds.

2. Review the scan tool “DTC Info”.

Has the last test failed or is the current DTC displayed?

Begin diagnosis

again

Go to Step 1

Repair verified
Exit DTC table

7A1–62 TRANSMISSION CONTROL SYSTEM (4L30–E)

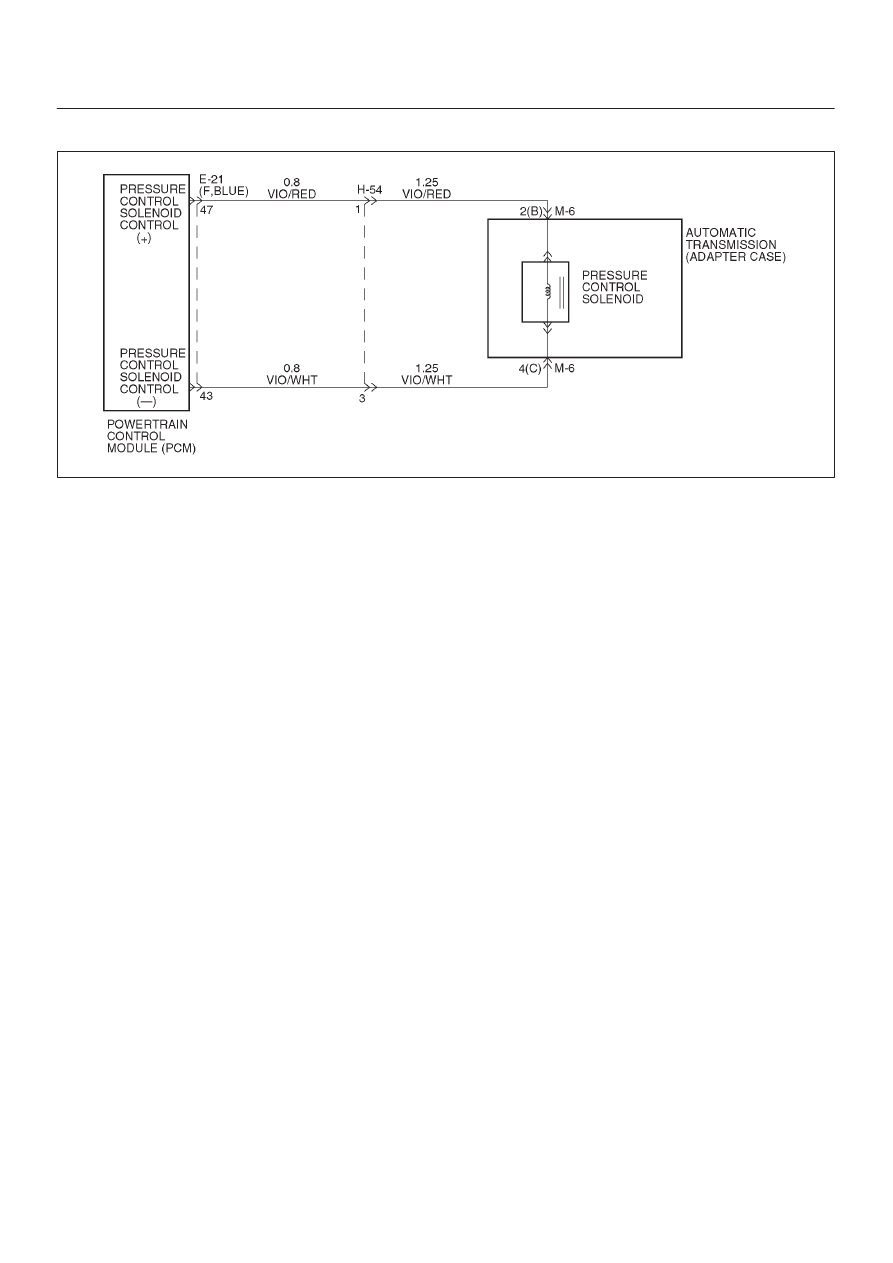

DTC P0748 Pressure Control Solenoid (PCS) (Force Motor) Circuit Electrical

D07R200052

Circuit Description

The PCS is a PCM–controlled device used to regulate
transmission line pressure.  The PCM compares TPS
voltage, engine rpm, and other inputs to determine the
line pressure appropriate for a given load.  The PCM will
regulate the pressure by applying a varying amperage to
the PCS.  The applied amperage can vary from 70 to 1060
milliampere (mA), and is monitored by the PCM.
This DTC detects a continuous open or short to ground in
the PCS circuit or the PCS.  This is a type “C” DTC.

Conditions For Setting The DTC

D

Battery voltage is between 10 and 16 volts.

D

The PCM detects that the different between
commanded and actual current is 200 milliampere
(mA) for over 1 second.

D

Engine speed is greater than 300 rpm.

Action Taken When the DTC Sets

D

The PCM will not illuminate the Malfunction Indicator
Lamp (MIL).

D

Maximum line pressure.

D

The PCM will illuminate the CHECK TRANS Lamp.

D

Turn force motor OFF (Durability).

Conditions For Clearing The DTC/CHECK
TRANS Lamp

D

The PCM will turn “off” the CHECK TRANS Lamp
after three consecutive ignition cycles without a
failure reported.

D

The DTC can be cleared from PCM history by using a
scan tool.

D

The DTC will be cleared from memory when the
vehicle has achieved 40 warmup cycles without a
failure reported.

D

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled “off”
long enough to power down the PCM.

Diagnostic Aids

D

Inspect the wiring for poor electrical connection at the
PCM and at the transmission 4–way connector.  Look
for possible bent, backed out, deformed or damaged
terminals.  Check for weak terminal tension as well.
Also check for a chafed wire that could short to bare
metal or other wiring.  Inspect for a broken wire inside
the insulation.

D

When diagnosing for a possible intermittent short or
open condition, move the wiring harness while
observing test equipment for a change.

Test Description

The numbers below refer to the step numbers on the
diagnostic chart:
2. This test checks the ability of the PCM to command

the PCS.

3. This test checks the PCS and internal wiring harness

for incorrect resistance.
