Opel Frontera UBS. Manual - part 2587





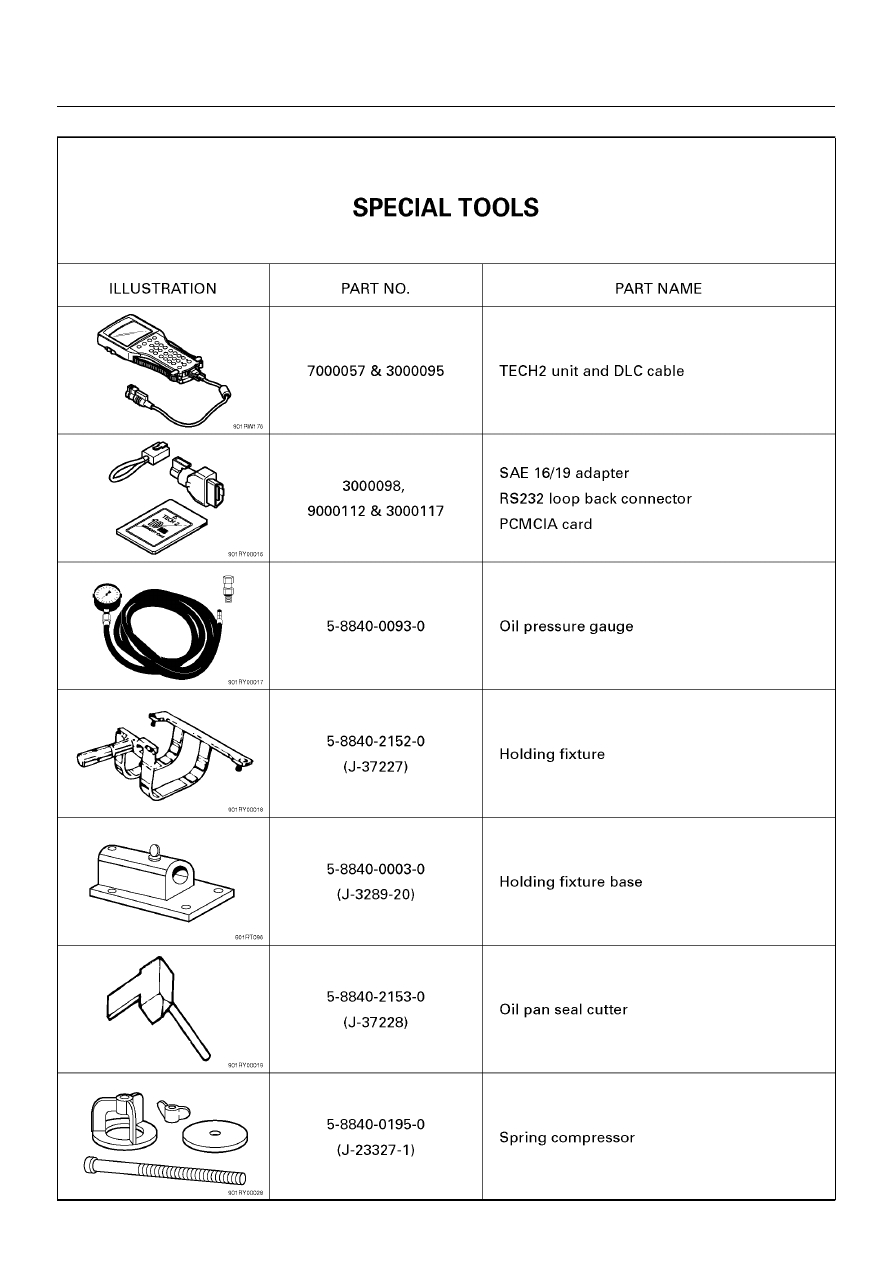

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–211

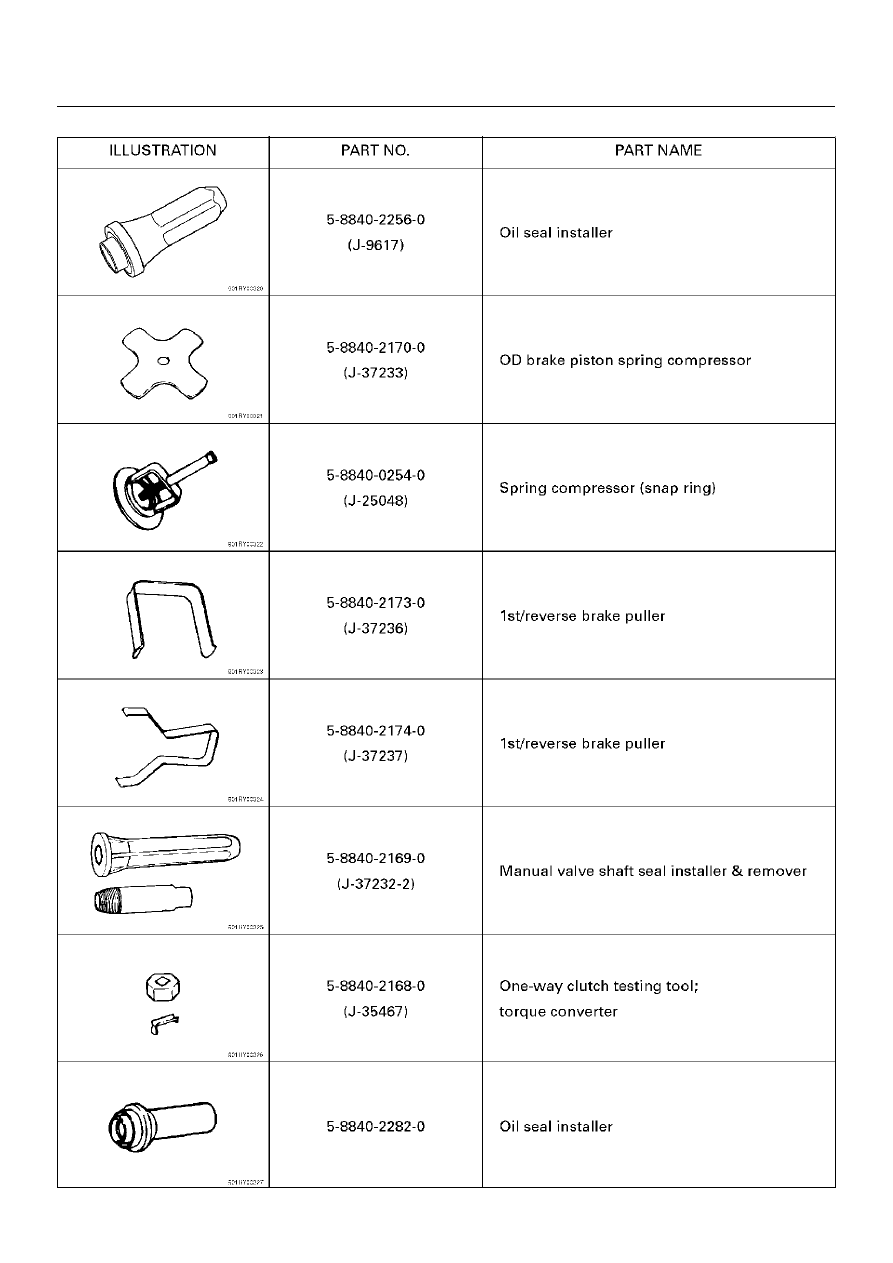

7A–212

AUTOMATIC TRANSMISSION (AW30-40LE)

TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–1

TRANSMISSION

TRANSMISSION CONTROL SYSTEM (4L30–E)

CONTENTS

Service Precaution

7A1–2

. . . . . . . . . . . . . . . . . . . . . .

General Description

7A1–2

. . . . . . . . . . . . . . . . . . . . .

Electronic Control Diagram

7A1–3

. . . . . . . . . . . . .

Powertrain Control Module (PCM)

7A1–4

. . . . . . .

Control System Diagram

7A1–5

. . . . . . . . . . . . . . .

Shift Control

7A1–6

. . . . . . . . . . . . . . . . . . . . . . . . . .

Band Apply Control

7A1–6

. . . . . . . . . . . . . . . . . . . .

Torque Converter Clutch Control

7A1–6

. . . . . . . . .

Line Pressure Control

7A1–6

. . . . . . . . . . . . . . . . . .

On–Board Diagnostic System

7A1–6

. . . . . . . . . . .

Fail Safe Mechanism

7A1–6

. . . . . . . . . . . . . . . . . . .

Torque Management Control

7A1–6

. . . . . . . . . . . .

ATF Warning Control

7A1–6

. . . . . . . . . . . . . . . . . . .

ABS Control (If equipped)

7A1–6

. . . . . . . . . . . . . .

Shift Mode Control

7A1–7

. . . . . . . . . . . . . . . . . . . . .

Gear Shift Control

7A1–8

. . . . . . . . . . . . . . . . . . . . .

Winter Drive Mode

7A1–9

. . . . . . . . . . . . . . . . . . . . .

Backup Mode

7A1–9

. . . . . . . . . . . . . . . . . . . . . . . . .

Functions of Input / Output Components

7A1–10

. .

Diagnosis

7A1–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electronic Diagnosis

7A1–11

. . . . . . . . . . . . . . . . . . .

Check Trans Indicator

7A1–11

. . . . . . . . . . . . . . . . . .

Diagnostic Check

7A1–11

. . . . . . . . . . . . . . . . . . . . . .

“Check Trans” Check

7A1–12

. . . . . . . . . . . . . . . . . .

Tech2 OBD II Connection

7A1–13

. . . . . . . . . . . . . . .

F0: Transmission Data

7A1–18

. . . . . . . . . . . . . . . . .

F1: PC Solenoid Data

7A1–19

. . . . . . . . . . . . . . . . . .

OBD II Diagnostic Management System

7A1–20

. .

16 – Terminal Data Link Connector (DLC)

7A1–21

Malfunction Indicator Lamp (MIL)

7A1–22

. . . . . . . .

Types Of Diagnostic Trouble Codes (DTCs)

7A1–22

Clear DTC

7A1–22

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC Check

7A1–23

. . . . . . . . . . . . . . . . . . . . . . . . . . .

PCM Precaution

7A1–23

. . . . . . . . . . . . . . . . . . . . . . .

Information On PCM

7A1–23

. . . . . . . . . . . . . . . . . . .

Intermittent Conditions

7A1–23

. . . . . . . . . . . . . . . . .

Transmission And PCM Identification

7A1–24

. . . . .

Isuzu Trooper

7A1–25

. . . . . . . . . . . . . . . . . . . . . . . . .

Diagnostic Trouble Code (DTC)
 Identification

7A1–26

. . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0218 Transmission Fluid Over
 Temperature

7A1–27

. . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0560 System Voltage Malfunction

7A1–29

. . .

DTC P0705 Transmission Range Switch
 (Mode Switch) Illegal Position

7A1–32

. . . . . . . . . . . .

DTC P0706 Transmission Range Switch
 (Mode Switch) Performance

7A1–35

. . . . . . . . . . . . . .

DTC P0712 Transmission Fluid Temperature
 (TFT) Sensor Circuit Low Input

7A1–38

. . . . . . . . . . .

DTC P0713 Transmission Fluid Temperature
 (TFT) Sensor Circuit High Input

7A1–41

. . . . . . . . . . .

DTC P0719 TCC Brake Switch Circuit High
 (Stuck On)

7A1–44

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0722 Transmission Output Speed
 Sensor (OSS) Low Input

7A1–47

. . . . . . . . . . . . . . . . .

DTC P0723 Transmission Output Speed
 Sensor (OSS) Intermittent

7A1–50

. . . . . . . . . . . . . . .

DTC P0730 Transmission Incorrect Gear
 Ratio

7A1–53

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0748 Pressure Control Solenoid
 (PCS) (Force Motor) Circuit Electrical

7A1–56

. . . . .

DTC P0753 Shift Solenoid A Electrical

7A1–58

. . . . .

DTC P0758 Shift Solenoid B Electrical

7A1–61

. . . . .

DTC P1790 ROM Transmission Side Bad
 Check Sum

7A1–65

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P1792 EEPROM Transmission Side
 Bad Check Sum

7A1–66

. . . . . . . . . . . . . . . . . . . . . . . .

DTC P1835 Kickdown Switch Always On

7A1–67

. . .

DTC P1850 Brake Band Apply Solenoid
 Malfunction

7A1–69

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P1860 TCC Solenoid Electrical

7A1–73

. . . . . . .

Transmission Fluid Temperature (TFT)
 Sensor Specifications

7A1–76

. . . . . . . . . . . . . . . . . . .

SECTION

7A1–2

TRANSMISSION CONTROL SYSTEM (4L30–E)

Service Precaution

WARNING: IF SO EQUIPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

General Description

The 4L30–E is a 4–speed fully automatic transmission. It
uses a microcomputer as a control unit to judge running
conditions including throttle opening rate and vehicle
speed, then it sets the shifting point in the optimum timing
so that best driving performance can be achieved.
In addition, the built–in shift mode select function can
select three shift modes according to the driver’s
preference:

D

Normal mode –Normal shift pattern.

D

Winter mode –Starts in 3rd gear to reduce slippage on
ice or snow.

D

Power mode has a delayed upshift for when more
powerful acceleration is required.

Also, the built–in fail safe function (“backup mode”)
assures driving performance even if the vehicle speed
sensor, throttle signal or any solenoid fails.
Further, the self–diagnostic function conducts diagnosis
in a short time when the control system fails, thus
improving serviceability.
The major features of 4L30–E are as follows:

D

A compact structure consisting of 2 sets of planetary
gears and flat torque converter.

D

Electronic control selects the optimum shift mode
according to the driving conditions.

D

Electronic control maintains the optimum hydraulic
pressure for clutch, band brake as well as
transmission so that shift feeling is improved.

D

Two sets of planetary gears reduce friction of power
train.

Also, a lockup mechanism in the torque converter
reduces fuel consumption.

D

Wide gear ratio and high torque rate of torque
converter provide excellent starting performance.
