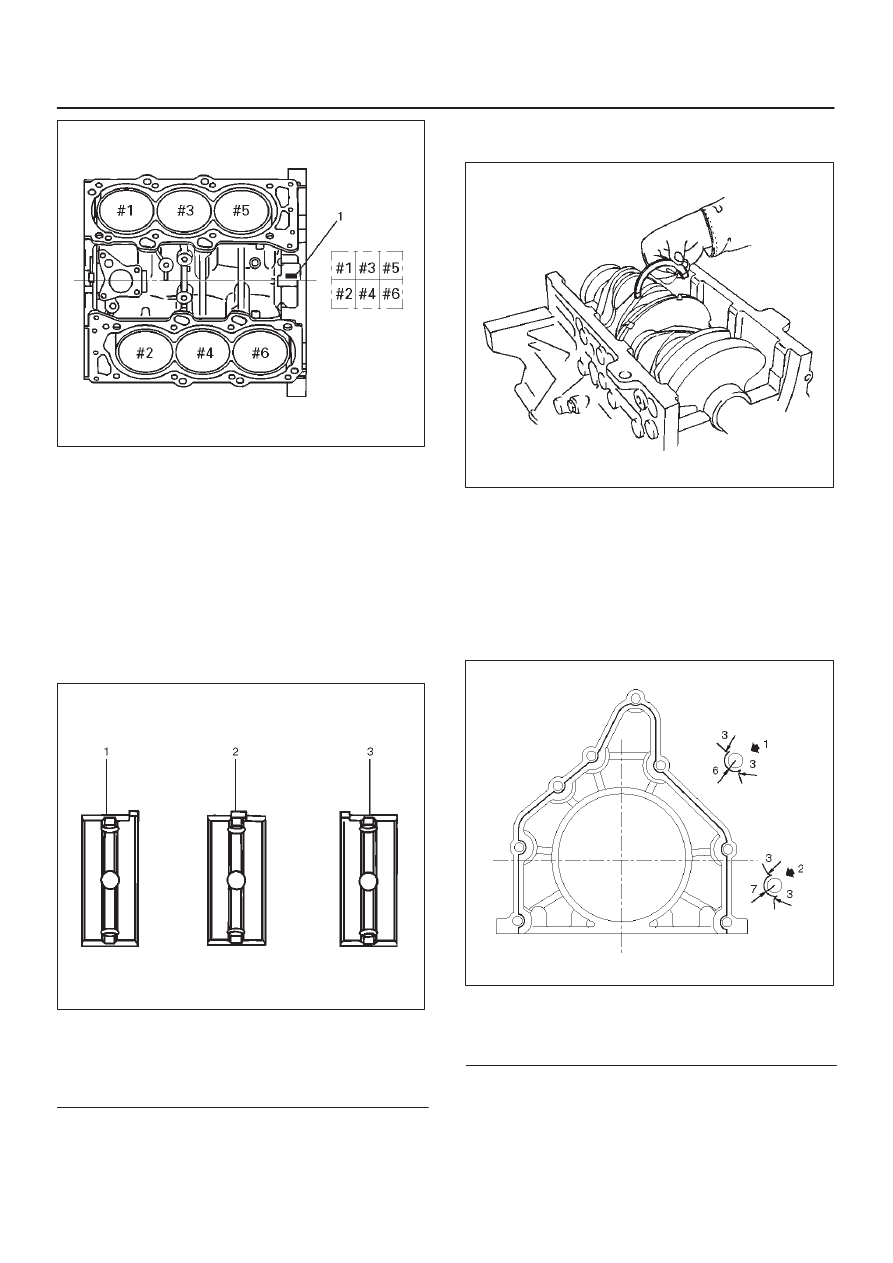

6A–87 ENGINE MECHANICAL 012RS006 Reassembly 1. Install cylinder block. D Install the main bearings to the cylinder block and D Be sure that they are positioned correctly. D Apply new engine oil to the upper and lower main NOTE: Do not apply engine oil to the bearing back faces. 015RS012 Legend (1) Number 1 and 4 main bearing upper and lower. D Carefully mount the crankshaft. D Apply engine oil to the thrust washer. D Assemble the thrust washer to the No. 3 bearing 015RS013 3. Install rear oil seal retainer. D Remove oil on cylinder block and retainer fitting D Apply sealant (TB1207B or equivalent) to retainer D The oil seal retainer must be installed within 5 015RW002 Legend (1) Around Bolt Holes D Apply engine oil to oil seal lip and align a dowel pin D Tighten retainer fixing bolts to the specified torque. Torque: 25 N·m (2.5 Kg·m/18.4 lb ft) |
