AUTOMATIC TRANSMISSION (AW30-40LE)

7A–55

CONNECTOR LIST

No.

Connector face

No.

Connector face

H-42

H-9

(RHD)

I-9

H-9

(LHD)

I-10

H-12

(RHD)

H-24

(RHD)

H-24

(LHD)

H-25

(LHD)

H-26

(RHD)

H-30

(NATURAL)

H-32

7A–56

AUTOMATIC TRANSMISSION (AW30-40LE)

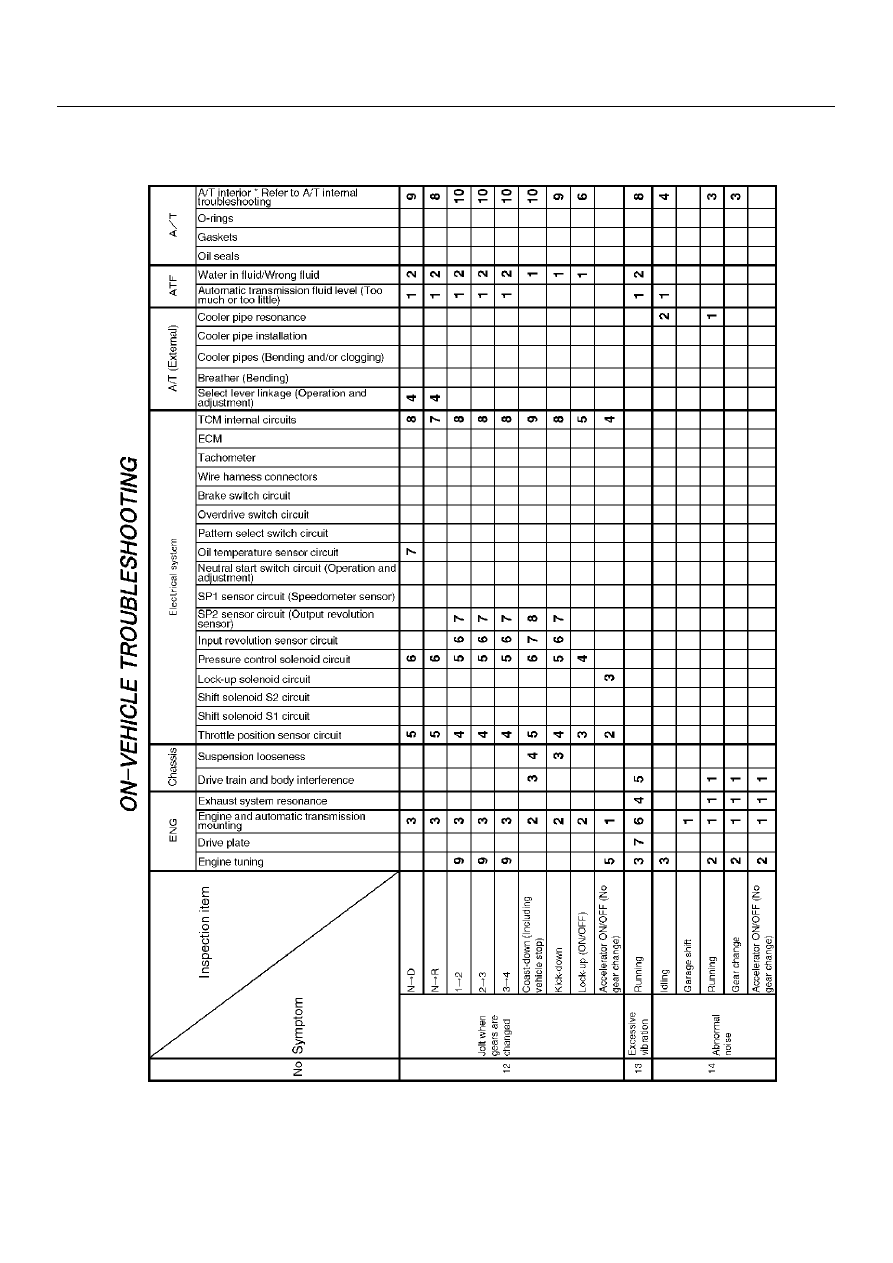

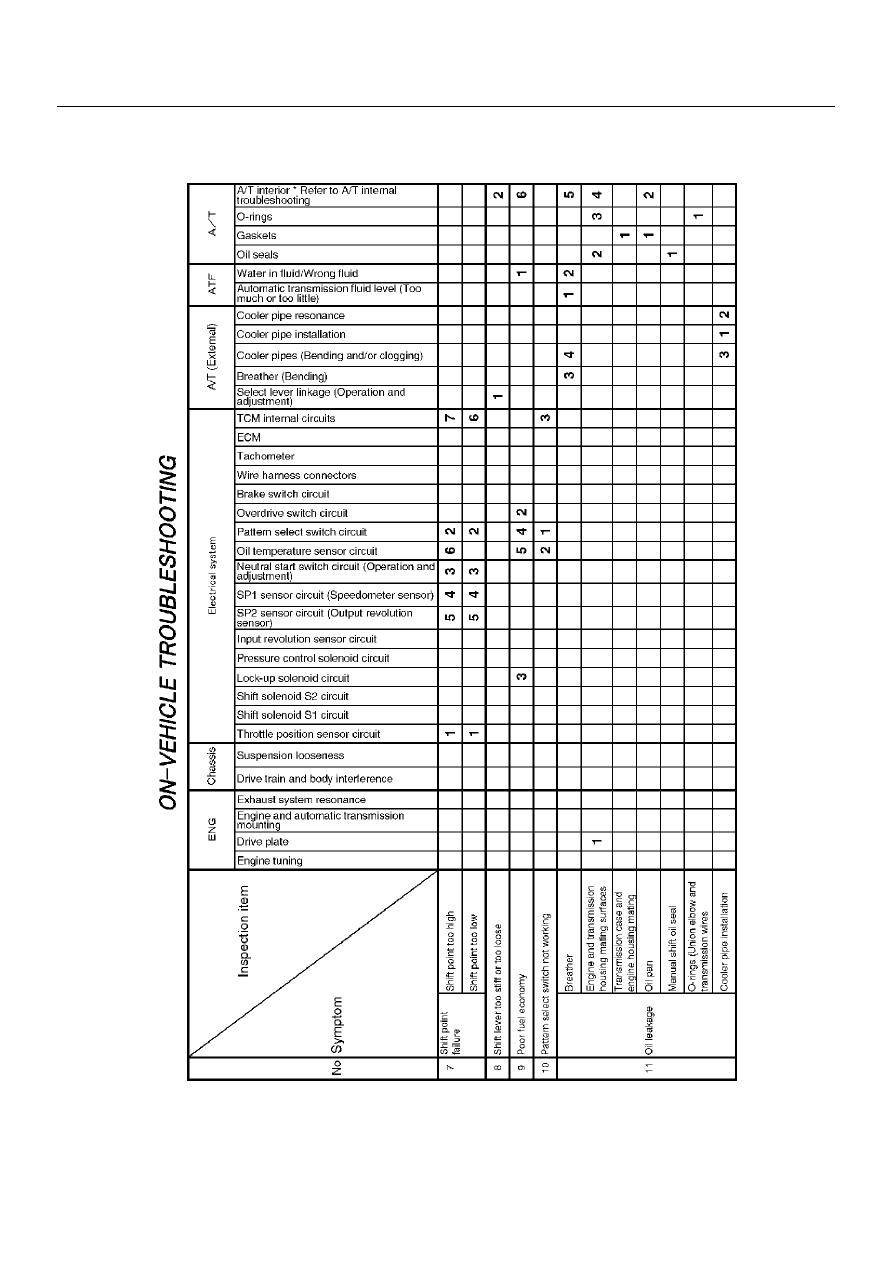

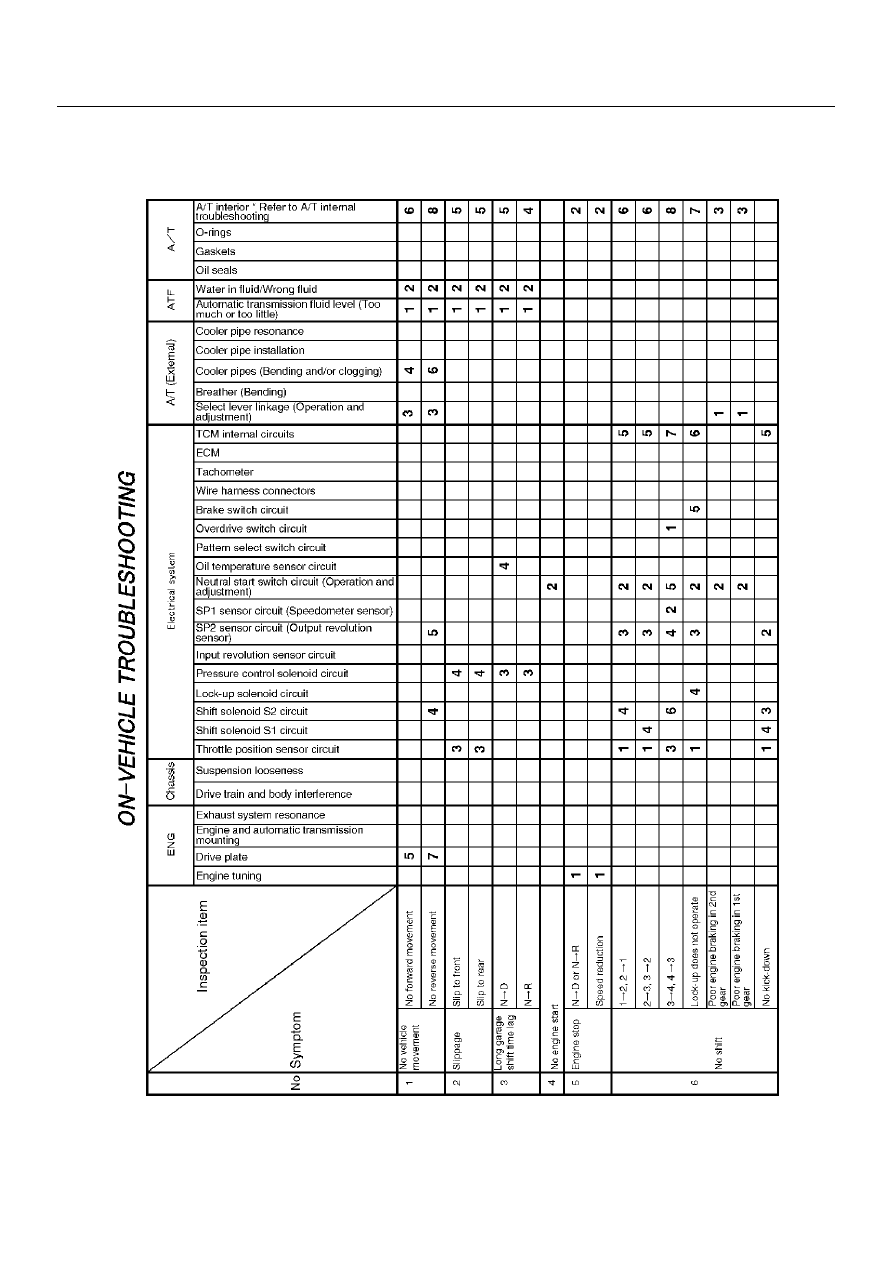

TROUBLESHOOTING CHART

Number are arranged in order of probability.
Parform inspections starting with number one and working up.

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–57

7A–58

AUTOMATIC TRANSMISSION (AW30-40LE)
