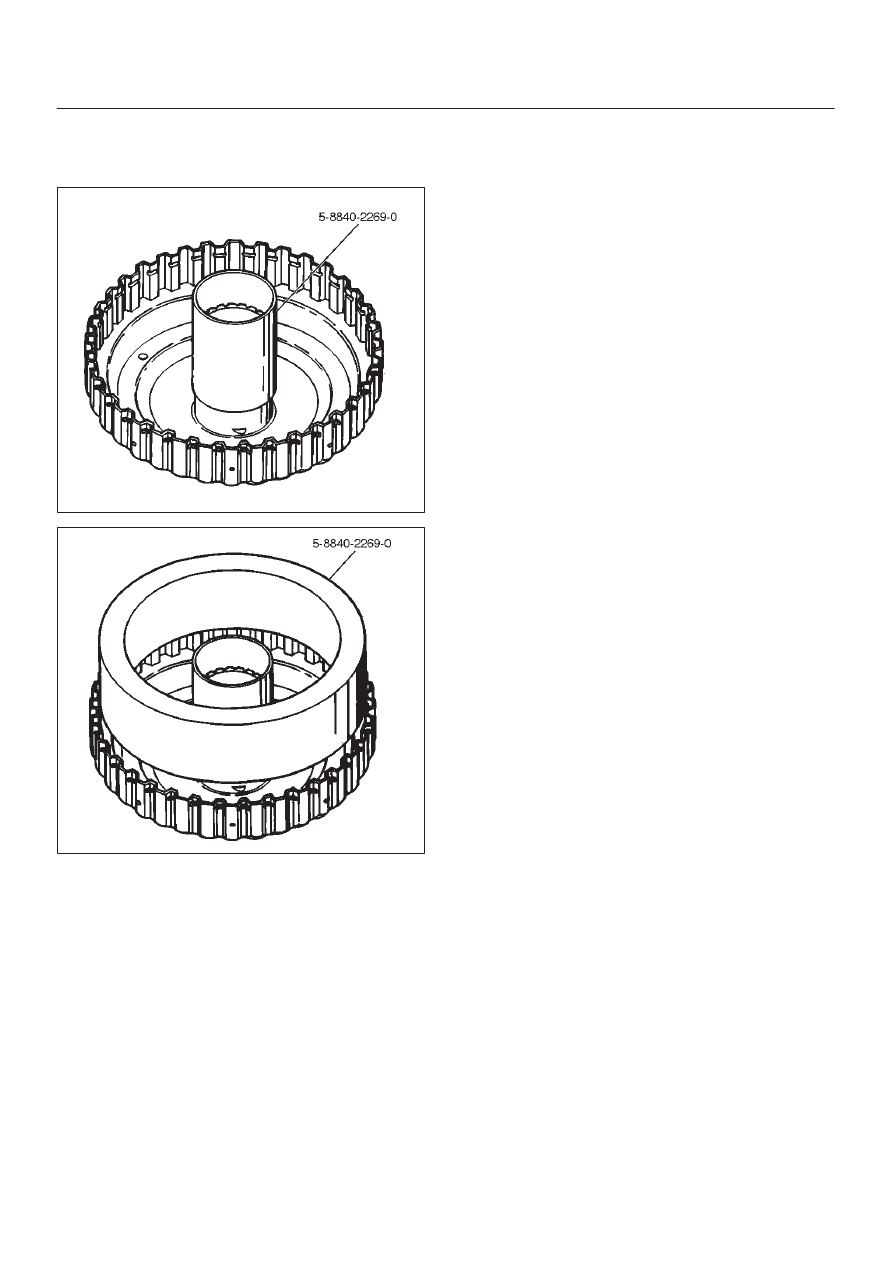

7A–78 AUTOMATIC TRANSMISSION (4L30–E) D Install overrun clutch piston assembly (13). Use the D Remove the installer. 252RW012 252RW013 3. Install diaphragm spring (12). faces upwards), overrun roller clutch assembly (10), 5. Place snap ring loosely on spring retainer. D Hold the 5–8840–2275–0 (J–23327–91) D Set snap ring (8) in ring groove. D Remove the compressor. 6. Install clutch plates (7), start with steel plate and alternate with lined plates. 7. Install backing plate (6). downwards. 10. Install the overdrive carrier assembly (2). NOTE: Turn the assembly in a counter–clockwise 11. Install turbine shaft (4) and snap ring (1). |
