7A–58

AUTOMATIC TRANSMISSION (4L30–E)

242RW008

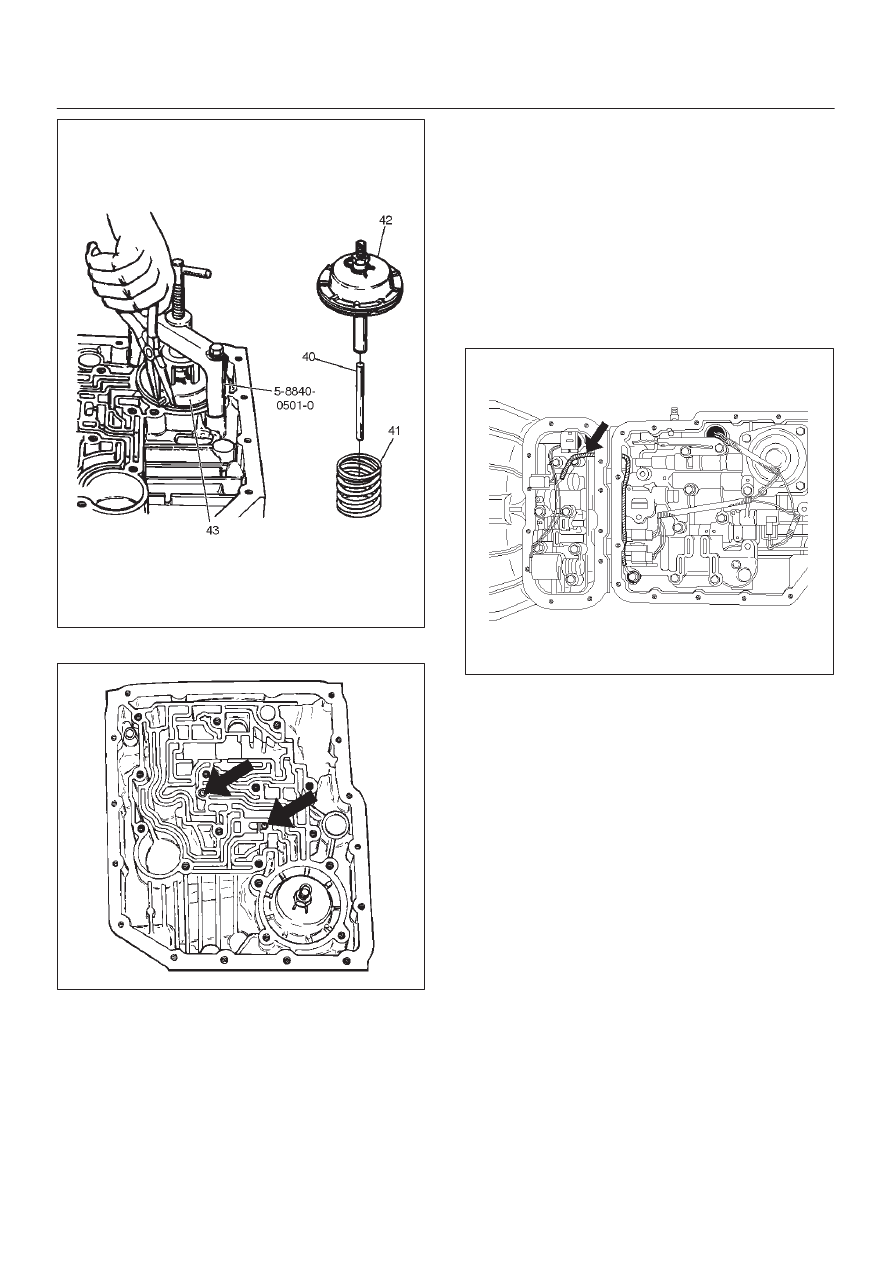

46. Install two check balls (44).

244RW002

47. Inspect main case electrical connector and seal,

replace if necessary.

D

Install electrical 4 pin connector/main case and
wiring harness.

48. Install two 5–8840–0022–0 (J–25025–B) guide pins

into main case.

D

Install main case valve body complete assembly
(45) and manual valve link.

NOTE: Valve must be extended as the short end of
manual valve link is connected to the range selector lever.
Long end of link goes into valve.

D

Install seven 13 mm screws.

Torque: 20 N

•

m (2.0 kg·m/15 lb ft)

D

Pass ground wire of adapter case wiring harness
assembly through the hole joining adapter fluid area
and main case fluid area.

D

Assemble 8.5 mm connector of ground wire under
the head of this valve body bolt and reinstall it.

D

Remove two guide pins.

244RW001

49. Install servo cover gasket, cover (46) and four 13 mm

screws.

Torque: 25 N

•

m (2.6 kg·m/18 lb ft)

50. Connect wiring harness (47) to band control, shift

solenoids, and main case 4 pin connector.

51. Install manual detent roller and spring assembly (48)

with clip.

D

Install two 13 mm screws.

Torque: 20 N

•

m (2.0 kg·m/15 lb ft)

52. Install oil filter (49), and three 13 mm screws.

Torque: 20 N

•

m (2.0 kg·m/15 lb ft)

53. Install oil pan gasket, magnet, main oil pan (50), and

sixteen 10 mm screws.

Torque: 11 N

•

m (1.1 kg·m/96 lb in)

54. Inspect adapter case electrical connector and seal.

Replace if necessary.

D

Install electrical five pin connector and harness
assembly (52) in bottom of adapter case.

55. Install gasket, transfer plate, and gasket.

D

Install adapter case valve body (51) and seven 13
mm screws.

Torque: 20 N

•

m (2.0 kg·m/15 lb ft)

7A–59

AUTOMATIC TRANSMISSION (4L30–E)

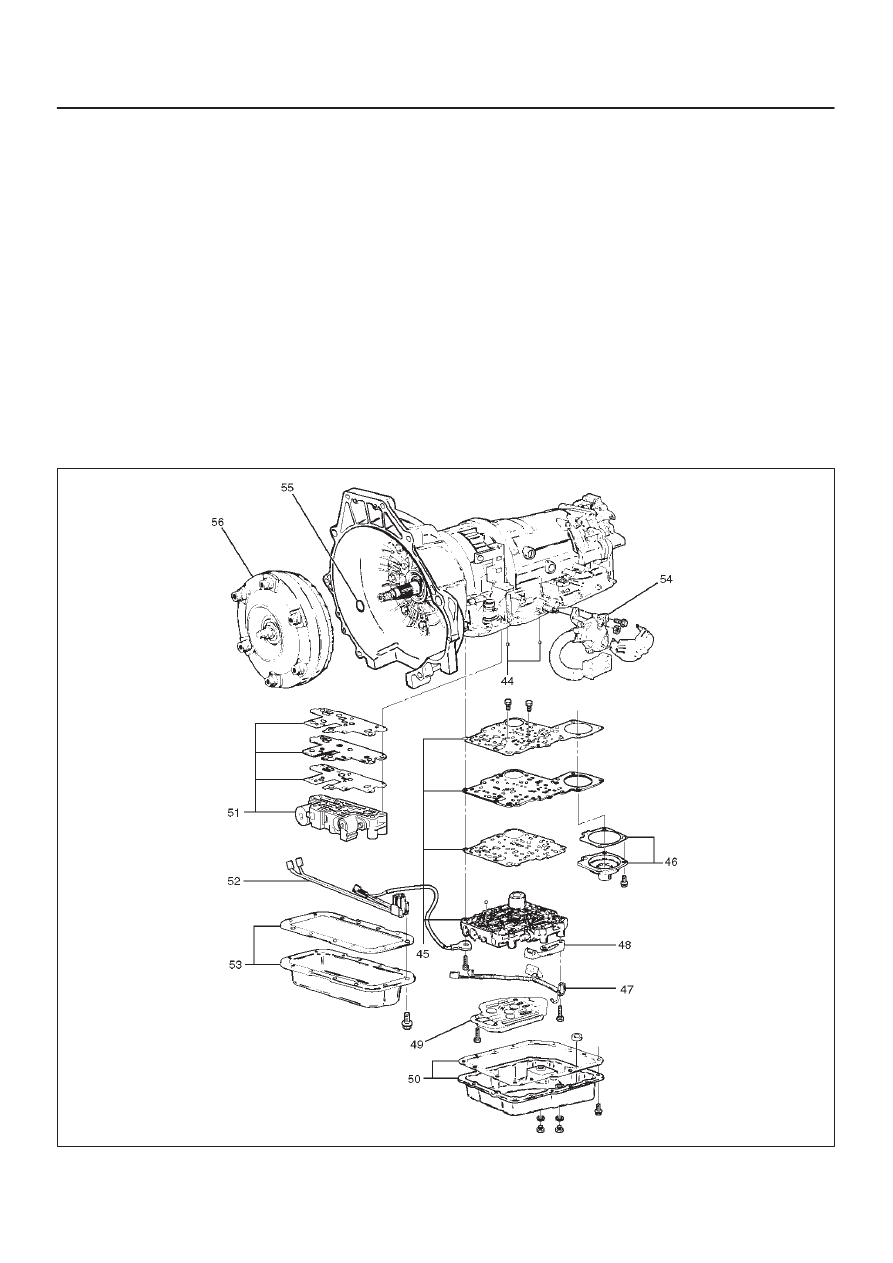

56. Connect wiring harness harness assembly (52) to

converter clutch solenoid, force motor, and 5 pin
connector.

57. Install oil pan gasket, adapter case oil pan (53), and

twelve 10 mm screws.

Torque: 11 N

•

m (1.1 kg·m/96 lb in)

D

Rotate transmission, with bottom pan facing down.

58. Install mode switch (54), two 10 mm screws, selector

lever nut, and cover.

10 mm screw

Torque: 13 N

•

m (1.3 kg·m/113 lb in)

Nut

Torque: 23 N

•

m (2.3 kg·m/17 lb ft)

D

Adjust using setting tool, refer to Mode Switch in
this section.

59. Install O–ring (55) on turbine shaft.

60. Install torque converter (56)

The converter assembly must be replaced under any
of the following conditions:

a. Evidence of damage to the pump assembly.
b. Metal particles are found after flushing the cooler

lines.

c. External leaks in hub weld area.
d. Converter pilot broken, damaged, or poor fit into

crankshaft.

e. Converter hub scored or damaged.
f. Internal failure in stator.
g. Contamination from engine coolant.
h. Excess end play.

D

Rotate transmission, bell housing up.  Spin
converter to insure proper fit.

61. Fill transmission through the overfill screw hole of oil

pan, using ATF DEXRON



–III. Refer to Changing

Transmission Fluid in this section.

241RW016

7A–60

AUTOMATIC TRANSMISSION (4L30–E)

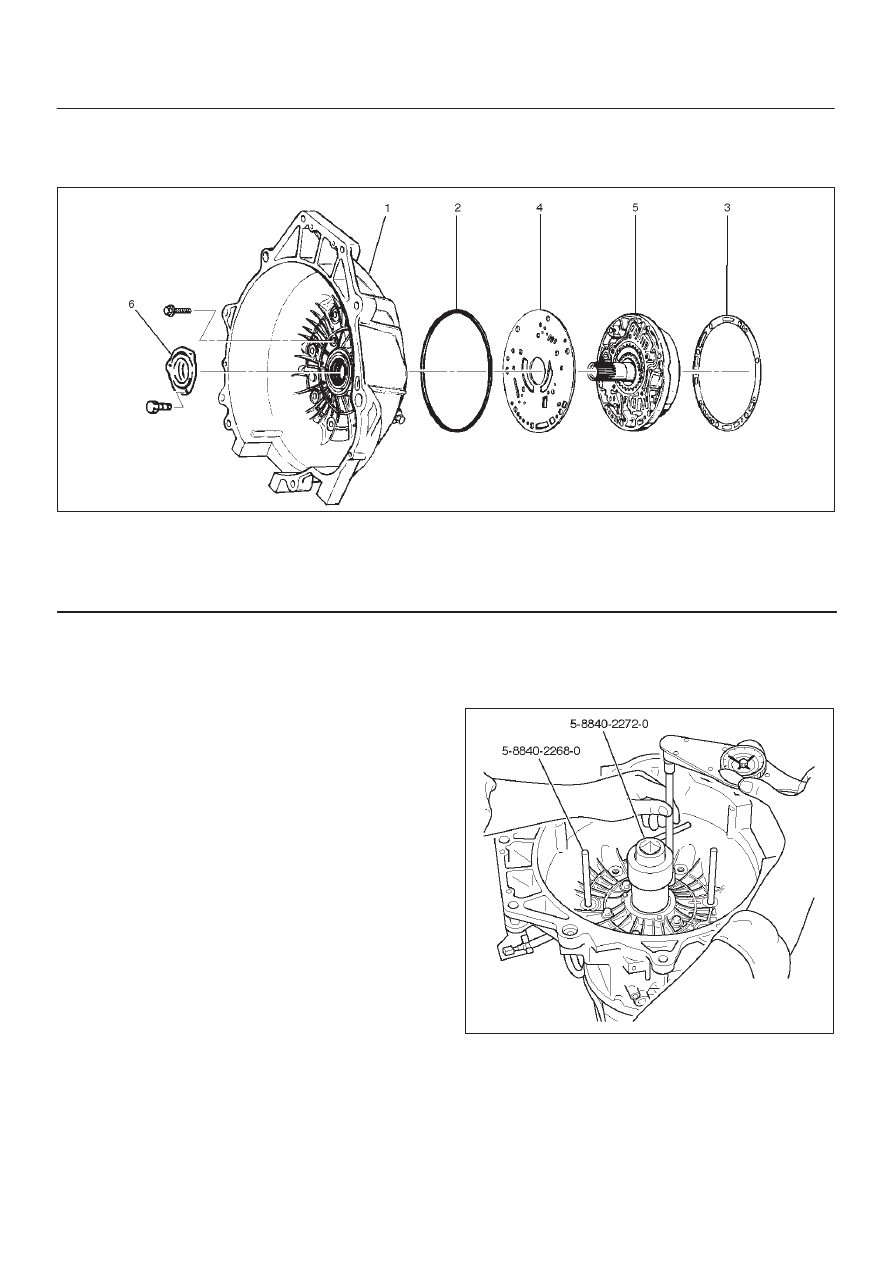

Converter Housing And Oil Pump Assembly

Disassembled View

241RW003

Legend

(1) Converter Housing
(2) Outer Seal Ring
(3) Gasket

(4) Wear Plate
(5) Oil Pump Assembly
(6) Oil Seal Ring

Disassembly

1. Remove oil pump assembly from converter housing.
2. Remove outer seal ring.
3. Remove gasket.
4. Remove wear plate.
5. Remove oil seal ring.

Inspection And Repair

Visual Check:

If any damage, deformation, or local wear is found in a
converter housing, outer seal ring, wear plate, or oil seal
ring, replace it.

Reassembly

1. Install wear plate onto oil pump assembly.
2. Install converter housing onto complete oil pump

assembly. Align with two short 5–8840–2268–0
(J–38588) guide pins on outer bolt holes.

D

Loosely install five 13mm bolts.

D

Center converter housing using 5–8840–2272–0
(J–38557) centering tool.

D

Tighten five inner 13mm bolts in an alternating
pattern.

Torque: 20 N

•

m (2.0 kg·m/15 lb ft)

241RW020

3. Install oil seal ring (3 screws).

Torque: 3 N

•

m (0.3 kg·m/26 lb in)

4. Install gasket.
5. Install outer seal ring.

7A–61

AUTOMATIC TRANSMISSION (4L30–E)

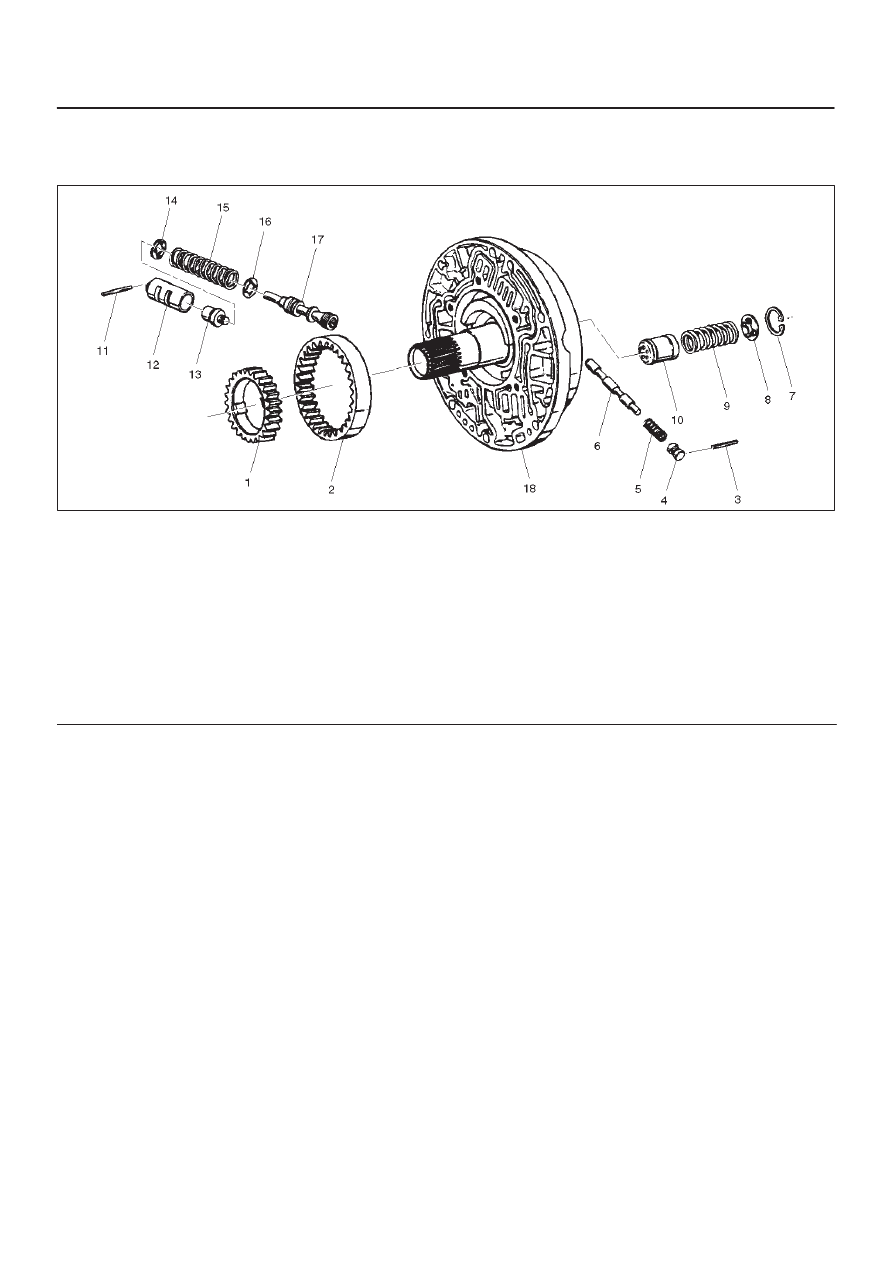

Oil Pump

Disassembled View

241RS014

Legend

(1) Oil Pump Drive Gear
(2) Oil Pump Driven Gear
(3) Pin
(4) Plug
(5) Spring
(6) Converter Clutch Control Valve
(7) Snap Ring
(8) Spring Seat
(9) Spring

(10)

Throttle Signal Accumulator Piston

(11)

Sleeve Pin

(12)

Sleeve

(13)

Boost Valve

(14)

Spring Seat

(15)

Valve Spring

(16)

Spring Seat

(17)

Pressure Regulator valve

(18)

Oil Pump Assembly

Disassembly

1. Remove oil pump drive gear (1) and driven gear (2).
2. Remove pin (3) from oil pump assembly (18).
3. Remove plug (4), spring (5), and converter clutch

control valve (6).

4. Remove snap ring (7) from oil pump assembly (18).
5. Remove spring seat (8), spring (9), and throttle signal

accumulator piston (10).

6. Remove sleeve pin (11) from oil pump assembly (18).
7. Remove sleeve (12), boost valve (13), spring seat

(14), valve spring (15), spring seat (16), and pressure
regulator valve (17).

Inspection And Repair

Visual Check:

If any damage, deformation or wear is found, replace the
damaged part.

Reassembly

1. Lubricate and preinstall pressure regulator spring

seat (16) on valve (17), with the flat side against
shoulder.

2. Install pressure regulator valve (17) and spring seat

(16) assembly, valve spring (15), and spring seat (14)
with the flat side away from spring to oil pump
assembly (18).

3. Assemble boost valve (13) into sleeve (12).
4. Install boost valve and sleeve assembly, and sleeve

pin (11) to oil pump assembly (18).

5. Install throttle signal accumulator piston (10), spring

(9), and spring seat (8), with the flat side away from
the spring, and snap ring (7) to oil pump assembly
(18).

6. Install converter clutch control valve (6), spring (5),

plug (4), and pin (3) to oil pump assembly (18).

7. Install oil pump driven gear (2) and drive gear (1).
