Opel Frontera UBS. Manual - part 2475





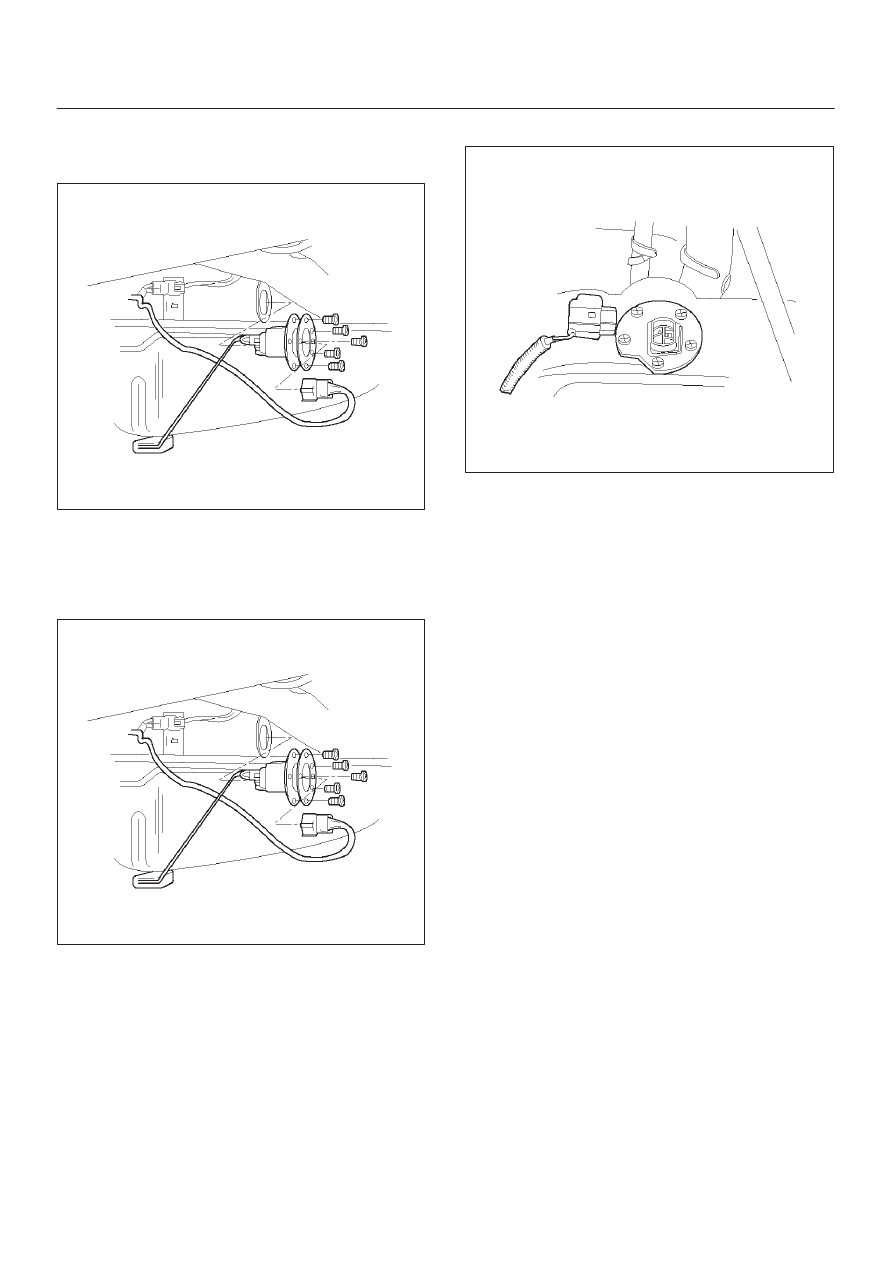

6E–214

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

6. Remove the fuel gauge unit.

D

Cover or plug the fuel tank to prevent dust, dirt, or
debris from entering the tank.

TS22911

Installation Procedure

1. Install the fuel gauge unit.
2. Install the fuel gauge unit retaining screws.

TS22911

3. Connect the wiring connector to the fuel gauge unit.

TS23771

4. Fill the fuel tank with fuel.

D

Tighten the fuel filler cap.

D

Check for leaks at the fuel gauge unit gasket.

5. Connect the negative battery cable.

Fuel Injectors

Removal and Installation Procedure

Refer to Engine Fuel in 4JX1 Engine Section.

Fuel Temperature Sensor

Removal Procedure

CAUTION: To reduce the risk of fire and personal
injury, it is necessary to relieve the fuel system
pressure before servicing the fuel system
components.

CAUTION: After relieving the system pressure, a
small amount of fuel may be released when servicing
fuel lines or connections.  Reduce the chance of
personal injury by covering the fuel line fittings with
a shop towel before disconnecting the fittings.  The
towels will absorb any fuel that may leak out.  When
the disconnect is completed, place the towel in an
approved container.

1. Disconnect the negative battery cable.
2. Remove the intercooler assembly.
3. Remove the cylinder head. Refer to engine

mechanical section.

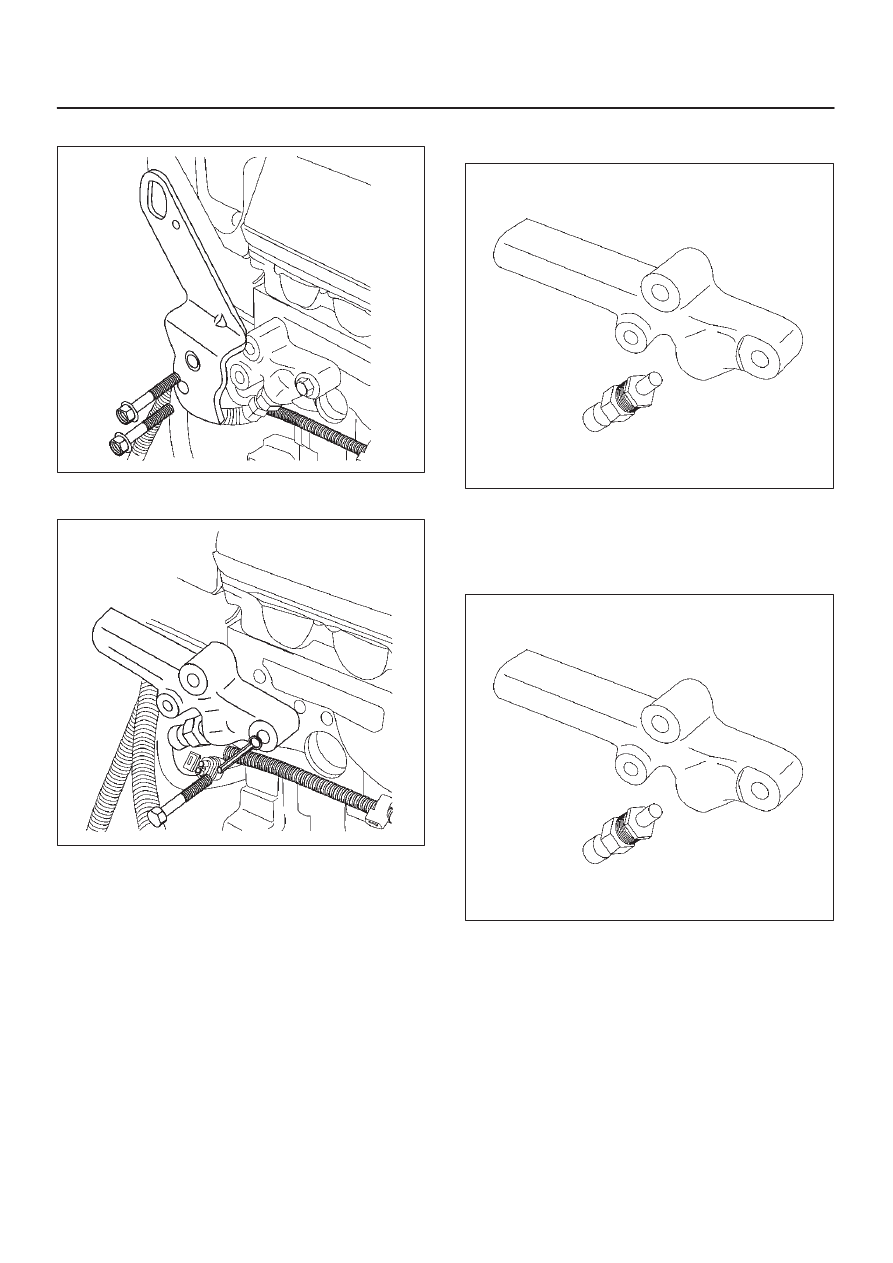

6E–215

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

4. Remove the rear side engine hanger.

035RW070

5. Remove the fuel return adapter.

035RW069

6. Remove the fuel pressure sensor from the fuel return

adapter.

035RW068

Installation Procedure

1. Install the fuel pressure sensor in the fuel return

adapter.

035RW068

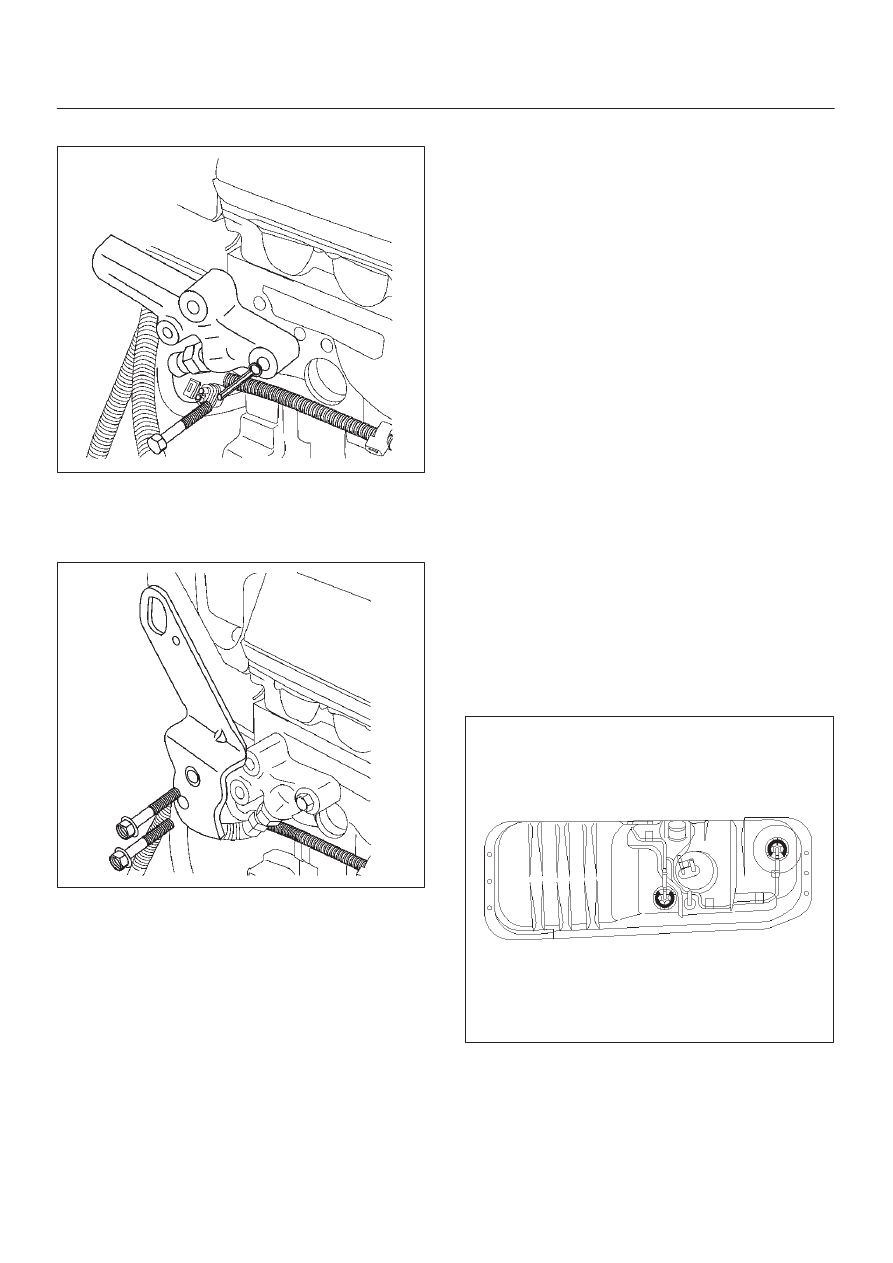

6E–216

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

2. Install the fuel return adapter.

035RW069

3. Install the rear side engine hanger. Tighten the rear

side engine hanger fixing bolts to specified torque.

Torque: 19 N·m (14 lb ft)

035RW070

4. Install the cylinder head. Refer to engine mechanical

section.

5. Install the intercooler assembly.
6. Connect the negative battery cable.

Rail Pressure (RP) Sensor

Removal Procedure

1. Disconnect the negative battery cable.
2. Remove the air cleaner cover and air duct.
3. Remove the intercooler assembly.
4. Remove the injector oil pipe.
5. Remove the intake throttle valve.
6. Remove the cylinder head cover noise inselation.
7. Remove the cylinder head cover.
8. Remove the RP sensor.

Installation Procedure

D

Refer to the

RP Sensor Programming.

1. Install the RP sensor.
2. Install the cylinder head cover.
3. Install the cylinder head cover noise inselation.
4. Install the intake throttle valve.
5. Install the injector oil pipe.
6. Install the intercooler assembly and tighten

intercooler assembly fixing bolts to specified torque.

Torque: 20 N·m (14 lb ft)

7. Install the air cleaner cover and air duct.
8. Connect the negative battery cable.

Fuel Tank

Removal Procedure

Refer to

Engine Fuel in 4JX1 Engine section.

060RW068

6E–217

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

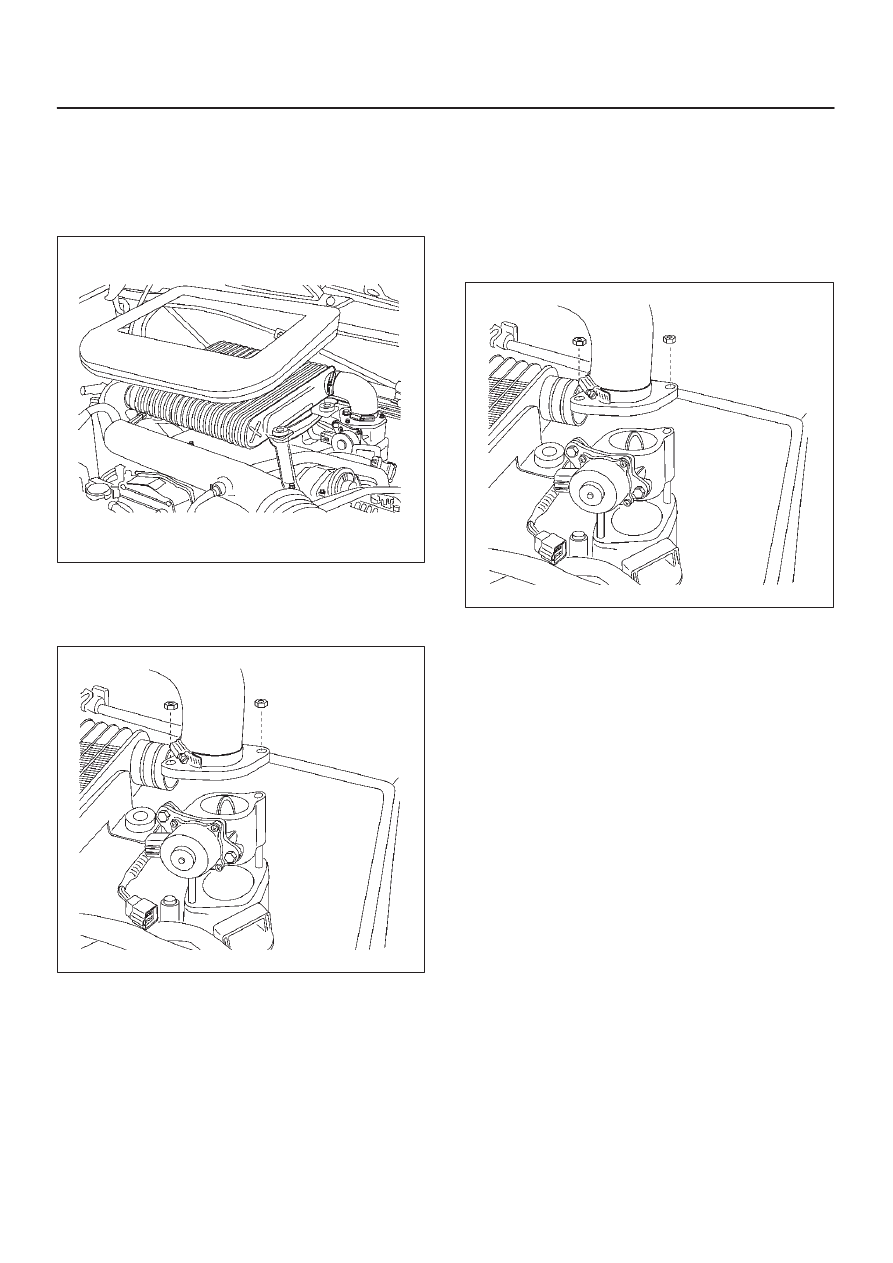

Throttle Body (TB)

Removal Procedure

1. Disconnect the negative battery cable.
2. Remove the cover of the intercooler.

035RW051

3. Remove the bolts and the left side bracket to the

intercooler.

4. Remove the air duct with bracket from the intercooler.

035RW086

5. Remove the throttle body assembly from the intake

manifold.

6. Disconnect the ITP sensor electrical connector.

Installation Procedure

NOTE: Do not use solvent of any type when you clean the
gasket surfaces on the intake manifold and the throttle
body assembly. The gasket surfaces and the throttle body
assembly may be damaged as a result.

D

If the throttle body gasket needs to be replaced,
remove any gasket material that may be stuck to the
mating surfaces of the manifold.

D

Do not leave any scratches in the aluminum casting.

1. Install the throttle body assembly to the intake

manifold and the air duct with bracket between
throttle body and intercooler.

Torque: 20 N·m (14 Ib ft)

035RW086

2. Connect the ITP sensor electrical connector and

throttle motor control connector.

3. Install the bracket to the intercooler.
4. Install the cover of intercooler.
5. Connect the negative battery cable.

Air Conditioning (A/C) Relay

Removal Procedure

1. Remove the fuse and relay box cover from under the

hood.

2. Consult the diagram on the cover to determine which

is the correct relay.

3. Pull the relay straight up and out of the fuse and relay

box.

Installation Procedure

1. Insert the relay into the correct place in the fuse and

relay box with the catch slot facing forward.

2. Press down until the catch engages.

D

An audible “click” will be heard.

3. Install the fuse and relay box cover.

Exhaust Gas Recirculation

(EGR) Vacuum Switch Valve

(VSV)

Removal Procedure

1. Disconnect the negative battery cable.
