6E–404

6VE1 3.5 ENGINE DRIVEABILITY AND EMISSIONS

TP sensor 1, TP sensor 2 display on the Tech 2 while
moving connectors and wiring harnesses related to the
sensor.
A change in the display will indicate the location of
the fault. If DTC P1299 cannot be duplicated, the
information included in the Faillure Records data can

be useful in determined vehicle mileage since the
DTC was last set.

If it is determined that the DTC occurs intermittently,
performing the DTC P1299 Diagnostic Chart may
isolate the cause of the fault.

DTC P1299 - ETC Forced Engine Shutdown Mode



Step

Action

Value(s)

Yes

No

1

Was the “On-Board (OBD) System Check” performed?

—

Go to

 Step 2

Go to

 OBD

System

Check

2

Was the “Electric Throttle Control (ETC) System
Check” performed?

—

Go to

Step 3

Go to

ETC

System

Check

3

1. Warming up the engine until the ECT rise at 80

°

C

2. Ignition “OFF”.
3. Ignition “ON” but not engine run.
4. Observe the TP angle reading on the Tech 2 while

alowly opening the throttle.

NOTE: The value check of TPS must be performed in
less than 15 seconds.

Does the TP angle increase steadily and evenly from
the closed throttle value to the wide open throttle
value?

Closed

throttle
TPS1=
6

∼

12%

TPS2=

88

∼

94% Wide

open throttle

TPS1=

79

∼

83%

TPS2=

19

∼

23%

Go to

 Step 4

Go to

 Step 5

4

Was the DTC P1299 stored?

—

Go to

 Step 9

Check the

procedure.

Refer to

Diagnostic

Aids

5

1. Check the curcuit between the PCM and each

terminal of TP1 and TP2 sensor.

Was the curcuit open or shorted?

—

Verify repair

Go to

 Step 7

6

1. Repair the faulty wiring harness.

Was a problem corrected?

—

Verify repair

Go to

 Step 7

7

1. Ignition “On”, engine “Off”.
2. Operate the throttle lever by hand (Don’t operate

the acceleration pedal ).

Was the DTC P1515 or P1516 stored?

—

Go to

 Step 9

Go to

 Step 8

8

1. Replace the TP sensor.

Was a problem corrected?

—

Verify repair

Go to

 Step 9

9

Replace the PCM.

IMPORTANT: The replacement PCM must be
programmed.

Refer to ON–Vehicle Service in Power Control Module
and Sensors for procedures.

And also refer to latest Service Bulletin. Check to see
if the latest software is released or not.

And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.

Is the adtion complete?

—

Varify repair

—

6E–405

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

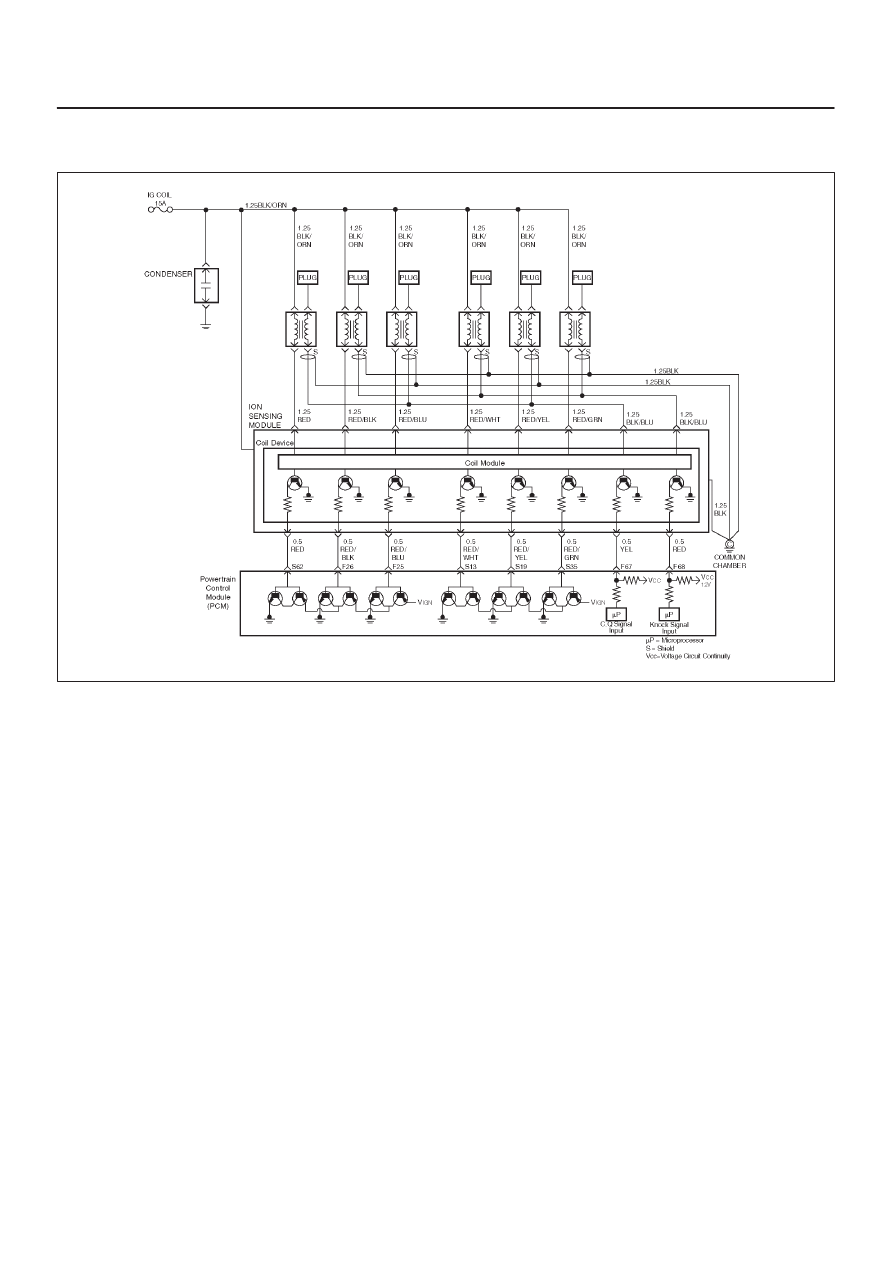

Diagnostic Trouble Code (DTC)

P1310 ION Sensing Module Diagnosis

D06R200098

Circuit Description

The Power Control Module (PCM) checks the validity of
the signals used in the ION Sensing module at the
following engine operating conditions.

D

The Deceleration Fuel Cut Off (DFCO) test is
performed to evaluate the Combustion Quality (CQ)
signal pulse width

D

If it is below a predetermined value, the value it is
expected to be during DFCO conditions. If the CQ
signal pulse width is above the predetermined
threshold, the fail counter will be incremented. If the
failure counter exceeds the calibration, then the test is
complete and a failure will be reported.

D

The Power Enrichment (PE) test is performed to
evaluate the Combustion Quality (CQ) signal pulse
width

D

If it is below a predetermined value, the value is
expected to be during PE conditions.
If the CQ signal pulse width is above the
predetermined  threshold, the fail counter will be
incremented. If the failure counter exceeds the
calibration, then the test is complete and a failure will
be reported.

D

The Combustion Quality (CQ) test is performed to
check if inappropriate (CQ) signal status were
detected. If missing CQ pulses or multiple CQ pulses
or CQ pulse width calculation errors were detected, the
fail counter will be incremented. If the failure counter
exceeds the calibration, then the test is complete and
a failure will be reported.

Conditions for setting the DTC

D

Ignition voltage is between 10volt and 16 volts.

D

MAP sensor signal  is between 26kPa and 100 kPa.

D

Fuel level is more than 19%.

D

Engine speed  is between 650rpm and 6500rpm.

D

No Crank DTCs set.

D

No System voltage DTCs set.

Action Taken When the DTC Sets

D

The PCM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

D

The PCM calculates an air flow value based on idle air
control valve position, throttle position, RPM and
barometric pressure.

D

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.

Conditions for Clearing the MIL/DTC

D

The PCM will turn the MIL “OFF” on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

D

A history DTC P1310 will clear after 40 consecutive trip
cycle during which the warm up cycles have occurred
without a fault.

D

DTC P1310 can be cleared using the Tech 2 “Clear
Info” function or by disconnecting the PCM battery
feed.

6E–406

6VE1 3.5 ENGINE DRIVEABILITY AND EMISSIONS

Diagnostic Aids

An intermittent may be caused by the following:

D

Poor connections.

D

Misrouted harness.

D

Rubbed through wire insulation.

D

Broken wire inside the insulation.

Check for the following conditions:

D

Poor connection at PCM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal to wire connection.

D

Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe the
moving connectors and wiring harnesses related to the
sensor.
A change in the display will indicate the location of
the fault. If DTC P1310 cannot be duplicated, the
information included in the Failure Records data can
be useful in determined vehicle mileage since the
DTC was last set.

If it is determined that the DTC occurs intermittently,
performing the DTC P1310 Diagnostic Chart may
isolate the cause of the fault.

DTC P1310 - ION Sensing Module Diagnostic



Step

Action

Value(s)

Yes

No

1

Was the “On-Board (OBD) System Check” performed?

—

Go to

 Step 2

Go to

 OBD

System

Check

2

1. Ignition “ON”, engine “OFF”.
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records

conditions as noted.

4. Using a Tech 2, monitor “DTC” info for DTC P1310.

Does the Tech 2 indicate DTC P1310 failed this
ignition?

—

Go to

 Step 3

Check the

Procedure

Refer to

Diagnostic

Aids

3

1. Ignition “OFF”.
2. Disconnect the ION Sensing module.
3. Disconnect the PCM.

Is the action complete?

—

Go to

 Step 4

Go to

 Step 3

4

Check the ION Sensing harness between the PCM and
ION Sensing module circuit harness connector.

Was a problem found?

—

Verify repair

Go to

 Step 6

5

1. Disconnect the ignition coil.

Is the action complete?

—

Go to

 Step 6

Go to

 Step 5

6

Check the ION Sensing harness between the ignition
coil and ION Sensing module circuit at the ION Sensing
Module harness connector.

Was a problem found?

—

Verify repair

Go to

 Step 7

7

Check the following items;

1. Ignition coil and ignition coil circuit.
2. Ignition coil ground circuit for a poor connection.
3. If a problem is found, repair wiring harness as

necessary.

Was a problem found?

—

Verify repair

Go to

 Step 8

8

Replace the Ignition coil.

Is the action complete?

—

Verify repair

Go to

 Step 9

9

Check the following items;

1. ION Sensing module ground circuit for a poor

connection.

2. If a problem is found, repair wiring harness as

necessary.

Was a problem found?

—

Verify repair

Go to

 Step 10

6E–407

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

DTC P1310 - ION Sensing Module Diagnostic

  (Cont'd)

Step

No

Yes

Value(s)

Action

10

Replace the ION Sensing module.

Is the action complete?

—

Verify repair

Go to

 Step 11

11

Replace the PCM.

IMPORTANT: The replacement PCM must be
programmed.

Refer to

 ON-Vehicle Service in Power Control Module

and Sensors for procedures.

And also refer to latest Service Bulletin.

Check to see if the latest software is released or not.

And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.

Is the action complete?

—

Verify repair

—
