POWER ASSISTED BRAKE SYSTEM  5C – 17

Vibration dampening attachments should always be
used when refinishing braking surfaces. These
attachments eliminate tool chatter and will result in
better surface finish.
After refinishing, replace any rotor does not meet the
minimum thickness of 16.97 mm (0.668 in). Do not use
a brake rotor that will not meet the specification.

Minimum Wear Dimension

mm (in)

16.60 (0.654)

Refinish Dimension

mm (in)

16.97 (0.668)

5C – 18 POWER ASSISTED BRAKE SYSTEM

FIXING TORQUE

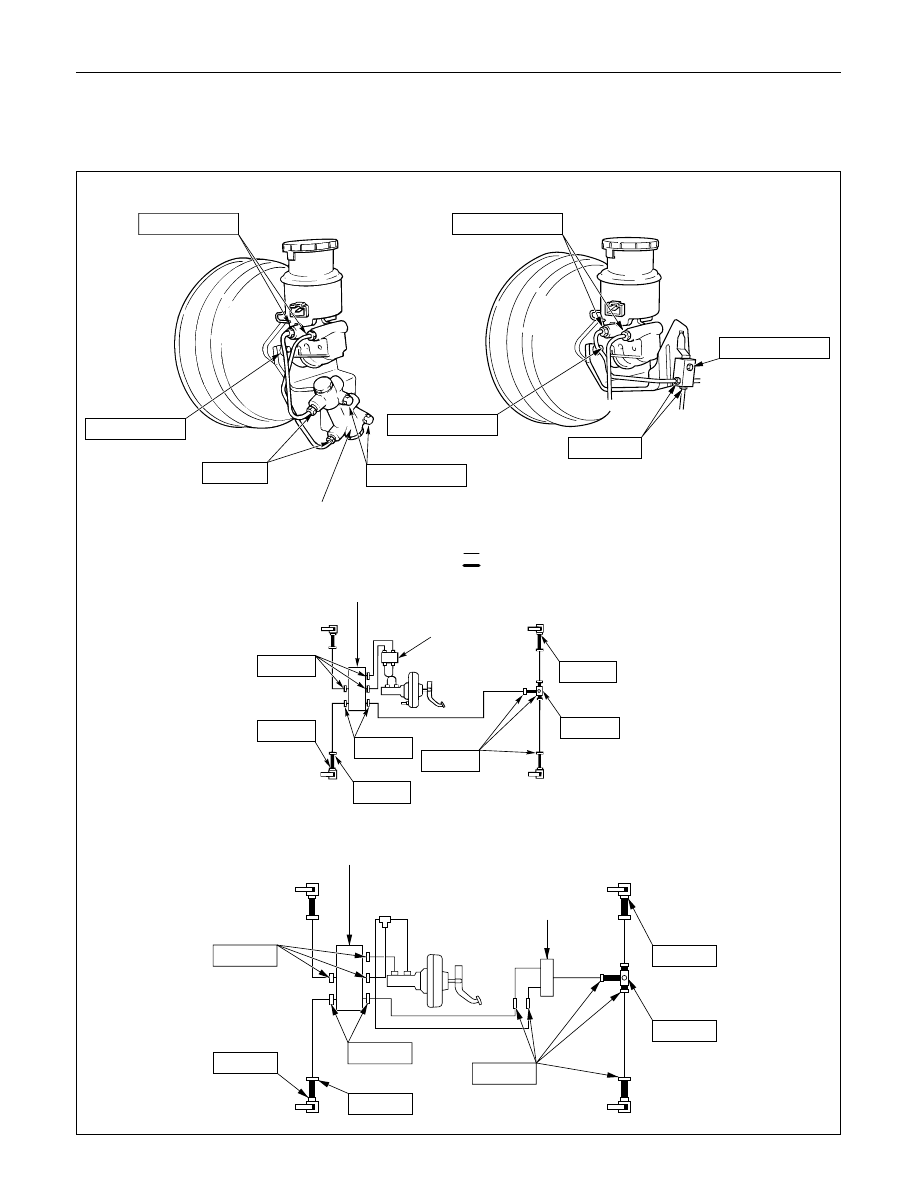

Brake Hydraulic Lines

N·m (kg·m/lb·ft)

12(1.2/104 lb•in)

Brake fluid pipe line
Flexible hose

16(1.6/12)

16(1.6/12)

16(1.6/12)

35(3.5/26)

16(1.6/12)

35(3.5/26)

15(1.5/11)

Hydraulic unit
(Vehicle with ABS only)

P&B valve
(If so equipped)

(Mounting bolt)

13(1.3/113 lb•in)

16(1.6/12)

13(1.3/113 lb•in)

P

＆B Valve(If so equipped)

13 (1.3 / 113 lb in)

13 (1.3 / 113 lb in)

16 (1.6 / 12)

12 (1.2 / 104 lb in)

Vehicle with LSPV

35(3.5/26)

16(1.6/12)

15(1.5/11)

(Mounting bolt)

35(3.5/26)

16(1.6/12)

16(1.6/12)

16(1.6/12)

LSPV

Hydraulic unit
(Vehicle with ABS only)

POWER ASSISTED BRAKE SYSTEM  5C – 19

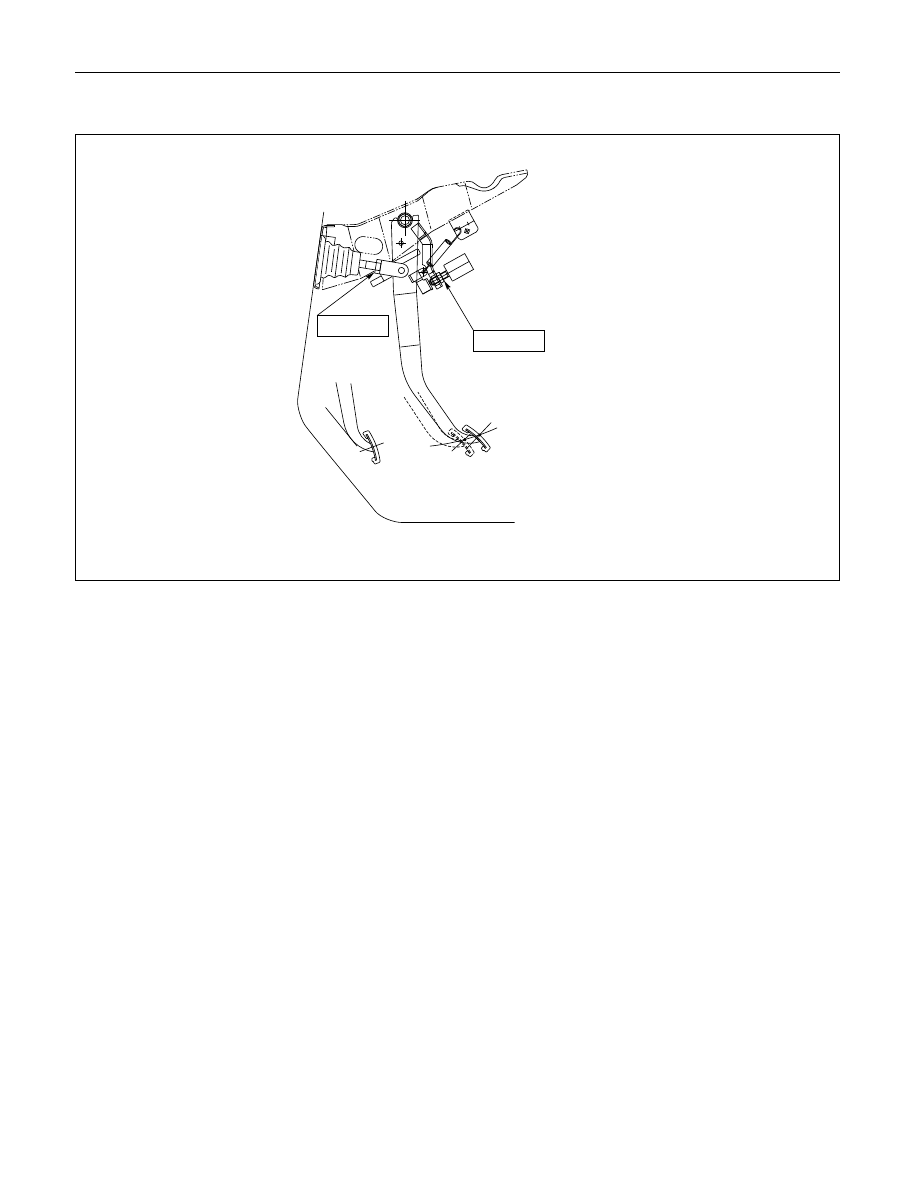

Brake Pedal

N·m (kg·m/lb·ft)

20(2.0/15)

20(2.0/15)

5C – 20 POWER ASSISTED BRAKE SYSTEM

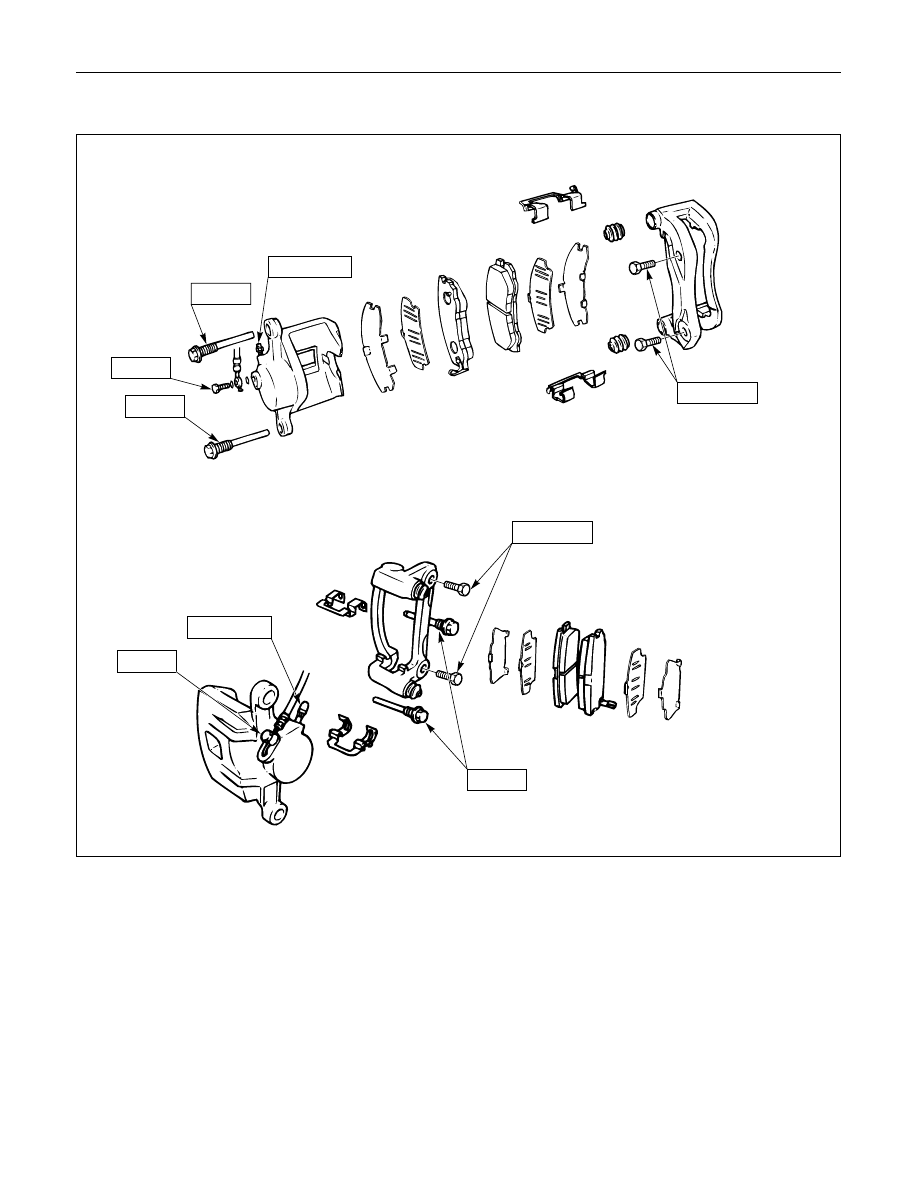

Front and Rear Brakes

N·m (kg·m/lb·ft)

74(7.5/54)

Front disc brake

Rear disc brake

35(3.6/26)

74(7.5/54)

155(15.8/115)

35(3.6/26)

104(10.6/77)

44(4.5/32)

8(0.8/69 Ib

･in)

8(0.8/69 Ib

･in)
