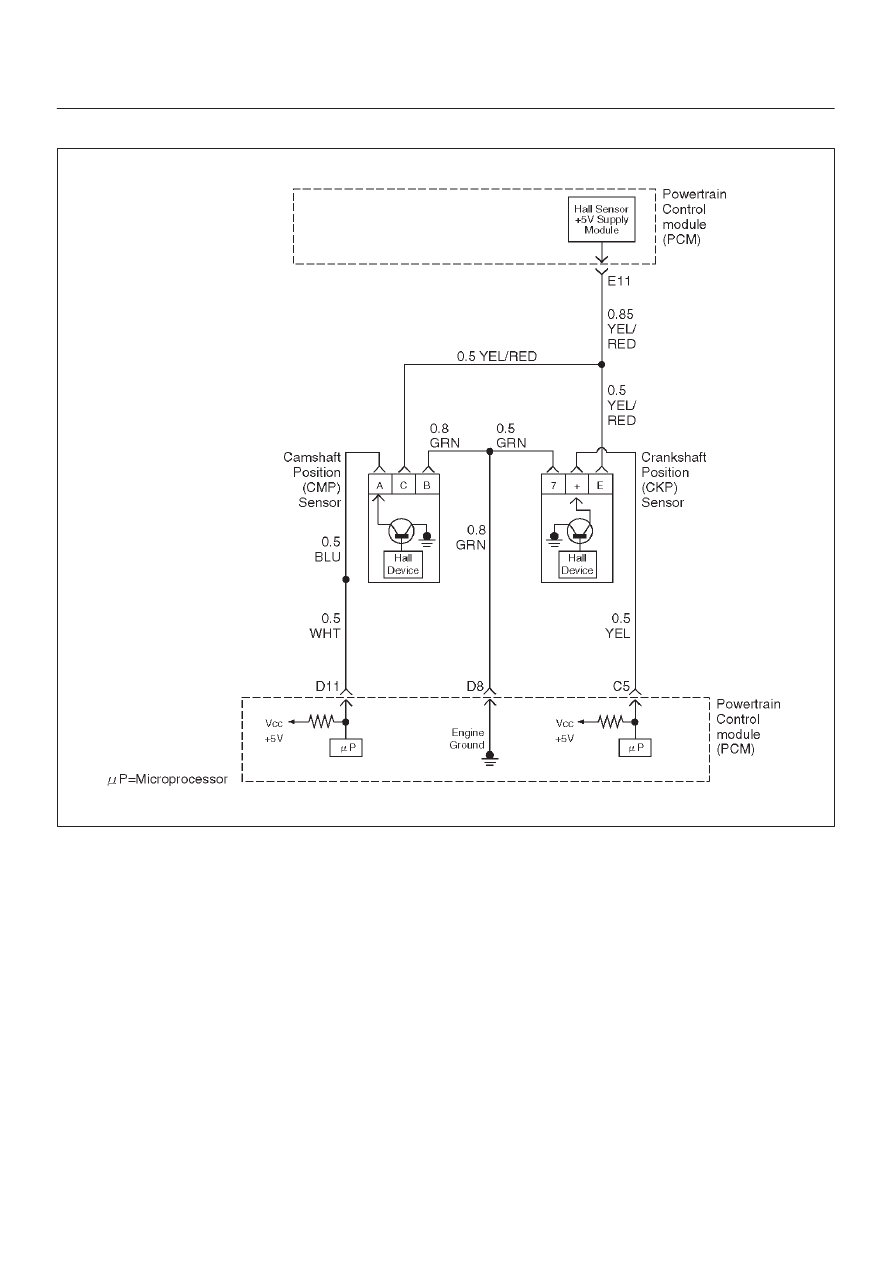

6E–201 ENGINE DRIVEABILITY AND EMISSIONS DTC P0341 – CMP Sensor Circuit Performance (Cont'd) Step No Yes Value(s) Action 10 1. Check for poor connections at the PCM. Was a problem found? — Verify repair Go to Step 11 11 Backprobe the PCM connector with a DVM to monitor Does the voltage toggle between the specified values? 4-0 V Go to Step 15 Go to Step 12 12 1. Remove the CMP sensor from the engine front cover (leave the sensor wiring connected). 2. Place a magnet on the CMP sensor. Does the DVM display a voltage near the specified 0 V Go to Step 13 Go to Step 14 13 Replace the faulty or missing camshaft position sensor Is the action complete? — Verify repair — 14 Replace the camshaft position sensor. Is the action complete? — Verify repair — 15 Replace the PCM. IMPORTANT: The replacement PCM must be UBS 98model year Immobilizer Workshop Manual. Is the action complete? — Verify repair — |
