Opel Frontera UBS. Manual - part 2131





6E–97

ENGINE DRIVEABILITY AND EMISSIONS

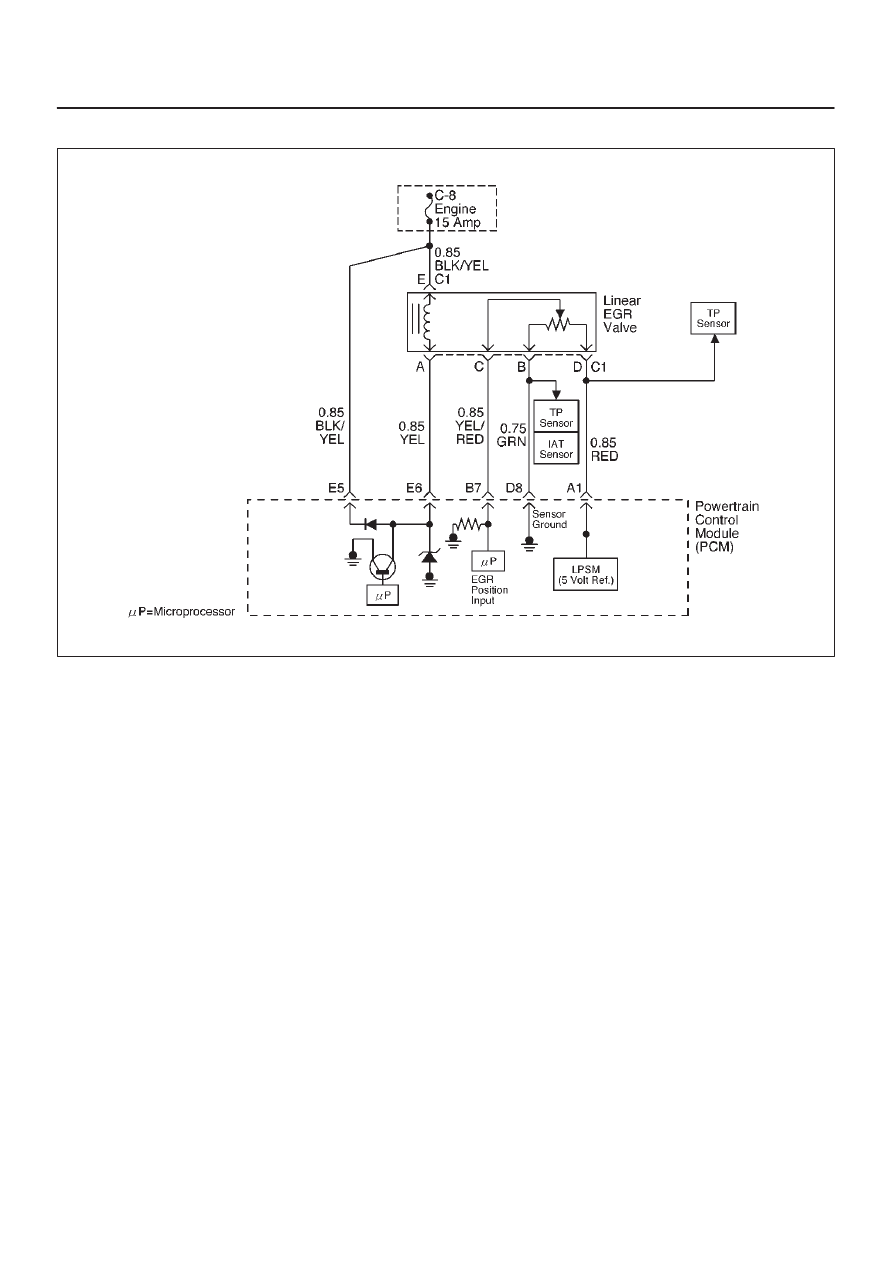

Exhaust Gas Recirculation (EGR) System Check

D06RW106

Circuit Description

A properly operation exhaust gas recirculation (EGR)
system will directly affect the air/fuel requirements of the
engine.  Since the exhaust gas introduced into the air/fuel
mixture is an inert gas (contains very little or no oxygen),
less fuel is required to maintain a correct air/fuel ratio.
Introducing exhaust gas into the combustion chamber
lowers combustion temperatures and reduces the
formation of oxides of nitrogen (NOx) in the exhaust gas.
Lower combustion temperatures also prevent detonation.
If the EGR pintle were to stay closed, the inert exhaust
gas would be replaced with air and the air/fuel mixture
would be leaner.  The powertrain control module (PCM)
would compensate for the lean condition by adding fuel,
resulting in higher long term fuel trim values.

Diagnostic Aids

The EGR valve chart is a check of the EGR system.  An
EGR pintle constantly in the closed position could cause
detonation and high emissions of NOx.  It could also result
in high long term fuel trim values in the open throttle cell,
but not in the closed throttle cell.  An EGR pintle
constantly in the open position would cause a rough idle.
Also, an EGR mounted incorrectly (rotated 180

°

) could

cause rough idle.  Check for the following items:

D

EGR passages – Check for restricted or blocked EGR
passages.

D

Manifold absolute pressure sensor – A manifold
absolute pressure sensor may shift in calibration
enough to affect fuel delivery.  Refer to

Manifold

Absolute Pressure Output Check.

6E–98

ENGINE DRIVEABILITY AND EMISSIONS

Exhaust Gas Recirculation (EGR) System Check



Step

Action

Value(s)

Yes

No

1

Check the EGR valve for looseness.

Is the EGR valve Loose?

Go to

Step 2

Go to

Step 3

2

Tighten the EGR valve.

Is the action complete?

Verify repair

3

1. Place the transmission selector in Park or Neutral.
2. Start the engine and idle until warm.
3. Using Tech 2, command EGR “50% ON.”

Does the engine idle rough and lose RPMs?

EGR system

working

properly.  No

problem

found.

Go to

Step 4

4

1. Engine “OFF.”
2. Ignition “ON.”
3. Using a test light to ground, check the EGR harness

between the EGR valve and the ignition feed.

Does the test light illuminate?

Go to

Step 6

Go to

Step 5

5

Repair the EGR harness ignition feed.

Was the problem corrected?

Verify repair

Go to

Step 6

6

1. Remove the EGR valve.
2. Visually and physically inspect the EGR valve

pintle, valve passages and adapter for excessive
deposits, obstructions or any restrictions.

Does the EGR valve have excessive deposits,
obstructions or any restrictions?

Go to

Step 7

Go to

Step 8

7

Clean or replace EGR system components as
necessary.

Was the problem corrected?

Verify repair

Go to

Step 8

8

1. Ground the EGR valve metal case to battery (–).
2. Using Tech 2, command EGR “ON” and observe the

EGR valve pintle for movement.

Does the EGR valve pintle move according to
command?

Go to

Step 9

Go to

DTC

P1406 chart

9

1. Remove the EGR inlet and outlet pipes from the

intake and exhaust manifolds.

2. Visually and physically inspect manifold EGR ports

and EGR inlet and outlet pipes for blockage or
restriction caused by excessive deposits or other
damage.

Do the manifold EGR ports or inlet and outlet pipes
have excessive deposits, obstructions, or any
restrictions?

Go to

Step 10

EGR system

working

properly.  No

problem

found.

10

Clean or replace EGR system components as
necessary.

Is the action complete?

Verify repair

6E–99

ENGINE DRIVEABILITY AND EMISSIONS

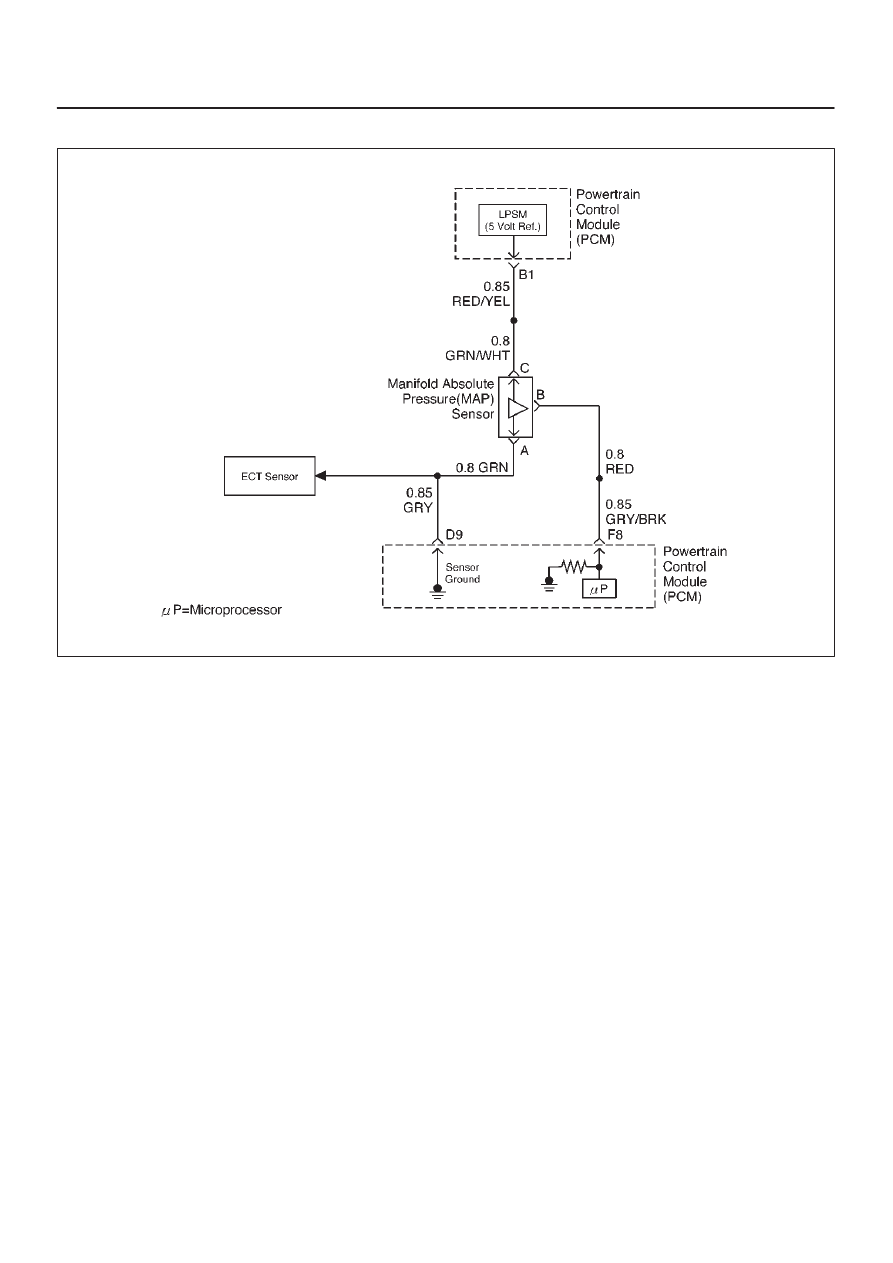

Manifold Absolute Pressure (MAP) Output Check

D06RW102

Circuit Description

The manifold absolute pressure (MAP) sensor measures
the changes in the intake MAP which result from engine
load (intake manifold vacuum) and engine speed
changes; and converts these into a voltage output.  The
powertrain control module (PCM) sends a 5-volt
reference voltage to the MAP sensor.  As the MAP
changes, the output voltage of the sensor also changes.
By monitoring the the sensor output voltage, the PCM
knows the MAP.  A lower pressure (low voltage) output
voltage will be about 1-2 volts at idle.  Higher pressure
(high voltage) output voltage will be about 4-4.8 volts at
wide open throttle.  The MAP sensor is also used, under
certain conditions, to measure barometric pressure,
allowing the PCM to make adjustments for different
altitudes.  The PCM uses the MAP sensor to diagnose
proper operation of the EGR system, in addition to other
functions.

Test Description

IMPORTANT:

Be sure to used the same diagnostic test

equipment for all measurements.
The number(s) below refer to the step number(s) on the
Diagnostic Chart.
2. Applying 34 kPa (10 Hg) vacuum to the MAP sensor

should cause the voltage to be 1.5-2.1 volts less
than the voltage at step 1.  Upon applying vacuum
to the sensor, the change in voltage should be
instantaneous.  A slow voltage change indicates a
faulty sensor.

3. Check the vacuum hose to the sensor for leaking or

restriction,  Be sure that no other vacuum devices
are connected to the MAP hose.

IMPORTANT:

Make sure the electrical connector

remains securely fastened.

4. Disconnect the sensor from the bracket.  Twist the

sensor with your hand to check for an intermittent
connection.  Output changes greater than 0.10 volt
indicate a bad sensor.

6E–100

ENGINE DRIVEABILITY AND EMISSIONS

Manifold Absolute Pressure (MAP) Output Check



Step

Action

Value(s)

Yes

No

1

1. Turn the ignition “OFF”and leave it “OFF” for 15

seconds.

2. Ignition “ON.”   Don’t crank engine.
3. Tech 2 should indicate a manifold absolute pressure

(MAP) sensor voltage.

4. Compare this scan reading to scan reading of a

known good vehicle obtained using the exact same
procedure as in Steps 1-4.

Is the voltage reading the same +/–0.40 volt?

Go to

Step 2

Go to

Step 5

2

1. Disconnect the vacuum hose at the MAP sensor

and plug the hose.

2. Connect a hand vacuum pump to the MAP sensor.
3. Start the engine.
4. Apply 34 kPa (10 Hg) of vacuum and note the

voltage change.

Is the voltage change 1.5-2.1 volts less than Step 1?

Go to

Step 3

Go to

Step 4

3

No trouble found.  Check the sensor cover for leakage
or restriction.

Does the hose supply vacuum to the MAP sensor only?

Go to

Step 5

Go to

Step 4

4

Repair the material to block.

Is the action complete?

Verify repair

5

Check the sensor connection.

Is the sensor connection good?

Go to

Step 6

Go to

Step 7

6

Replace the sensor.  Refer to

On-Vehicle Service, MAP

Sensor.

Is the action complete?

Verify repair

7

Repair the poor connection.

Is the action complete?

Verify repair
