Opel Frontera UBS. Manual - part 2089

6A–90

ENGINE MECHANICAL

Main Data and Specification

General Specification

Item

Specifications

Item

6VD1

6VE1

Engine type, number of cylinders and arrangement

Water cooled, four cycle V6

Form of combustion chamber

Pent roof type

Valve mechanism

4-Cams, 4-Valves, DOHC Gear & Belt Drive

Cylinder liner type

Casted in cylinder drive

Total piston displacement

3165 cc

3494 cc

Cylinder bore x stroke

93.4mm x 77.0mm

93.4mm x 85.0mm

(3.6772 in x 3.0315 in)

(3.6772 in x 3.3465 in)

Compression ratio

9.1 : 1

Compression pressure at 300rpm

14.0 Kg/cm

@

Engine idling speed rpm

Non adjustable (750)

Valve clearance

Intake: 0.28 mm (0.11 in)

Exhaust: 0.30mm (0.12in)

Oil capacity

5.3 liters

Ignition timing

Non adjustable

Non adjustable

16

°

 BTDC at idle rpm)

(20

°

 BTDC at idle rpm)

Spark plug

K16PR–P11, PK16PR11, RC10PYP4

Plug gap

1.0 mm–1.1 mm(0.0394 in – 0.0433 in)

6A–91

ENGINE MECHANICAL

Torque Specifications

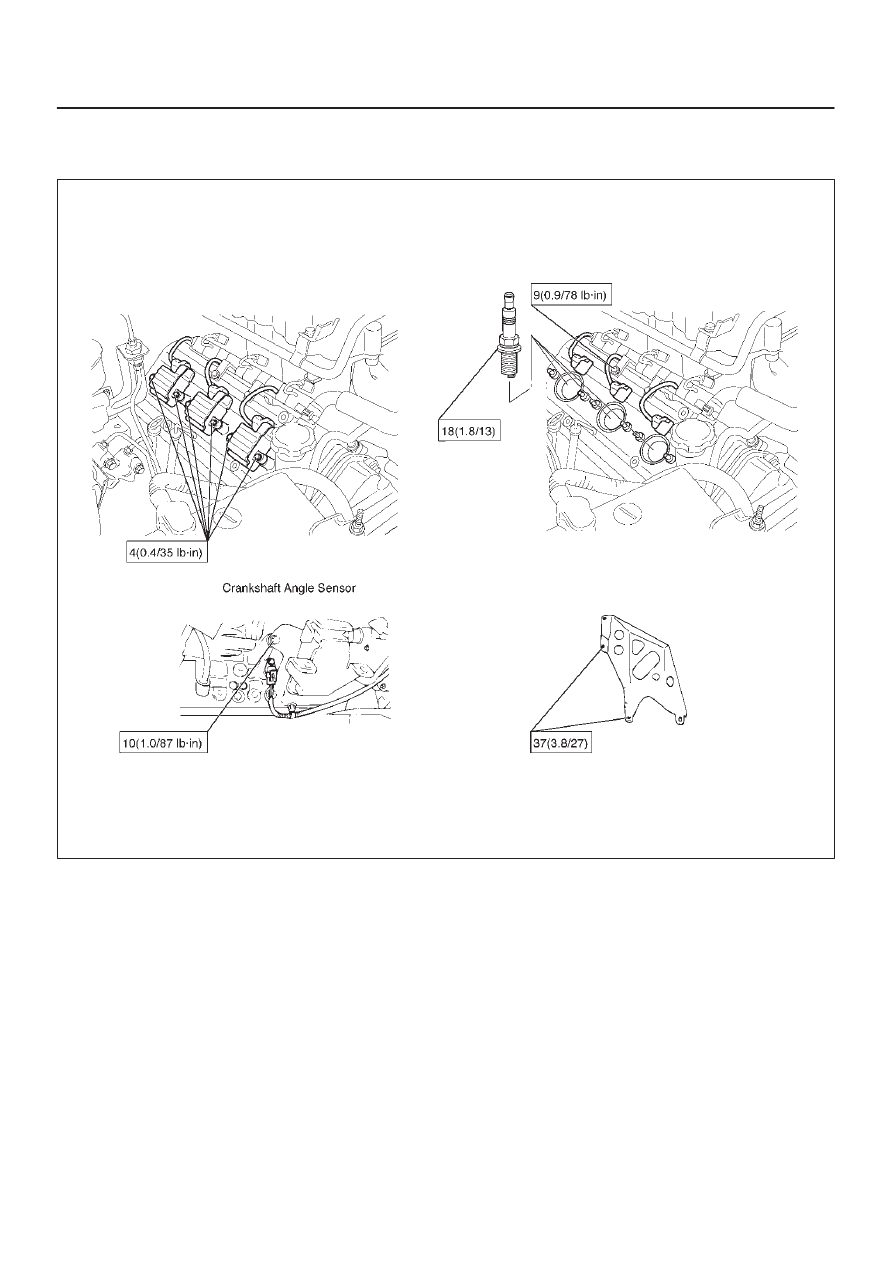

Ignition coil, Spark plug, Crankshaft angle sensor and Under cover
                                                                                                                                                         N·m (Kg·m/Ib ft)

E06RW038

6A–92

ENGINE MECHANICAL

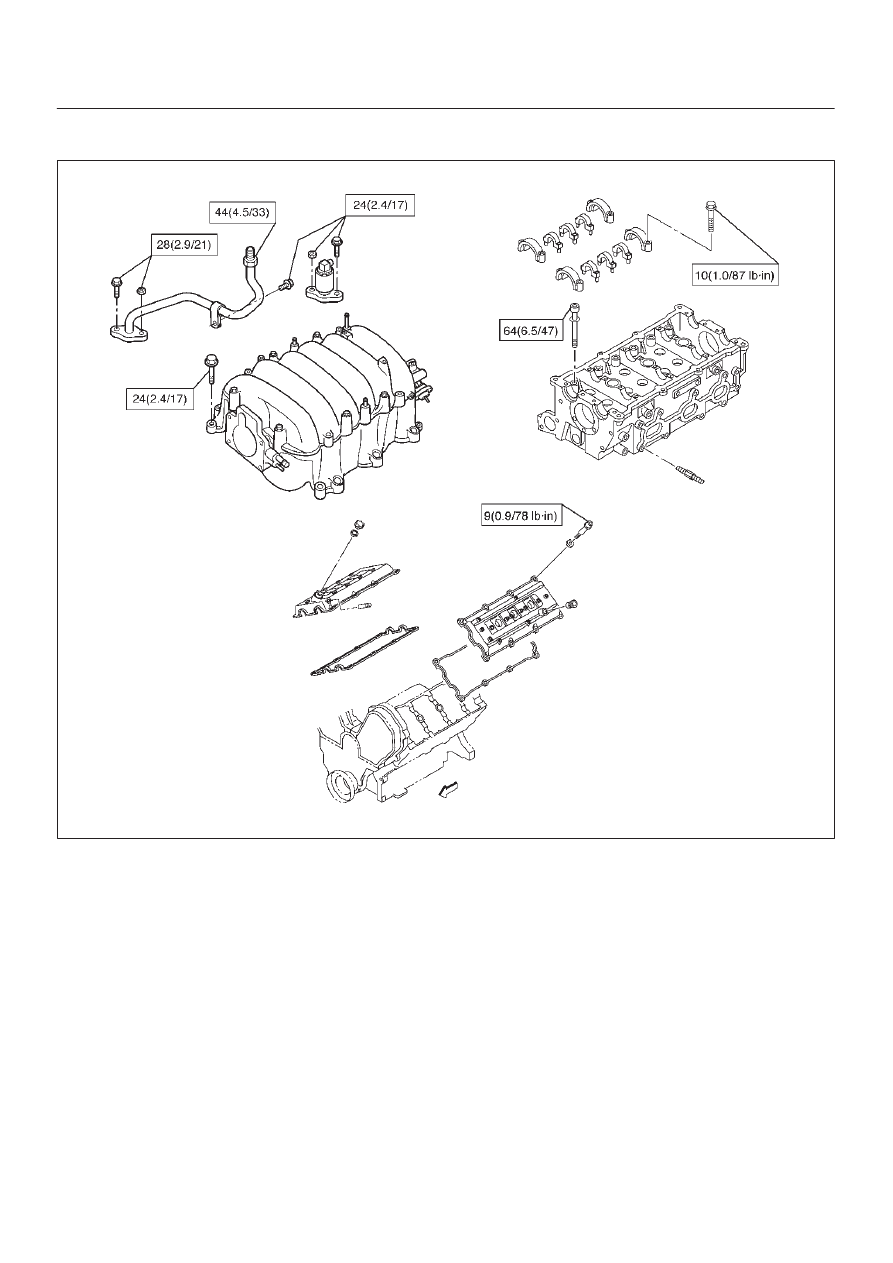

Cylinder head cover, Cylinder head, Camshaft bracket, Common chamber, EGR valve and EGR pipe
                                                                                                                                                         N·m (Kg·m/Ib ft)

E06RW043

6A–93

ENGINE MECHANICAL

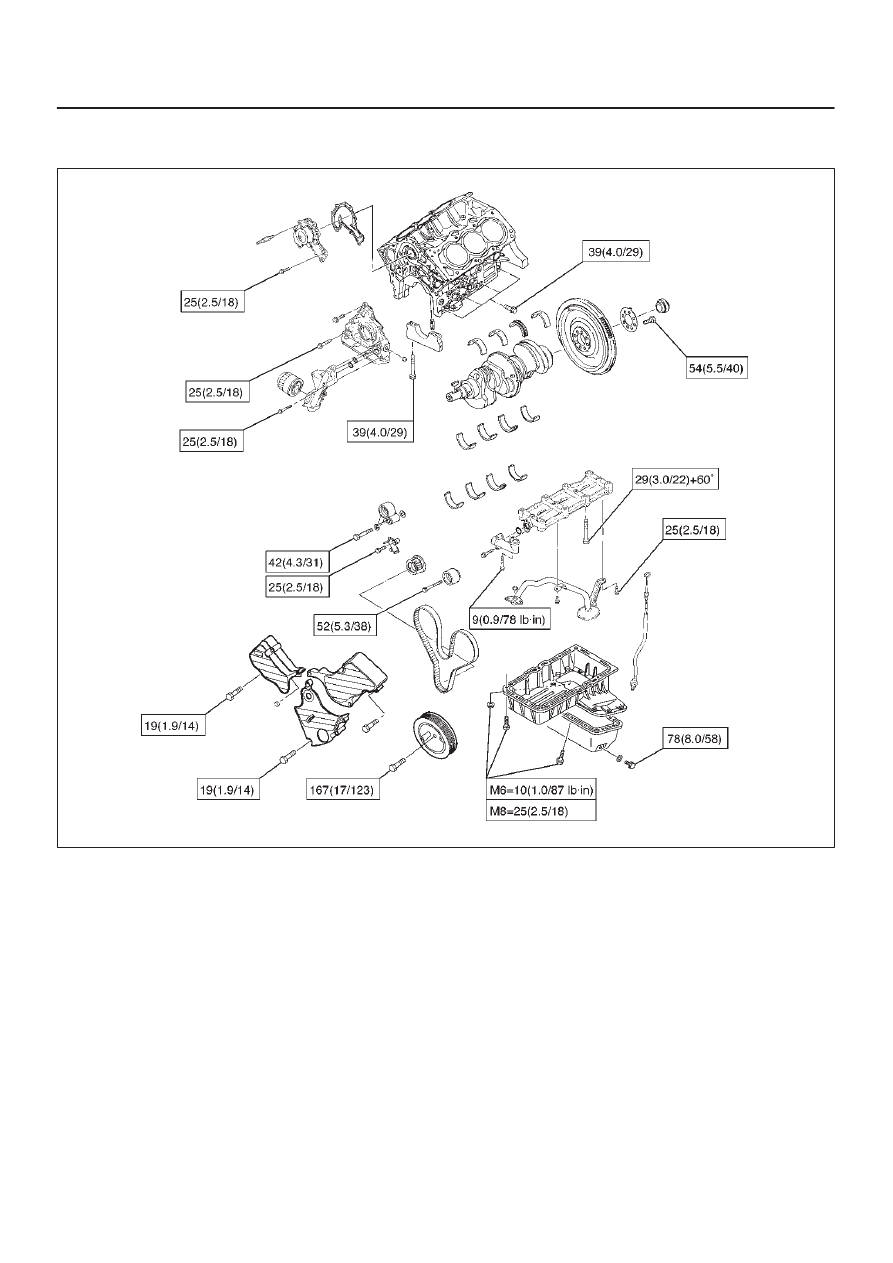

Crankshaft main bearing, Flywheel, Crankcase, Oil pan, Timing belt tensioner, Timing pulley, Timing belt
cover, Oil pump, Oil gallery, Oil strainer and Water pump
                                                                                                                                                         N·m (Kg·m/Ib ft)

E06RW039
