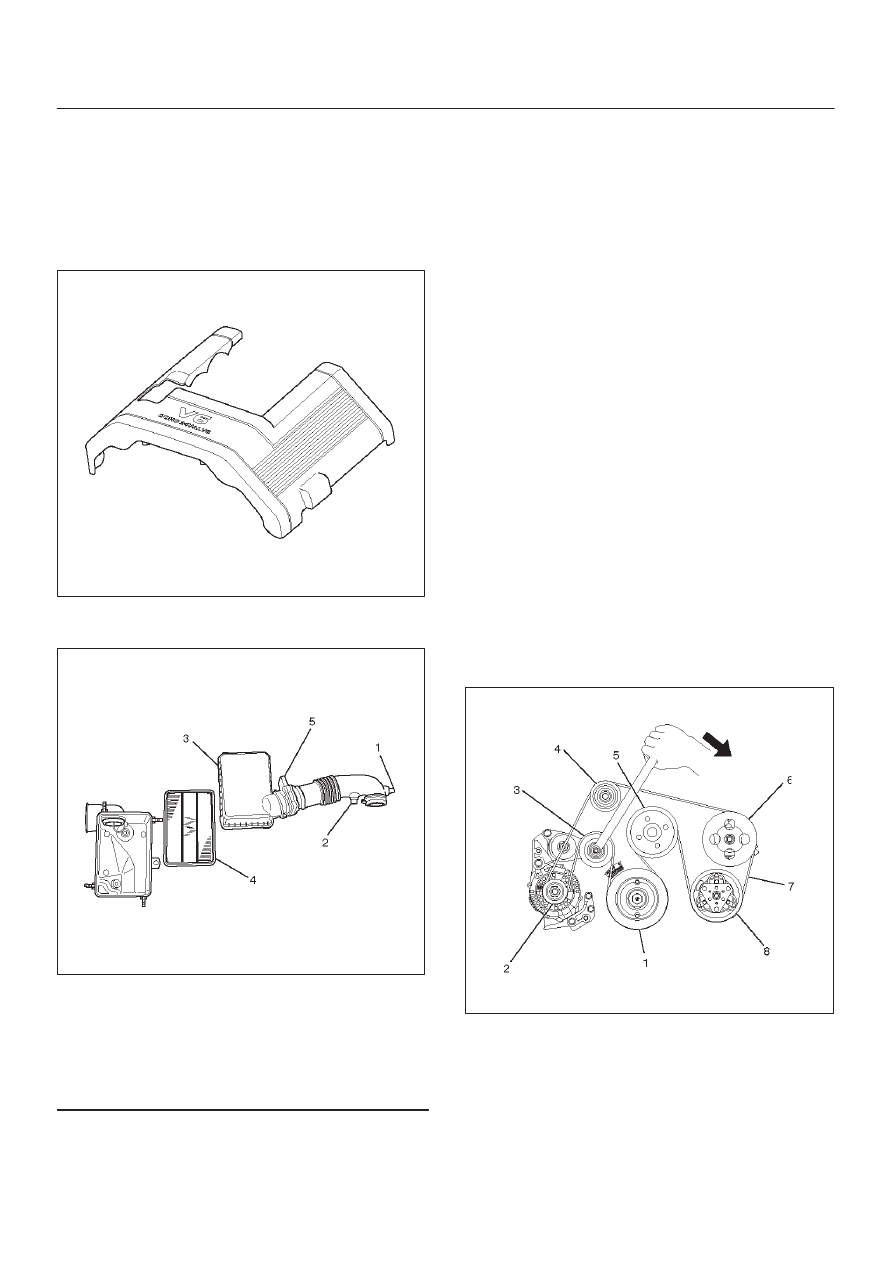

Cylinder Head Cover LH

Removal

1. Disconnect battery ground cable.
2. Drain engine coolant from faucet bottom of radiator.
3. Remove engine cover from the dowels on the

common chamber.

F06RW018

4. Remove air cleaner duct assembly (3) and air cleaner

element (4).

130RW001

Legend

(1) Positive Crankcase Ventilation Hose Connector
(2) Intake Air Temperature Sensor
(3) Air Cleaner Duct Assembly
(4) Air Cleaner Element
(5) Mass Air Flow Sensor

NOTE: Disconnect the mass air flow (MAF) sensor
connector, intake air temperature (IAT) sensor connector,
and positive crankcase ventilation (PCV) hose before
hand the air cleaner duct assembly is removed.

5. Disconnect following wiring connectors and bonding

cable:

D

Manifold Absolute Pressure (MAP) sensor

D

Vacuum Switching Valve (VSV) for Induction Air
Control Valve (IACV) actuator

D

Ignition coils for left bank

D

Fuel injectors for left bank

D

Idle air control (IAC) valve

D

Throttle position sensor (TPS)

D

Bonding cable

D

Others as necessitated

6. Disconnect following vacuum hoses:

D

Brake master VAC

D

Canister

D

VSV for IACV actuator

D

Duty solenoid valve

D

PCV

7. Disconnect radiator upper and lower hoses
8. Remove engine harness from the cylinder head

cover.

9. Remove the upper fan guide.

10. Remove cooling fan and clutch assembly.

11. Remove drive belt by pushing down the auto

tensioner using spanner as illustrated.

F06RW019

6A–19

ENGINE MECHANICAL

Legend

(1) Crankshaft Pulley
(2) Generator
(3) Auto Tensioner
(4) Idle Pulley
(5) Cooling Fan Pulley
(6) Power Steering Oil Pump
(7) Drive Belt
(8) Air Conditioner Compressor

12. Remove power steering oil pump pulley.
13. Remove fan pulley and bracket assembly.
14. Remove idle pulley assembly.
15. Remove auto tensioner assembly.
16. Remove crankshaft pulley using 5–8840–0133–0

crankshaft holder.

17. Remove timing belt covers from the right bank side to

the left bank side in order.

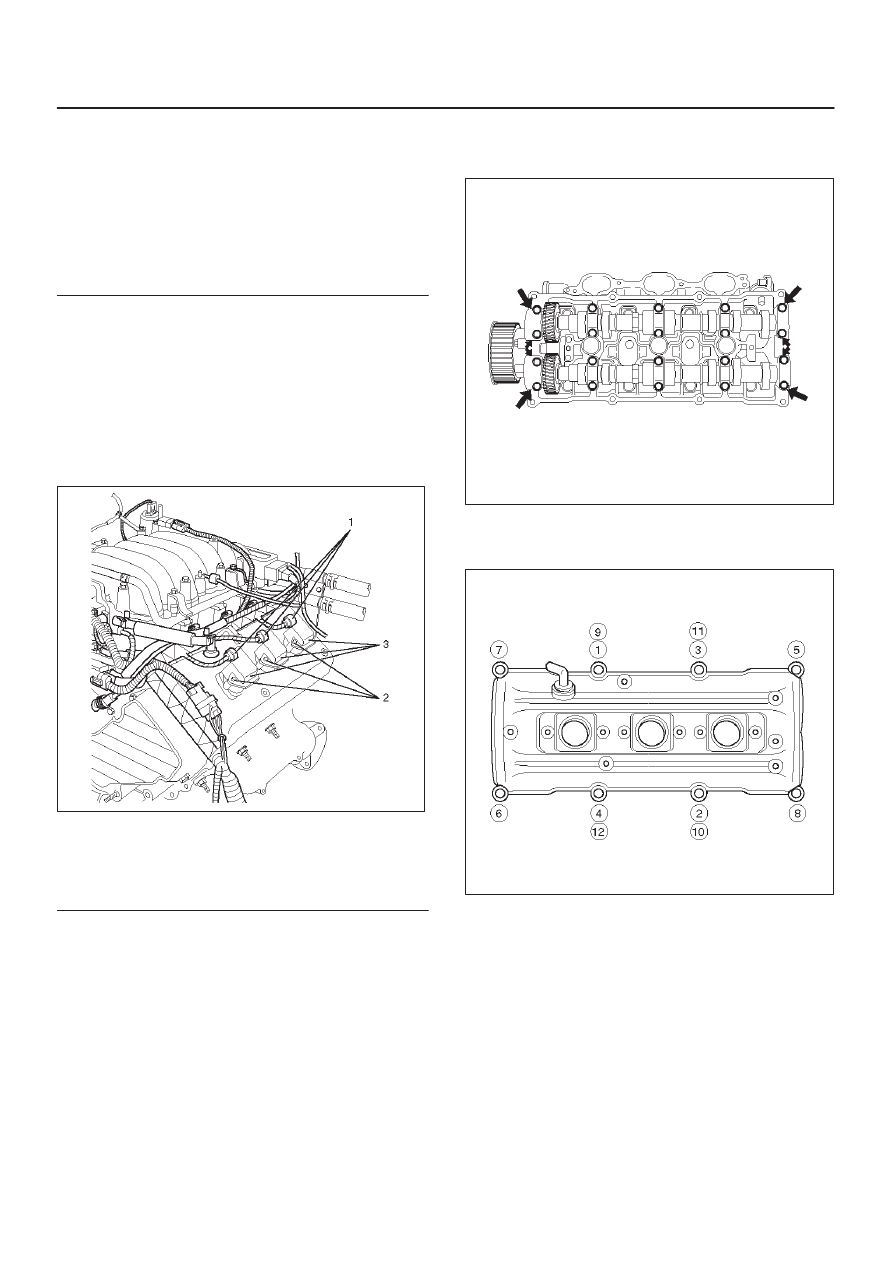

18. Remove ignition coil assemblies for the left side bank.

060RW018

Legend

(1) Ignition Coil Connectors
(2) Bolts
(3) Ignition Coil Assemblies

19. Remove cylinder head cover assembly.

Installation

1. Install cylinder head cover.

D

Clean the sealing surface of cylinder head and
cylinder head cover to remove oil and sealing
materials completely.

D

Apply sealant (TB-1207B or equivalent) of bead
diameter 2-3 mm at eight place of arched area of
camshaft bracket on front and rear sides.

D

The cylinder head cover must be installed within 5
minutes after sealant application to prevent
premature hardening of sealant.

014RW144

D

Tighten bolts to the specified torque.

Torque : 9 N·m (0.9 Kg·m/78 lb in)

010RW008

2. Install ignition coil assemblies and tighten the fixing

bolts to the specified torque.

Torque : 4 N·m (0.4 Kg·m/35 lb in)

3. Install timing belt covers from left bank side to right

bank side, and tighten the fixing bolts and nut to the
specified torque.

Torque : 19 N·m (1.9 Kg·m/14 lb ft)

4. Install crankshaft pulley and tighten the fixing bolt

using 5–8840–0133–0 crankshaft holder to the
specified torque.

Torque : 167 N·m (17.0 Kg·m/123 lb ft)

6A–20

ENGINE MECHANICAL

5. Install auto tensioner assembly and tighten the fixing

bolts to the specified torque.

Torque :
Shorter Bolt : 20 N·m (2.0 Kg·m/14 lb ft)
Longer Bolt : 39 N·m (4.0 Kg·m/29 lb ft)

6. Install idle pulley and bracket assembly and tighten

the fixing bolt to the specified torque.

Torque : 52 N·m (5.3 Kg·m/38 lb ft)

7. Install fan pulley and bracket assembly and tighten

the fixing bolts and nut to the specified torque.

Torque : 22 N·m (2.2 Kg·m/16 lb ft)

8. Install power steering oil pump pulley and tighten the

fixing bolt to the specified torque.

Torque : 78 N·m (8.0 Kg·m/58 lb ft)

9. Install drive belt by pushing down the auto tensioner

using spanner as shown in the removal step of drive
belt.

10. Install cooling fan and clutch assembly and tighten

the fixing bolts to the specified torque.

Torque : 10 N·m (1.0 Kg·m/87 lb in)

11. Install upper fan guide and clip both side and tighten

the fixing bolts to the specified torque.

Torque : 4 N·m (0.4 Kg·m/35 lb in)

12. Install engine harness and tighten the fixing bolts of

the retaining clip and bracket to the specified torque.

Torque : 4 N·m (0.4 Kg·m/35 lb in)

13. Connect radiator upper and lower hoses and clip

them securely.

14. Connect vacuum hoses of those which were

disconnected in the removal step.

15. Connect wiring connectors and bonding cable of

those which were disconnected in the removal step.

16. Install air cleaner element and air cleaner duct

assembly, and clip the both end securely.

17. Connect MAF sensor connector, IAT sensor

connector and PCV hose.

18. Install engine cover mating with the dowels.

6A–21

ENGINE MECHANICAL

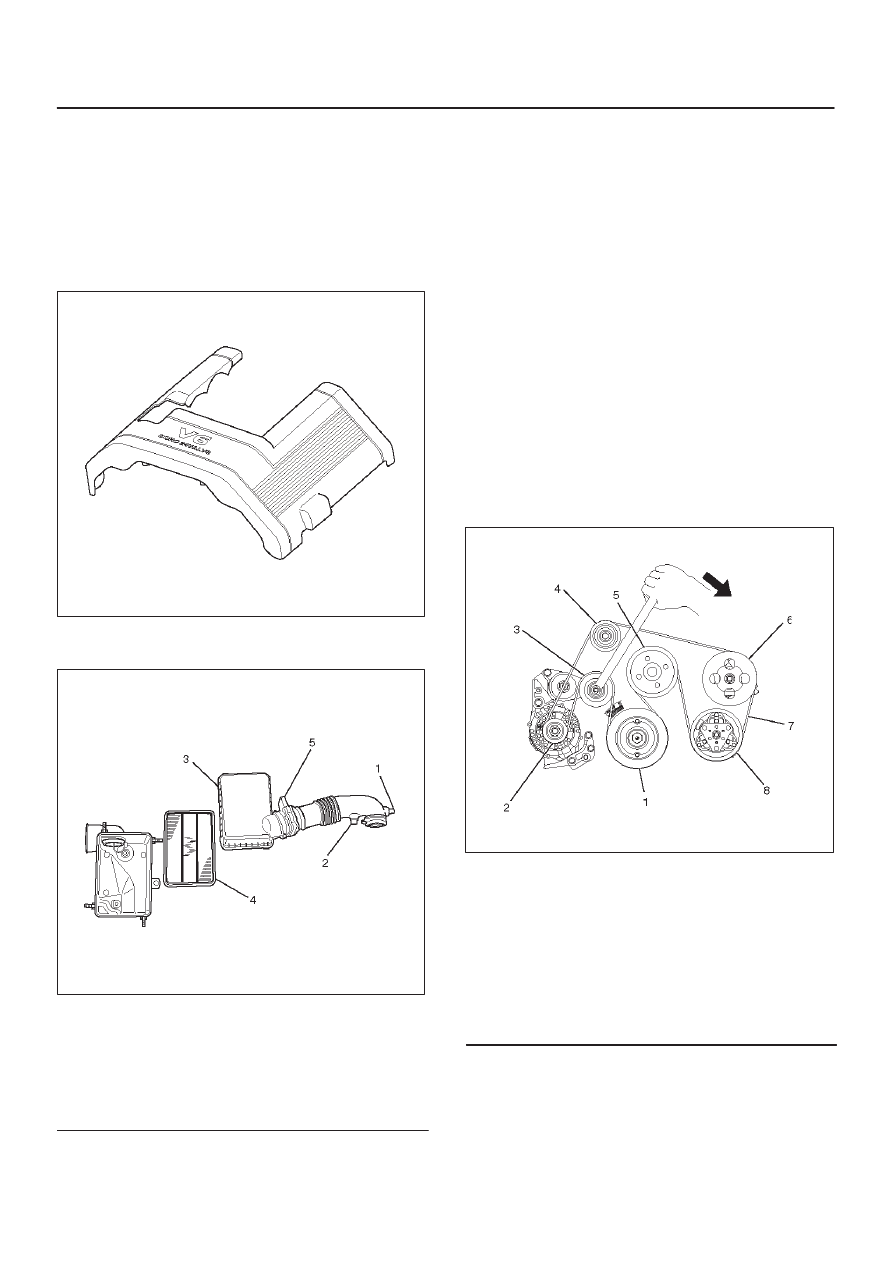

Cylinder Head Cover RH

Removal

1. Disconnect battery ground cable.
2. Remove battery from the vehicle.
3. Drain engine coolant from faucet bottom of radiator.
4. Remove engine cover from the dowels on the

common chamber.

F06RW018

5. Remove air cleaner duct assembly (3) and air cleaner

element (4).

130RW001

Legend

(1) Positive Crankcase Ventilation Hose Connector
(2) Intake Air Temperature Sensor
(3) Air Cleaner Duct Assembly
(4) Air Cleaner Element
(5) Mass Air Flow Sensor

NOTE: Disconnect the mass air flow (MAF) sensor
connector, intake air temperature (IAT) sensor connector,
and positive crankcase ventilation (PCV) hose before
hand the air cleaner duct assembly is removed.

6. Disconnect following wiring connectors and bonding

cable:

D

Exhaust Gas Recirculation (EGR) valve

D

Fuel injectors for right bank

D

Ignition coils for right bank

D

Bonding cable

D

Othres as necessitated

7. Disconnect radiator upper and lower hoses.
8. Remove engine harness from the cylinder head

cover.

9. Remove the upper fan guide.

10. Remove cooling fan and clutch assembly.

11. Remove drive belt by pushing down the auto

tensioner using spanner as illustrated.

F06RW019

Legend

(1) Crankshaft Pulley
(2) Generator
(3) Auto Tensioner
(4) Idle Pulley
(5) Cooling Fan Pulley
(6) Power Steering Oil Pump
(7) Drive Belt
(8) Air Conditioner Compressor

12. Remove fan pulley and bracket assembly.
13. Remove idle pulley assembly.
14. Remove auto tensioner assembly.
15. Remove crankshaft pulley using 5–8840–0133–0

crankshaft holder.
