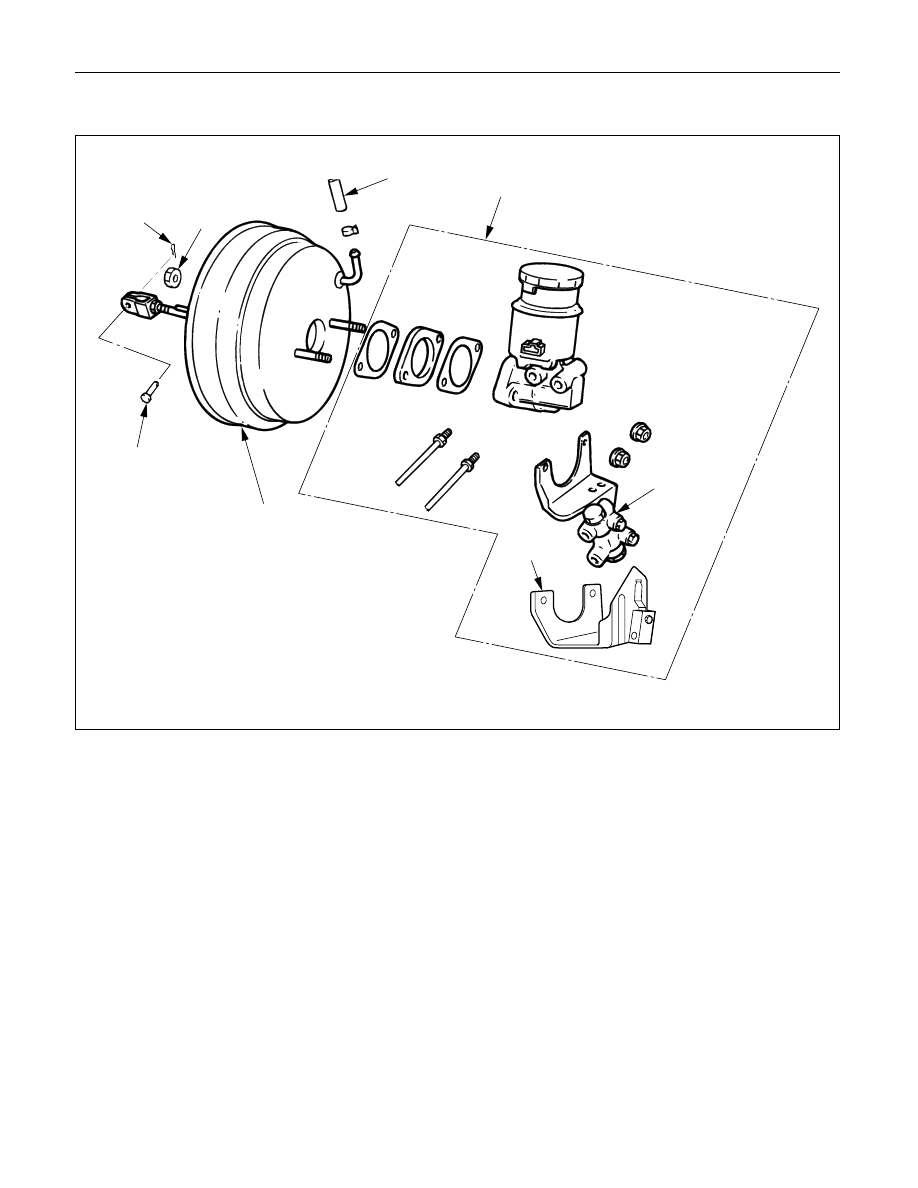

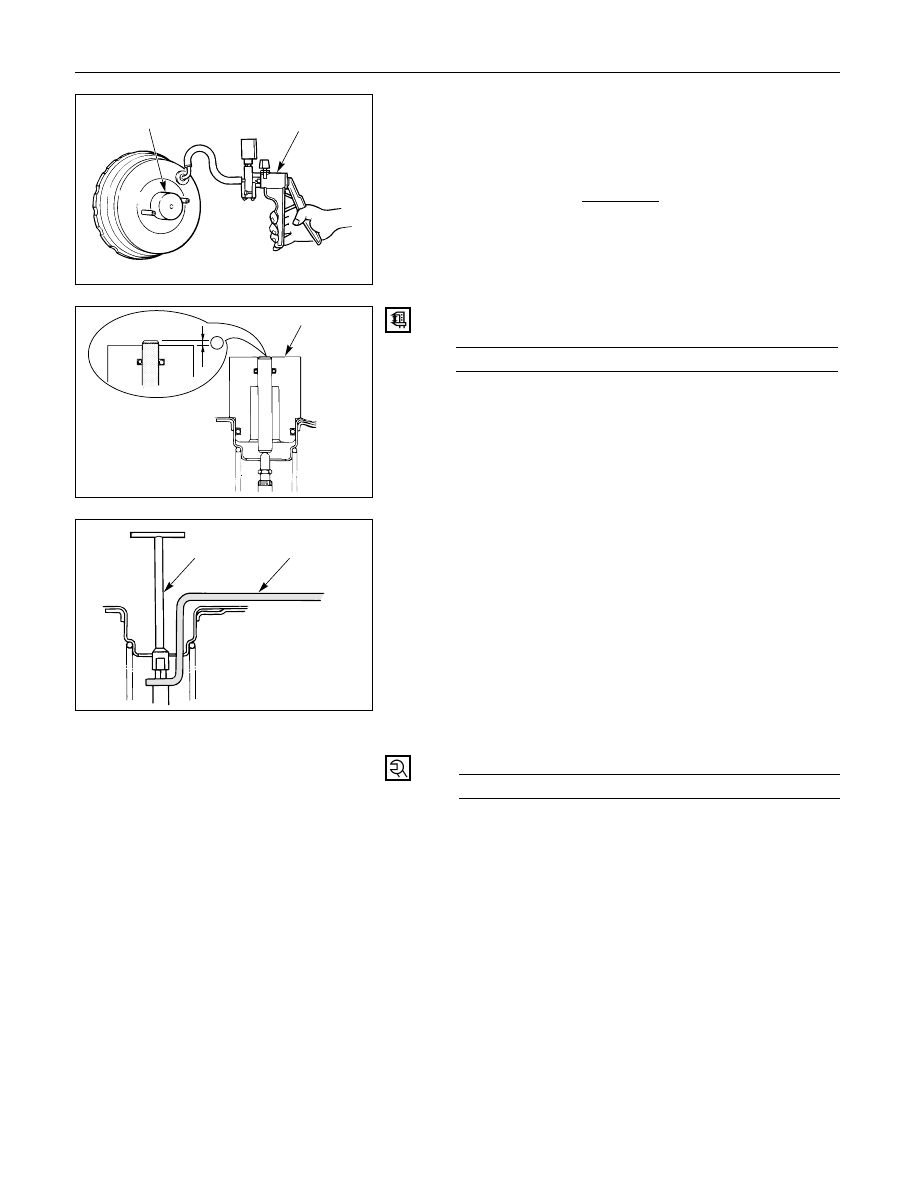

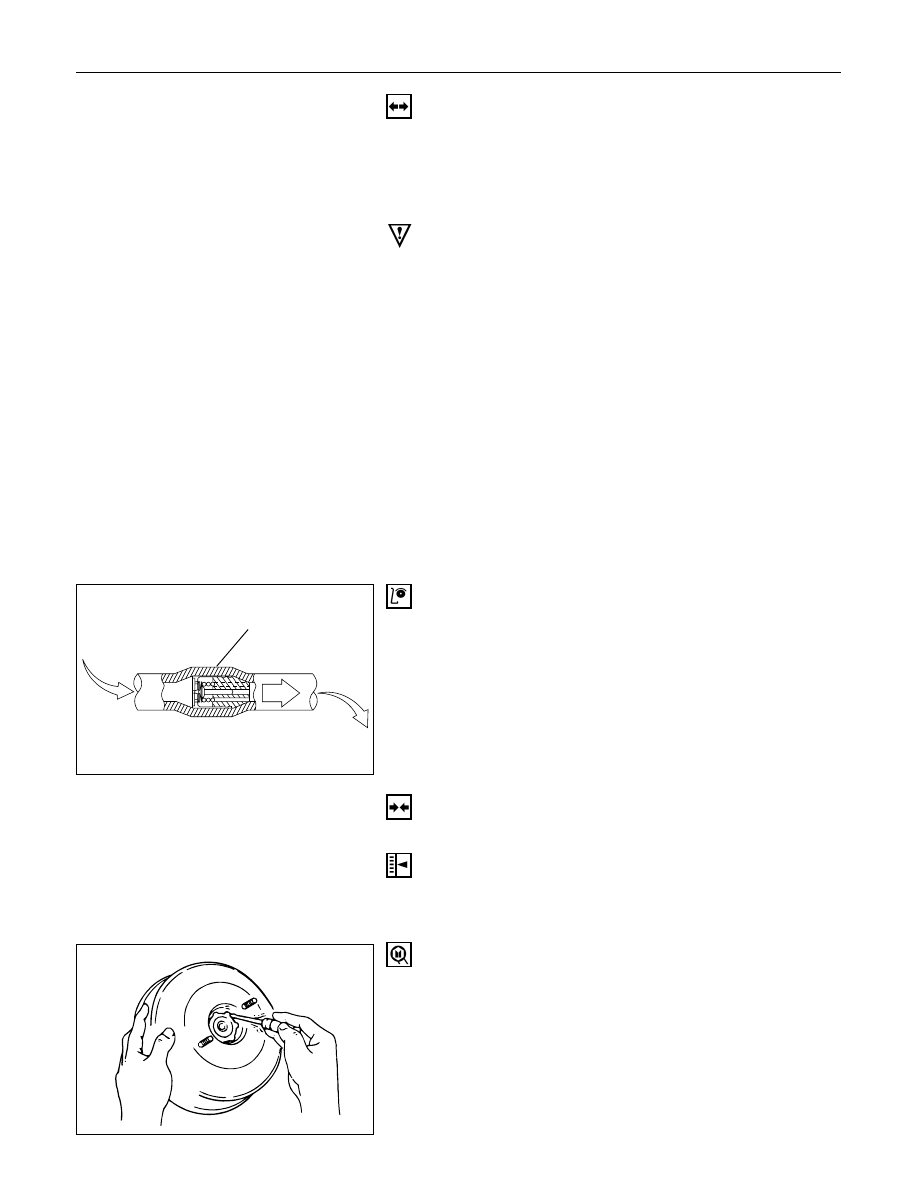

5C – 40 POWER ASSISTED BRAKE SYSTEM REMOVAL CAUTION: 1. Electrical Connector 2. Brake Pipes • After disconnecting the brake pipe, cap or tape 3. 2 Attaching Nuts 4a. P & B Valve and Bracket 4b.3-way Connector and Bracket (Vehicle with LSPV Only) 5. Master Cylinder 6. Spacer and 2 Gaskets INSTALLATION 6. Spacer and 2 Gaskets 5. Master Cylinder • When replacing the master cylinder or vacuum 4a. P & B Valve and Bracket 4b.3-way Connector and Bracket (Vehicle with LSPV Only) 3. 2 Attaching Nuts • Tighten the attaching nuts to the specified torque. Attaching Nut Torque N·m (kg·cm / lb·in) 13 (130 / 113) 2. Brake Pipes • Tighten the brake pipe to the specified torque. Brake Pipe Torque N·m (kg·m / lb·ft) Master Cylinder Side Others 12 (1.2 / 9) 16 (1.6 / 12) 1. Electrical Connector |
