Opel Frontera UBS. Manual - part 2040





5A–40

BRAKE CONTROL SYSTEM

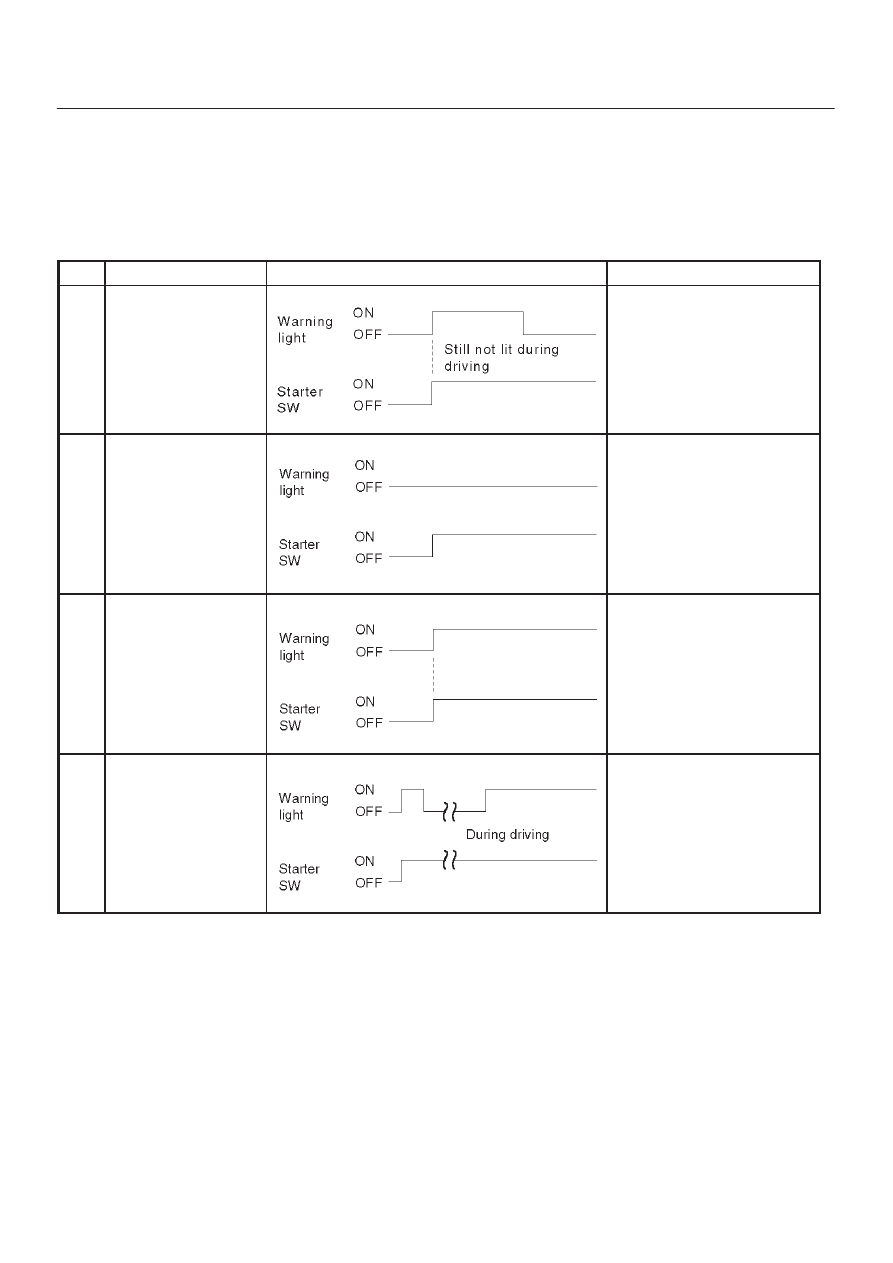

Diagnosis By “ABS” Warning Light
Illumination Pattern

In the event that there is abnormality in the “ABS” warning
light illumination pattern while the key is in the ON position
or if the warning light is actuated during driving, trouble
should be diagnosed on a illumination pattern basis as
follows:

No.

Condition

“ABS” Warning Light Illumination Pattern

Diagnostic

1

Warning light is actu-
ated normally

Normal

2

Warning light is not lit

Warning light lighting circuit
trouble

Go to Chart B-1

3

Warning light remains
ON

Diagnostic trouble codes are
stored.
Display diagnostic trouble
codes and diagnose on a
code basis according to the
flow charts.

4

Warning light is actu-
ated while driving

Diagnostic trouble codes are
stored.
Display diagnostic trouble
codes and diagnose on a
code basis according to the
flow charts.

Diagnostic Trouble Codes (DTCs)

When the warning light in the meter remains ON, the
EHCU stores the fault identification and disables the
ABS.

1. How to display and erase DTCs:

NOTE:

D

If DTCs are not displayed, harness C-4 connector
terminal 30 and I-10 connector terminal 2 may be
disconnected.  Repair the harness and try DTC
display again.

D

DTCs can be displayed also by TECH 2.  Select mode
“F0: Diagnostic Trouble Codes” from Application
Menu.

1. How to start DTC display:

D

Confirm that the vehicle has come to a complete
stop (with the wheels standing still) and that the
brake pedal is not depressed.  (Unless these two
conditions are satisfied, DTC display cannot be
started.)

D

With IGN OFF, connect #12 terminal with #4
terminal or # 5 terminal (GND) . Then turn IGN ON.

5A–41

BRAKE CONTROL SYSTEM

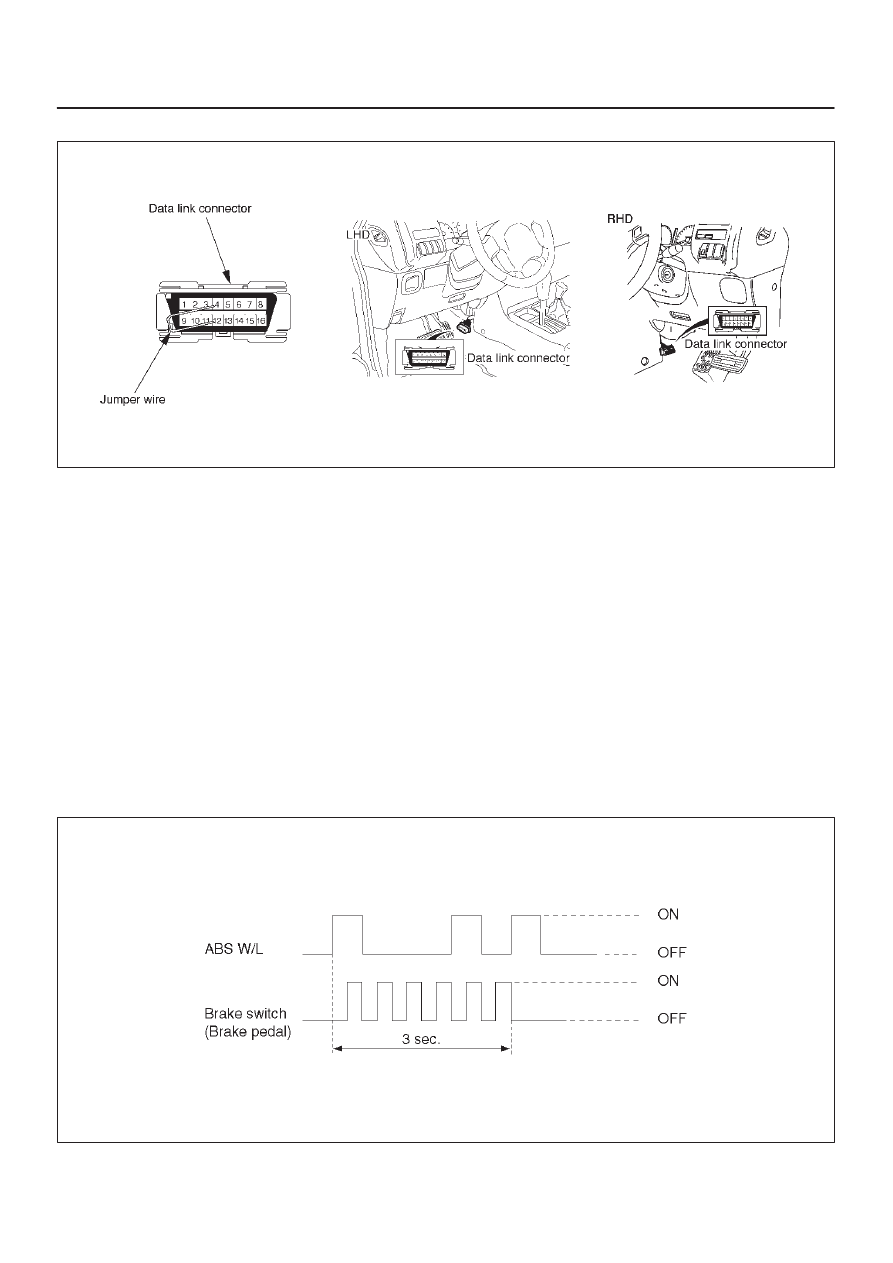

The DLC is located behind the center console

350RV010

D

Keep #12 terminal connected with #4 terminal or # 5
terminal (GND) during DTC display. (If #12 terminal
is separated from #4 terminal or # 5 terminal (GND)
during display, display will stop.)

2. DTC display:

D

DTC is displayed by blinking warning light.

D

Double-digit display.

D

First, normal DTC 12 is displayed three times and
then any other DTCs are displayed three times.  (If
no other DTCs have been stored, the display of DTC
12 will be repeated.)

3. How to erase code:

D

Conduct brake switch ON/OFF operation 6 or more
times within 3 seconds of self-diagnosis startup.

D

The code cannot be erased if more than 3 seconds
have passed since self-diagnosis startup, or if
self-diagnosis has started with brake switched on
(brake pedal depressed).

B05RW005

5A–42

BRAKE CONTROL SYSTEM

4. Notes

D

If the following should occurs during Diagnostic
Trouble Code (DTC) display the display will be
discontinued.  After initial check, the status that is
under the control of ABS will be returned :
– The vehicle starts (The wheels turn) or the brake

pedal is depressed.

D

Up to 3 different codes can be stored.

D

If the ABS should turn OFF due to an intermittent
defect, the system will be restored at the next key
cycle, if the initial check finds no abnormality (when
IGN is switched from OFF to ON).

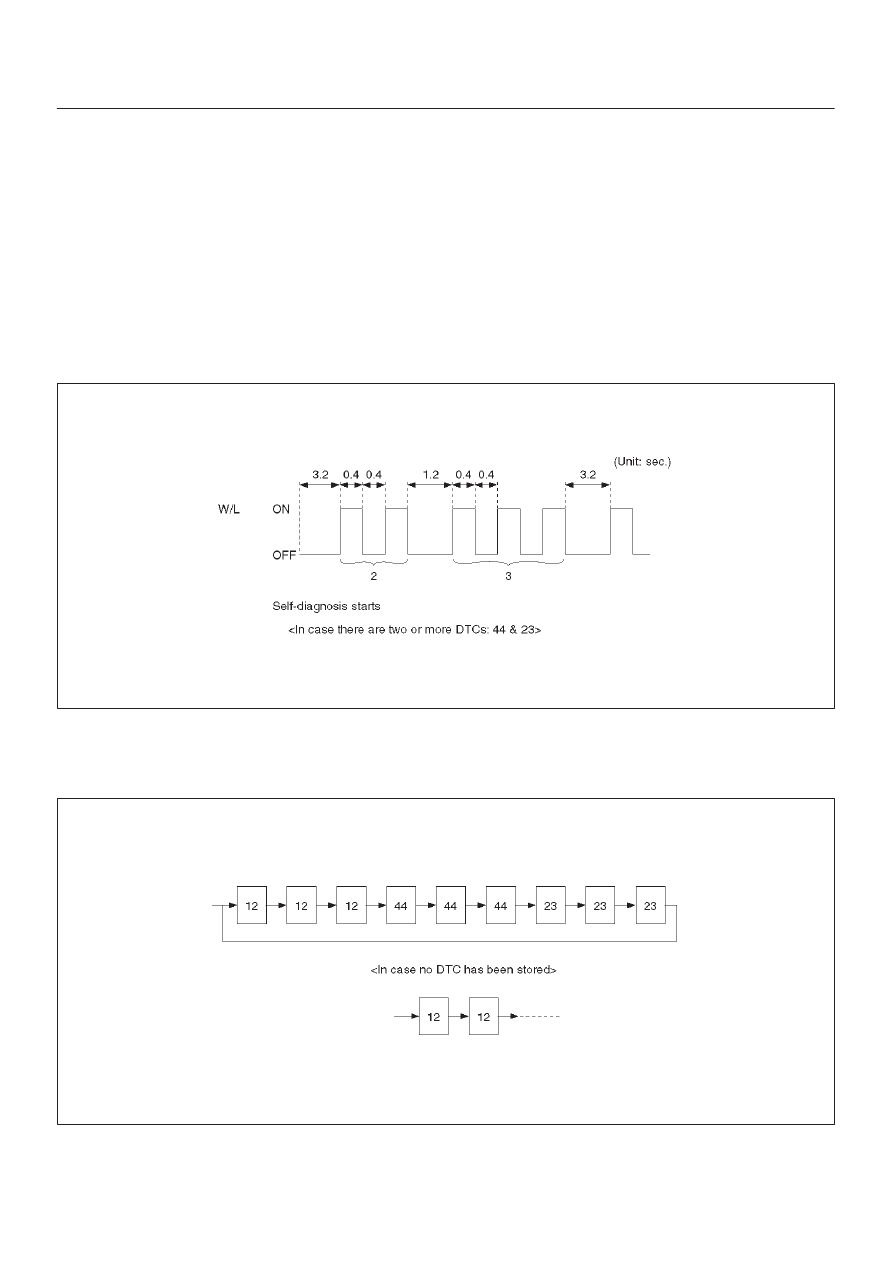

5. An example of DTC display

Display of DTC 23

B05RW006

After displaying DTC 12 three times, one DTC after
another is displayed, starting with the most recent
one.  (However, display is discontinued after about 5
minutes.)

B05RS005

The DTC 12 is displayed repeatedly. (display is
discontinued after about 5 minutes)

5A–43

BRAKE CONTROL SYSTEM

Chart B-1 With the key in the ON position (Before starting the engine).  Warning light (W/L)
is not activated.

Step

Action

Yes

No

1

Is W/L fuse C-10 disconnected?

Replace fuse.

Go to Step 5

Go to Step 2

2

Is W/L burnt out?

Replace W/L

bulb.

Go to Step 5

Go to Step 3

3

1. Turn the key off.
2. Disconnect EHCU connector.
3. Turn the key ON.
4. Measure the voltage between EHCU connector terminal 13

and 14.

Is the voltage equal to the battery voltage?

Go to Step 4

Repair harness

and connector.

Go to Step 5

4

Is there continuity between EHCU connector terminals, 12 and 15
and body ground.

Check harness

for suspected

disconnection.

No fault found:

Replace EHCU.

Go to Step 5

Repair harness

and connector.

Go to Step 5

5

Reconnect all components, ensure all components are properly
mounted.

Was this step finished?

Repeat the “Basic

diagnostic flow

chart.”

Go to Step 5

Chart B-2 EHCU Abnormality (DTC 14)

Step

Action

Yes

No

1

1. Turn the key off.
2. Disconnect the EHCU connector.
3. Inspect EHCU ground.

Is there resistance between the EHCU connector terminals, 12
and 15 and body ground?

Go to Step 2

Repair the body

ground harness.

Go to Step 3

2

1. Turn the key off, connect the EHCU.
2. Erase the trouble code.
3. Turn Ignition off, then on, to perform system self-check.
4. If warning light remains on, display trouble codes once again.

Is the check trouble code 14?

Replace EHCU.

Go to Step 3

Inspect in

accordance with

the DTC

displayed.

3

1. Reconnect all components and ensure all components are

properly mounted.

2. Clear diagnostic trouble code.

Was this step finished?

Repeat the “Basic

diagnostic flow

chart.”

Go to Step 3
