TRANSFER CASE (STANDARD TYPE)

4D1–5

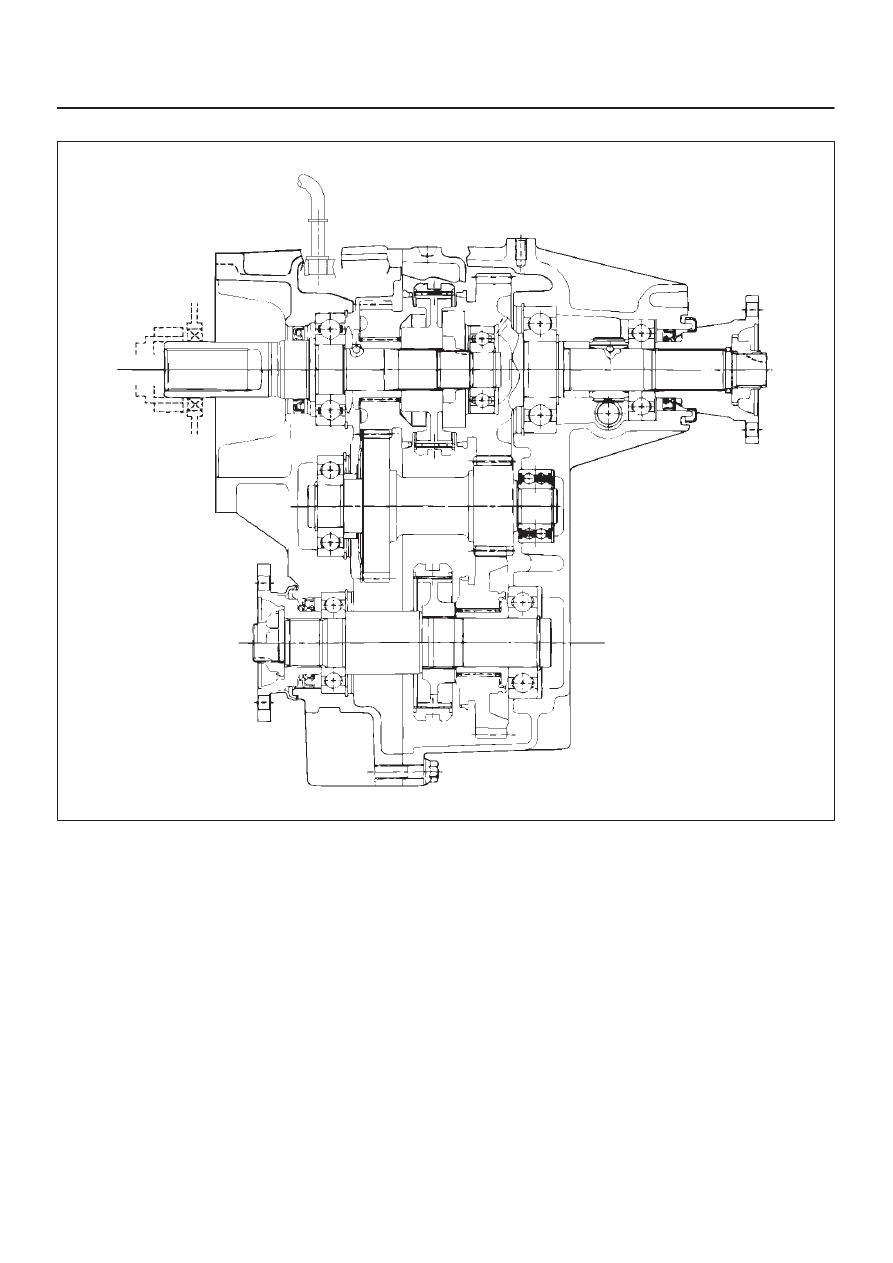

A/T, W/Shift On The Fly, W/4WD Switch, model

A07RW001

4D1–6

TRANSFER CASE (STANDARD TYPE)

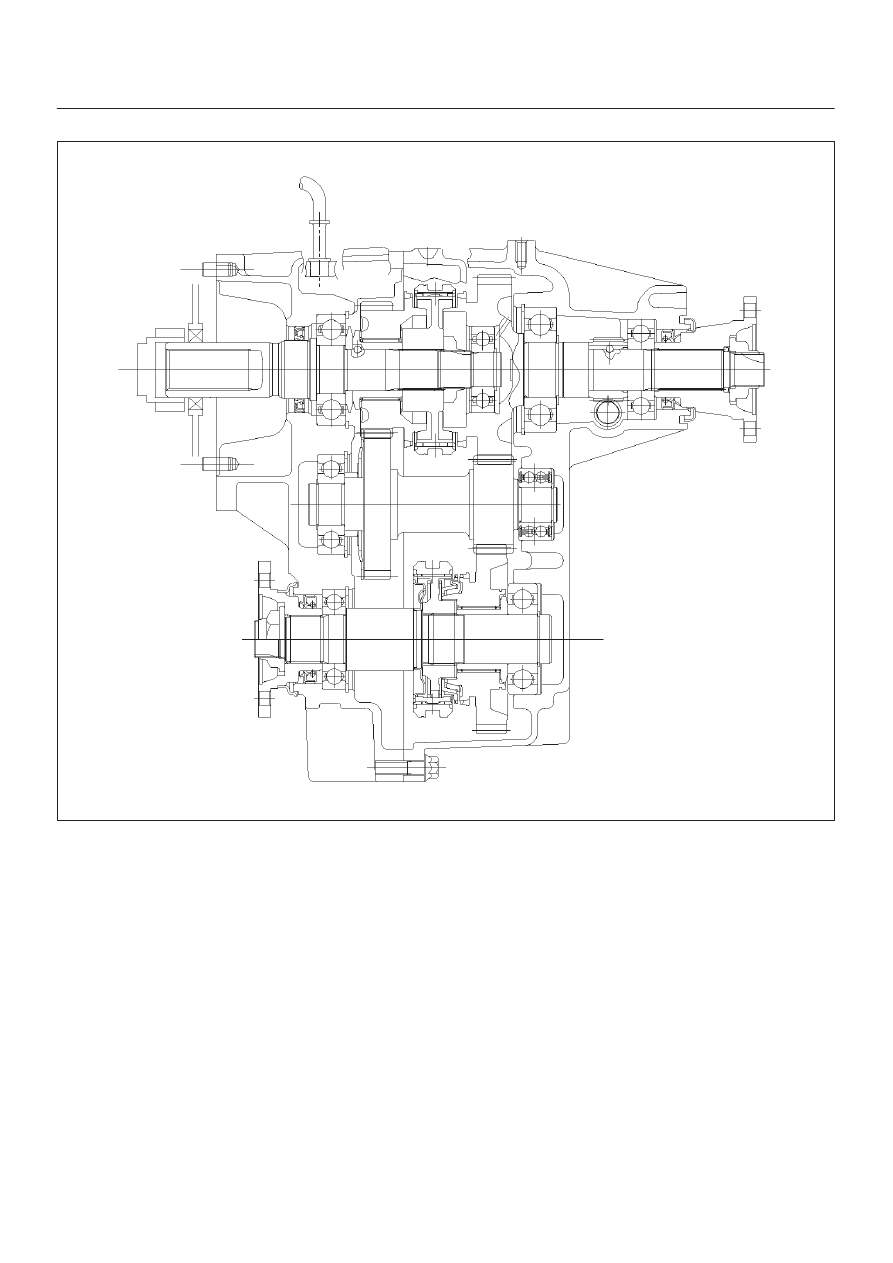

A/T, W/Shift On The Fly, WO/4WD Switch, model

A07RW056

TRANSFER CASE (STANDARD TYPE)

4D1–7

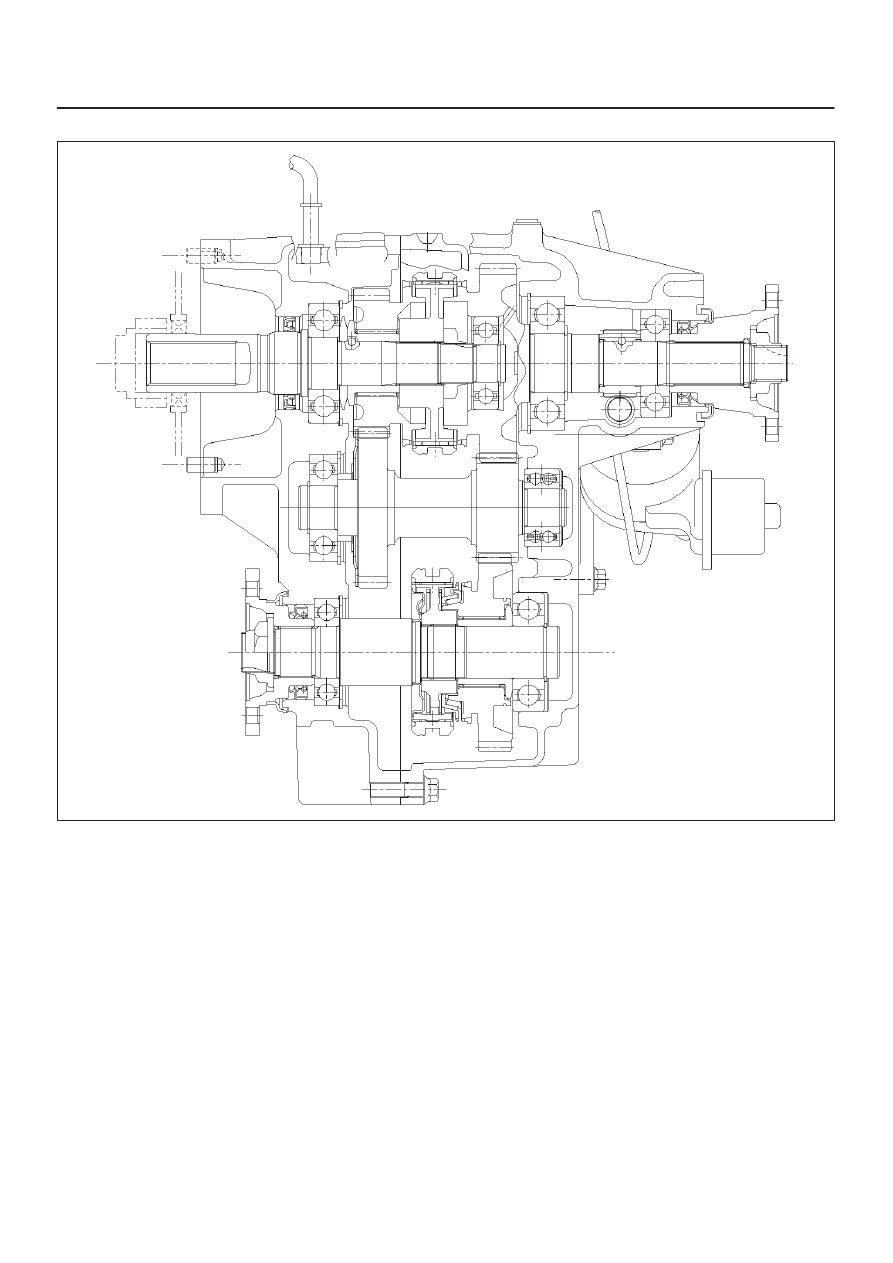

A/T, WO/Shift On The Fly, WO/4WD Switch, model

A07RW055

The transfer case is used to provide a means of providing
power flow to the front axle. The transfer case also
provides a means of disconnecting the front axle,
providing better fuel economy and quieter operation when
the vehicle is driven on improved roads where four wheel
drive is not required. In addition, the transfer case
provides an additional gear reduction when placed in low
range, which is useful when difficult off–road conditions
are encountered.
A floor mounted shift lever is used to select the high–low
range. When four wheel drive switch has been turned on,
the four wheel drive indicator light is designed to come on
when the front axle has been engaged.

4D1–8

TRANSFER CASE (STANDARD TYPE)

Transfer Rear Oil Seal

Removal

1. Disconnect the rear propeller shaft from the transfer

case side.

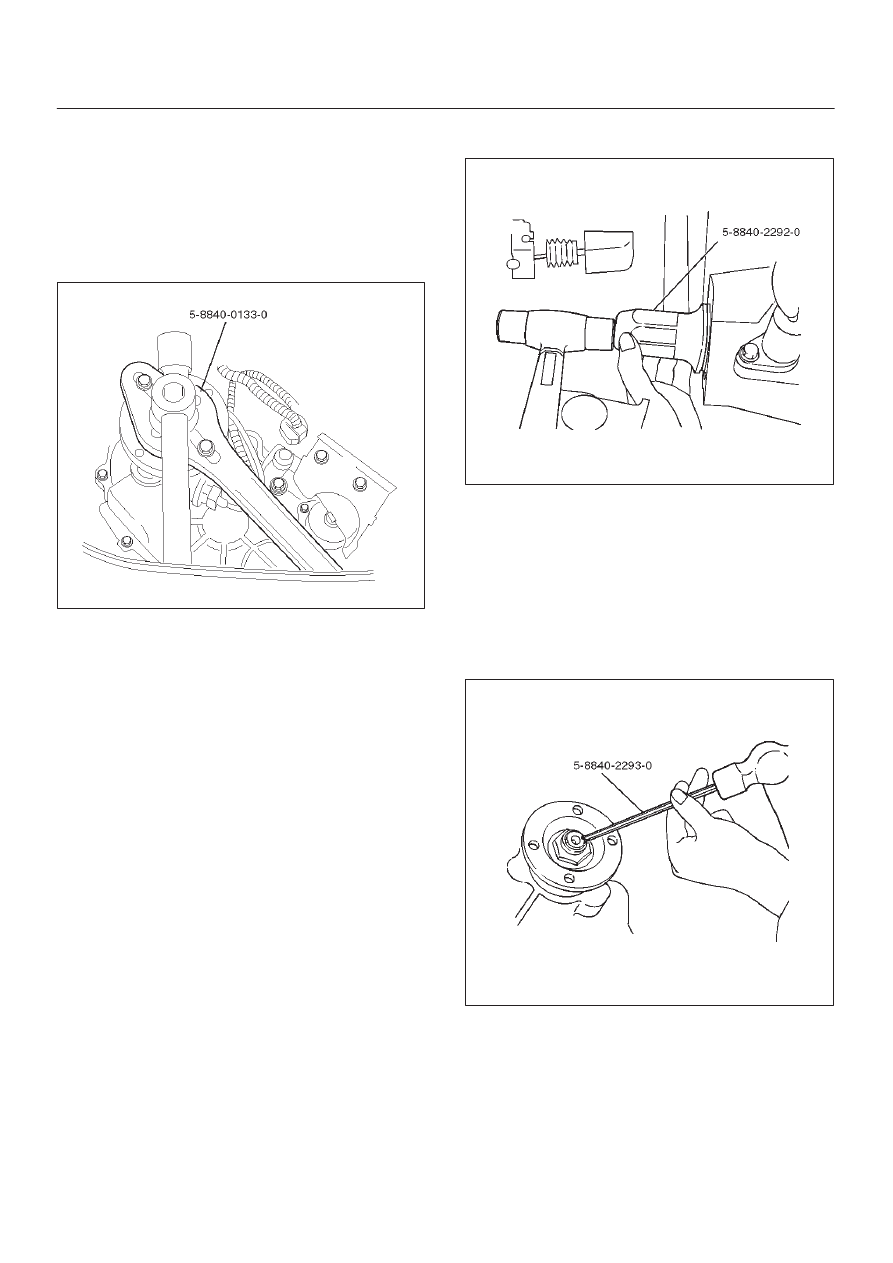

2. Remove end nut and rear companion flange, using

the companion flange holder 5–8840–0133–0
(J–8614–11).

266RW026

3. Use the universal puller to remove the rear

companion flange and O–ring.

4. Remove the oil seal from the transfer case.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Install oil seal and apply engine oil to the oil seal outer

surfaces.

2. Apply the recommended grease (BESCO L2) or

equivalent to the oil seal lip.

3. Use the oil seal installer 5–8840–2292–0 (J–39208)

to install the rear seal to the transfer rear case.

220RW105

4. Install the rear companion flange and O–ring.
5. Use the companion flange holder 5–8840–0133–0

(J–8614–11) to install a new end nut and tighten to the
specified torque.

Torque: 167 N·m (17.0kg·m/123 lb ft)

6. Use the punch 5–8840–2293–0 (J–39209) to stake

the end nut at two spots.

NOTE: Be sure to confirm that there is no crack at the
staked portion of the end nut after staking.

266RW027
