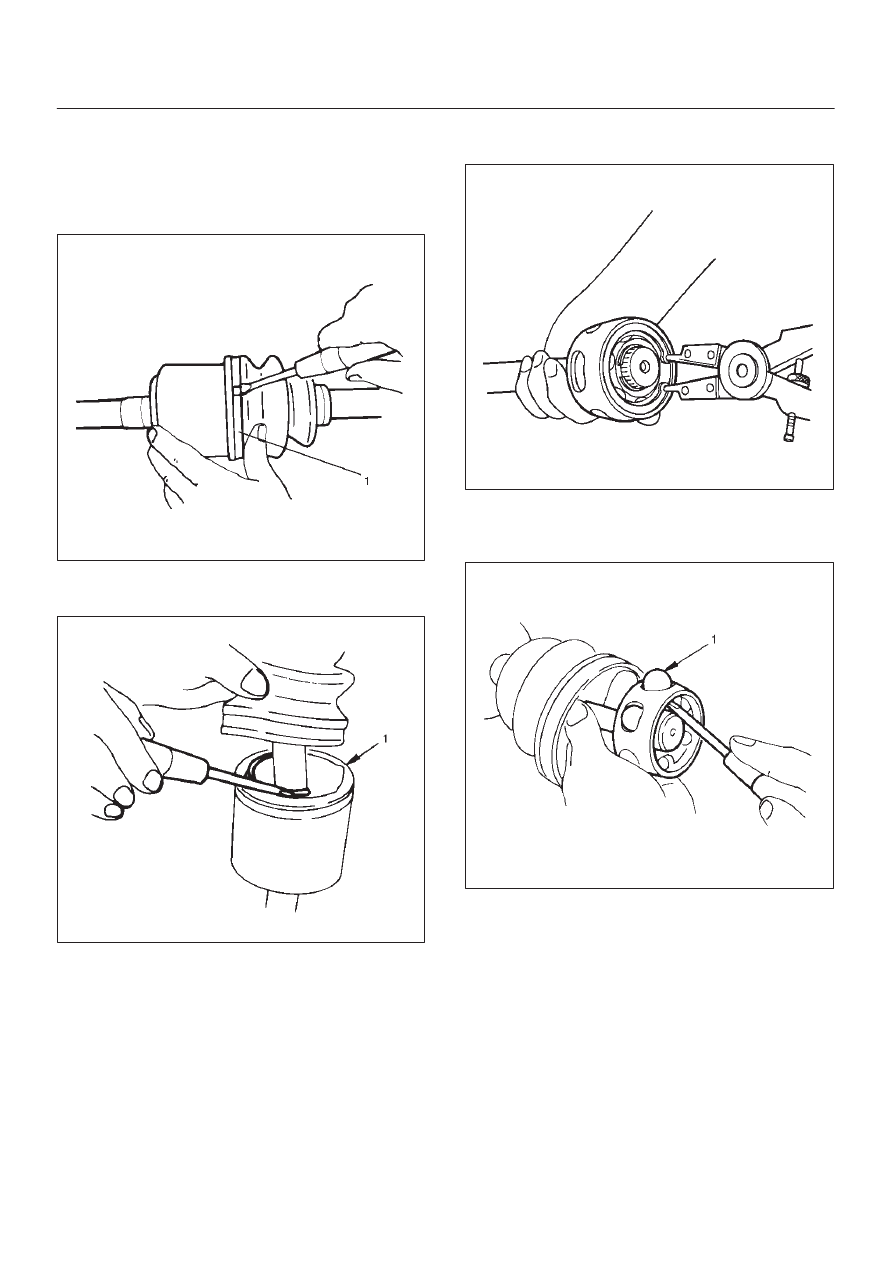

4C–24 DRIVE SHAFT SYSTEM Disassembly NOTE: For the left side, follow the same steps as right 1. Raise the hooked end of the band (1) with a screwdriver or equivalent. 412RS009 2. Remove band. 412RS010 4. Remove drive shaft joint assembly. 412RS011 6. Remove spacer. equivalent. 412RS012 |
