4B2–19

DRIVE LINE CONTROL SYSTEM (TOD)

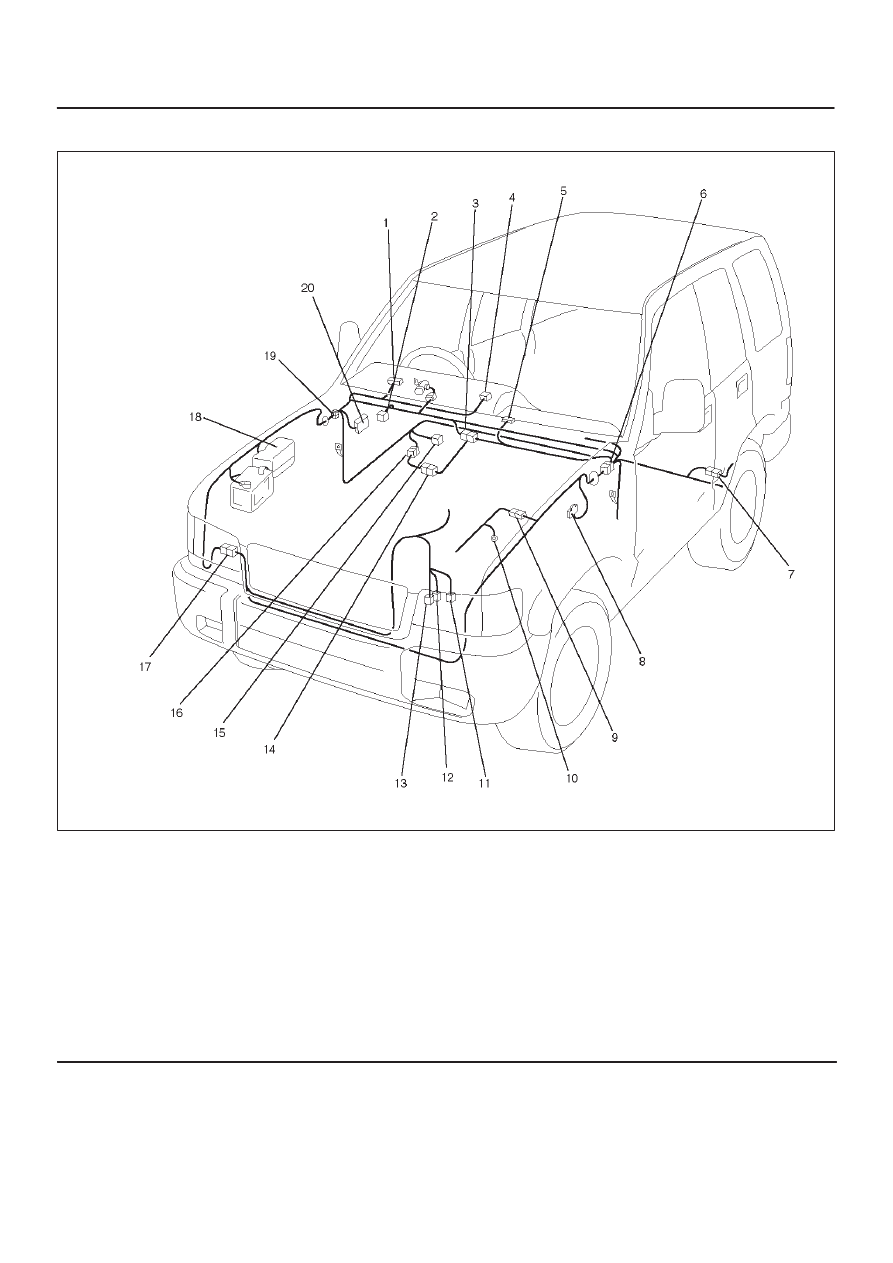

Parts Location (RHD 4JX1)

D08RW753

Legend

(1) I–9
(2) B–13 or B–14
(3) H–12
(4) I–12
(5) C–63
(6) H–7, H–8
(7) H–32
(8) C–16
(9) H–5, H–6

(10) E–4

(11) P–17

(12) P–18
(13) P–19
(14) A–3
(15) B–67, B–68
(16) H–49
(17) H–60
(18) Relay and Fuse Box
(19) H–15, H–25, H–26, H–27
(20) Fuse Box

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–20

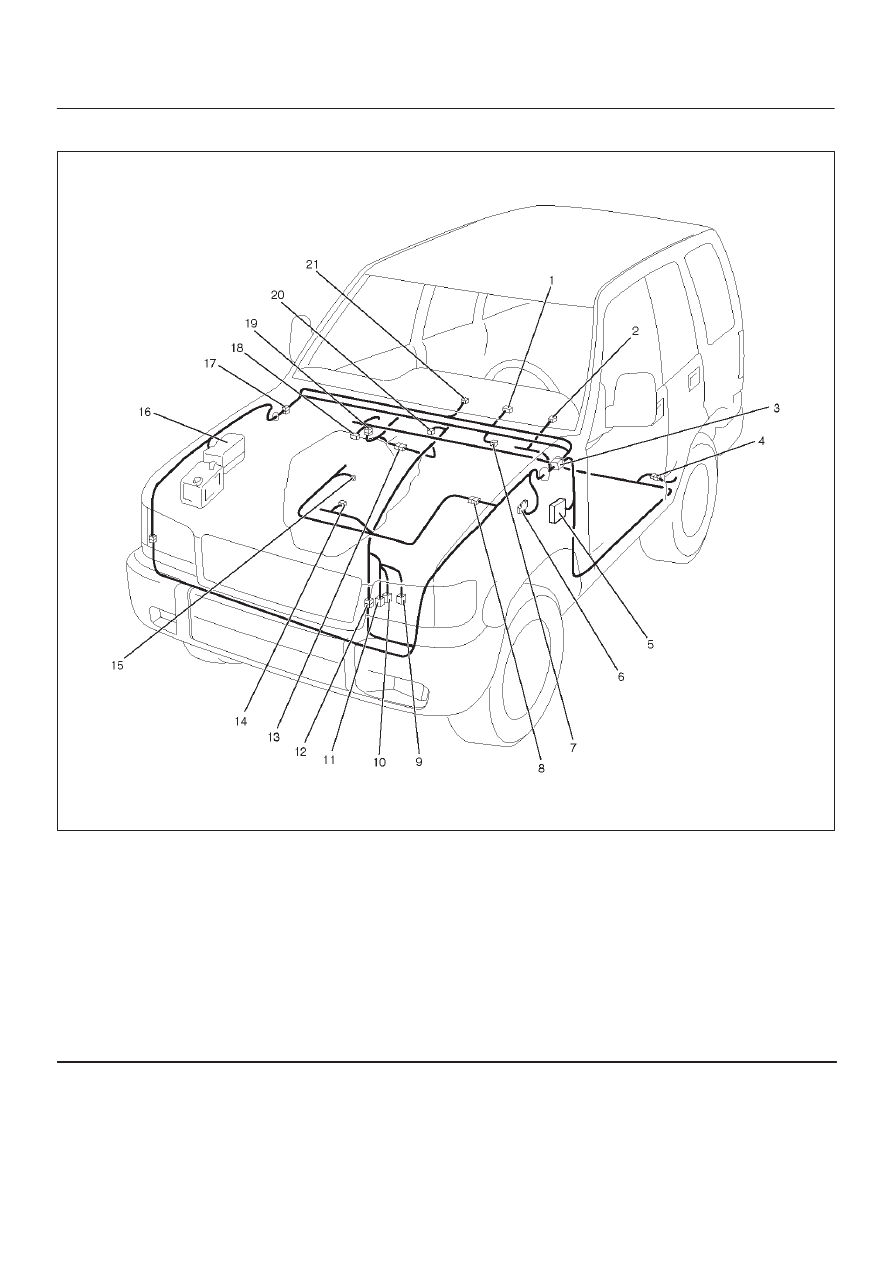

Parts Location (LHD 6VE1)

D08RW367

Legend

(1) I–9
(2) C–63
(3) H–7, H–8, H–25, H–26
(4) H–32
(5) Fuse Box
(6) C–6
(7) B–13 or B–14
(8) H–5, H–6
(9) M–22

(10) M–23

(11) M–24

(12) H–10
(13) H–49
(14) E–5
(15) E–30
(16) Relay and Fuse Box
(17) H–12, H–15
(18) B–67, B–68
(19) Not Used
(20) A–3
(21) I–12

4B2–21

DRIVE LINE CONTROL SYSTEM (TOD)

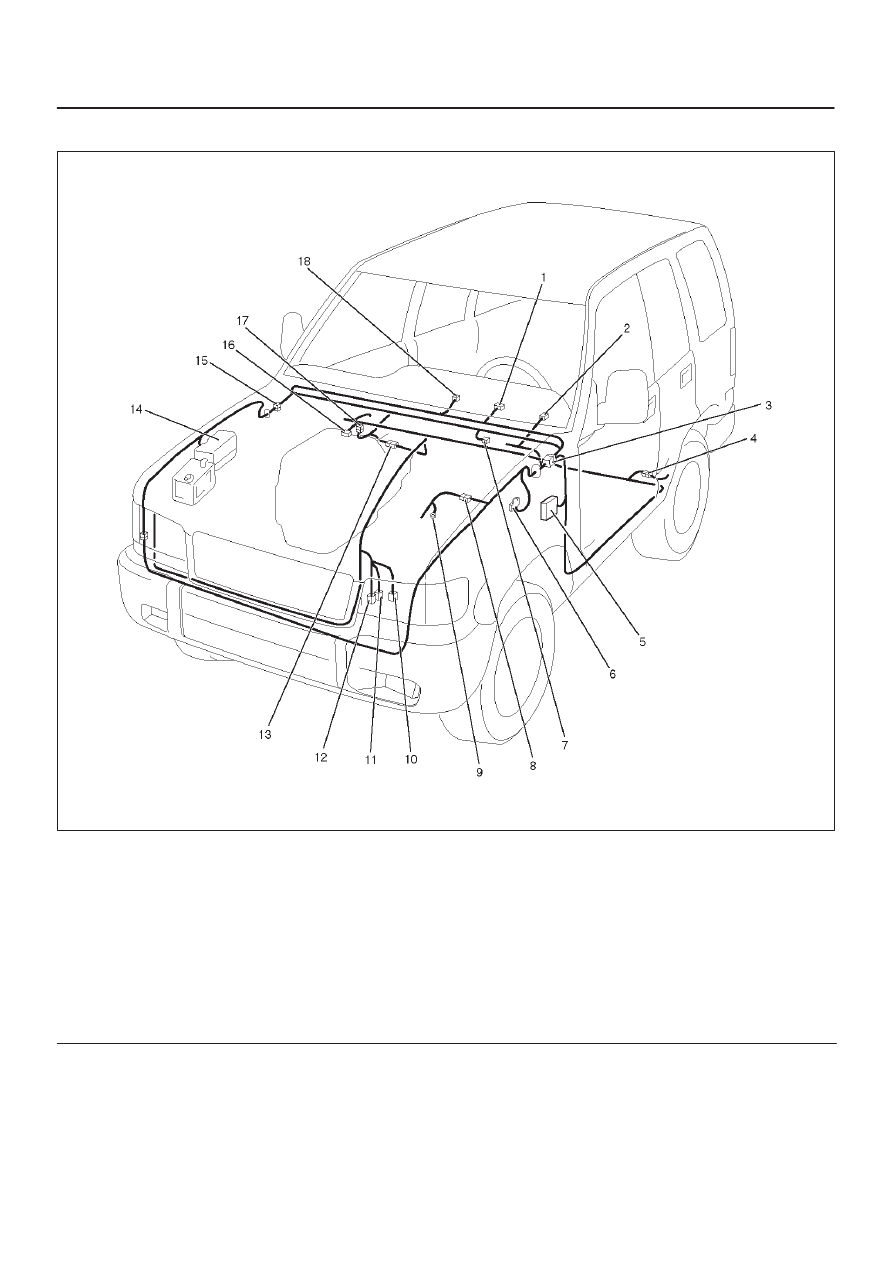

Parts Location (LHD 4JX1)

D08RY00610

Legend

(1) I–9
(2) C–63
(3) H–15, H–25, H–26
(4) H–32
(5) Fuse Box
(6) C–16
(7) B–14
(8) H–5, H–6
(9) E–4

(10) P–17

(11) P–18

(12) P–19
(13) A–3
(14) Relay and Fuse Box
(15) H–7, H–8
(16) B–67, B–68
(17) H–49
(18) I–12

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–22

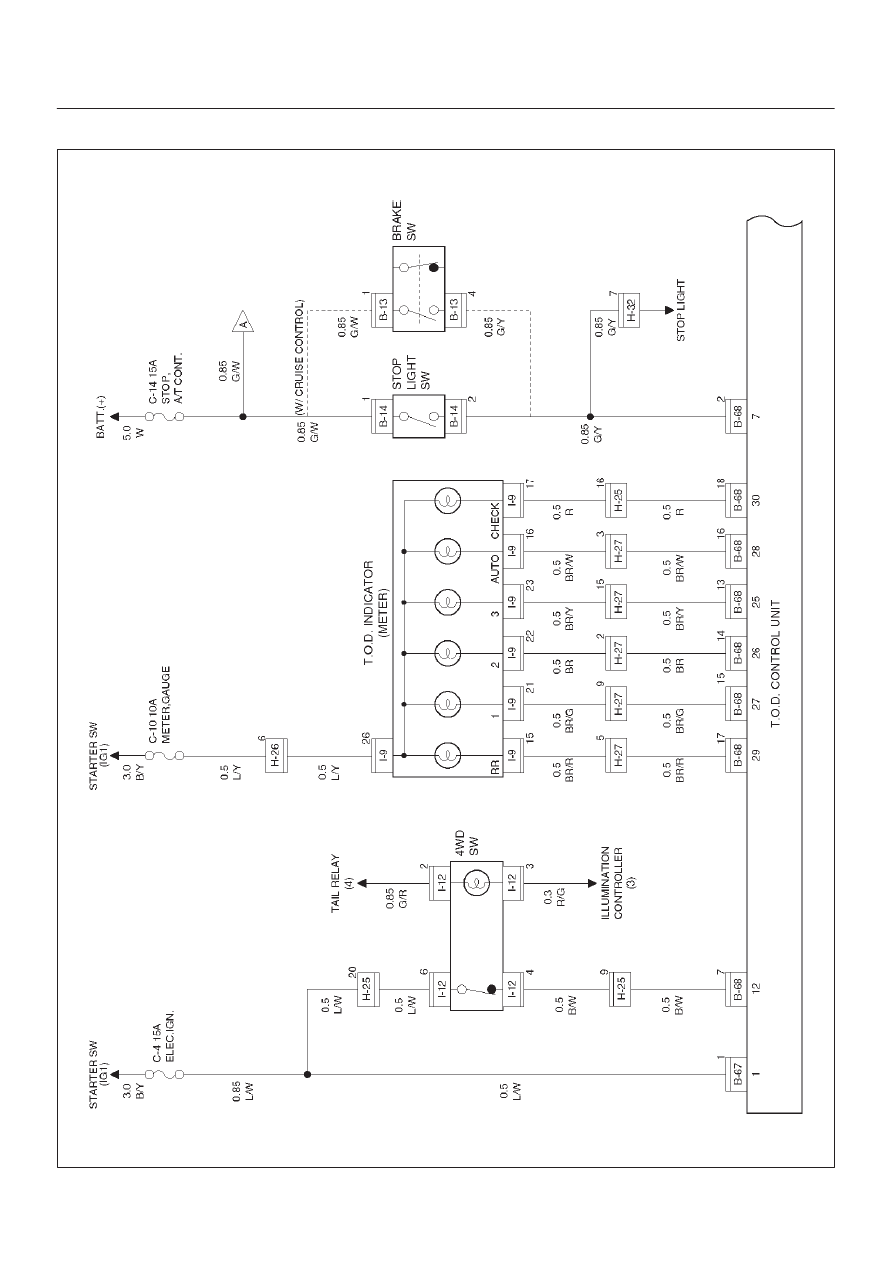

Circuit Diagram–1 (RHD 6VE1)

D04RY00041
