4B2–7

DRIVE LINE CONTROL SYSTEM (TOD)

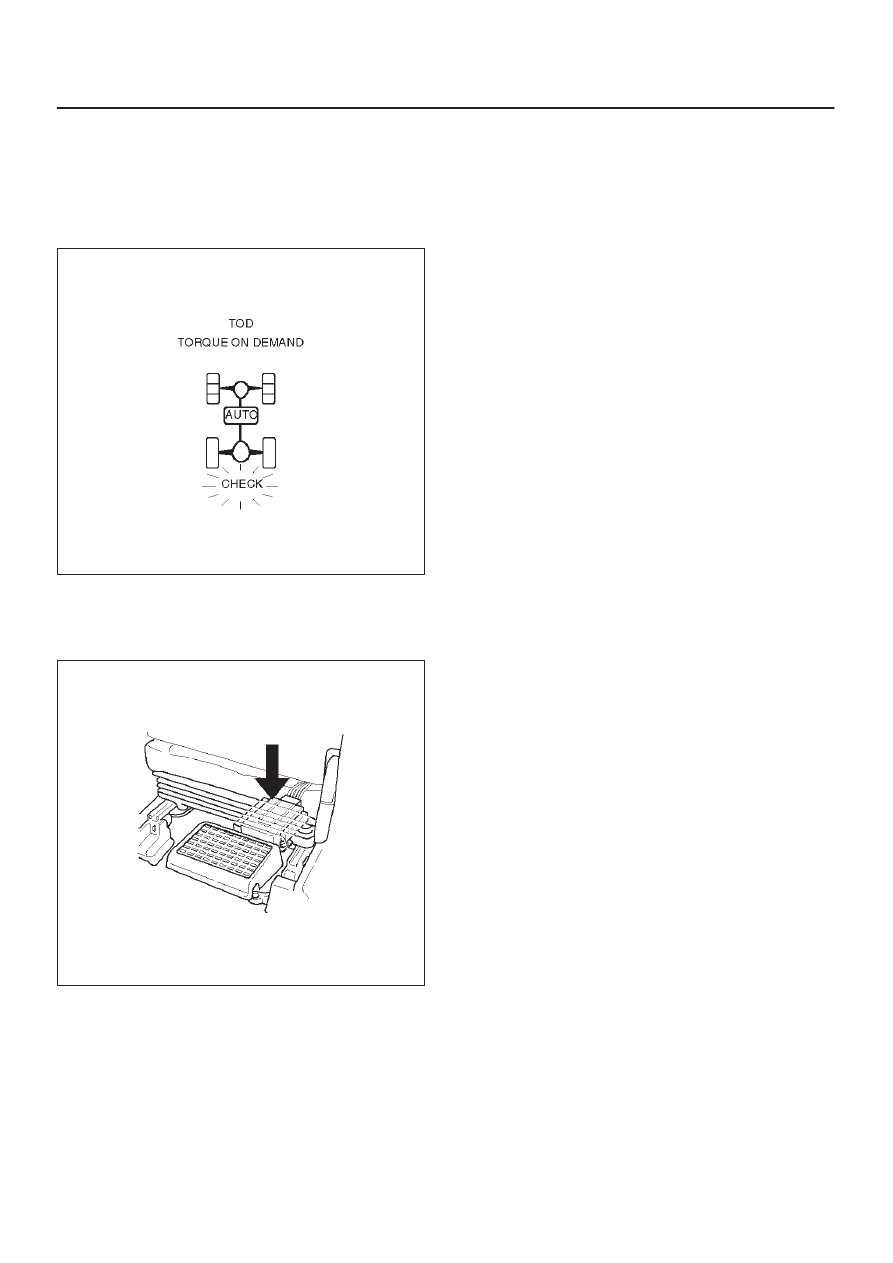

Check Lamp

Inform the following items.

D

Bulb check

D

Fail (fail alarm)

D

Trouble code

D

Diesel/gasoline MAP

821RW078

TOD ECU

This control unit is mounted to the front right hand seat via
a special bracket.

F07RW029

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–8

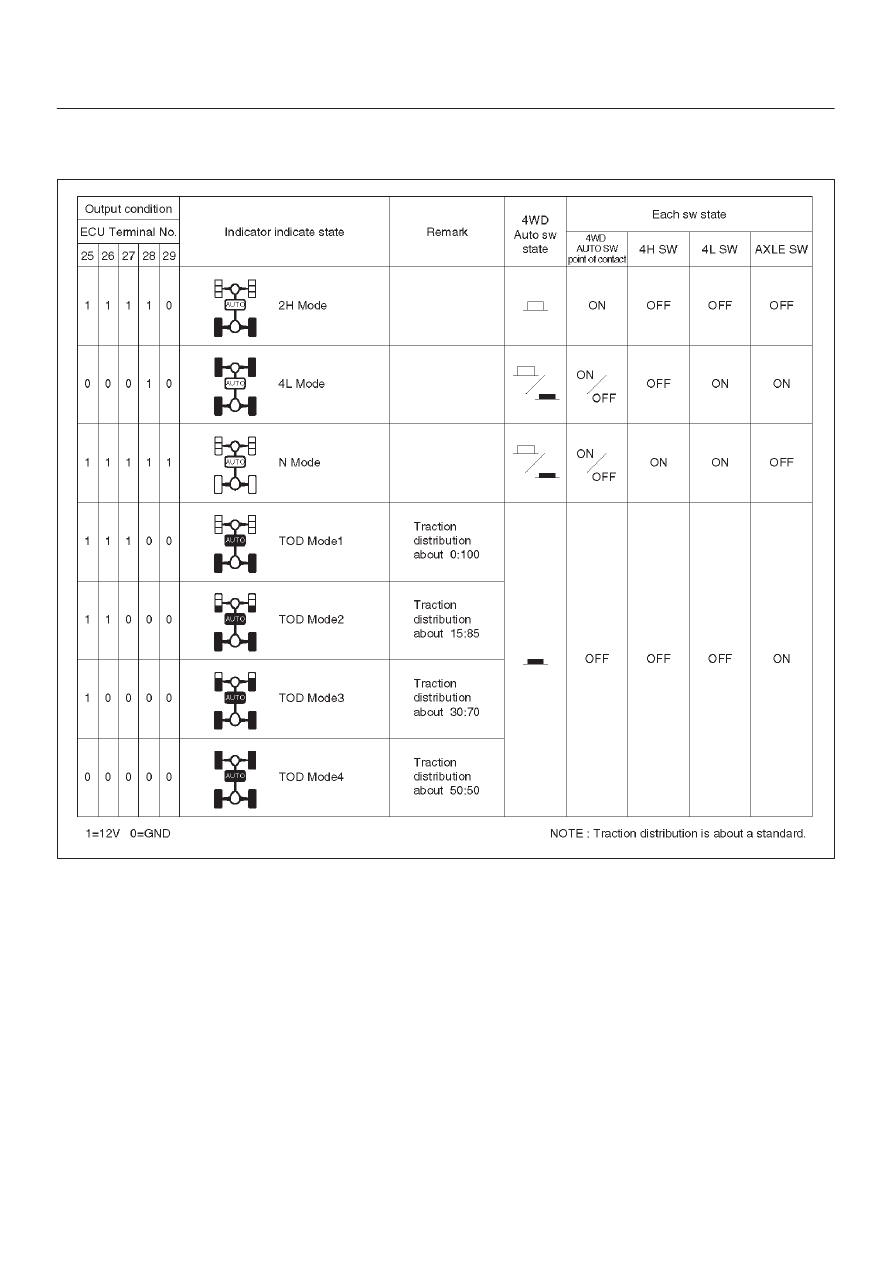

Functions of Indicator Lamp

TOD Indicator Lamps

C04RY00014

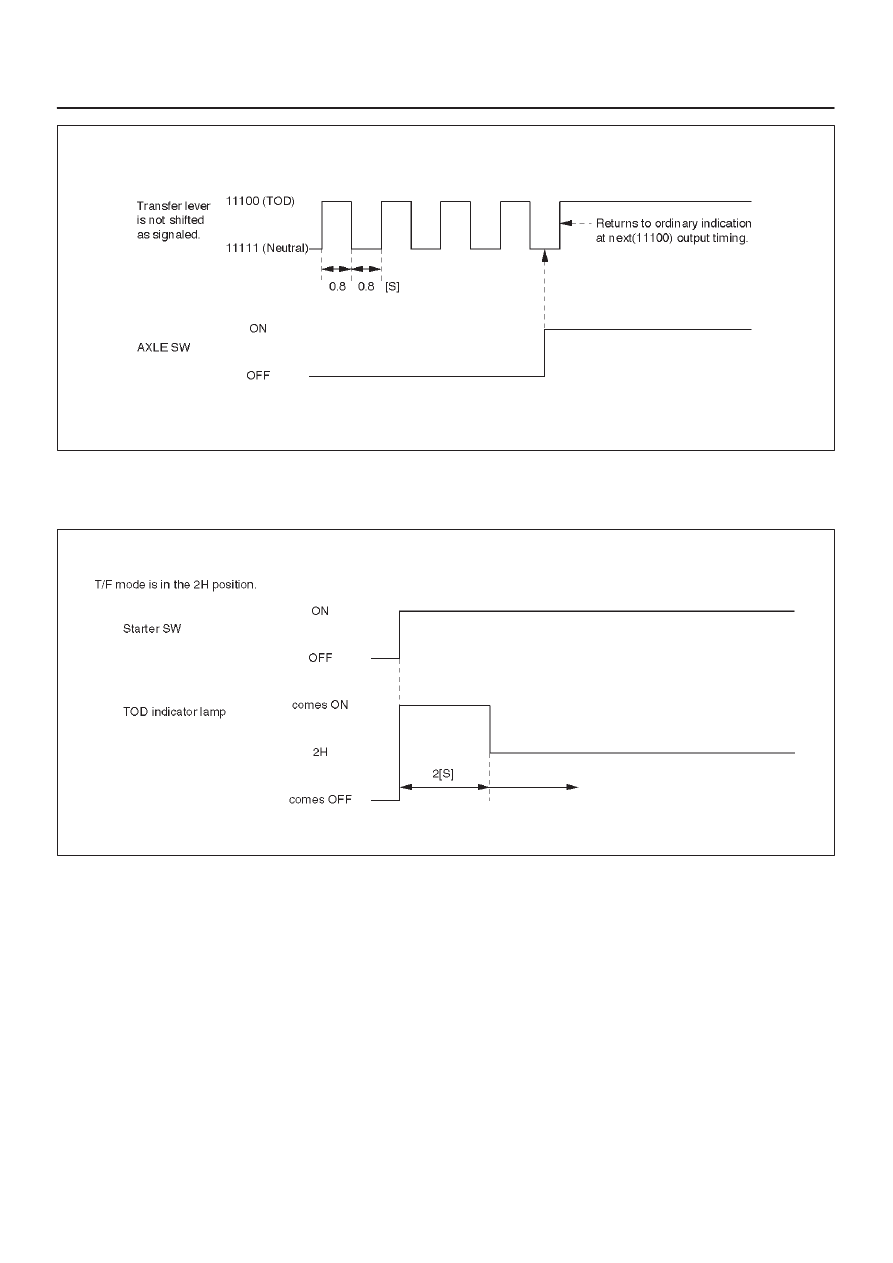

Indication During Transition of Transfer Lever
When the 4WD AUTO SW is selected or the transfer lever
is shifted, and the signals from the AXLE switch do not
comply with the signal conditions of the 4H and 4L switch,
the transfer lever position signals generated by the 4H
and 4L switch and the N position signals are repeatedly
output at an interval of 0.8 second.

NOTE: After the 4WD AUTO SW and the transfer lever
is set to the specified position and the AXLE switch
generates compliant signals, the normal output status is
returned.

4B2–9

DRIVE LINE CONTROL SYSTEM (TOD)

C07RW061

Bulb Check
When the starter switch is turned on, the TOD indicator
lamps go on as shown below.

NOTE: Once the starter switch is turned on, all the TOD
indicator lamps are lit for two seconds even if the transfer
lever is in any position.

C07RW016

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–10

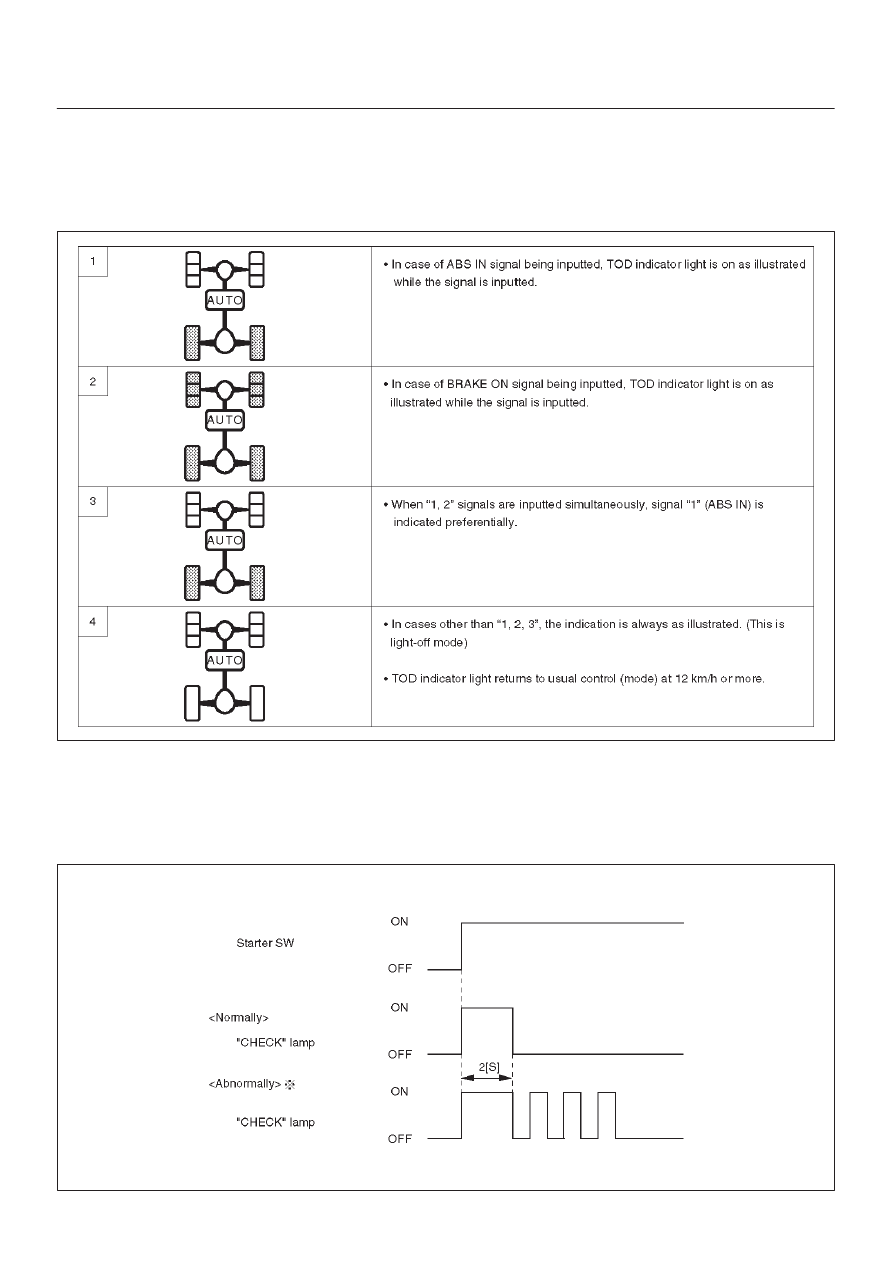

Simplified checking method of ABS IN and BRAKE ON signals:
In the event that any of the signal inputs listed below are
observed while the self-diagnostic code is being
displayed (the self-diagnostic connector is short-circuited
to GND), you can simply check the ABS IN and BRAKE
ON signals as shown in the figures below.

C07RW017

Check Lamp

Check Lamp Bulb Check
When the starter switch is turned on in the normal state,
the control unit turns on the CHECK lamp to check the
bulb.

C07RW019
