4D2–40 TRANSFER CASE (TOD)

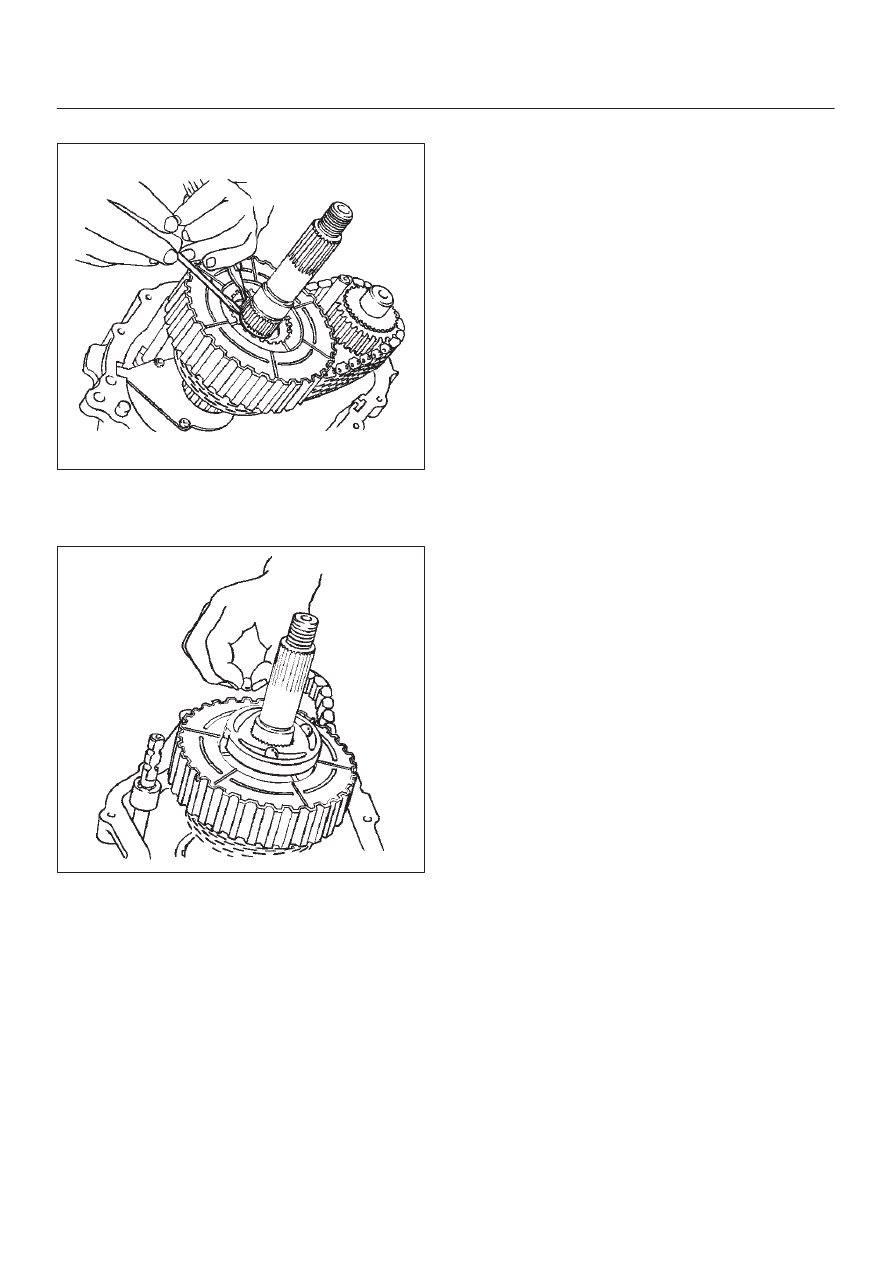

4. Using snap ring pliers, install the snap ring.

266RW009

5. Install the wave spring.
6. Install the cam pulley.
7. Place a ball on each groove of the cam pulley.

266RW013

8. Install the cam and coil housing.
9. Install the thrust bearing.

4D2–41

TRANSFER CASE (TOD)

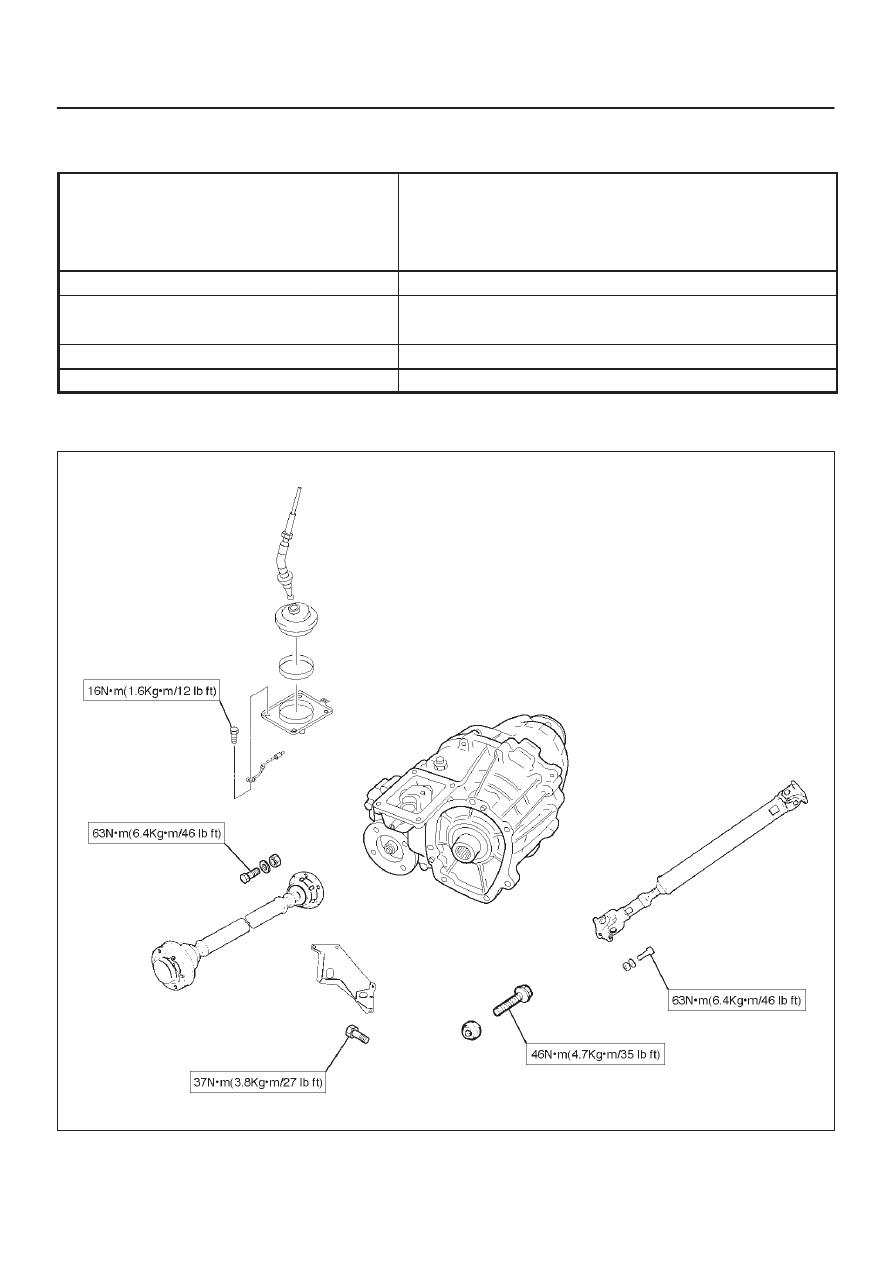

Main Data and Specifications

Leading Particulars

Type

Transfer case with low range reduction mechanism

2H

Rear wheel drive

TOD

Electronically controlled torque split four wheel drive

4L

Low-speed mechanical lock-up four wheel drive

Control system

Floor direct control

Gear ratio

H

1.000

L

2.480

Oil quantity, Lit

1.9

Oil

ATF DEXRON



-IIE or ATF DEXRON



-III

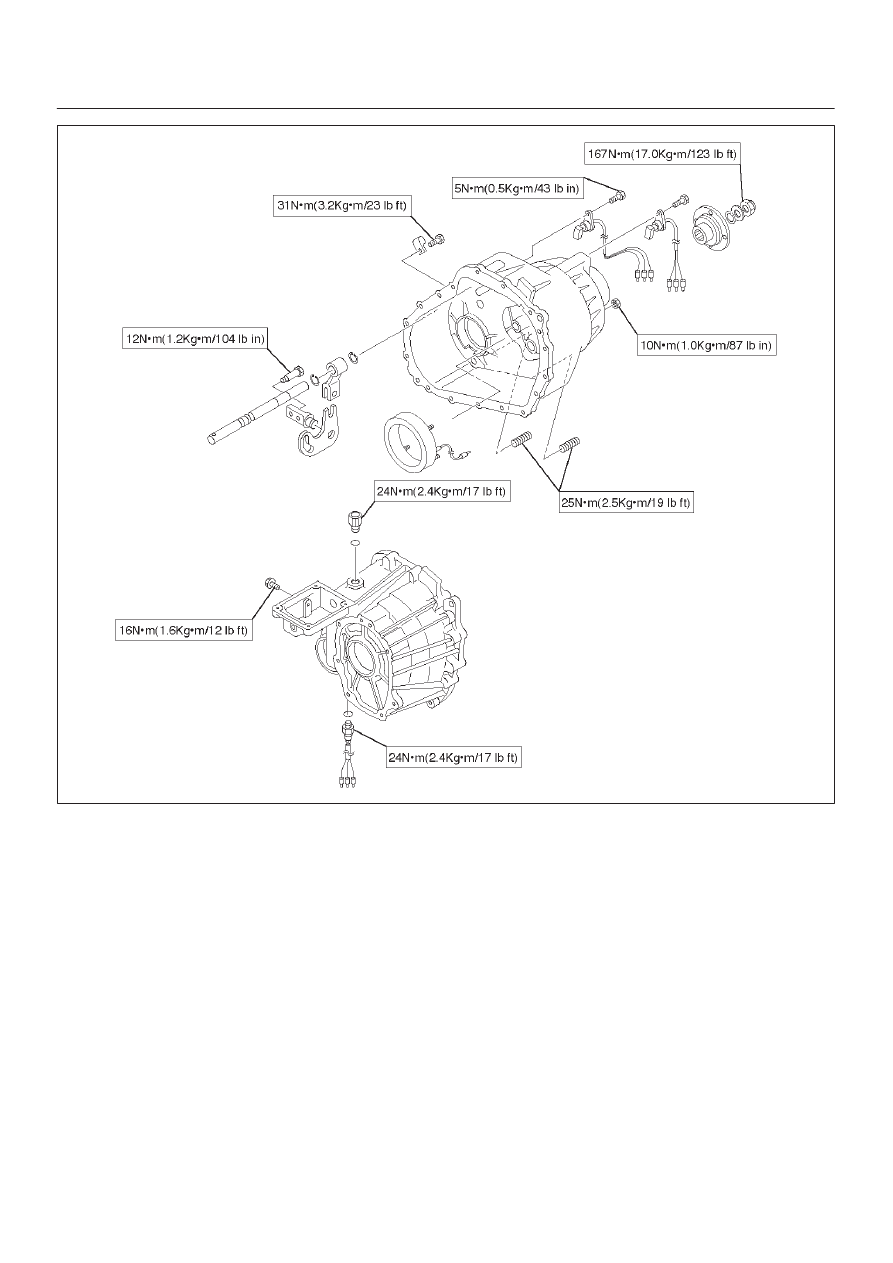

Torque Specifications

E04RW012

4D2–42 TRANSFER CASE (TOD)

E04RW013

4D2–43

TRANSFER CASE (TOD)

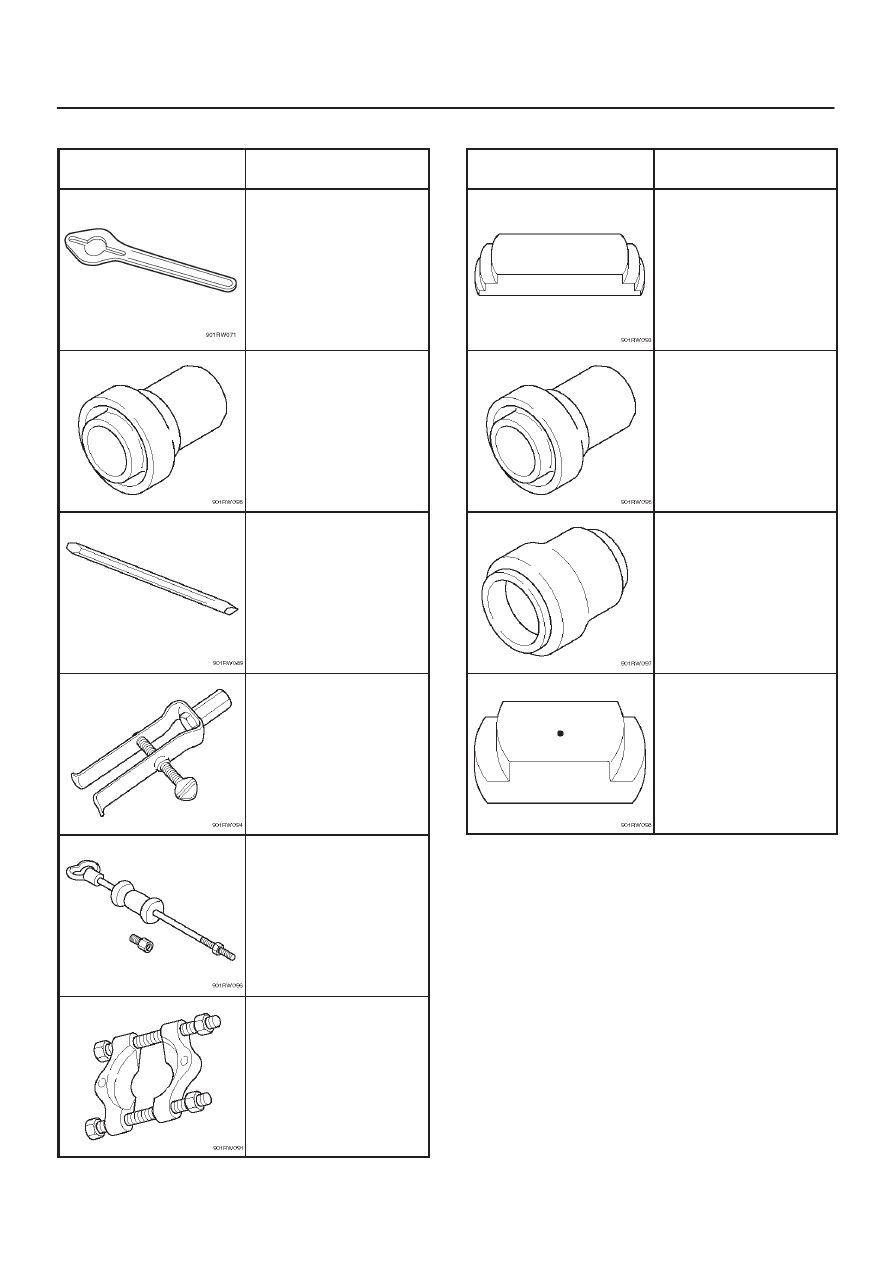

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–0133–0

(J–8614–11)

Flange Holder

5–8840–2412–0

(J–42804)

Rear Oil Seal Installer

5–8840–2293–0

(J–39209)

Punch

5–8840–2409–0

(J–42805)

Bearing Remover

5–8840–0084–0

(J–2619–01)

Slide Hammer

5–8840–0015–0

(J–22912–01)

Bearing Remover

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2413–0

(J–42806)

Ring Gear Replacer

5–8840–2410–0

(J–42807)

Front Out Oil Seal

Installer

5–8840–2411–0

(J–42808)

Input Shaft Oil Seal

Installer

5–8840–2416–0

(J–42809)

Ring Gear Installer
