4B1–13

DRIVE LINE CONTROL SYSTEM (SHIFT ON THE FLY)

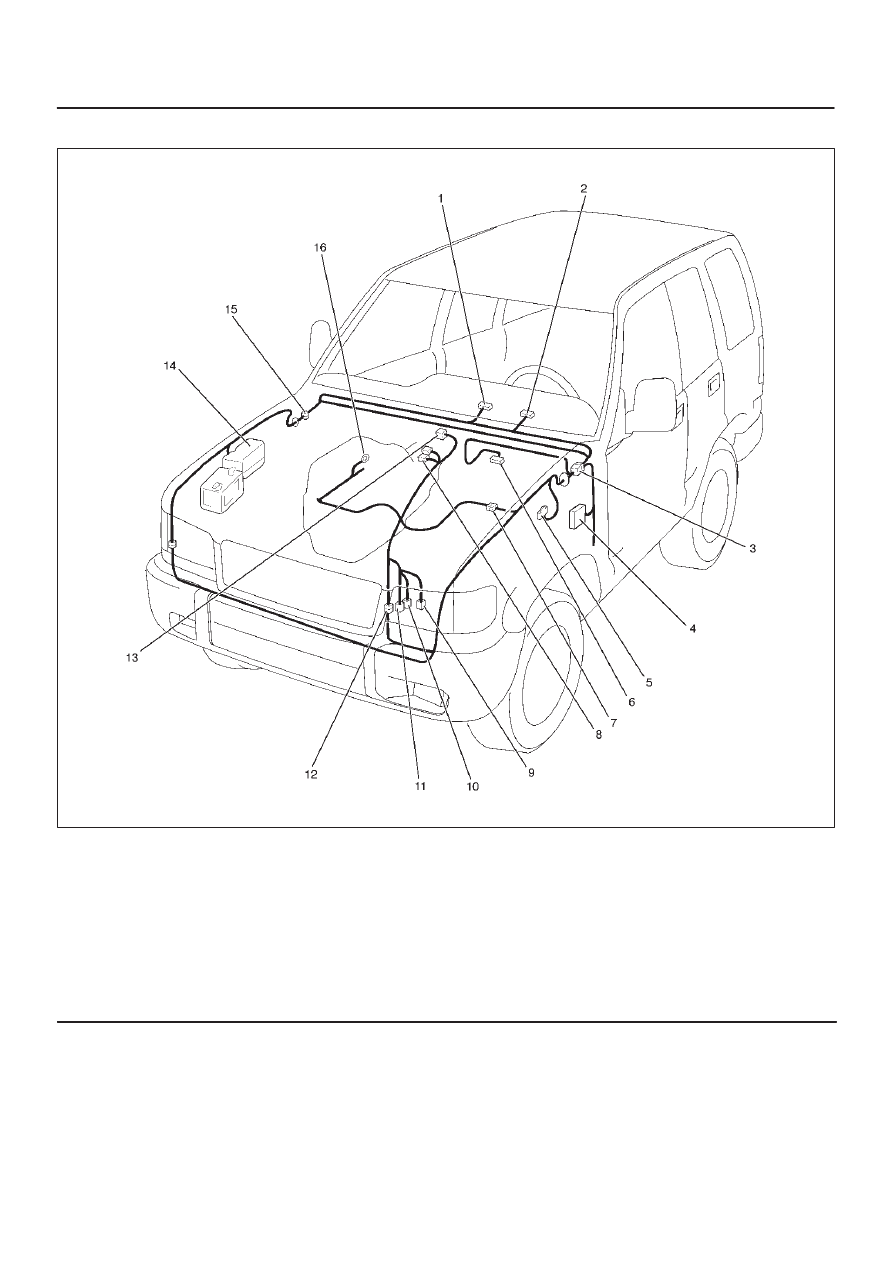

Parts Location (LHD / Gasoline Engine Model)

D08RW854

Legend

(1) I–12
(2) I–9
(3) H–7, H–8, H–24, H–25
(4) Fuse Box
(5) C–16
(6) C–94
(7) H–5
(8) M–11, M–12

(9) M–22

(10) M–23

(11) M–24

(12) H–10
(13) M–26
(14) Relay & Fuse Box
(15) H–12, H–16
(16) E–30

4B1–14DRIVE LINE CONTROL SYSTEM (SHIFT ON THE FLY)

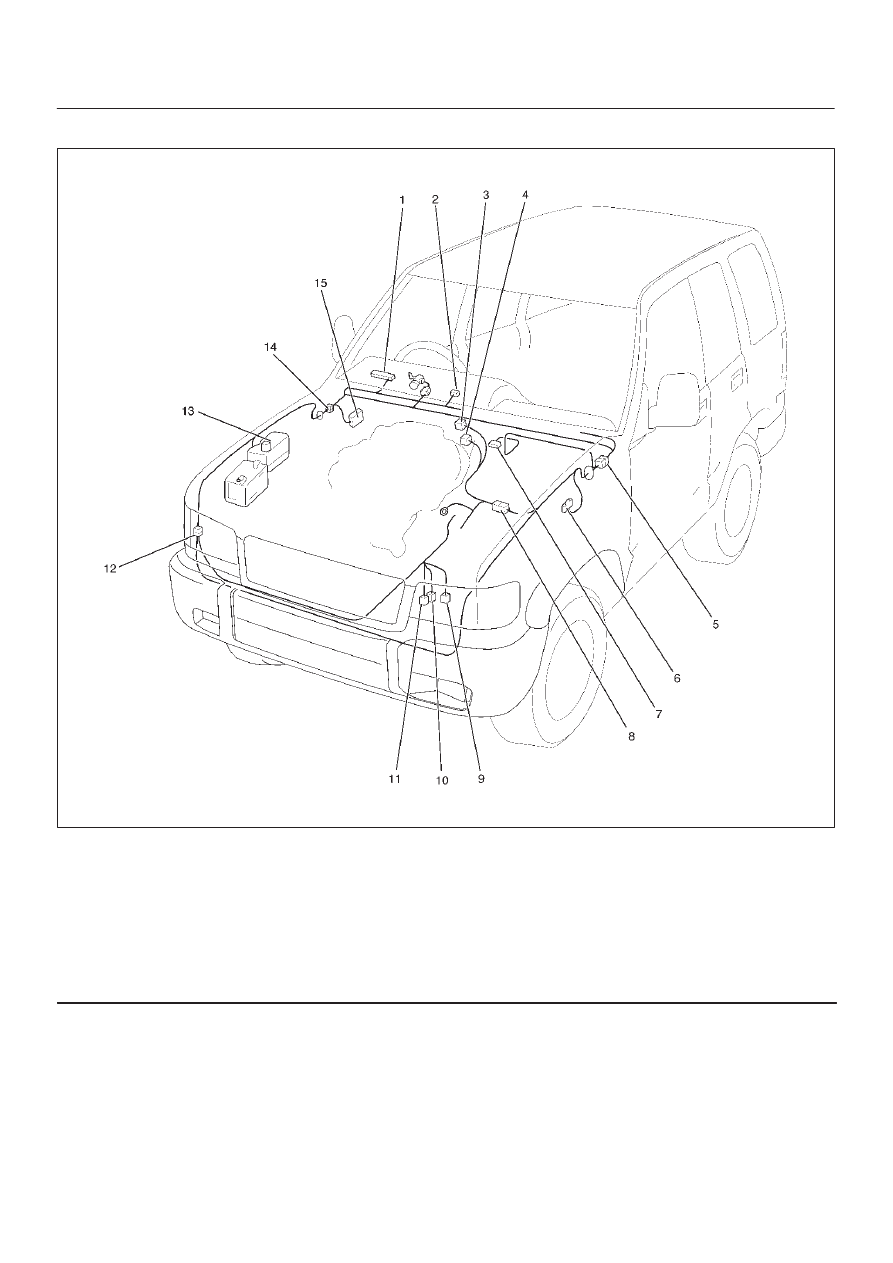

Parts Location (RHD / Diesel Engine Model)

D08RW831

Legend

(1) I–9
(2) I–12
(3) E–45
(4) E–21
(5) H–7, H–9
(6) C–16
(7) C–94

(8) H–4, H–5
(9) P–17

(10) P–18

(11) P–19

(12) H–60
(13) Relay & Fuse Box
(14) H–15, H–16, H–25, H–26, H–27
(15) Fuse Box

4B1–15

DRIVE LINE CONTROL SYSTEM (SHIFT ON THE FLY)

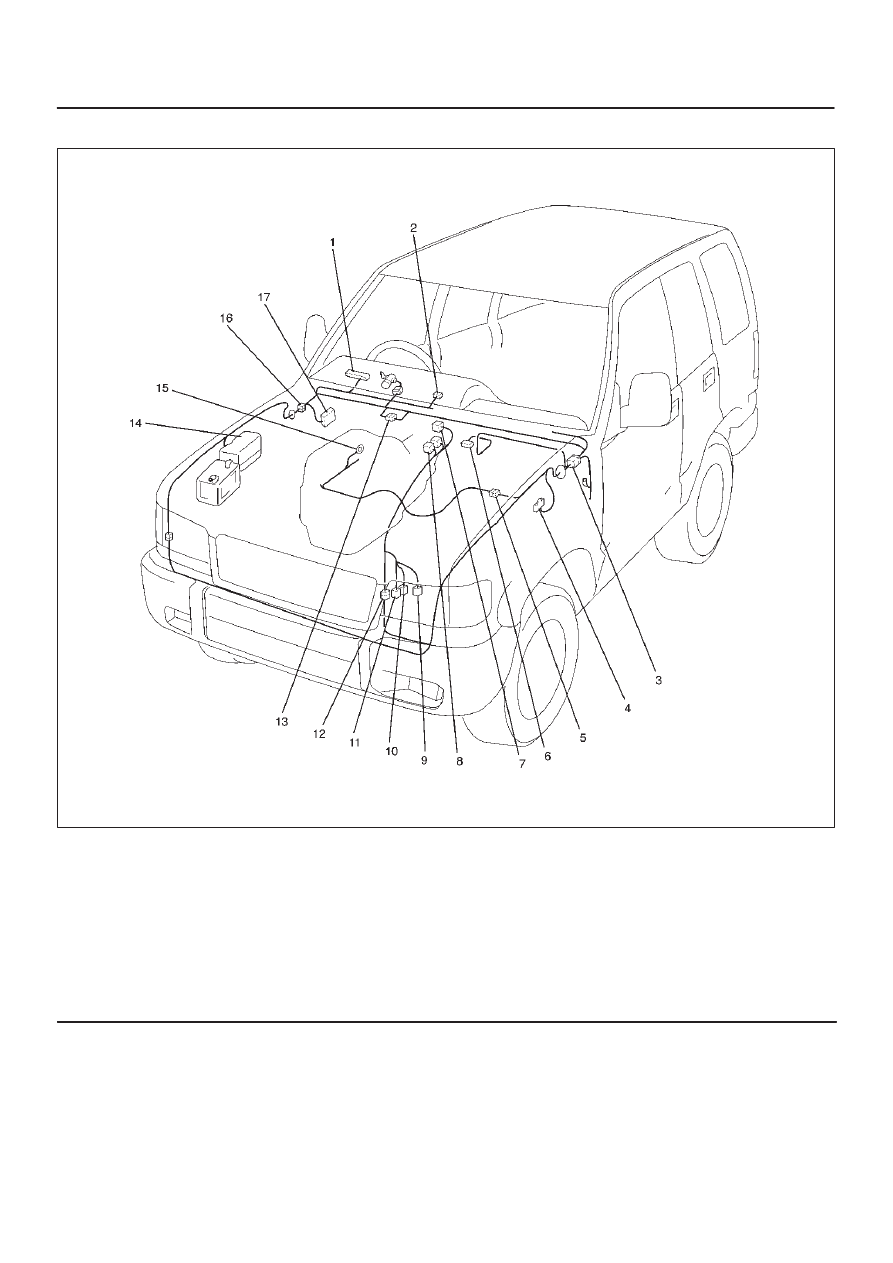

Parts Location (RHD / Gasoline Engine Model)

D08RW853

Legend

(1) I–9
(2) I–12
(3) H–7, H–9
(4) C–16
(5) H–5
(6) C–94
(7) M–26
(8) M–11, M–12

(9) M–22

(10) M–23

(11) M–24

(12) H–10
(13) H–12
(14) Relay & Fuse Box
(15) E–30
(16) H–15, H–16, H–25, H–26, H–27
(17) Fuse Box

4B1–16DRIVE LINE CONTROL SYSTEM (SHIFT ON THE FLY)

Wiring Diagram (LHD Model)

D08RW845
