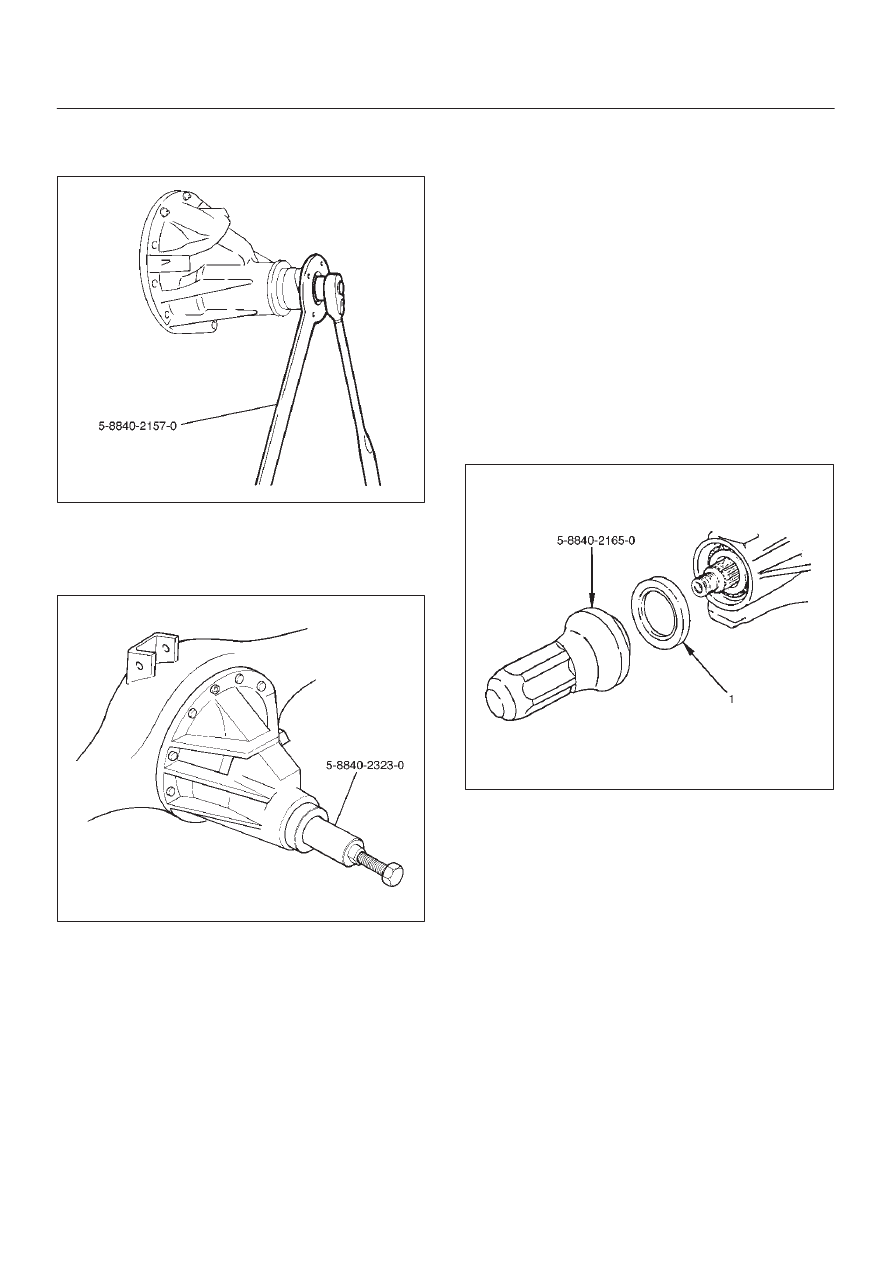

DIFFERENTIAL (REAR 220mm) 4A2A–9 6. Install snap ring. NOTE: Be sure not to damage the oil seal. 8. Tighten the bearing holder mounting nut to the specified torque. Torque: 74N·m (54 Ib ft) 9. Fix the parking brake cable mounting bolt (Behind the back plate). 10. Install parking brake assembly, refer to Parking Brakes in Brake section. 11. Install antilock brake system sensor. 12. Install brake disc. section. Pinion Oil Seal Pinion Oil Seal and Associated Parts 425RW054 Legend (1) Flange Nut and Washer (3) Oil Seal Removal 1. Remove the rear propeller shaft. Refer to Rear Propeller Shaft in this section. 2. Drain the rear axle oil. |
