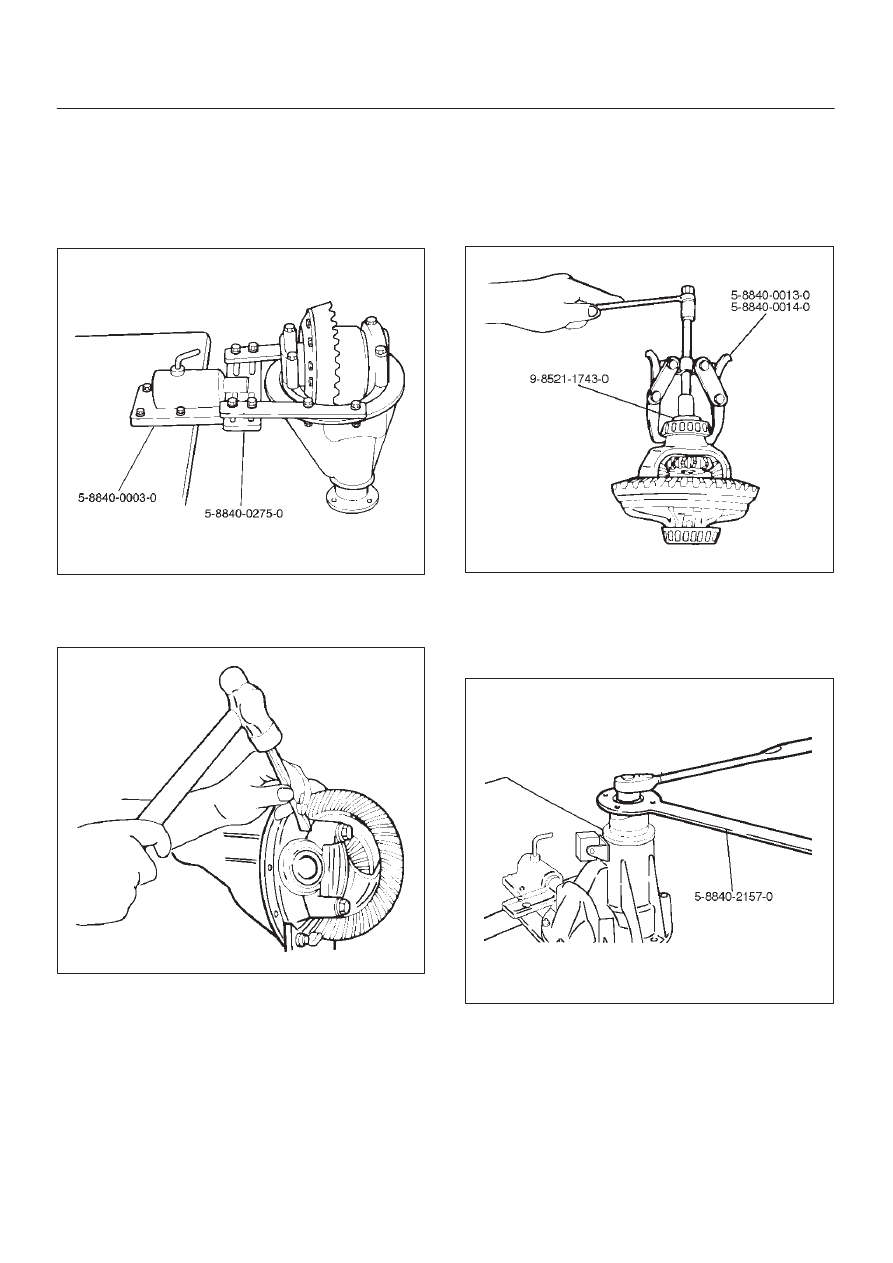

DIFFERENTIAL (FRONT) 4A1–10 Disassembly 1. Remove differential carrier fixing bolt. fixture base 5–8840–0003–0, fix the differential 425RW046 4. Remove bearing cap bolt. differential carrier then remove bearing cap. 425RS009 6. Remove differential cage assembly. 7. Remove side bearing outer race, after removal, keep the right and left hand side bearing assemblies 8. Remove side bearing, using remover 5–8840–0013–0, 5–8840–0014–0 and adapter 415RW023 9. Remove adjust shim, note the thickness and position of the shims removed. 10. Remove the flange nut using holding wrench 5–8840–2157–0 after raising up its staked parts 425RW047 11. Remove flange. |
