Opel Frontera UBS. Manual - part 1924

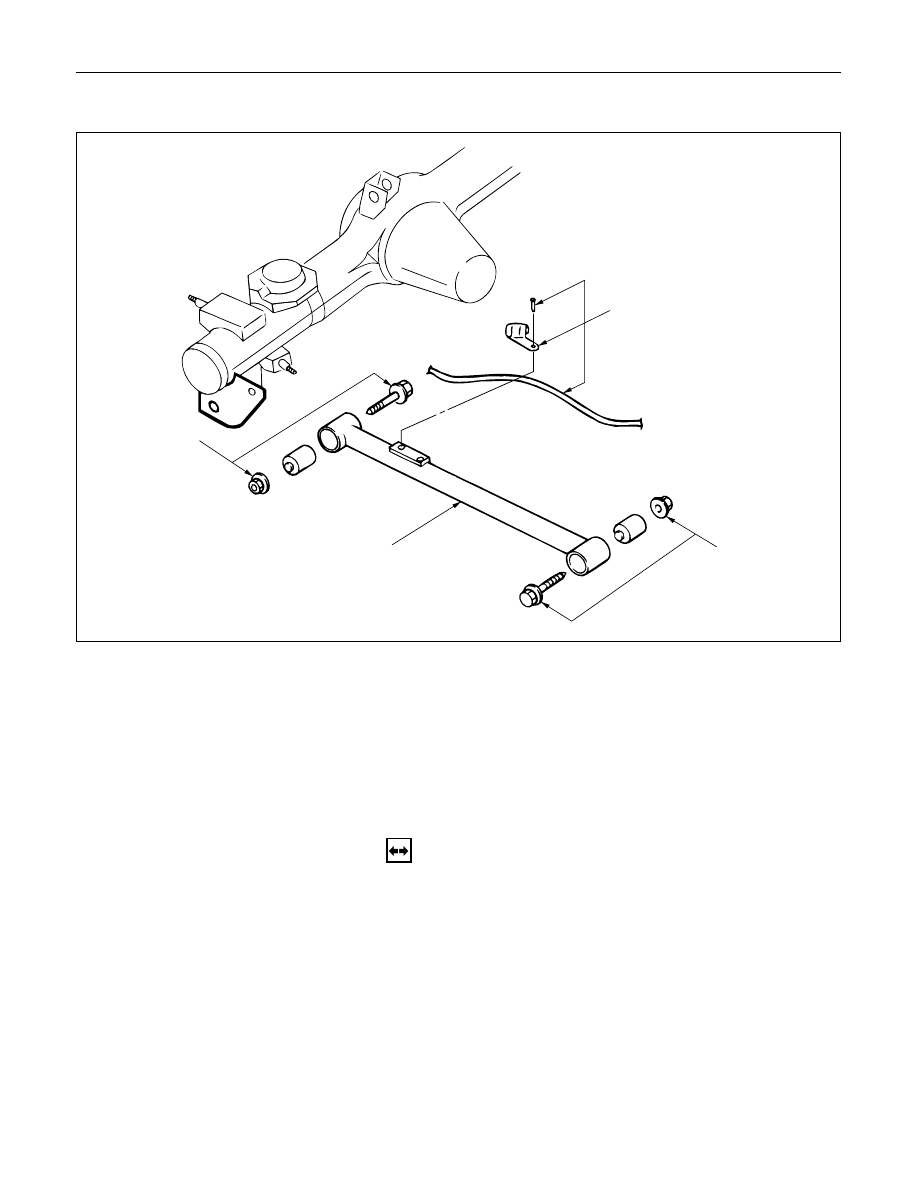

3D – 8 REAR SUSPENSION; COIL SPRING

TRAILING LINK

2

3

2

1

Removal Steps

1.

Parking brake cable

2.

Bolt and nut

3.

Trailing link

Installation Steps

3.

Trailing link

2.

Bolt and nut

1.

Parking brake cable

REMOVAL

1. Parking Brake Cable

Remove the parking brake cable from the trailing link.

2. Bolt and Nut

3. Trailing Link

460RW025

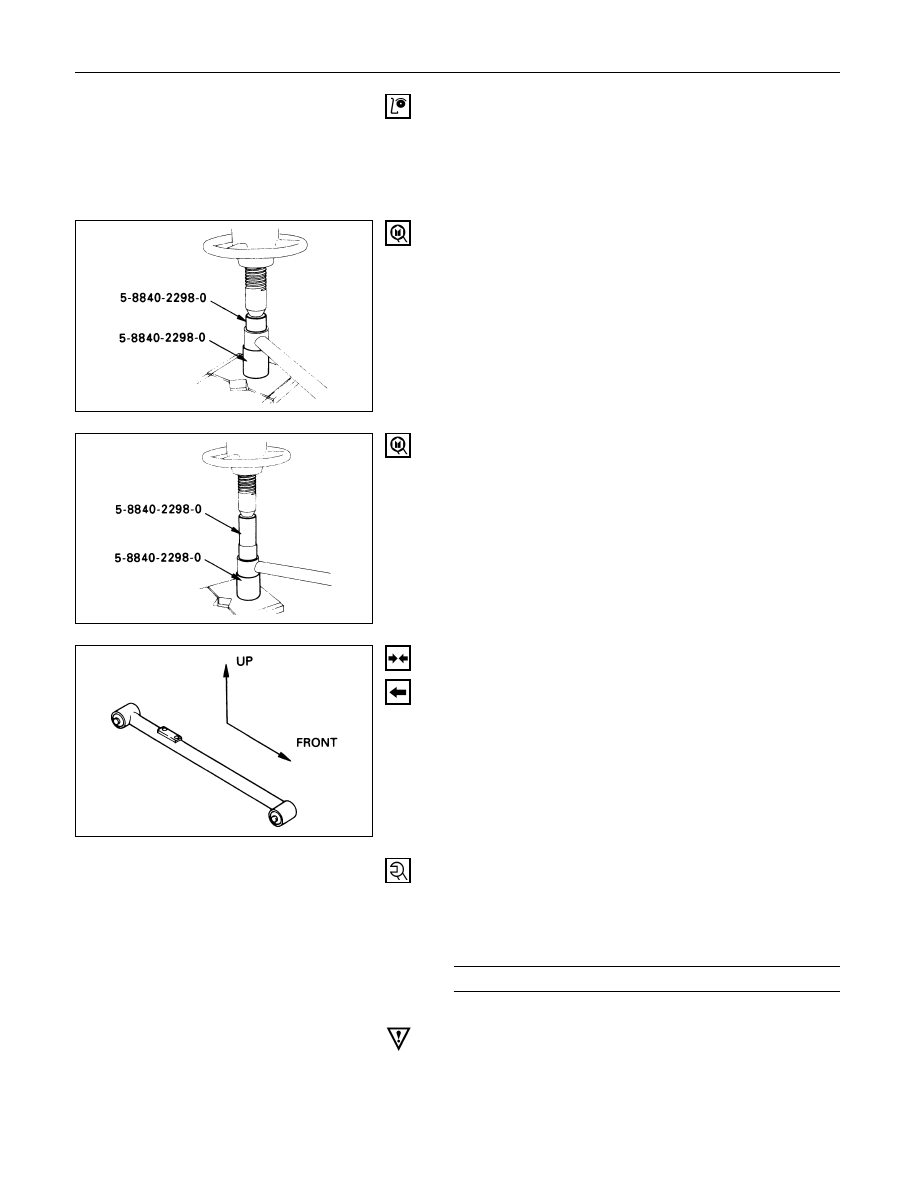

REAR SUSPENSION; COIL SPRING  3D – 9

INSPECTION AND REPAIR

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.

1. Trailing Link

2. Rubber Bushing

Remove the rubber bushing.
Remover: 5-8840-2298-0 (J-39214)

Install the rubber bushing.
Installer: 5-8840-2298-0 (J-39214)

NOTE:
When mounting rubber bushings, be sure not to use
grease on bushings or any other nearby part.

INSTALLATION

3. Trailing Link

Make sure that the trailing link is in its correct
position.

NOTE:
When mounting trailing link, be sure not to use
grease on bushings or any other nearby part.

2. Bolt and Nut

NOTE:
Tighten the bolts and nuts lightly, and retighten to
the specified torque after the vehicle is at curb height.

Trailing Link Nut Torque

N·m (kg·m/lb·ft)

137 (14.0 / 101)

1. Parking Brake Cable

CAUTION:
The parking brake cable should not be overstrained or
slackened.

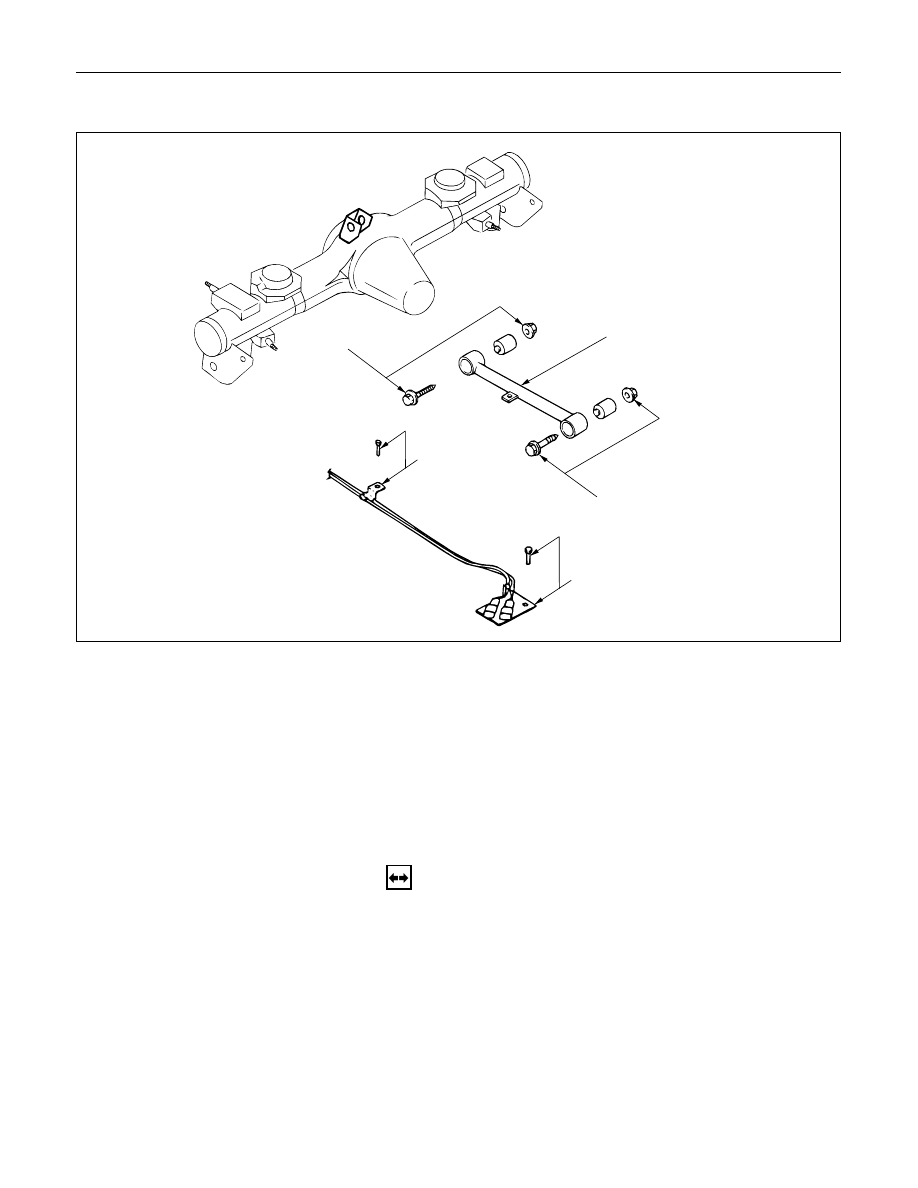

3D – 10 REAR SUSPENSION; COIL SPRING

CENTER LINK

3

3

4

1

2

Removal Steps

1.

Speed sensor cable
(If equipped with ABS)

2.

Speed sensor cable bracket
(If equipped with ABS)

3.

Bolt and nut

4.

Center link

Installation Steps

4.

Center link

3.

Bolt and nut

2.

Speed sensor cable bracket
(If equipped with ABS)

1.

Speed sensor cable
(If equipped with ABS)

REMOVAL

1. Speed Sensor Cable (If equipped with ABS)

Remove the speed sensor cable from the center link.

2. Speed Sensor Cable Bracket (If equipped with ABS)

Remove the speed sensor cable bracket from the
frame.

3. Bolt and Nut

4. Center Link

460RW026

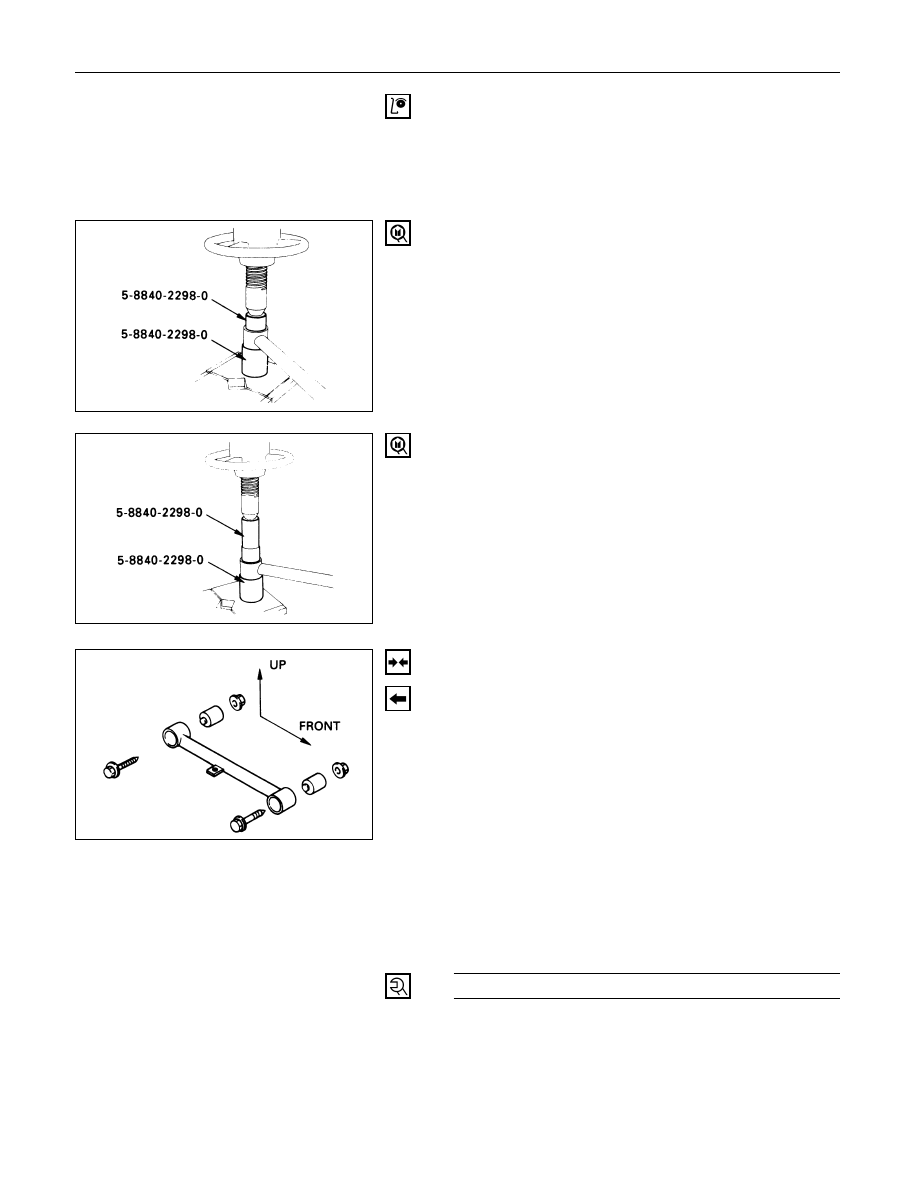

REAR SUSPENSION; COIL SPRING  3D – 11

INSPECTION AND REPAIR

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.

1. Center Link

2. Rubber Bushing

Remove the rubber bushing.
Remover: 5-8840-2298-0 (J-39214)

Install the rubber bushing.
Installer: 5-8840-2298-0 (J-39214)

NOTE:
When mounting rubber bushings, be sure not to use
grease on bushings or any other nearby part.

INSTALLATION

4. Center Link

Make sure that the center link is in its correct position.

NOTE:
When mounting center link, be sure not to use grease
on bushings or any other nearby part.

3. Bolt and Nut

NOTE:
Tighten the bolts and nuts lightly, and retighten to
the specified torque after the vehicle is at curb height.

Center Link Nut Torque

N·m (kg·m/lb·ft)

137 (14.0 / 101)

2. Speed Sensor Cable Bracket

1. Speed Sensor Cable
