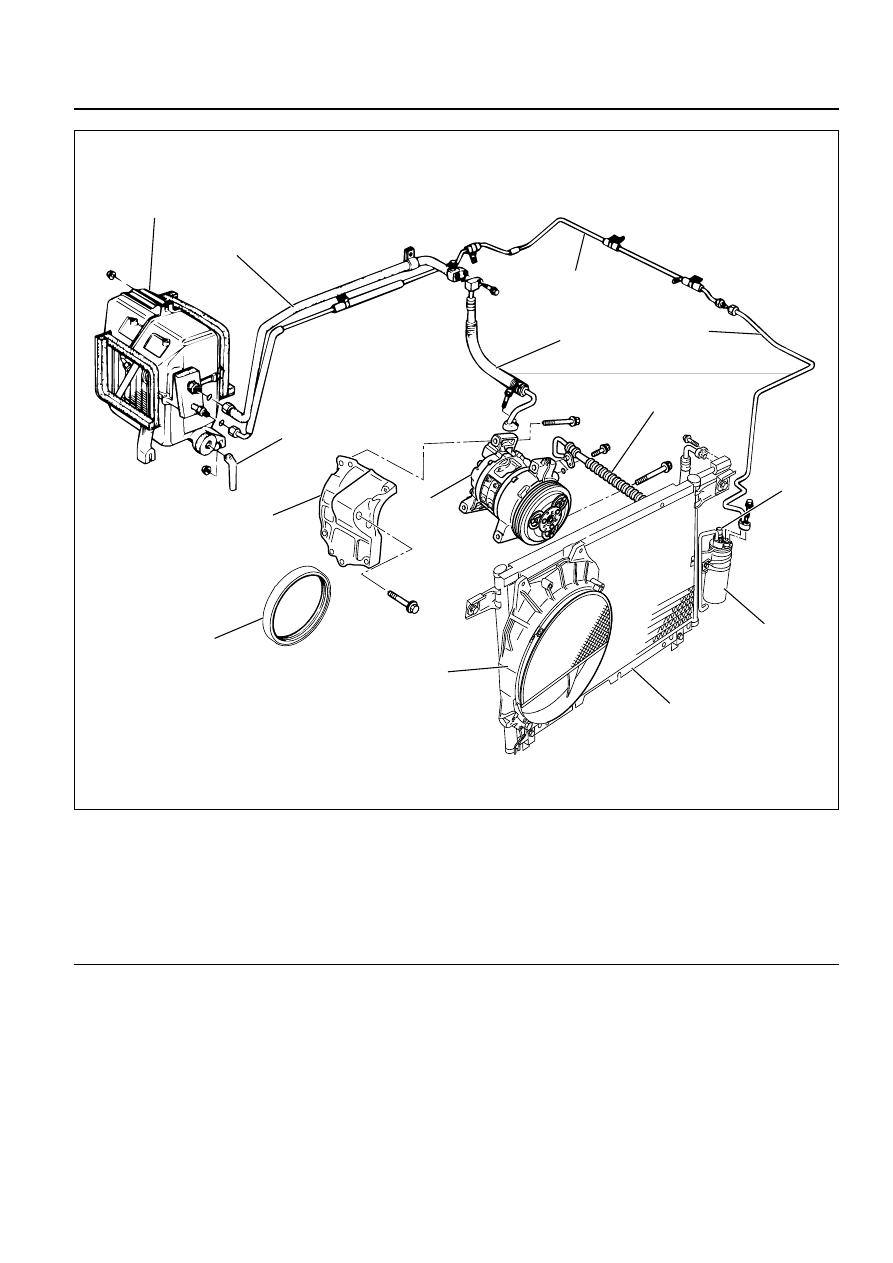

AIR CONDITIONING  1B – 9

852RY00008

This illustration is based on RHD

A/C switch

Drain hose

Suction line (Low-pressure hose)

Discharge line (High-pressure hose)

Compressor bracket

Pressure
switch

Receiver/drier

Compressor

Relay

Condenser assembly

Drive belt

O-ring

Suction line
(Low-pressure pipe)

Evaporator assembly

Liquid line(High-pressure pipe)

Liquid line
(High-pressure pipe)

4JG2 (R/LHD)

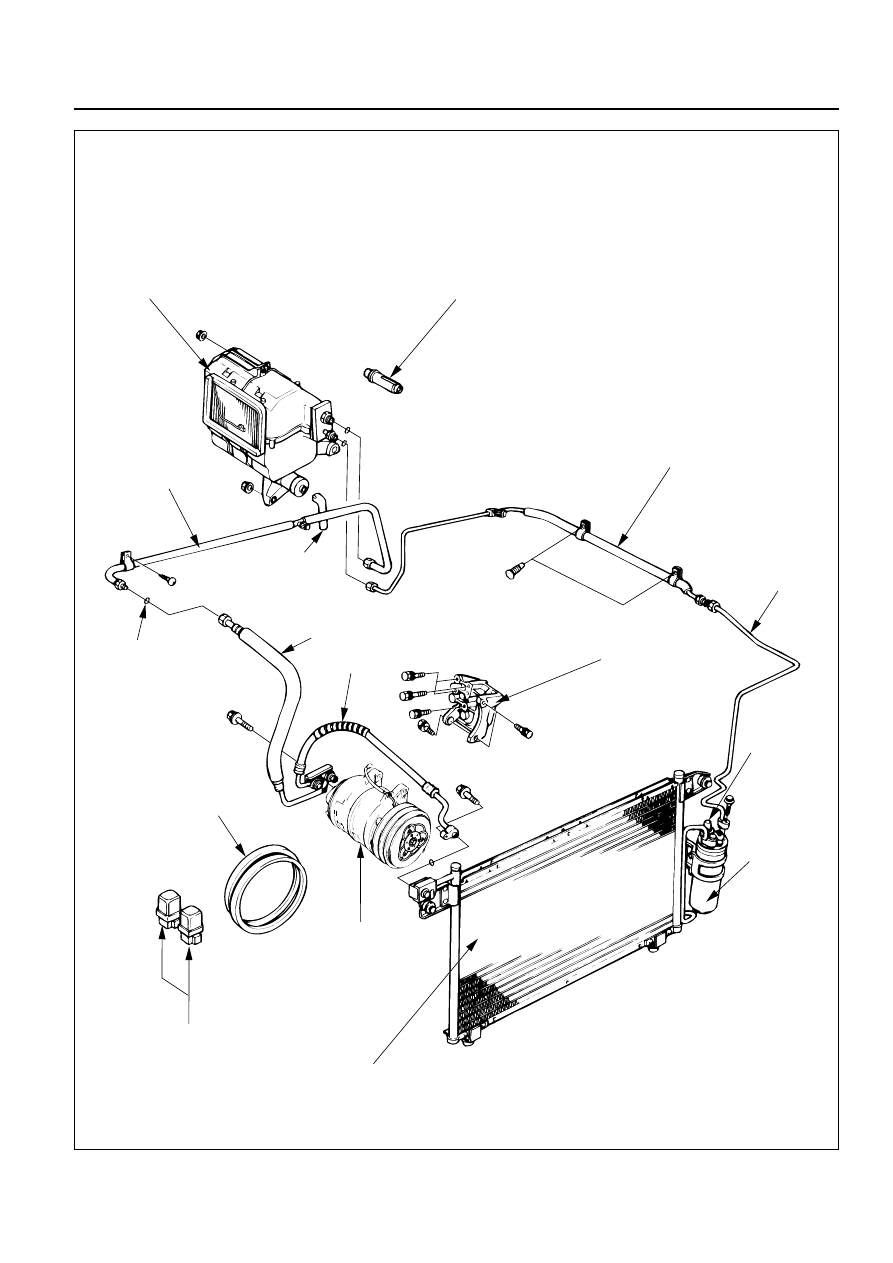

1B – 10 AIR CONDITIONING

9

6

12

5

4

11

13

10

14

2

1

3

8

7

852RY00005

4JX1 (RHD)

Legend

(1)

Liquid Line (High- Pressure Pipe)

(2)

Pressure Switch

(3)

Receiver Drier

(4)

Compressor Bracket

(5)

Discharge Line (High-Pressure Hose)

(6)

Suction Line (Low-Pressure Hose)

(7)

Compressor

(8)

Condenser Assembly

(9)

O-ring

(10)

Insulator Pipe

(11)

Suction Line (Low Pressure Pipe)

(12)

Drain Hose

(13)

Evaporator Assembly

(14)

A/C Switch

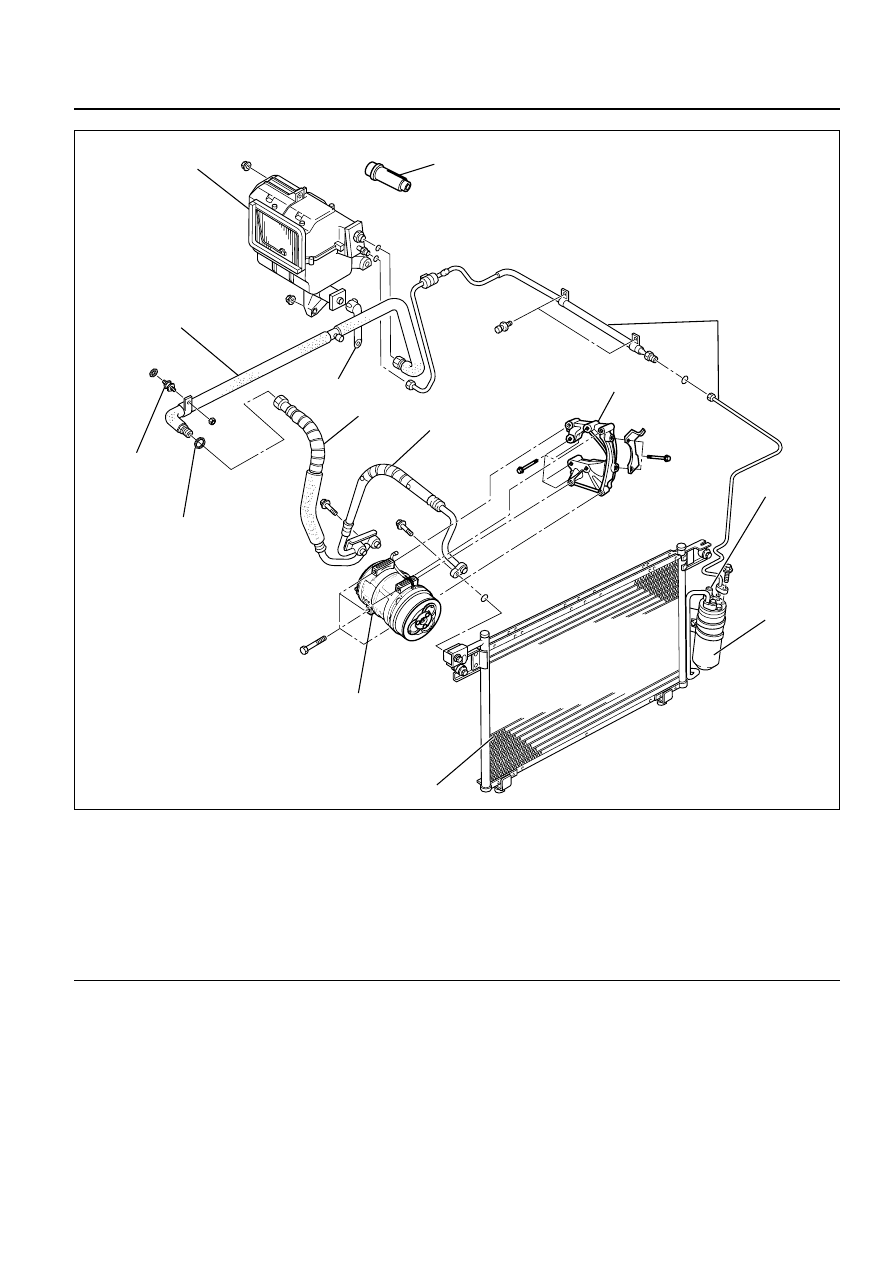

AIR CONDITIONING  1B – 11

13

12

11

10

8

7

3

2

9

1

1

5

4

6

Legend

(1)

Liquid Line (High-Pressure Pipe)

(2)

Pressure Switch

(3)

Receiver Drier

(4)

Discharge line (High-Pressure Hose)

(5)

Suction Line (Low-Pressure Hose)

(6)

Compressor

(7)

Condenser Assembly

(8)

Condenser Fan

(9)

Serpentine Belt

(10)

Compressor Bracket

(11)

Drain Hose

(12)

Evaporator Assembly

(13)

Suction Line (Low-Pressure Pipe)

852RY00012

6VD1/6VE1 (LHD)

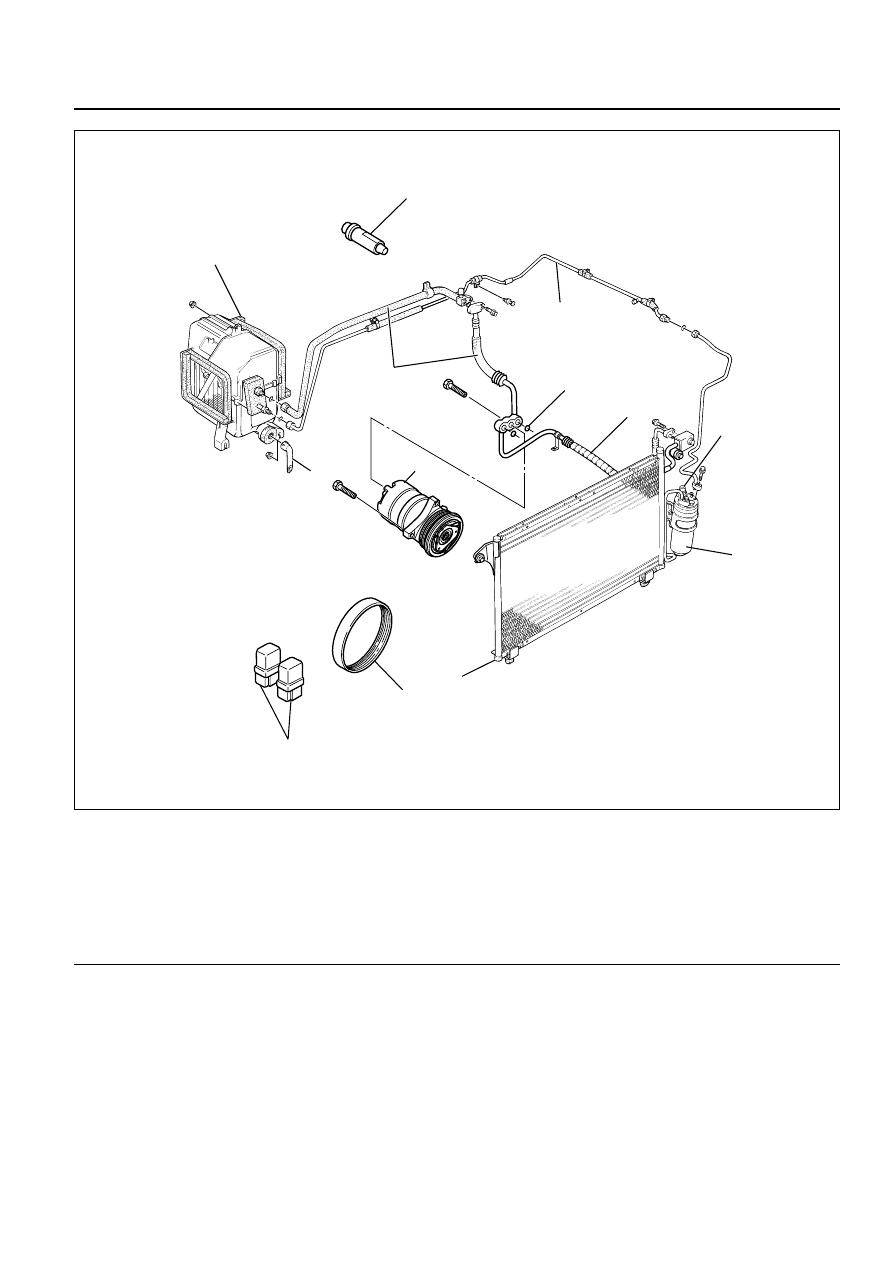

1B – 12 AIR CONDITIONING

Legend

(1)

Liquid Line (High-Pressure Pipe)

(2)

O-ring

(3)

Compressor

(4)

Discharge line (High-Pressure Hose)

(5)

Pressure Switch

(6)

Receiver Drier

(7)

Condenser Assembly

(8)

Serpentine Belt

(9)

Relay

(10)

Drain Hose

(11)

Suction Line (Low-pressure Hose)

(12)

Evaporator Assembly

(13)

A/C Switch

12

13

4

2

3

5

6

7

8

9

11

10

1

Delphi Harrison (LHD·V6)

852RW009
