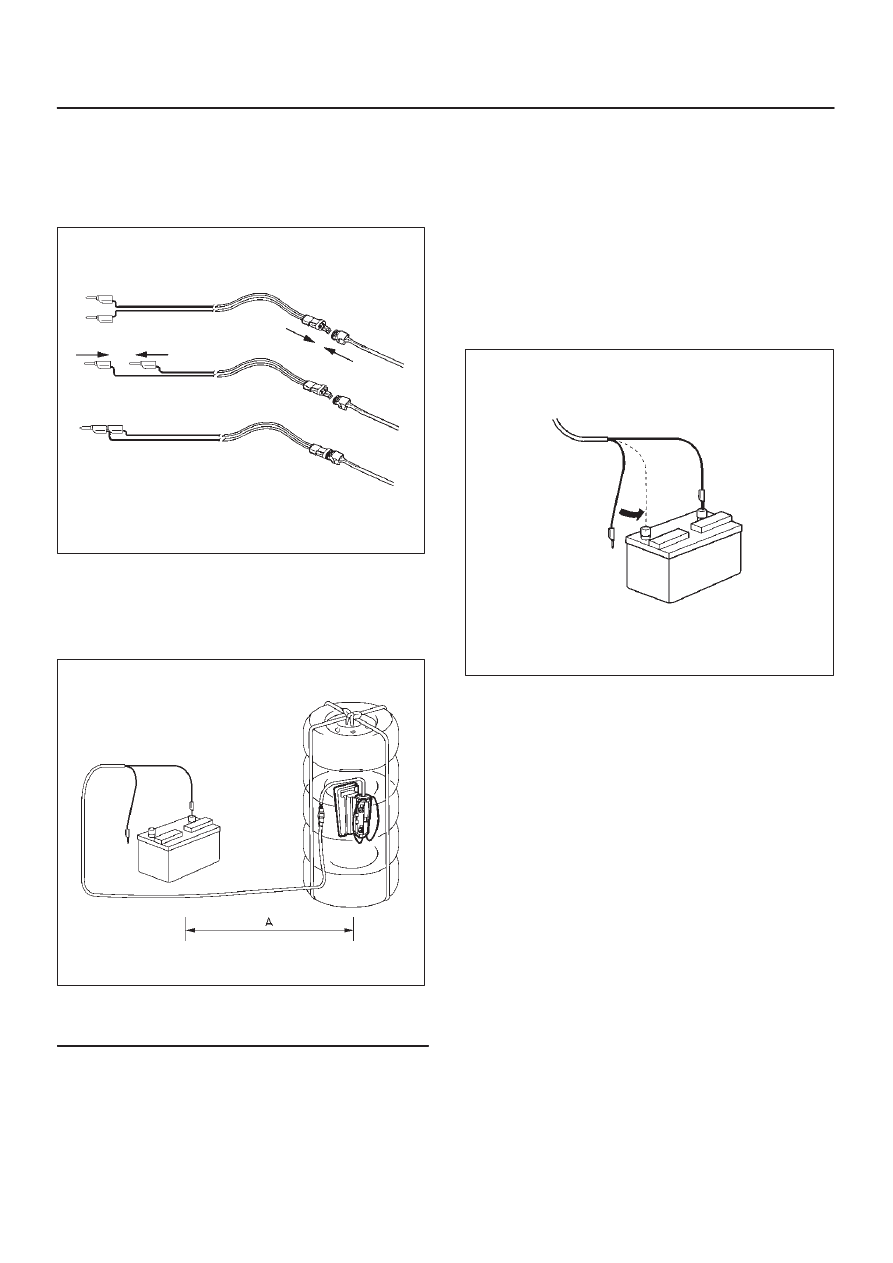

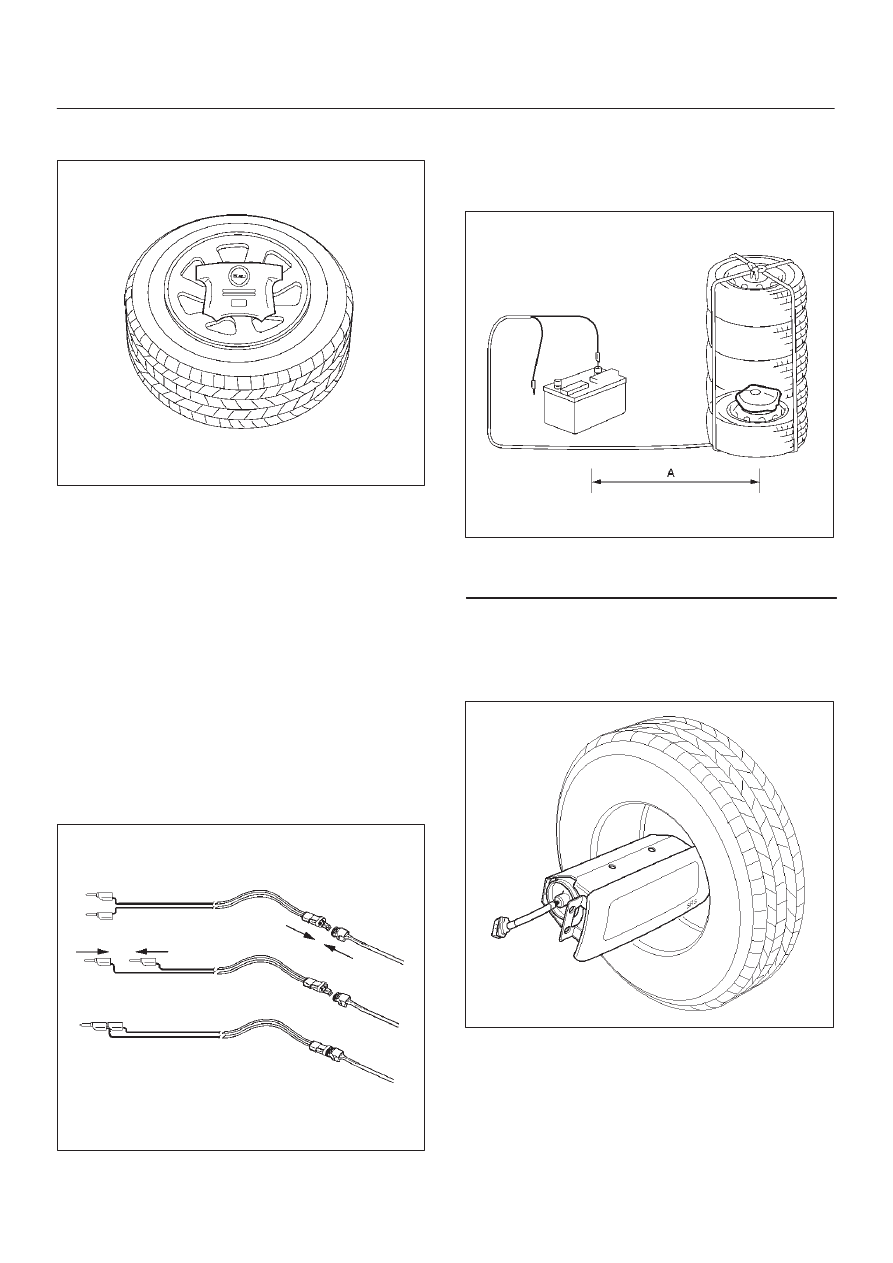

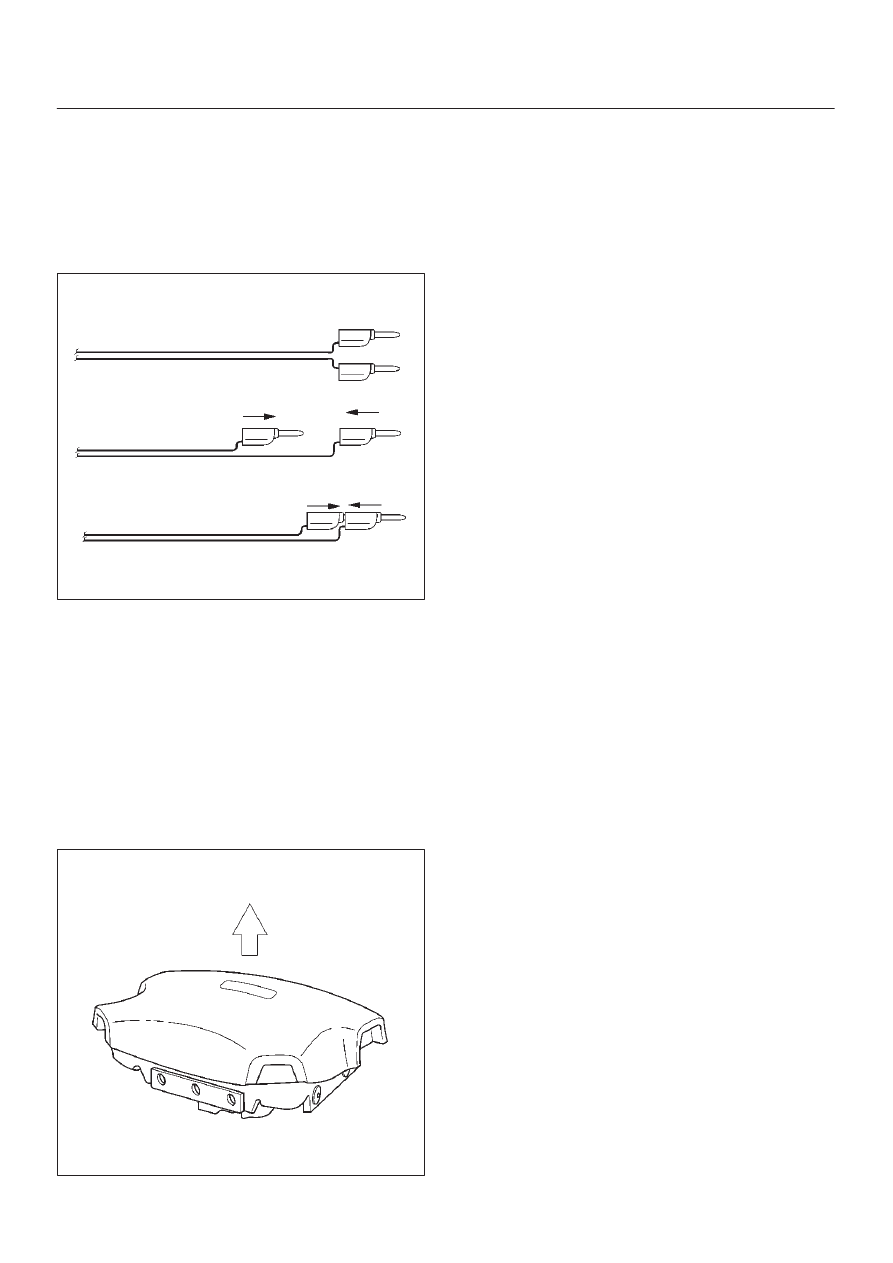

SUPPLEMENTAL RESTRAINT SYSTEM 9J–18 6. Prepare four 15 inch or larger tires without wheel and two same size tires with wheels. 827RW056 7. How to fix Driver air bag. 1. Fix the air bag with its trim cover up on a tire with a wheel using an automobile use wire harness, 2. Connect SRS air bag assembly to the double pole extension cord of the air bag deployment NOTE: Ensure that the pigtail adapter is firmly seated into 827RW054 3. Place three tires without wheel on the tire on which air bag is fixed and a tire with a wheel on 827RW053 Legend (A) 10 m (33 feet) or more 8. How to fix Passenger air bag. 1. Fix the air bag with its trim cover side fixing the center of a tire without a wheel using an 901RX045 2. Connect Supplemental Restraint System (SRS) air bag assembly to the deployment harness |
