8J–40

EXTERIOR/INTERIOR TRIM

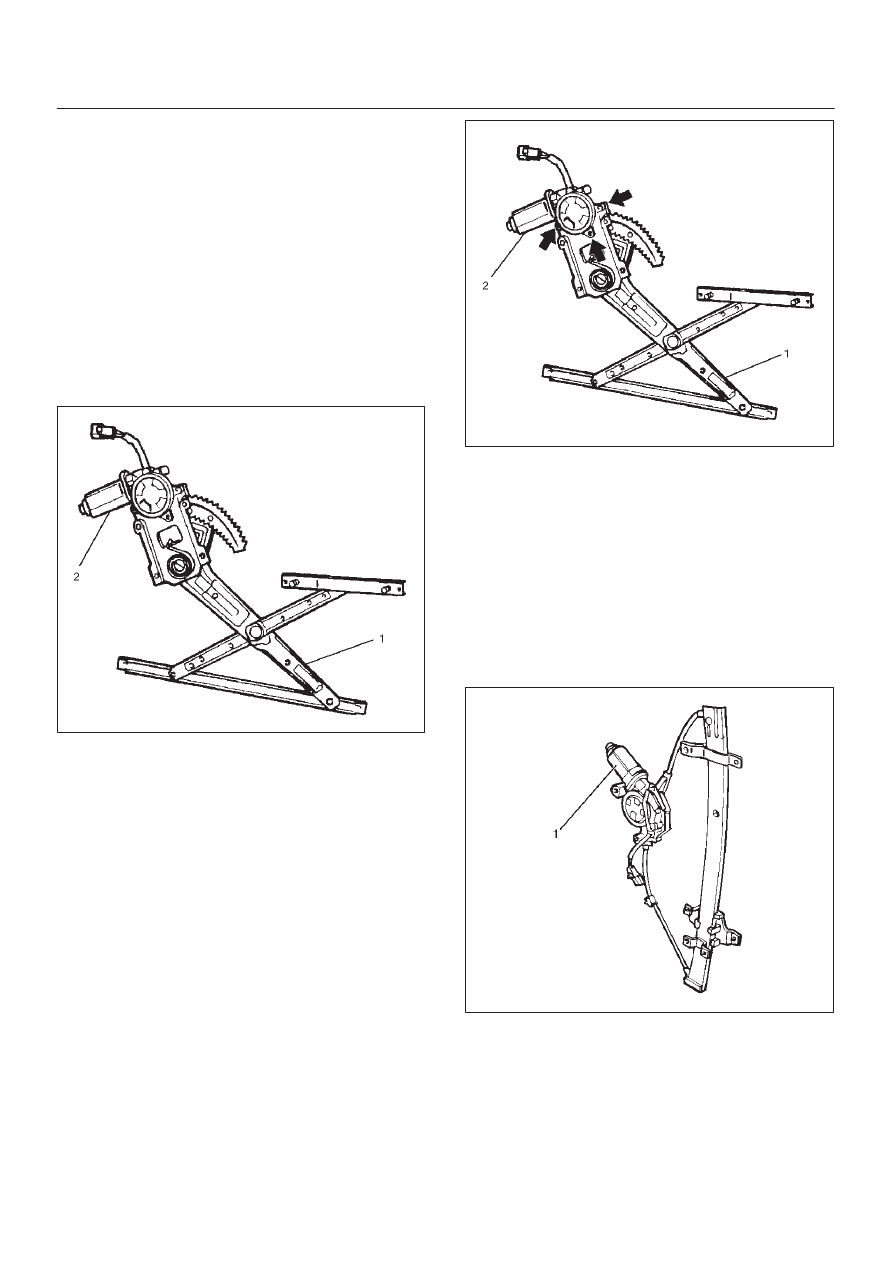

Power Window Motor Removal and
Installation

Driver Seat Side

Removal

1. Disconnect the battery ground cable.
2. Remove the window regulator assembly (1).

D

Refer to the Front Window Regulator, Glass And
Glass Run in Body Structure section.

3. Remove the power window motor(2).

D

Remove three screws.

CAUTION: When removing the motor from the
regulator(1), be careful not to get injured by the
strong repellent force of the regulator spring.

631RS018

Installation
To install, follow the removal steps in the reverse order.

Front Passenger Seat Side

Removal

1. Disconnect the battery ground cable.
2. Remove the window regulator assembly (1).

D

Refer to the Front Window Regulator, Glass And
Glass Run in Body Structure section.

3. Remove the power window motor(2).

D

Remove three screws.

CAUTION: When removing the motor from the
regulator(1), be careful not to get injured by the
strong repellent force of the regulator spring.

631RS015

Installation
To install, follow the removal steps in the reverse order.

Rear-Left Side

Removal

1. Disconnect the battery ground cable.
2. Remove the rear window regulator assembly.

D

Refer to the Rear Window Regulator And Glass in
Body Structure section.

3. Remove the power window motor(1).

D

Remove four screws.

651RW014

Installation
To install, follow the removal steps in the reverse order.

Rear-Right Side

Removal and Installation
Refer to the Rear Power Window Motor-Left Side in this
section.

EXTERIOR/INTERIOR TRIM

8J–41

Main Data and Specifications

Torque Specifications

Application

N·m

kg·m

lb ft

lb in

Door Mirror Fixing Bolts

8

0.8

—

69

Seat Belt Anchor Bolts

39

4.0

29

—

Hook Fixing Bolt

13

1.3

—

113

SEAT BELT SYSTEM

9A–1

RESTRAINTS

CONTENTS

SEAT BELT SYSTEM

CONTENTS

Seat Belt System  . . . . . . . . . . . . . . . . . . . . . .

9A–1

Supplemental Restraint System (SRS) . . . . .

9J–1

Restraint Control System . . . . . . . . . . . . . . . .

9J1–1

Service Precaution  . . . . . . . . . . . . . . . . . . . . .

9A–1

Seat Belt  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–2

Front Seat Belt and Associated Parts

(Long Wheel Base)  . . . . . . . . . . . . . . . . . .

9A–2

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–2

Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–2

Installation  . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–3

Front Seat Belt and Associated Parts

(Short Wheel Base)  . . . . . . . . . . . . . . . . . .

9A–4

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–4

Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–4

Installation  . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–5

Rear Seat Belt and Associated Parts

(Long Wheel Base)  . . . . . . . . . . . . . . . . . .

9A–6

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–6

Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–6

Installation  . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–7

Rear Seat Belt and Associated Parts

(Short Wheel Base)  . . . . . . . . . . . . . . . . . .

9A–8

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–8

Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–9

Installation  . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–9

Third Seat Belt and Associated Parts

(Long Wheel Base)  . . . . . . . . . . . . . . . . . .

9A–10

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–10

Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–11

Installation  . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–11

Front Seat Buckle Assembly  . . . . . . . . . . . . .

9A–12

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–12

Installation  . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–12

Front Seat Buckle Assembly (W/Pretensioner)

9A–12

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–12

Installation  . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–12

Rear Center Seat Belt Buckle Assembly  . . .

9A–13

Rear Center Seat Belt Buckle Assembly

and Associated Parts  . . . . . . . . . . . . . . . . .

9A–13

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–13

Installation  . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–13

Third Seat Belt Buckle and Lock Assembly  .

9A–14

Third Seat Belt Buckle and Lock Assembly

and Associated Parts  . . . . . . . . . . . . . . . . .

9A–14

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–14

Installation  . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–14

Rear Seat Lock Assembly  . . . . . . . . . . . . . . .

9A–15

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–15

Installation  . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–15

Rear Seat Lock Assembly (Bench Type)  . . .

9A–15

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–15

Installation  . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–15

Rear Seat Strikers  . . . . . . . . . . . . . . . . . . . . .

9A–16

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–16

Installation  . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–16

Third Seat Striker  . . . . . . . . . . . . . . . . . . . . . .

9A–16

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–16

Installation  . . . . . . . . . . . . . . . . . . . . . . . . . .

9A–16

Main Data and Specifications  . . . . . . . . . . . .

9A–17

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION

9A–2

SEAT BELT SYSTEM

Legend

(1)

Center Pillar Upper Trim Cover

(2)

Adjust Shoulder Anchor Assembly/Seat Belt
Anchor Plate

(3)

Center Pillar

(4)

Dust Cover

(5)

Retractor

(6)

Anchor Bolt (Lower)

(7)

Door Sill Plate (Front & Rear)

(8)

Center Pillar Lower Trim Cover

(9)

Front Seat Belt Assembly

(10)

Front Seat Belt Anchor Bolt Cover and Anchor
Bolt

Seat Belt

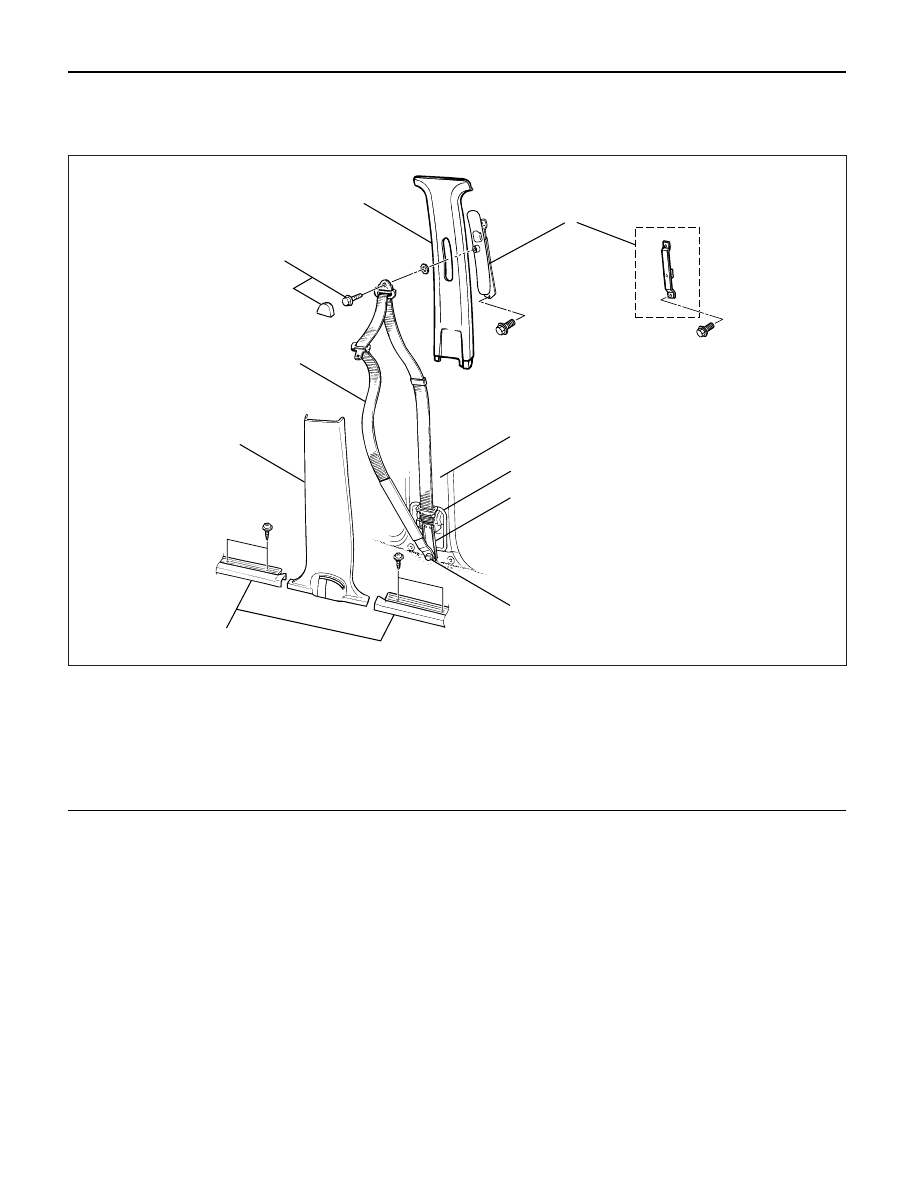

Front Seat Belt and Associated Parts (Long Wheel Base)

7

3

4

5

6

1

2

10

8

9

760RW022

Removal

1. Disconnect the battery ground cable.
2. Remove the door sill plate (Front & Rear).
3. Remove the center pillar lower trim cover.
4. Remove the front seat belt anchor bolt cover and

anchor bolt (Upper Side).

●

Refer to Center Pillar and Roof Side Trim Cover in
Exterior/Interior Trim section.

5. Remove the seat belt lower anchor bolt and screw,

and then remove the front seat belt.

6. Remove the adjust shoulder anchor assembly/seat

belt anchor plate.

●

Refer to Center Pillar and Roof Side Trim Cover in
Exterior/Interior Trim section.

Inspection

If any of the following abnormalities is found, replace on
an assembly basis;

●

Deform and malfunction of adjustable shoulder
anchor/seat belt anchor plate.

●

No smooth move of upper/lower anchors in the
circumferential direction.

●

Damaged and/or deformed through ring.

●

Damaged and/or deformed tongue.

●

Damaged and/or frayed of webbing.

●

Deformed retractor bracket.

●

Seat belt not rewound up.

●

Resistance or abnormal sound when seat belt is
wound out and rewound.

●

Retractor abnormality.
