8J–24

EXTERIOR/INTERIOR TRIM

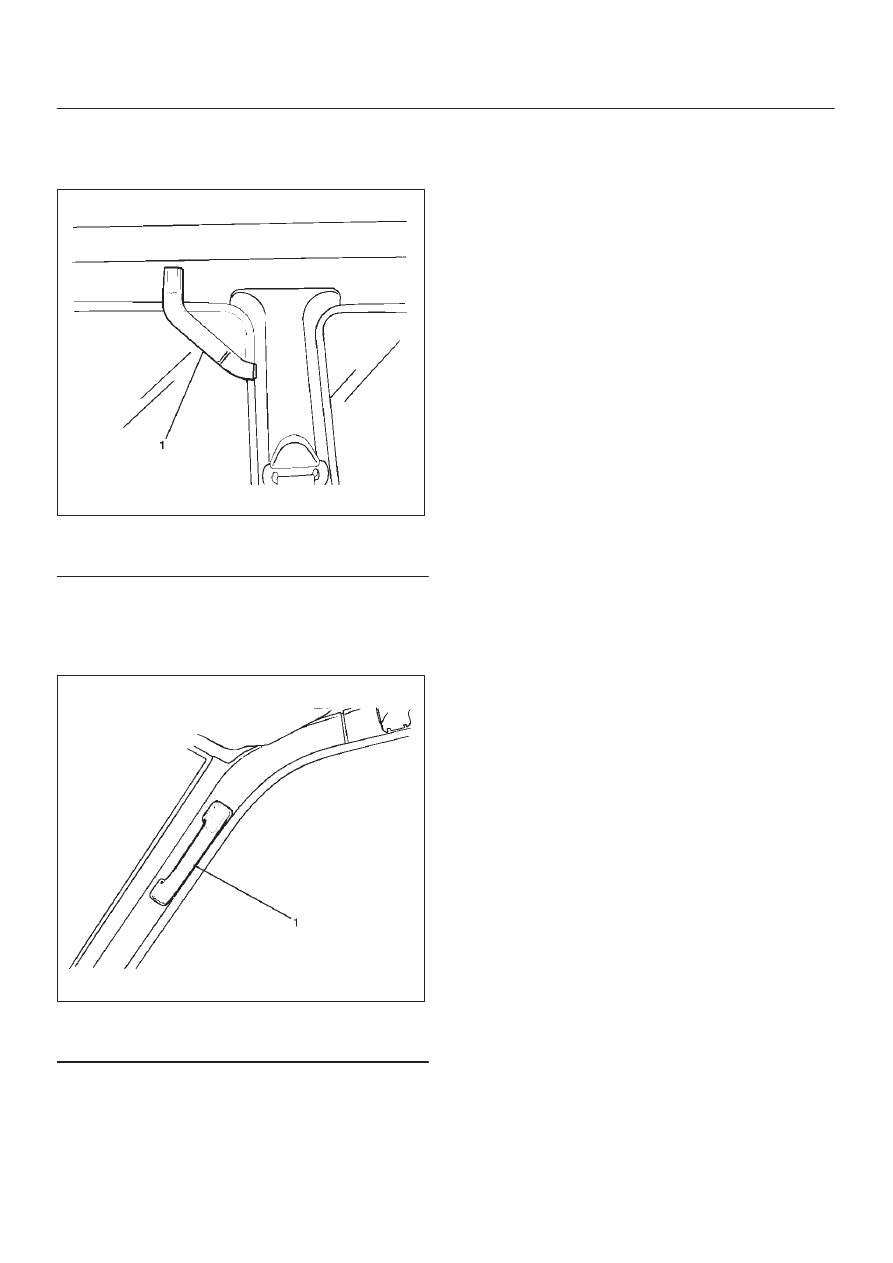

Center Pillar Assist Grip

Parts Location

743RS004

Legend

(1) Center Pillar Assist Grip

Removal and Installation

Refer to the Center Pillar and Roof Side Trim Cover in this
section.

Assist Grip

Parts Location

743RS005

Legend

(1) Assist Grip

Removal and Installation

Refer to the Front Pillar Trim Cover in this section.

EXTERIOR/INTERIOR TRIM

8J–25

Fuel Filler Lid Opener Cable

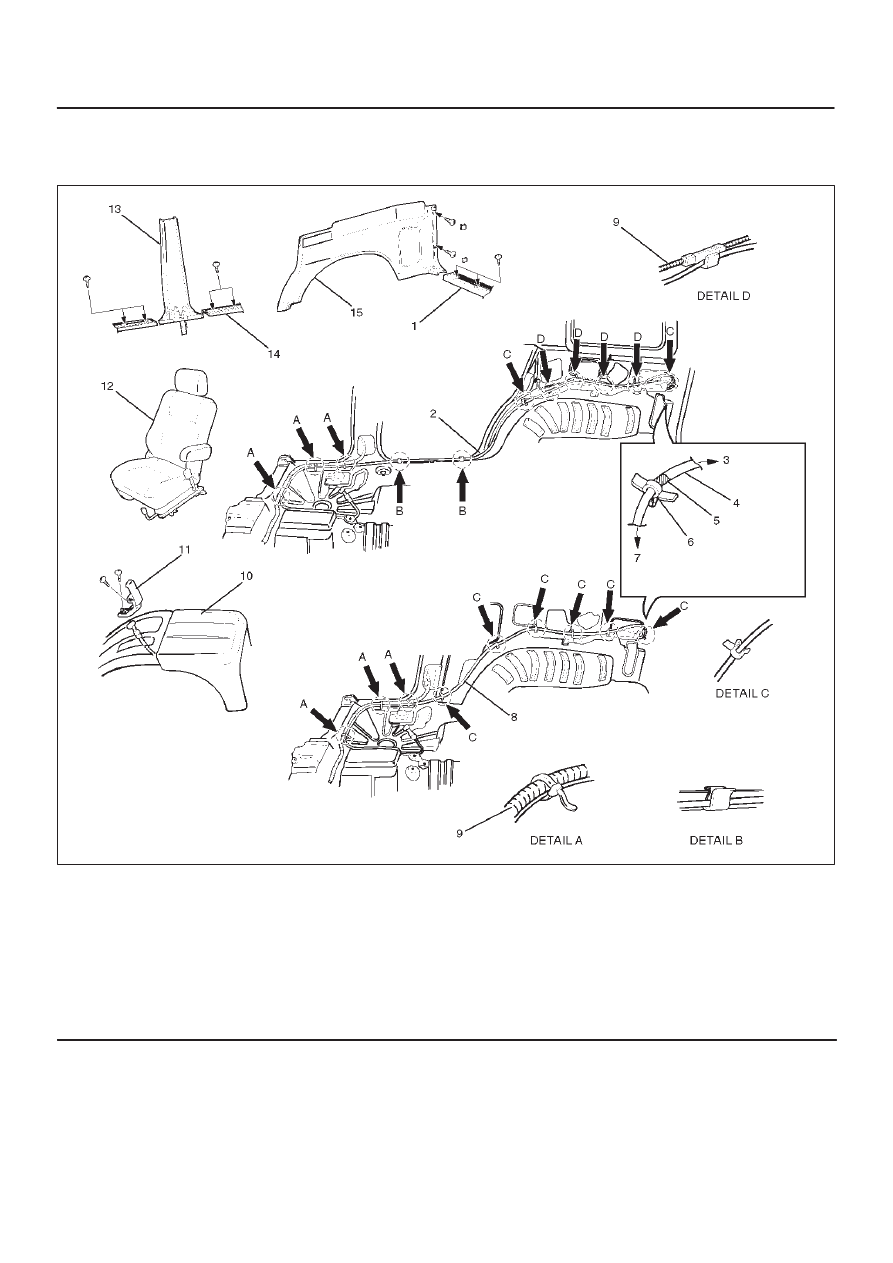

Fuel Filler Lid Opener Cable and Associated Parts

686RW008

Legend

(1) Rear End Floor Trim Cover
(2) Fuel Filler Lid Opener Cable (LWB)
(3) To Lever
(4) Cable
(5) Marking
(6) Clip
(7) To Door

(8) Fuel Filler Lid Opener Cable (SWB)
(9) Chassis Harness

(10) Center Console Assembly

(11) Fuel Filler Lid Opener

(12) Front Seat (RH)
(13) Center Pillar Lower Trim Cover
(14) Rear Door Sill Plate (RH)
(15) Luggage Side Trim Panel (RH)

Removal

1. Disconnect the battery ground cable.
2. Remove the front seat (RH).
3. Remove the rear door sill plate (RH).
4. Remove the center pillar lower trim cover.

5. Remove the rear end floor trim panel.
6. Remove the luggage side trim panel (RH).

D

Refer to the Luggage Side and Quarter Upper Trim
Cover in this section.

8J–26

EXTERIOR/INTERIOR TRIM

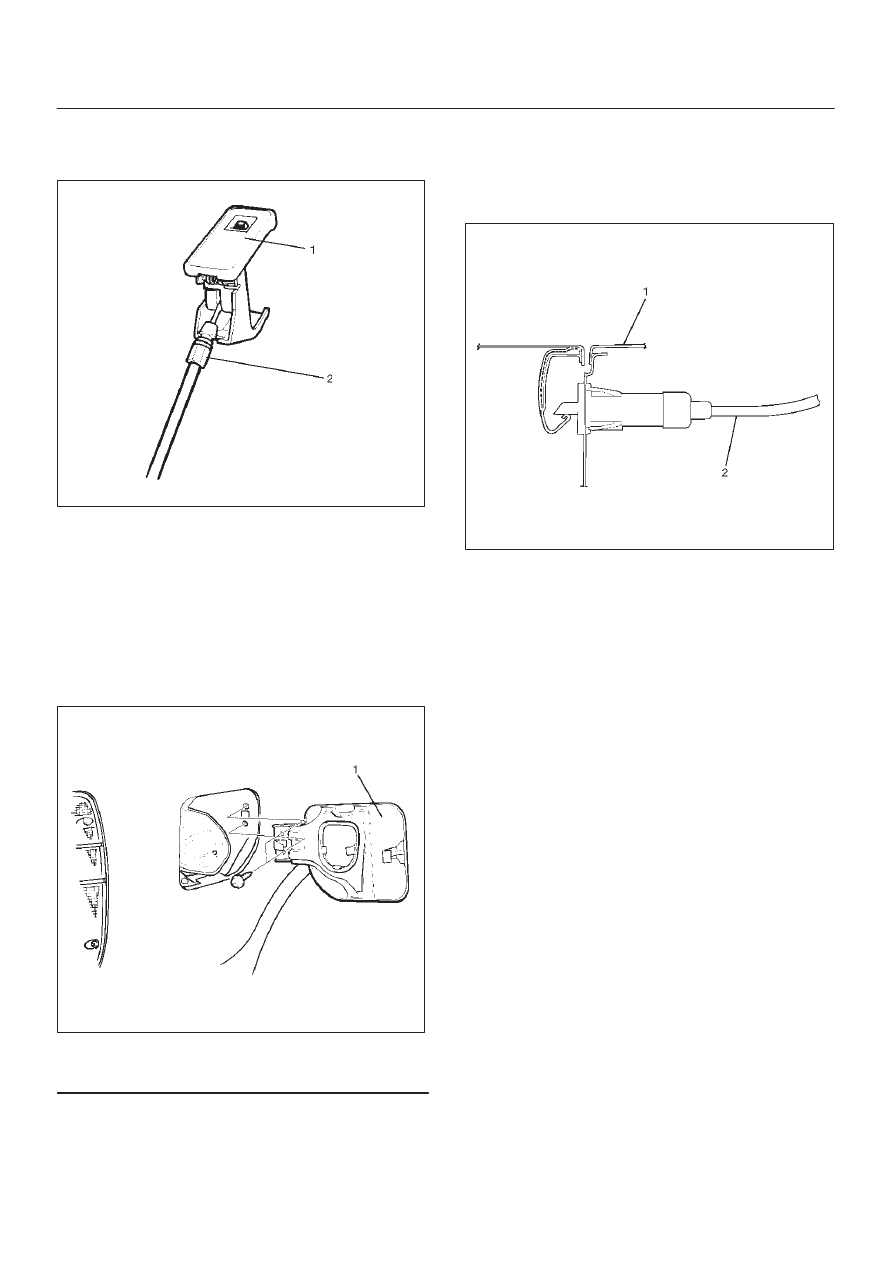

7. Remove the fuel filler lid opener(1).

D

Remove two opener fixing screws and disconnect
the cable(2).

686RW007

8. Remove the center console assembly.
9. Remove the fuel filler lid opener cable.

D

Roll up the floor carpet and remove the clips of the
chassis harness and body panel to pull out the
cable toward the fuel filler lid.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Insert the opener cable(2) into the body panel(1)

securely.

686RS002

2. Install the cable and clips to its original position to the

chassis harness and the body panel.

3. Check that the opener operates smoothly.

Fuel Filler Door

Parts Location

686RS003

Legend

(1) Fuel Filler Door

Removal

1. Remove the fuel filler door.

Installation

1. Install the fuel filler door.

EXTERIOR/INTERIOR TRIM

8J–27

Rocker Protector (Without Wheel Opening Extension)

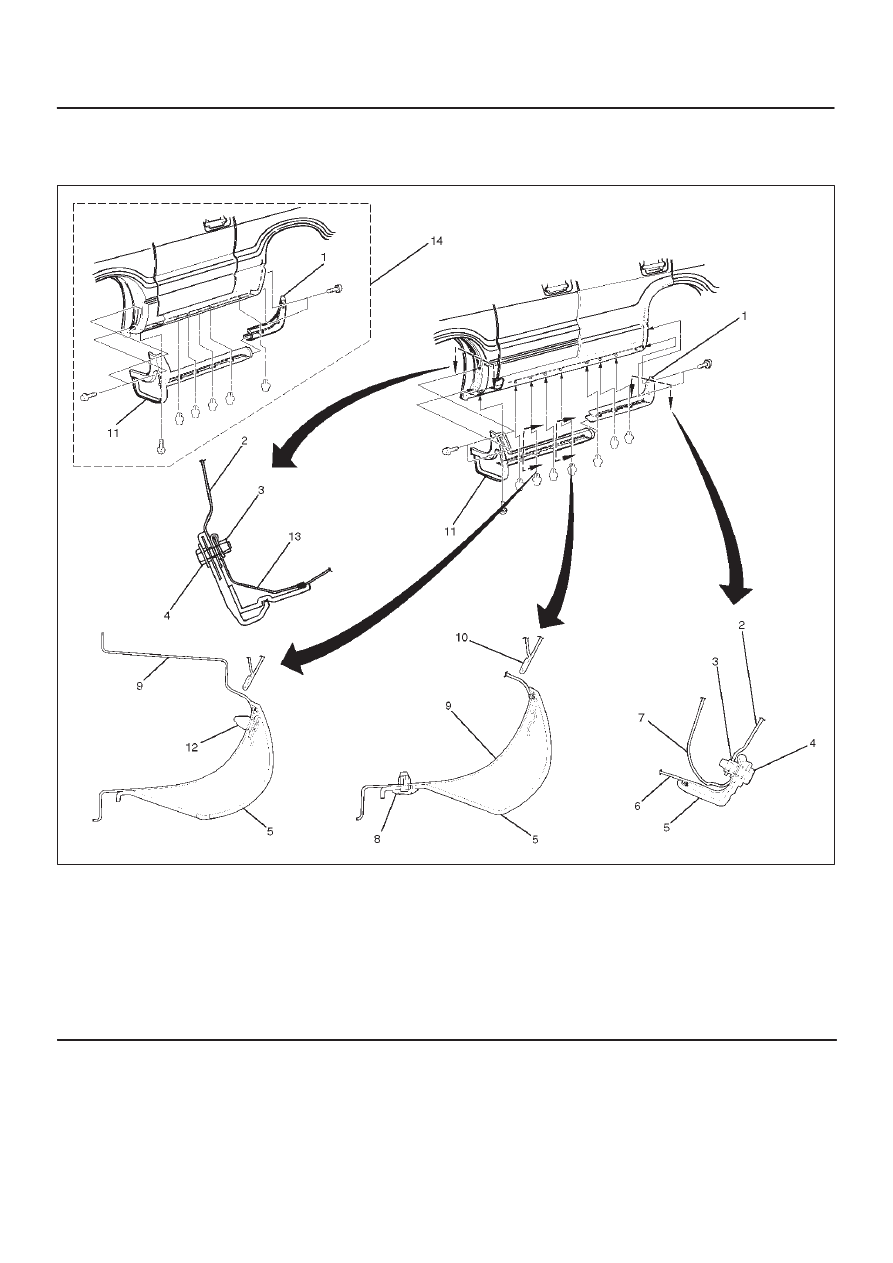

Rocker Protector (Without Wheel Opening Extension) and Associated Parts

603RW015

Legend

(1) Rear Rocker Protector
(2) Inner Liner
(3) Spare Nut
(4) Fixing Screw
(5) Rocker Protector
(6) Outer Side Panel
(7) Outer Wheel House Panel

(8) Fixing Clip
(9) Outer Rocker Panel

(10) Door Panel

(11) Front Rocker Protector

(12) Clip (W/Rocker Protector)
(13) Fender Panel
(14) SWB

Removal

1. Remove the rear rocker protector.
2. Remove the front rocker protector.

Installation

To install, follow the remove steps in the reverse order.
