Opel Frontera UBS. Manual - part 1767





8G–24 SEATS

Installation

To reassemble, follow the disassembly steps in the
reverse order, noting the following point.

1. Tighten the reclining device fixing bolts to the

specified torque.

Torque: 19 N·m (1.9kg·m/14 lb ft)

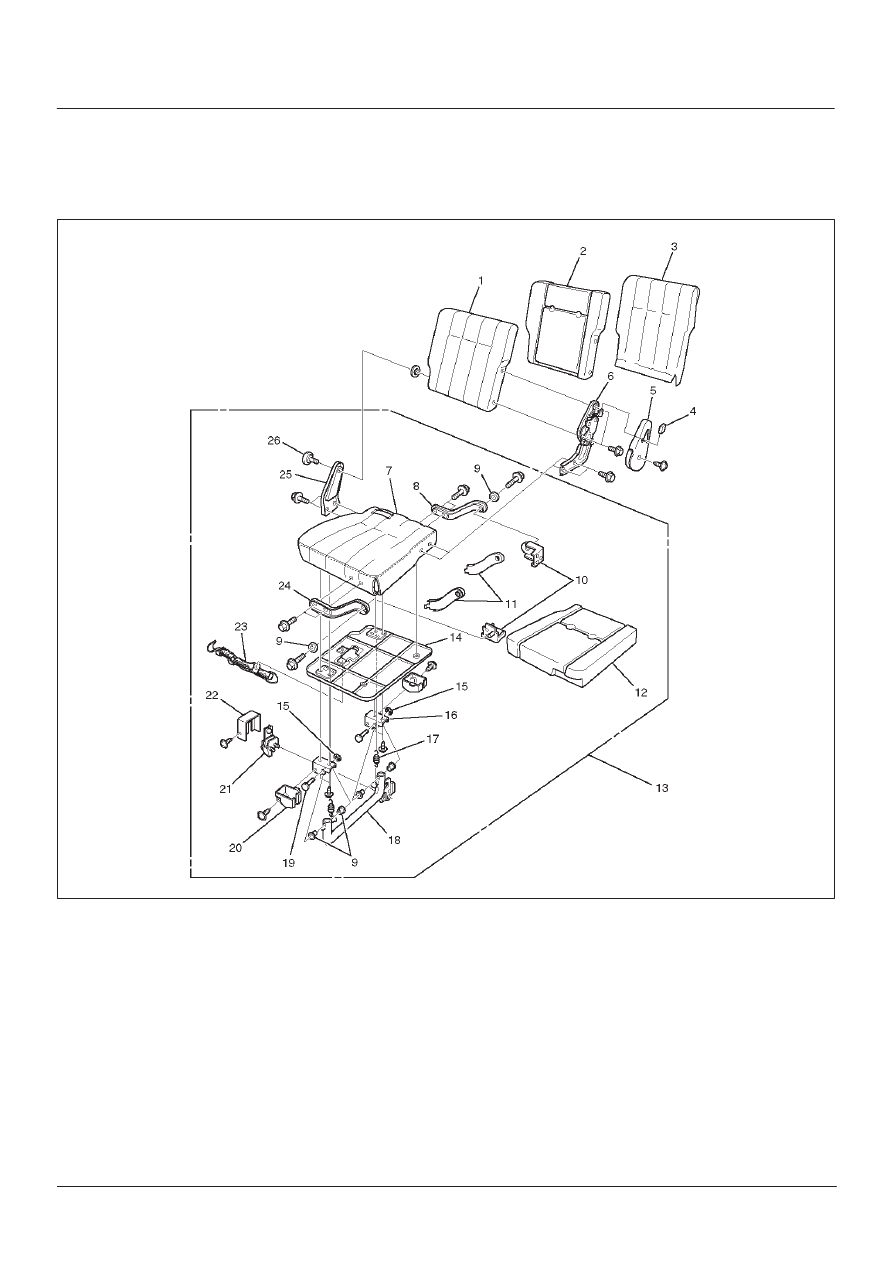

Disassembled View

755RW035

Legend

(1) Seat Back Assembly
(2) Pad & Frame Assembly
(3) Trim Cover
(4) Hinge Knob
(5) Hinge Cover
(6) Hinge Assembly
(7) Trim Cover
(8) Arm Bracket
(9) Bush

(10) Bracket

(11) Arm Bracket Cover

(12) Pad & Frame Assembly
(13) Seat Cushion Assembly

(14) Board Assembly
(15) E–Ring
(16) Cam Bracket
(17) Tension Spring
(18) Leg Pipe Assembly
(19) Hing Pin
(20) Lock Cover
(21) Floor Lock Assembly
(22) Lock Cover
(23) Band Assembly
(24) Arm Bracket
(25) Free Hinge
(26) Free Hinge Bolt

SEATS 8G–25

Disassembly

1. Remove the hinge knob.

D

Pull the knob out from hinge assembly.

2. Remove the hinge cover.
3. Remove the hinge assembly.
4. Remove the free hinge bolt.
5. Remove the seat back assembly.
6. Remove the trim cover.

D

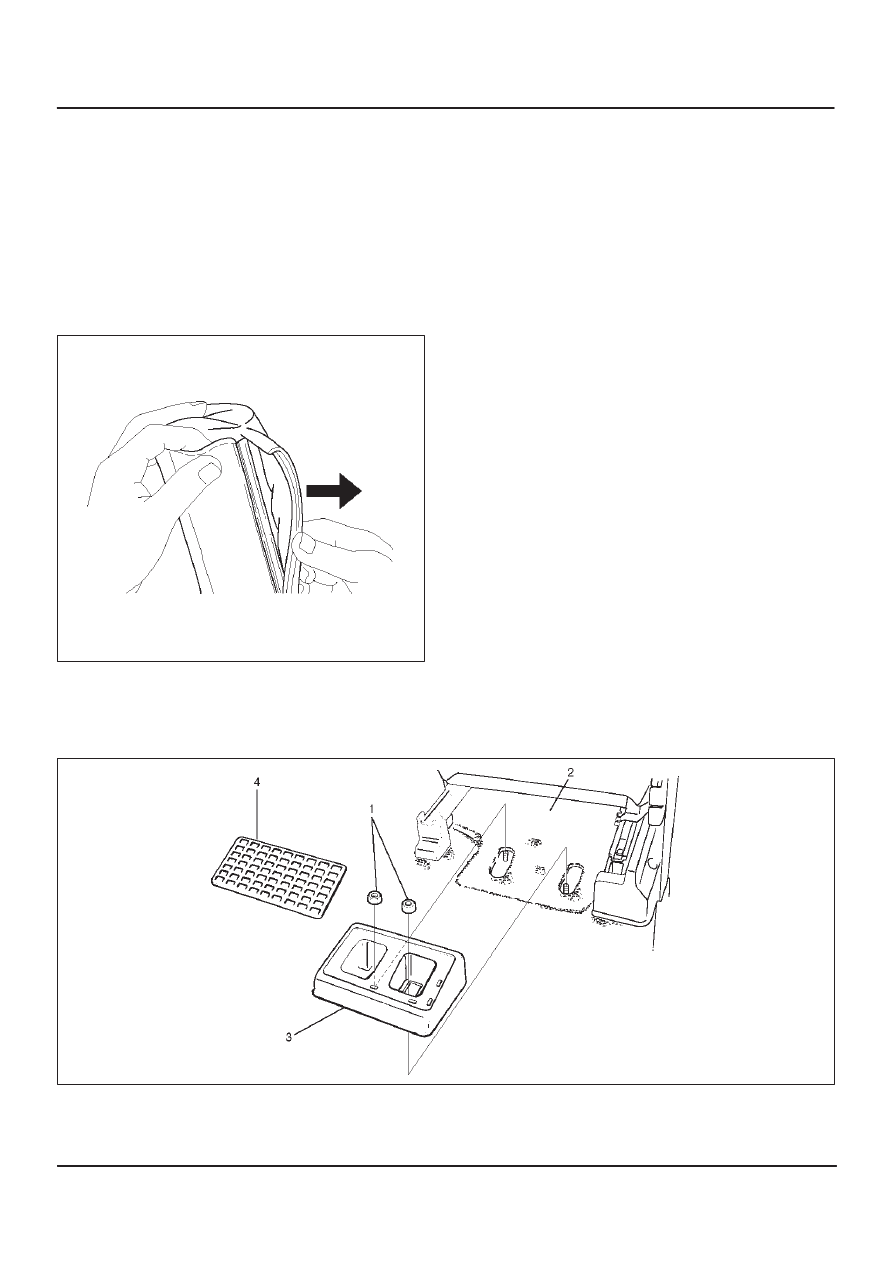

Turn up the trim cover from under the seat back
while taking notice of the hog ring and wire.

755RW032

7. Remove the pad & frame assembly.
8. Remove the seat cushion assembly.
9. Remove the free hinge.

10. Remove the lock cover.

11. Remove the floor lock assembly.

12. Remove the leg cover.
13. Remove the leg pipe assembly.

D

Remove the E-ring and pull the hinge pin from cam
bracket.

14. Remove the cam bracket.
15. Remove the tension spring.
16. Remove the band assembly.
17. Remove the board assembly.
18. Remove trim cover.

D

Remove the hog ring from back side seat cushion.

D

Turn up the trim cover from under the seat back
while taking notice of the hog ring.

19. Remove the arm bracket.
20. Remove the arm bracket cover.
21. Remove the pad & frame assembly.

Reassembly

To reassemble, follow the disassembly steps in the
reverse order.

Rear Seat Foot Rest

Rear Seat Foot Rest and Associated Parts

676RY001

Legend

(1) Fixing Nut
(2) Front Seat

(3) Rear Seat Foot Rest
(4) Foot Rest Pad

8G–26 SEATS

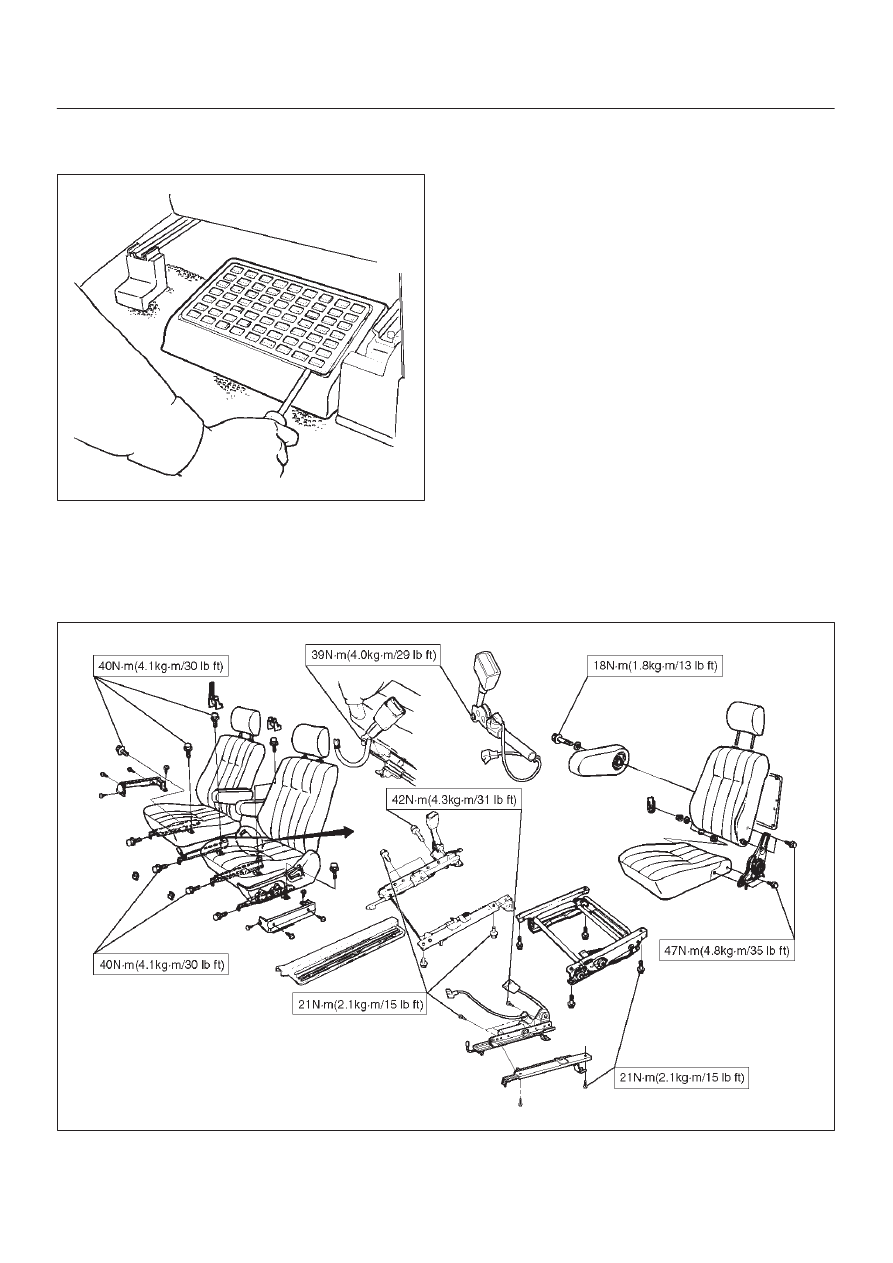

Removal

1. Remove the foot rest pad.

676RS002

2. Remove the fixing nuts.
3. Remove the rear seat foot rest.

Installation

To install, follow the removal steps in the reverse order.

Main Data and Specifications

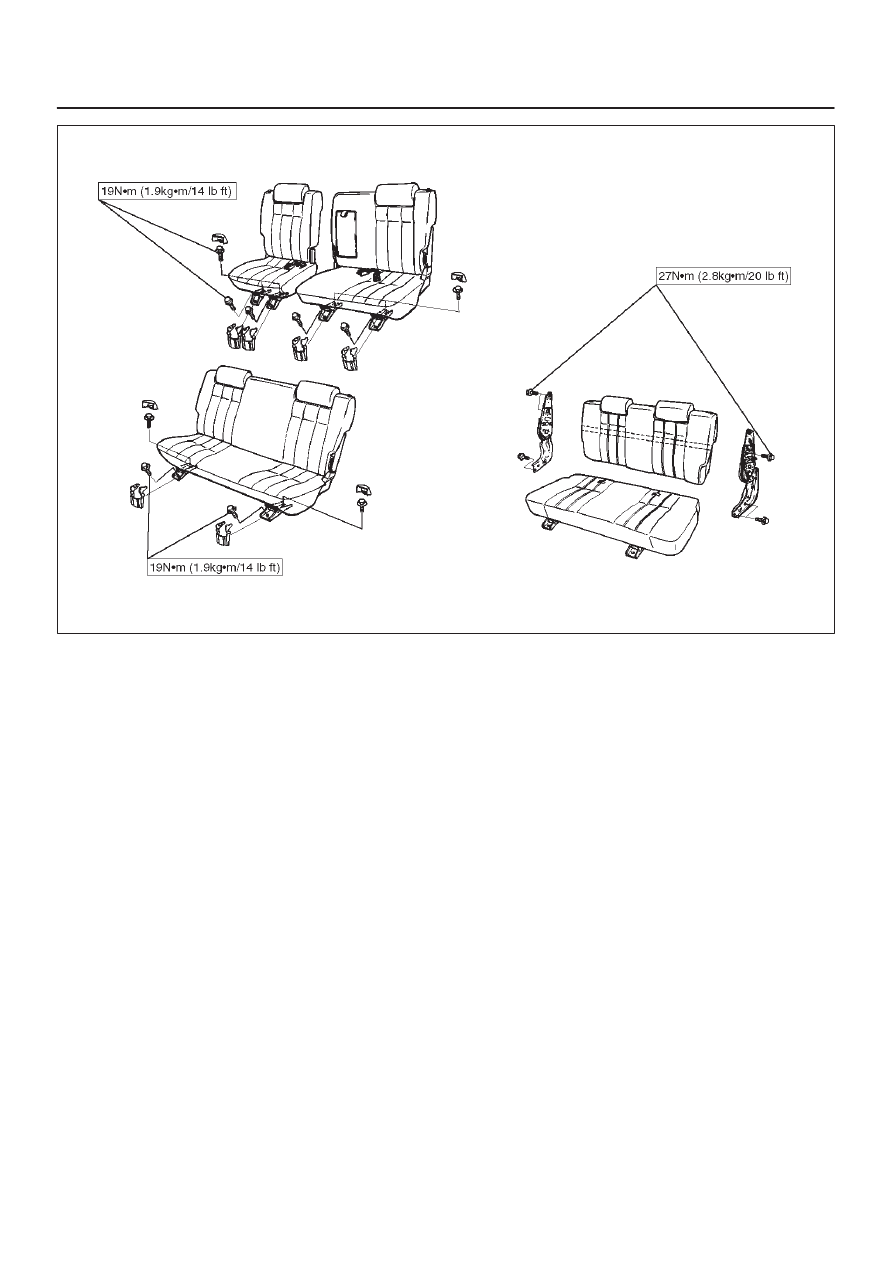

Torque Specifications

E10RX006

SEATS 8G–27

E10RW031
