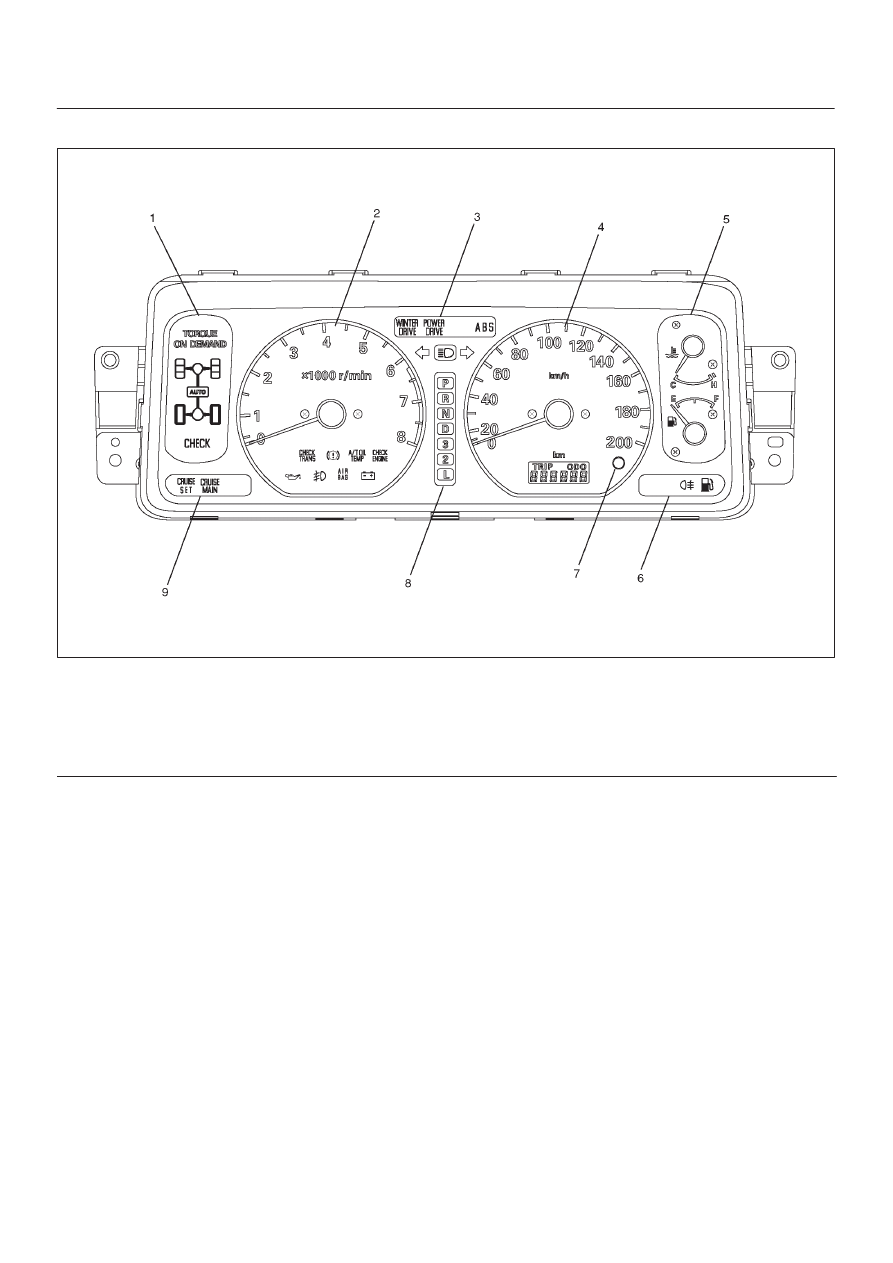

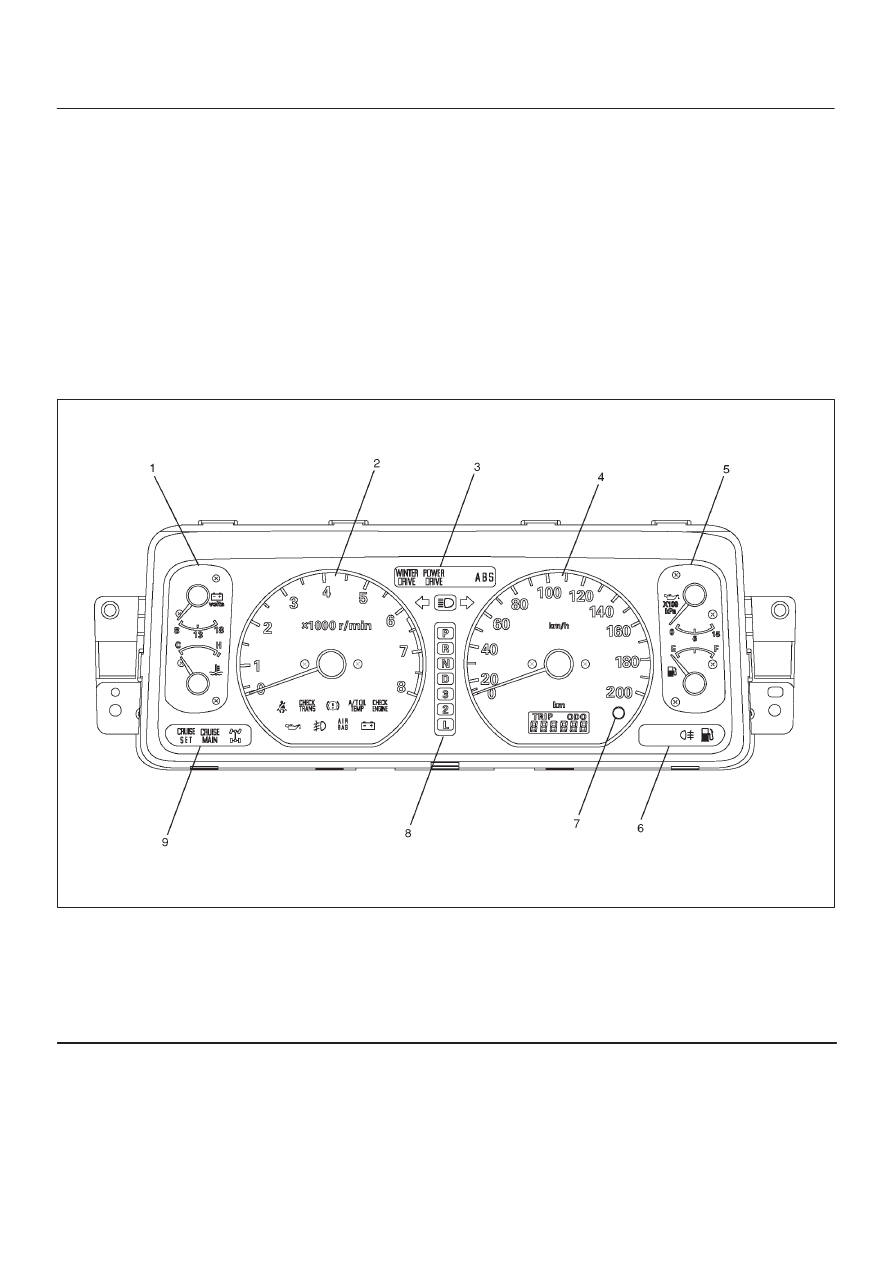

8E–2 METER AND GAUGE Meter Assembly General Description The meter assembly has the speedometer, tachometer, Layout for Meters/Gauges, Warning Lights, Indicator Lights and Illumination Meter Assembly–Gasoline W/O TOD (Front View) 821R200045 Legend (1) Voltmeter & Engine Coolant Temperature Gauge (2) Tachometer (5) Oil Pressure Gauge & Fuel Gauge |
