8D–318

WIRING SYSTEM

Rear Wiper/Washer

General Description

The circuit consists of rear wiper/washer switch,
alarm & relay control unit, rear wiper motor and rear
washer motor.
When rear wiper switch on rear wiper/washer
switch is depressed, battery voltage is applied to
rear wiper motor through alarm & relay control unit
and activates rear wiper motor.
When rear washer switch on rear wiper/washer
switch is depressed, battery voltage is applied to
rear washer motor and activates rear washer motor.
At the same time, the current as an input signal for
activating rear wiper motor flows to alarm & relay
control unit, then alarm & relay control unit
activates rear wiper motor to wipe glass cleaning
fluid.

WIRING SYSTEM

8D–319

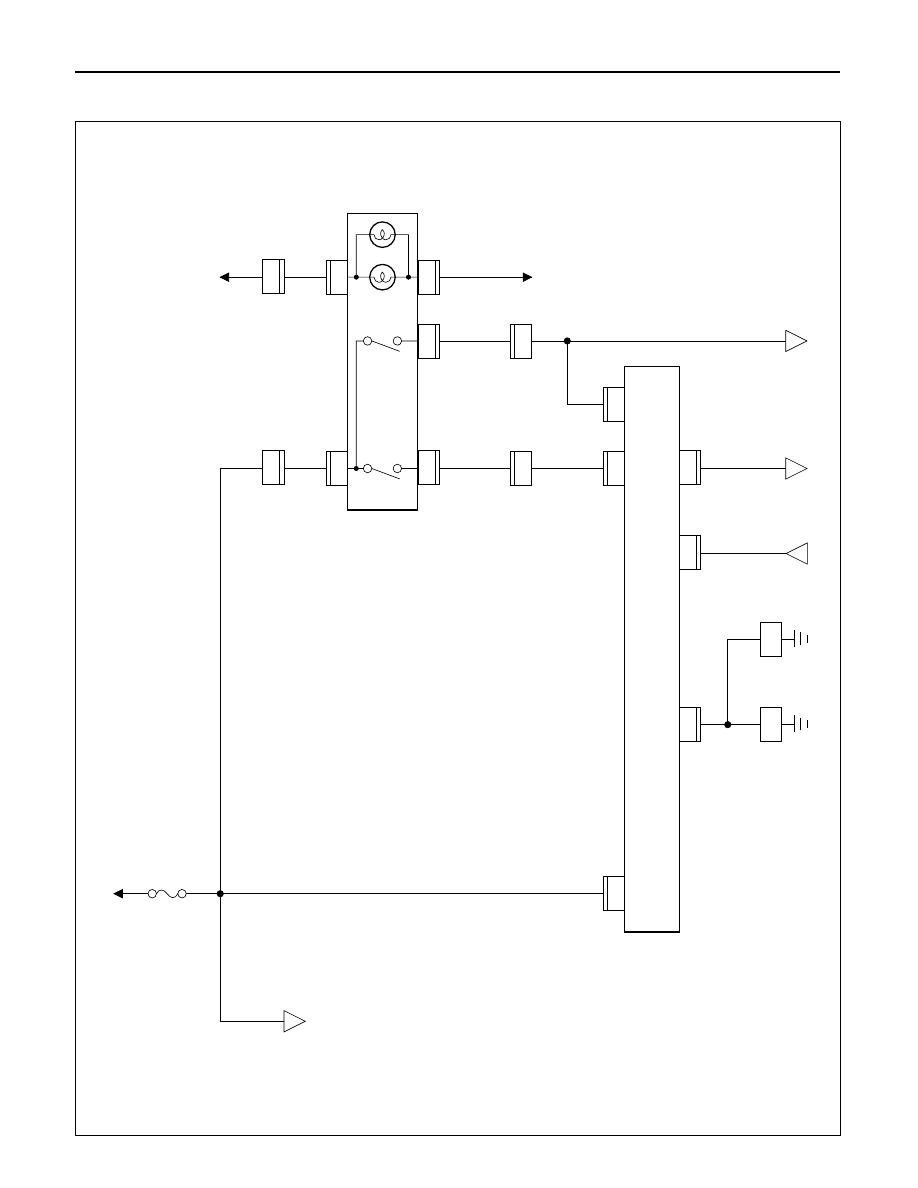

Circuit Diagram (RHD)-1

ALARM & RELAY

CONTROL UNIT

RR WIPER/

WASHER SW

B-2

BODY-LH

A

B

4

B-7

7

I-16

8

B-7

B-7

2.0

B

0.85

B

0.5

L/B

0.5

L/B

0.5

L/B

0.5

L/B

3.0

B/R

C-6 10A

RR WIPER&WASHER

9

B-18

BODY-RH

2.0

B

B-7

AUTO STOP

0.5

LG/L

2

C

B-7

MOTOR

H-25

3

31

4

I-16

H-16

I-16

0.5

LG/R

0.5

LB

0.5

LG/W

0.5

LB

D

0.5

LG/W

0.5

LG/W

0.3

R/G

0.85

G/R

3

STARTER SW

(IG2)

ILLUMINATION

CONTROLLER(3)

TAIL RELAY

(4)

I-16

I-16

18

B-7

WASHER

WIPER

22

H-25

11

86

2

H-26

RR

WASHER

RR

WIPER

D08RW643

8D–320

WIRING SYSTEM

Circuit Diagram (RHD)-2

RR WASHER

MOTOR

RR WIPER

MOTOR

2

H-32

3

7

G-6

H-38

A

1

H-32

1

6

G-6

H-38

B

R-3

BODY-RR

3

H-32

2

9

G-6

5

H-38

0.5

B

1.25

B

0.5

B

0.5

B

0.5

LG/W

0.5

LG/W

0.5

LG/W

0.5

LG/R

0.5

LG/R

0.5

LG/R

0.5

LG/Y

0.5

LG/L

0.5

LG/L

0.5

L/B

0.5

L/B

0.5

L/B

H-38

4

G-6

C

4

H-32

1

3

G-2

H-38

2

G-2

D

M

M

D08RW642

WIRING SYSTEM

8D–321

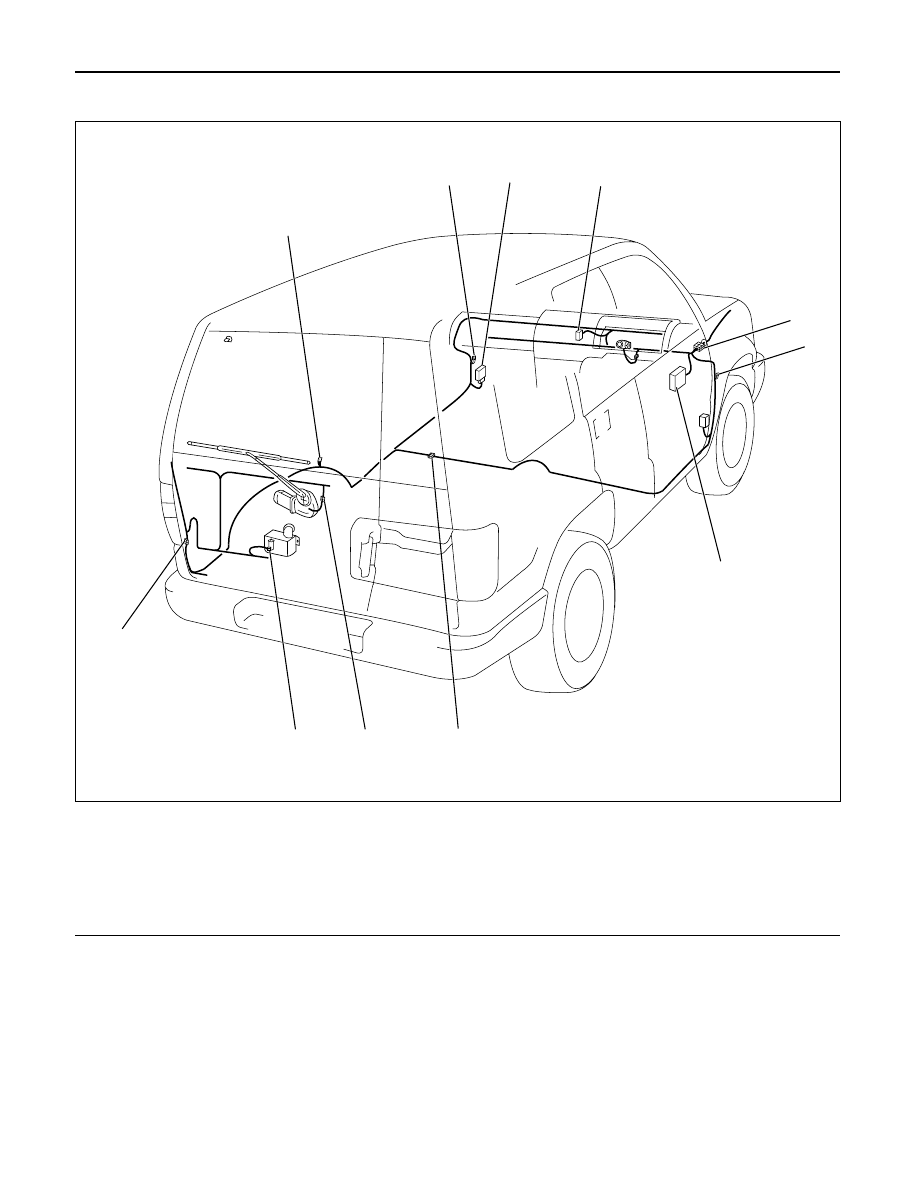

Parts Location (RHD)

Legend

(1) B-2
(2) Alarm and Relay Control Unit (B-7)
(3) I-16
(4) H-16, H-25, H-26
(5) B-18

(6) Fuse Box
(7) H-32
(8) RR Wiper Motor (G-6)
(9) RR Washer Motor (G-2)

(10) H-38
(11) R-3

4

5

6

7

8

9

11

1

2

3

10

D08RWA07
