8D–42

WIRING SYSTEM

1

D08RWA30

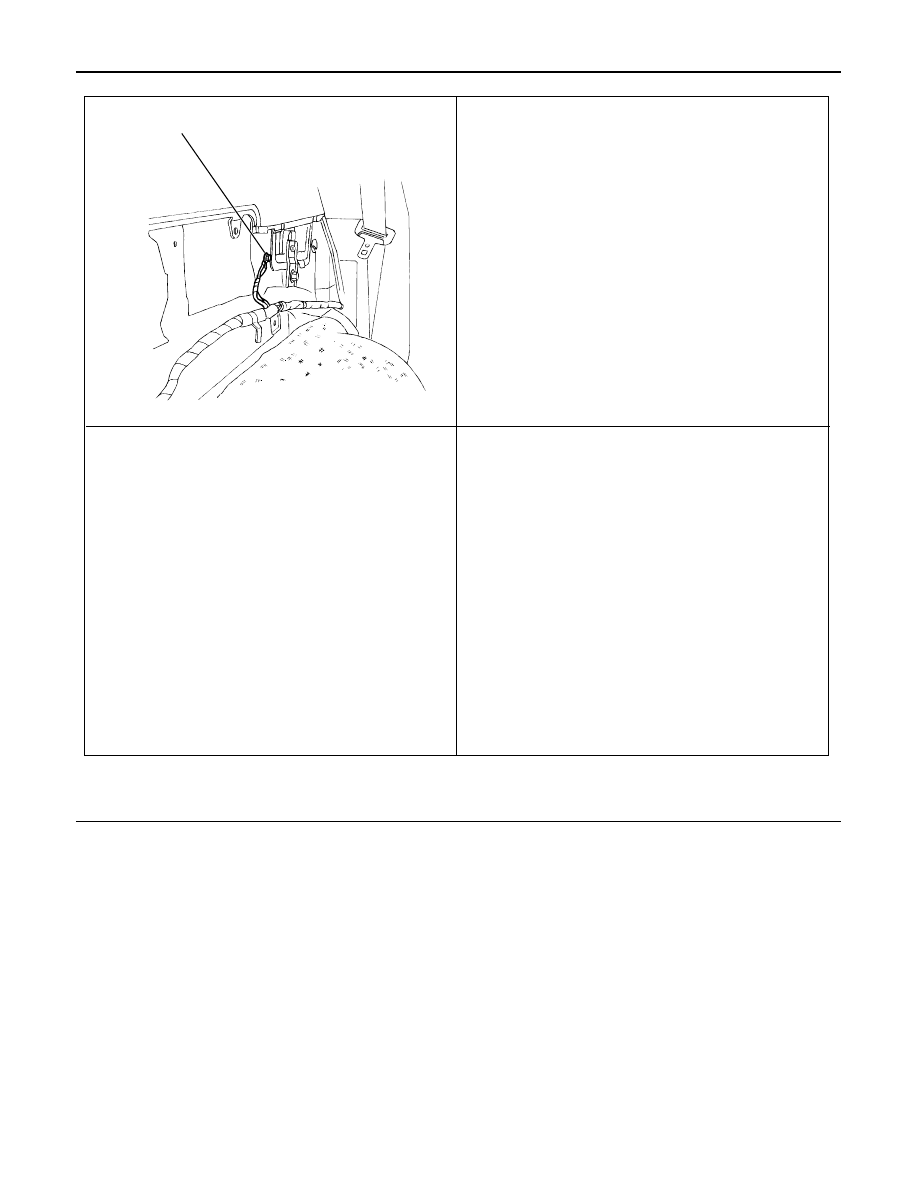

Legend

(1) R-3, R-4

WIRING SYSTEM

8D–43

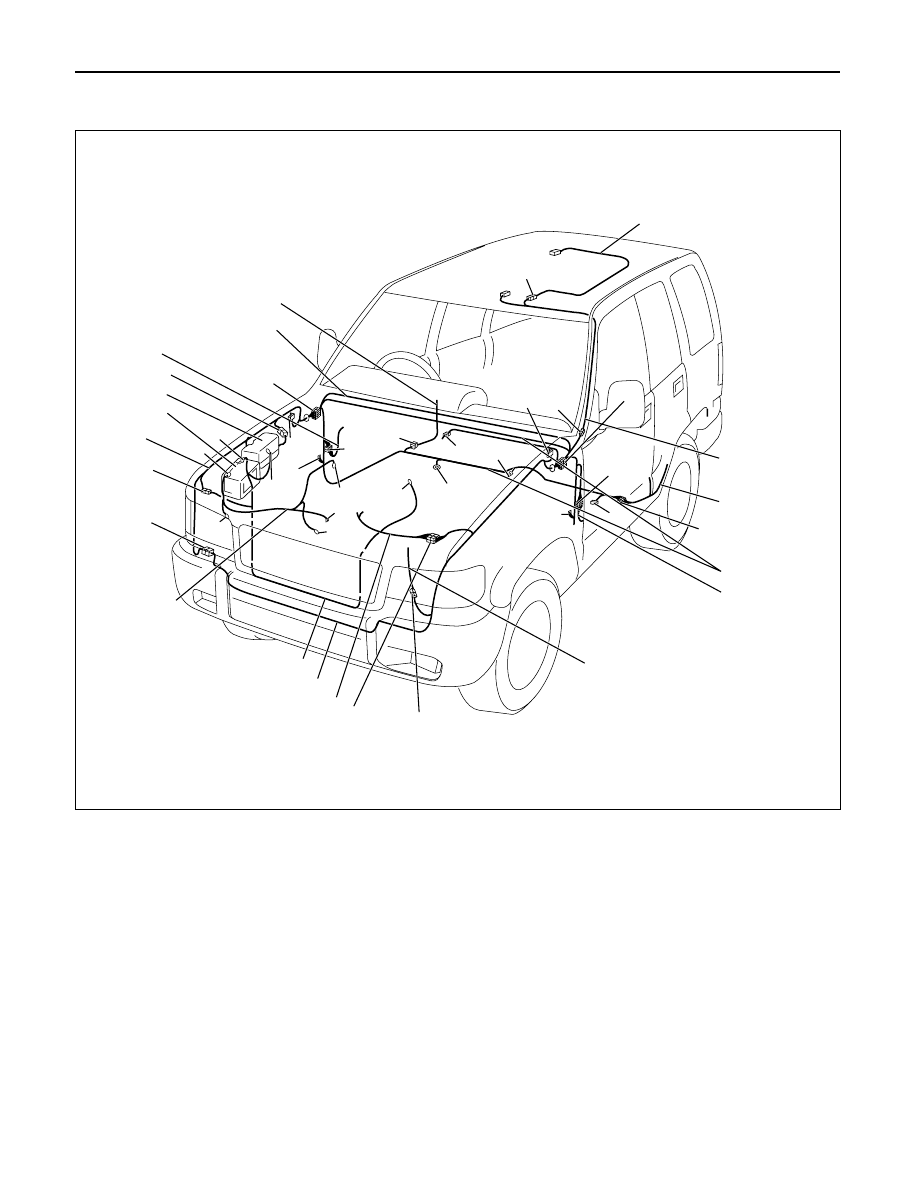

Cable Harness Routing (RHD) – 1

8

40

1

2

33

16

14

10

13

15

6

45

42

44

9

7

11

5

22

23

25

24

30

31

27

28

32

34

35

41

29

43

36

37

39

21

19

17

18

12

26

38

4

3

20

D08RWA34

Legend

(1) Instrument Harness
(2) RR Door Extension Harness
(3) H-45
(4) Sun Roof Harness
(5) C-16
(6) H-21
(7) H-7, H-8, H-9, H-20, H-24, H-65
(8) Domelight Harness
(9) RR Body Harness

(10) H-31, H-32, H-46
(11) Body Harness
(12) FRT Door Harness
(13) H-18, H-19
(14) C-85
(15) B-1, B-2

(16) B-26
(17) H-12
(18) B-28
(19) P-4
(20) H-10, H-11, H-53
(21) H-4, H-5, H-6
(22) Engine Harness
(23) Engine Room Harness (LH)
(24) Battery Positive Cable
(25) Battery Negative Cable
(26) Transmission Harness
(27) P-7
(28) P-10
(29) P-9
(30) H-41, H-42, H-43, H-60
(31) P-6

8D–44

WIRING SYSTEM

(32) H-2, H-3 (4J

∗∗

)

(33) Engine Room Harness (RH)
(34) P-5
(35) P-1
(36) Battery
(37) Relay and Fuse Box
(38) H-1, H-2, H-3 (6V

∗

1)

(39) FRT Door Harness (RH)

(40) H-13, H-14, H-15, H-16, H-25, H-26, H-27,

H-61, H-62, H-64, H-66

(41) P-2
(42) B-18, B-19
(43) C-39
(44) H-22, H-23
(45) H-47

WIRING SYSTEM

8D–45

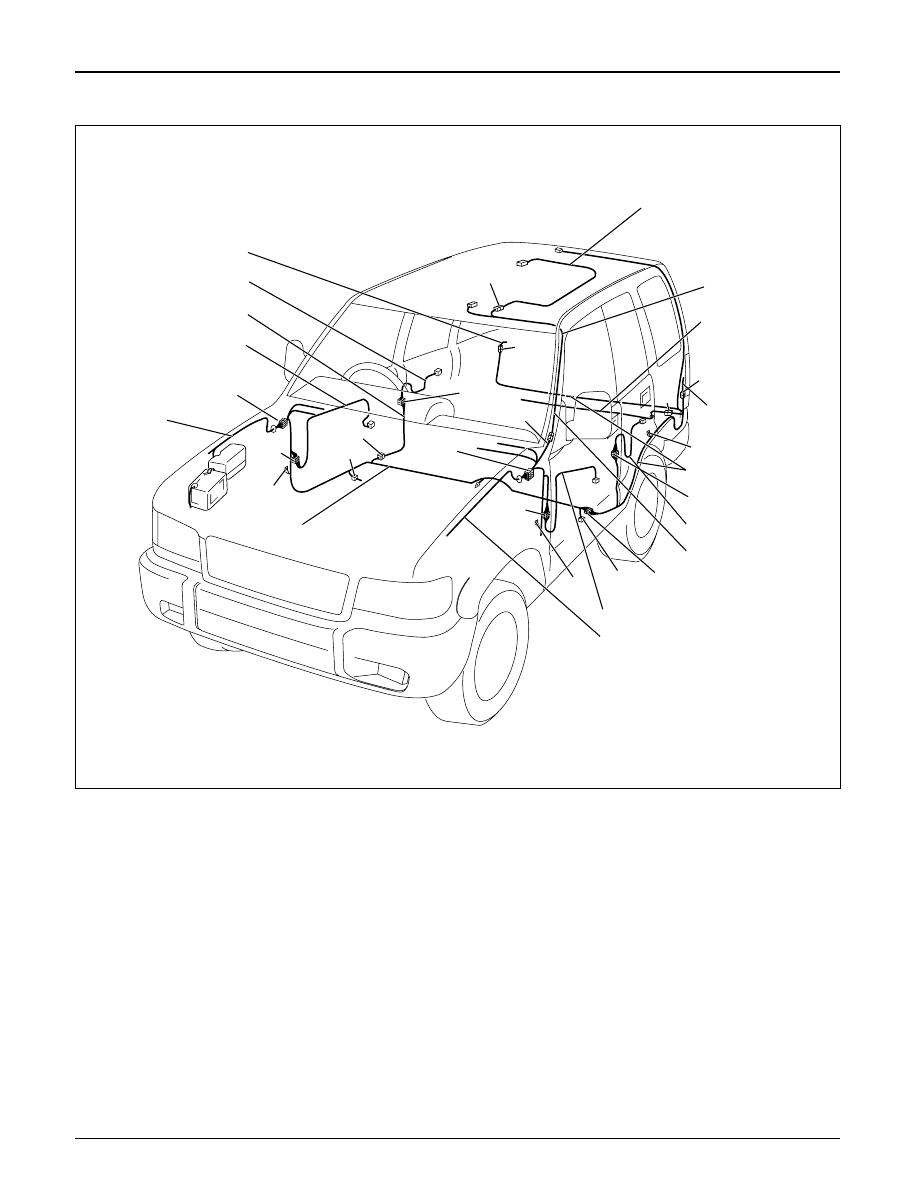

Cable Harness Routing (RHD) – 2

6

7

8

10

11

13

14

15

16

17

18

20

21

22

23

24

25

26

9

5

4

3

2

1

33

32

31

30

27

28

29

19

12

D08RWA35

Legend

(1) FRT Door Harness (RH)
(2) RR Door Extension Harness
(3) RR Door Harness (RH)
(4) Tail Gate Harness (RH)
(5) H-45
(6) Sun Roof Harness
(7) Domelight Harness
(8) Chassis Harness
(9) H-39

(10) H-37, H-38
(11) Tailgate Harness (LH)
(12) H-33
(13) R-3, R-4
(14) RR Body Harness
(15) H-28, H-29
(16) RR Door Harness (LH)
(17) Domelight Harness

(18) H-31, H-32, H-46
(19) H-58
(20) FRT Door Harness (LH)
(21) Engine Room Harness (LH)
(22) B-1, B-2
(23) H-18, H-19
(24) H-7, H-8, H-9, H-20, H-24, H-65
(25) H-21
(26) H-34, H-35
(27) Body Harness
(28) H-57
(29) H-47
(30) B-18, B-19
(31) H-22, H-23
(32) Engine Room Harness (RH)
(33) H-13, H-14, H-15, H-16, H-25, H-26, H-27,

H-61, H-62, H-64, H-65
