8D–30

WIRING SYSTEM

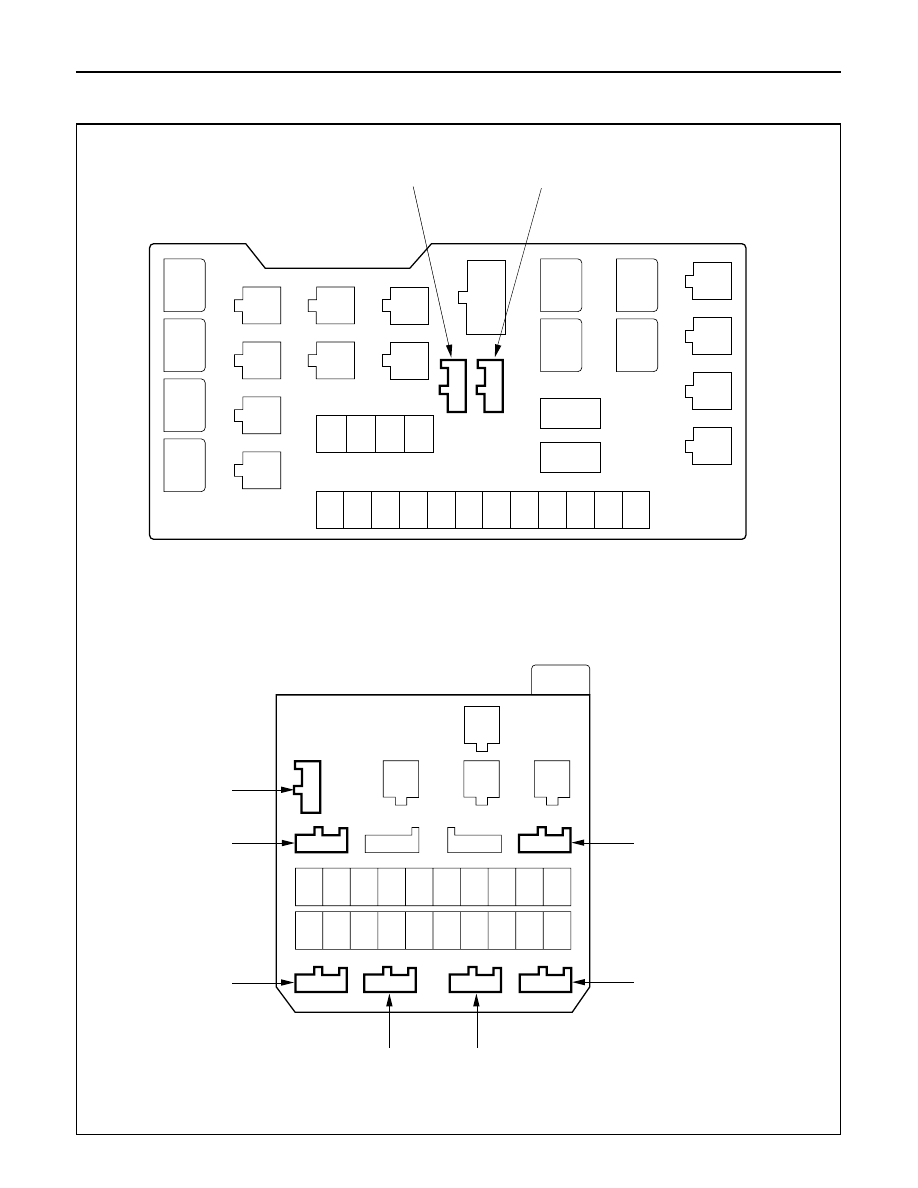

Diode Location

B-43

B-47

B-46

B-45

B-44

B-40

B-39

FUSE BOX

RELAY AND FUSE BOX

X-15

X-14

WIRING SYSTEM

8D–31

Grounding Point

Reference Table
(6VD1 RHD)

Connector No.

Cable harness

Location

Parts (Load)

B-1

Door mirror defogger (LH), Fan SW, FRT power
window & door lock SW-LH, Cruise control
unit, FRT door key SW-LH, FRT door lock
actuator-LH, FRT door lock SW-LH

B-2

Sun roof SW, Sun roof control unit,
Safety SW, Limit SW

Body-LH

B-18

FRT door key SW-RH, FRT door lock & power
window SW-RH, FRT door lock actuator & lock
SW-RH, FRT door lock SW-RH, Door mirror
defogger (RH), RR wiper intermittent relay,
Mode SW (A/T), Starter relay

B-19

B-26

RR Power window SW-RH, Mirror control SW,
Mirror defogger SW, Mirror folding SW,
Car telephone, Shift lock controller, POWER &
WINTER SW, Seat heater, Seat heater SW,
RR door lock actuator-LH, EBCM

Body-RH

Body harness

Body-center

C-16

Pump & VSV, Headlight wiper timer

2

C-16

4WD SW, VSV;FRT axle, FRT axle SW

3

C-16

FRT fog light

4

C-16

P/S pressure SW, Headlight leveling actuator-LH

7

C-16

Side turn signal light (LH)

8

Fender-LH

Engine room

harness

Cigar lighter, Dimmer·passing SW, Illumination
controller, RR defogger SW, Flasher unit,
Power window relay, Cruise main indicator
light, Lighting SW, Glove box illumination light,
Ashtray illumination light, Headlight wiper SW,
Clock, FRT fog light SW, Variable intermittent
(FRT wiper & washer SW), Kick down SW,
Anti-theft controller, Turn signal indicator light,
Heater & A/C relay

C-16

5

Headlight wiper motor

C-16

Clearance light, FRT turn signal light

1

C-16

O

2

 Sensor, Headlight leveling actuator-RH

6

B-28

RR power window SW-RH, Power & winter SW,
Power seat SW, Tilt motor & SW, Recliner
motor & SW, RR door lock actuator-RH, EBCM

8D–32

WIRING SYSTEM

Connector No.

Cable harness

Location

Parts (Load)

C-39

Windshield washer motor

1

C-39

Windshield wiper motor

2

C-39

FRT fog light relay

4

C-39

Meter, Vehicle speed sensor (Meter),
Fuel tank unit

6

Engine room

harness

Fender-RH

E-28

ECM, O

2

 sensor

E-29

ECM, Data link connector

Engine ECGI

harness

Engine-common

chamber

R-3

RR washer motor, Rear wiper motor, Luggage
room light, RR defogger, High mount stoplight,
Tailgate key SW, RR door lock actuator-LH,
Tailgate lock actuator-LH, RR power window
SW-LH

R-4

Taillight, Stoplight, RR turn signal light, Backup
light, License plate light, Fuel tank unit, Fuel
pump, Trailer harness connector, RR fog light

Rear body

harness

Body-RR

E-30

E-31

ECM, Data link connector, A/T Shift indicator
control unit

DIS

C-39

Fuel pump relay, ECM main relay

5

C-39

Windshield intermittent relay

3

M-16

TCM

Mission
harness

Engine

C-39

Side turn signal light (RH)

7

C-39

Vehicle speed sensor, Brake fluid SW

8

I-39

Audio

Instrument

harness

Body-FRT

C-85

EBCM

Engine room

harness

Body-Center

U-2

SDM

SRS

harness

Body-FRT

WIRING SYSTEM

8D–33

(6VD1 LHD)

Connector No.

Cable harness

Location

Parts (Load)

B-1

FRT power window & door lock SW-RH, FRT
door key SW-RH, FRT door lock actuator-RH,
Door lock SW-RH, Door mirror defogger (RH),
Key & light remind buzzer (Saudi Arabia),
Sun roof SW, Sun roof control unit, Safety SW,
Limit SW

B-2

Seat belt warning light (Saudi Arabia), Cruise
control unit, Fan SW, Turn signal indicator
light, Clock, Glove box illumination light,
Ashtray illumination light, RR defogger SW,
Cigar lighter

Body-RH

B-18

FRT door key SW-LH, FRT door lock actuator &
lock SW-LH, Door lock SW-LH, FRT door lock &
power window SW-LH, Door mirror defogger
(LH), RR wiper intermittent relay, Starter relay,
Mode SW (A/T), Power window relay

B-19

B-26

Mirror control SW, Mirror folding SW, Mirror
defogger SW, RR Door lock actuator-RH, Car
telephone, Shift lock controller, POWER &
WINTER SW, Seat heater, Seat heater SW,
EBCM, RR power window SW-RH

Body-LH

Body harness

Body-center

C-16

4WD SW, VSV;FRT axle, FRT axle SW

3

C-16

FRT fog light

4

C-16

O

2

 Sensor

7

C-16

Side turn signal light (LH)

8

Fender-LH

Engine room

harness

Dimmer·passing SW, Illumination controller,
RR defogger SW, Flasher unit, Cruise main
indicator light, Lighting SW, Headlight wiper
SW, Clock, FRT fog light SW, Variable
intermittent (FRT wiper & washer SW),
Anti-theft controller, Heater & A/C relay, Kick
down SW

C-16

5

Headlight wiper motor

C-16

Clearance light, FRT turn signal light

1

B-28

EBCM, Seat belt SW (Saudi Arabia), Tilt motor
& SW, Recliner motor & SW, Power seat SW

P/S pressure SW

C-16

6
