7A–82

AUTOMATIC TRANSMISSION (AW30-40LE)

3) Make sure of proper operation of shift lock through checks

as follows:
a. Selector lever shall not be moved out of "P" position with

ingition key in "Lock" position.

b. Selector lever can be moved out of "P" position with
ignition key in "ON" position only when brake pedal is
depressed.
c. Ignition key can be turned to "LOCK" position only when
selector lever is in "P" position (key can be pulled out).
If (a) and (c) fail, readjust cable. If (b) fails, readjust
connector wiring and brake pedal switch.

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–83

826RY00005

826RY00006

249RY00011

249RY00012

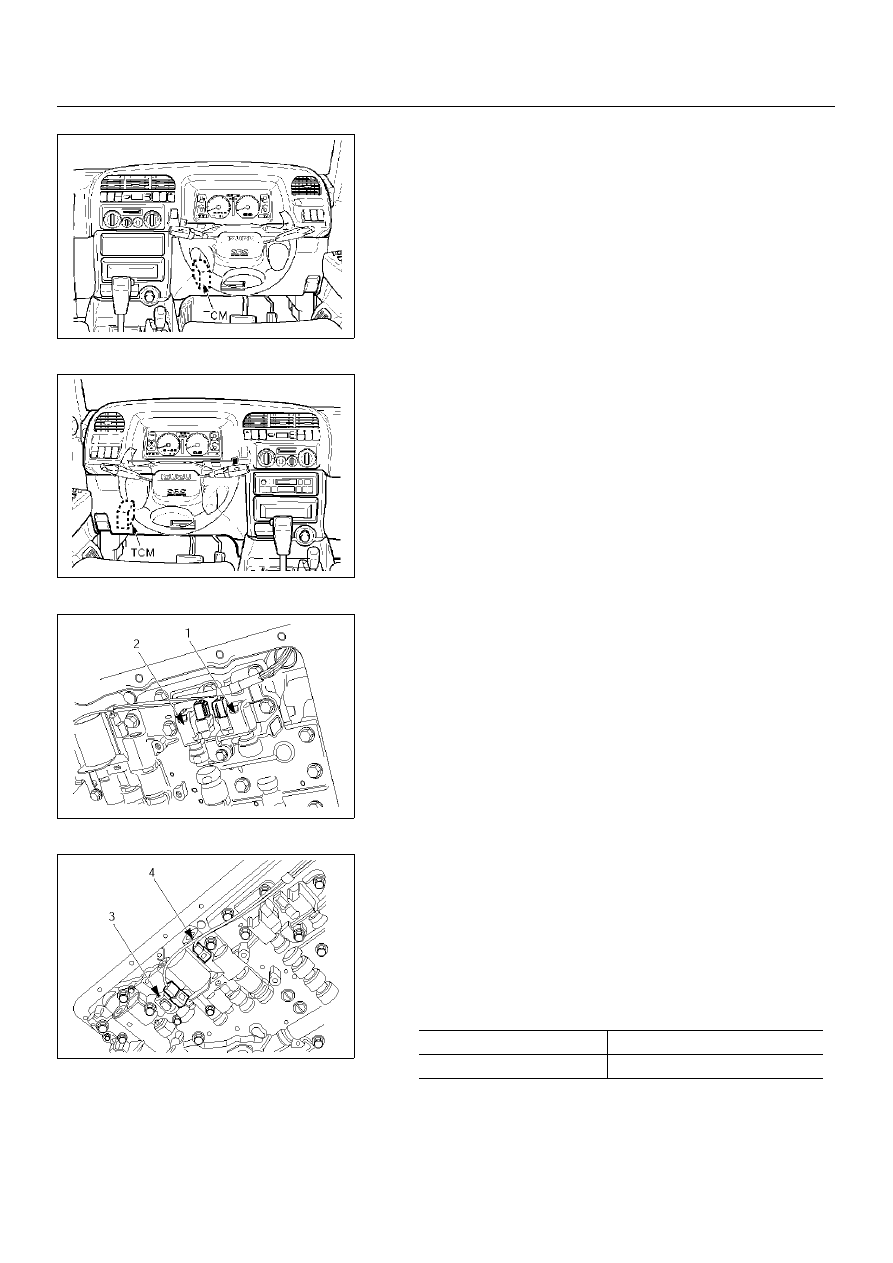

TRANSMISSION CONTROL MODULE
(TCM)

REMOVAL

Preparation:

Disconnect negative (–) battery cable.

1. Disconnect the TCM harness connectors.

2. Remove fixing nuts (3 pieces) and TCM from the bracket.

INSTALLATION

To install, follow the removal steps in reverse order.

SHIFT SOLENOID AND LOCK-UP
SOLENOID

REMOVAL

Preparation:

• Disconnect negative (–) battery cable.

• Remove the rear sound cover.

• Drain the fluid.

Refer to

 "ATF REPLACEMENT" in this section.

1. Remove the nineteen bolts and oil pan.

2. Remove the oil strainer assembly.

3. Disconnect the solenoid wiring connectors from the shift

solenoid S1(1), S2(2) and lock-up solenoid (3).

4. Remove each retaining bolts and solenoids.

INSTALLATION

To install, follow the removal steps in reverse order noting the
following point;

Tprque

N·m (kg·cm/lb·in)

Solenoid S1, S2 bolt

7 (70/61)

Lock-up solenoid bolt

10 (100/87)

7A–84

AUTOMATIC TRANSMISSION (AW30-40LE)

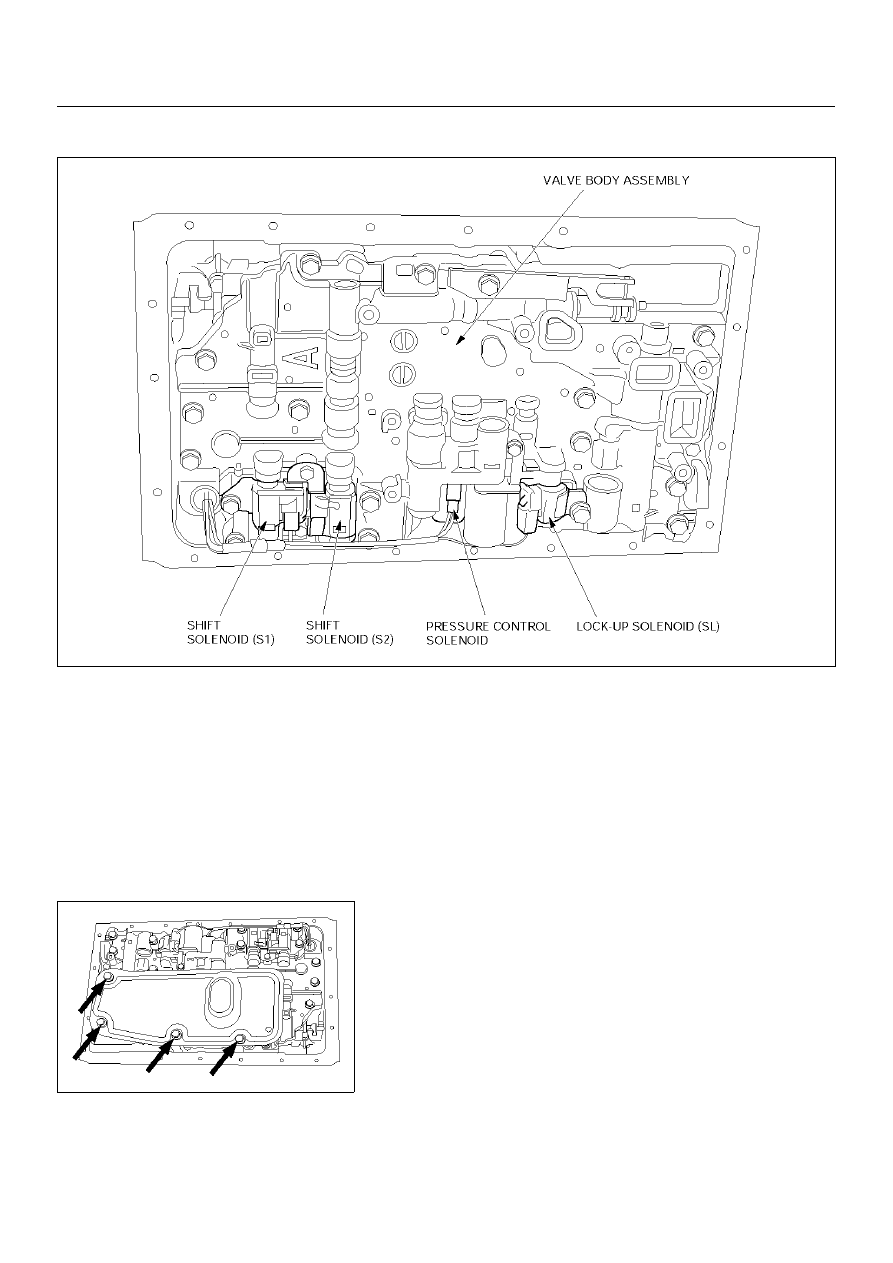

VALVE BODY ASSEMBLY AND PRESSERE CONTOROL SOLENOID

244RY00009

 244RY00003

REMOVAL

Preparation:

• Disconnect negative (–) battery cable.

• Remove the rear sound cover.

• Drain the fluid.

Refer to

 "ATF REPLACEMENT" in this section.

1. Remove the nineteen bolts and oil pan.

2. Remove the oil strainer assembly.

3. Disconnect the soleniod wiring connectors from the

solenoids.

4. Remove the twenty botls from the valve body.

5. Remove the valve body assembly and pressure

control solenoid.

• When removing valve body assembly from the

transmission case, loosen the solenoid clamp bolt
and remove the pressure control solenoid from
the upper valve body assembly.
Also disconnect the harness connector from the
pressure control solenoid.

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–85

244RY00018

244RY00017

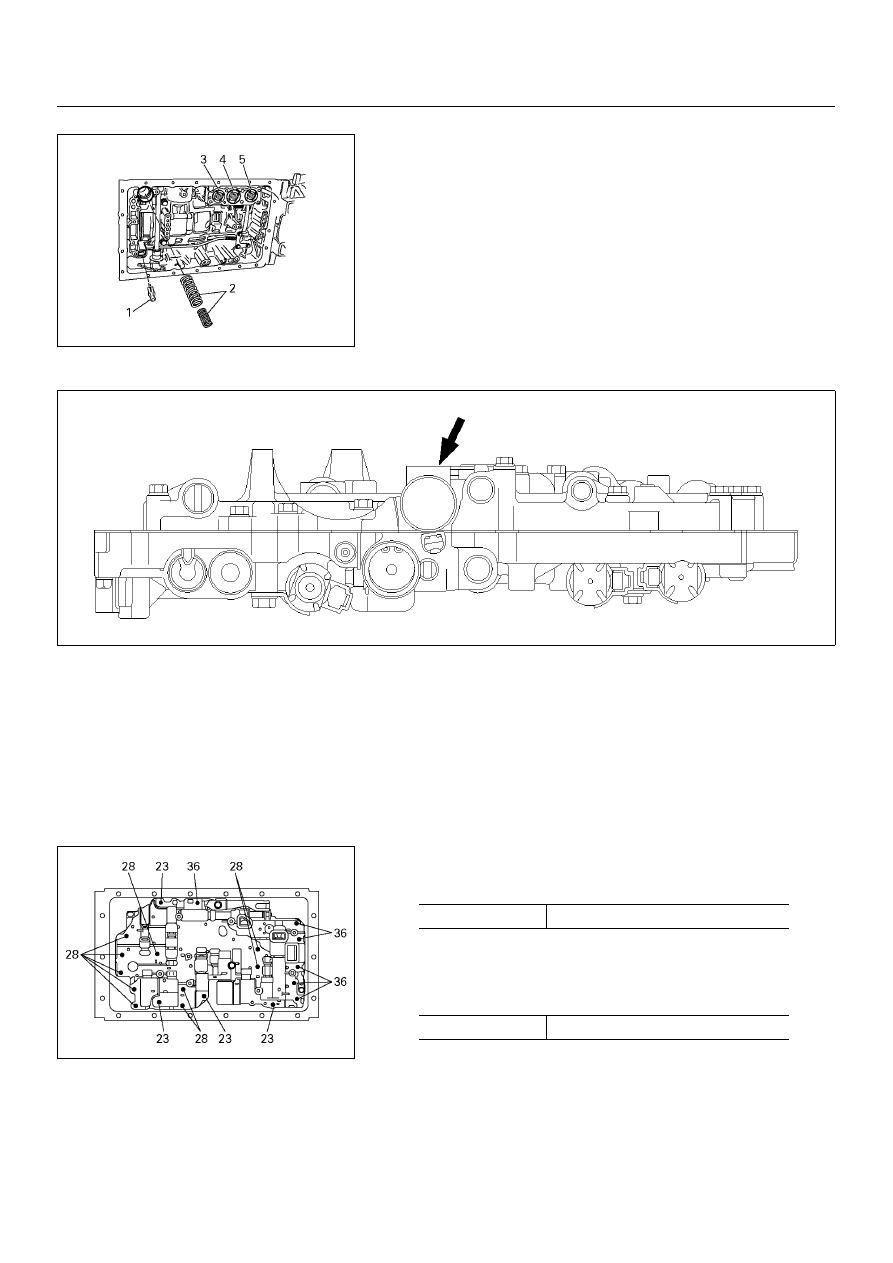

NOTE:

1. 2 or 3 people are reguired removal and installation of the

valve body assembly and pressure control solenoid.

2. The check valve assembly (1) and the C0 accumulator

piston springs (2) will fall from the transmission case during
removal of valve body assembly.
Protect these parts from damage.
The B0 (3), C2 (4), and B2 (5) accumulator piston and
springs may also fall free and must be protected.

244RY00006

INSTALLATION

To install, follow the removal steps in reverse order, noting the
following points;

1. Reinstall the parts removed with the valve body assembly

to their assigned positions in the transmission case (check
valve assembly, C0 accumulator pistons, etc). Install the
valve body assembly to the transmission case.
Refer to

“REASSEMBLY OF MAJOR COMPONENTS (2).”

2. Solenoid clamp bolt

3. Valve body fixing bots

Each bolt location and length(mm) is indicated in the figure.

N·m(kg·cm / lb·in)

Torque

7 (70/61)

N·m(kg·cm / lb·in)

Torque

10 (100/87)
