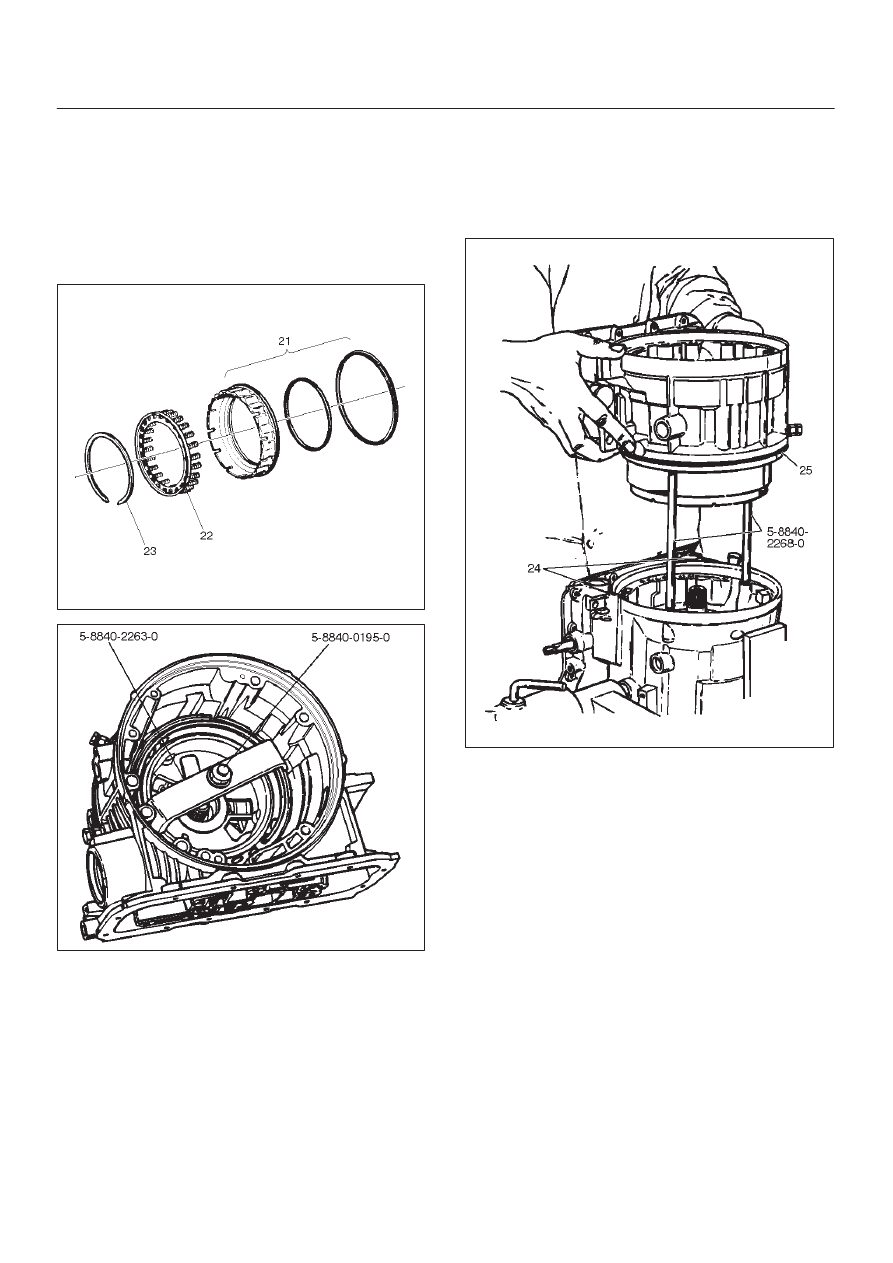

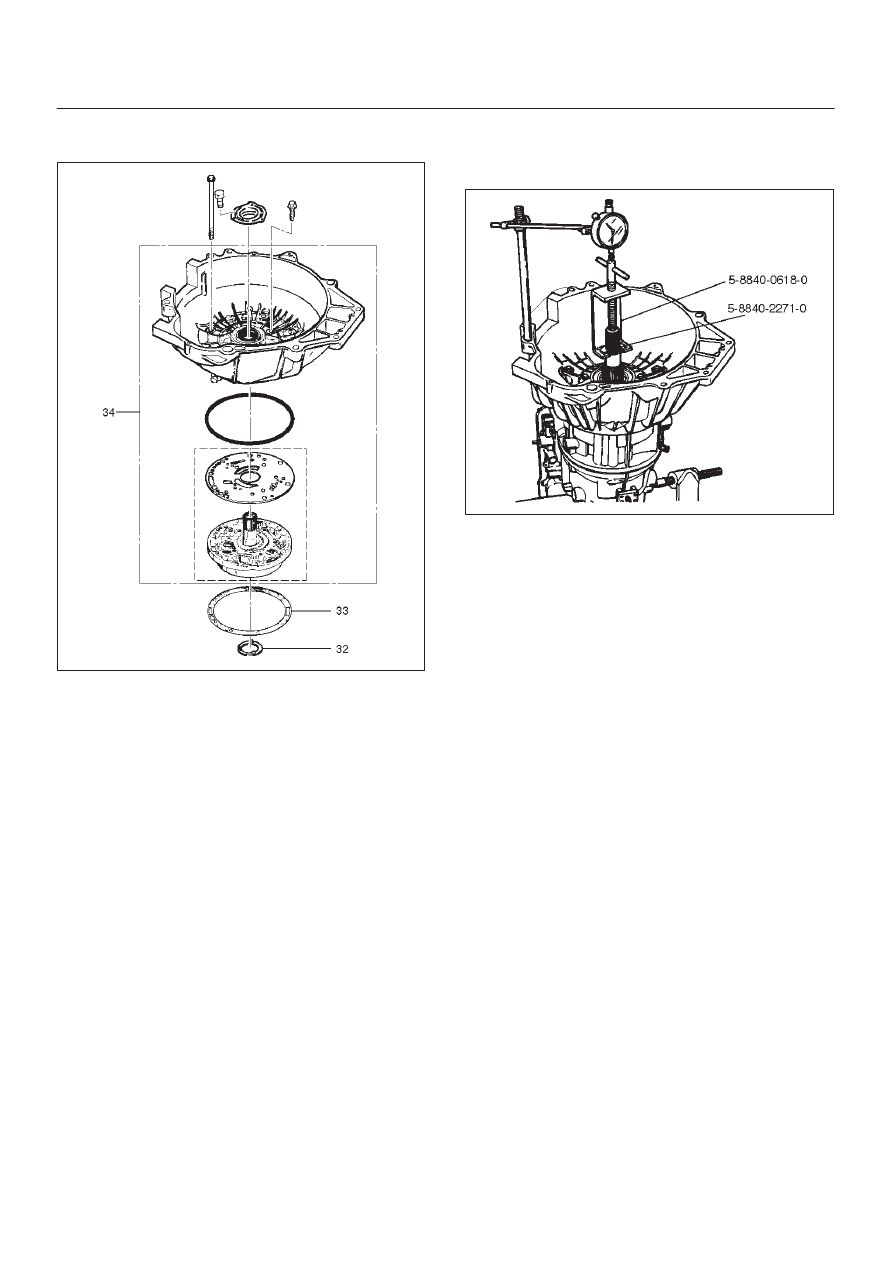

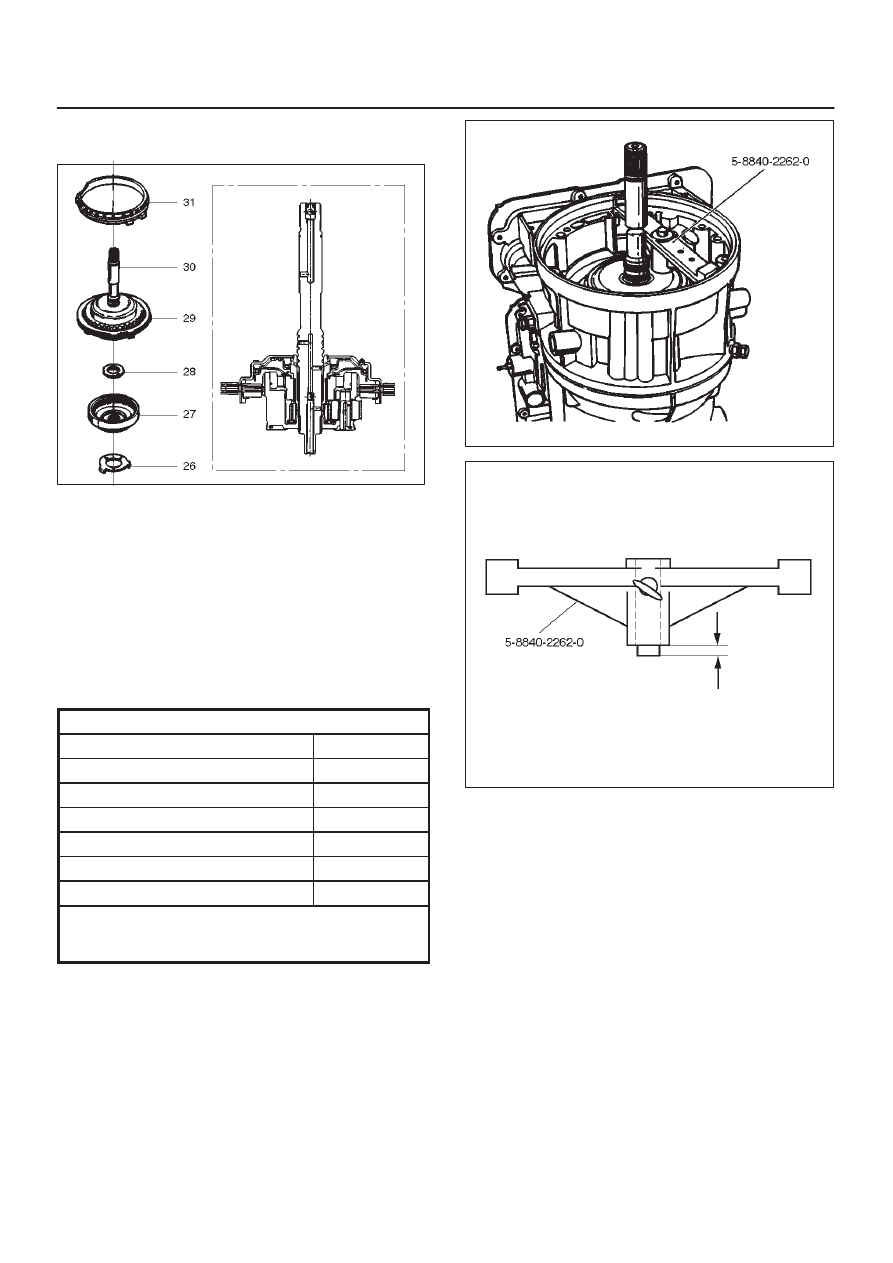

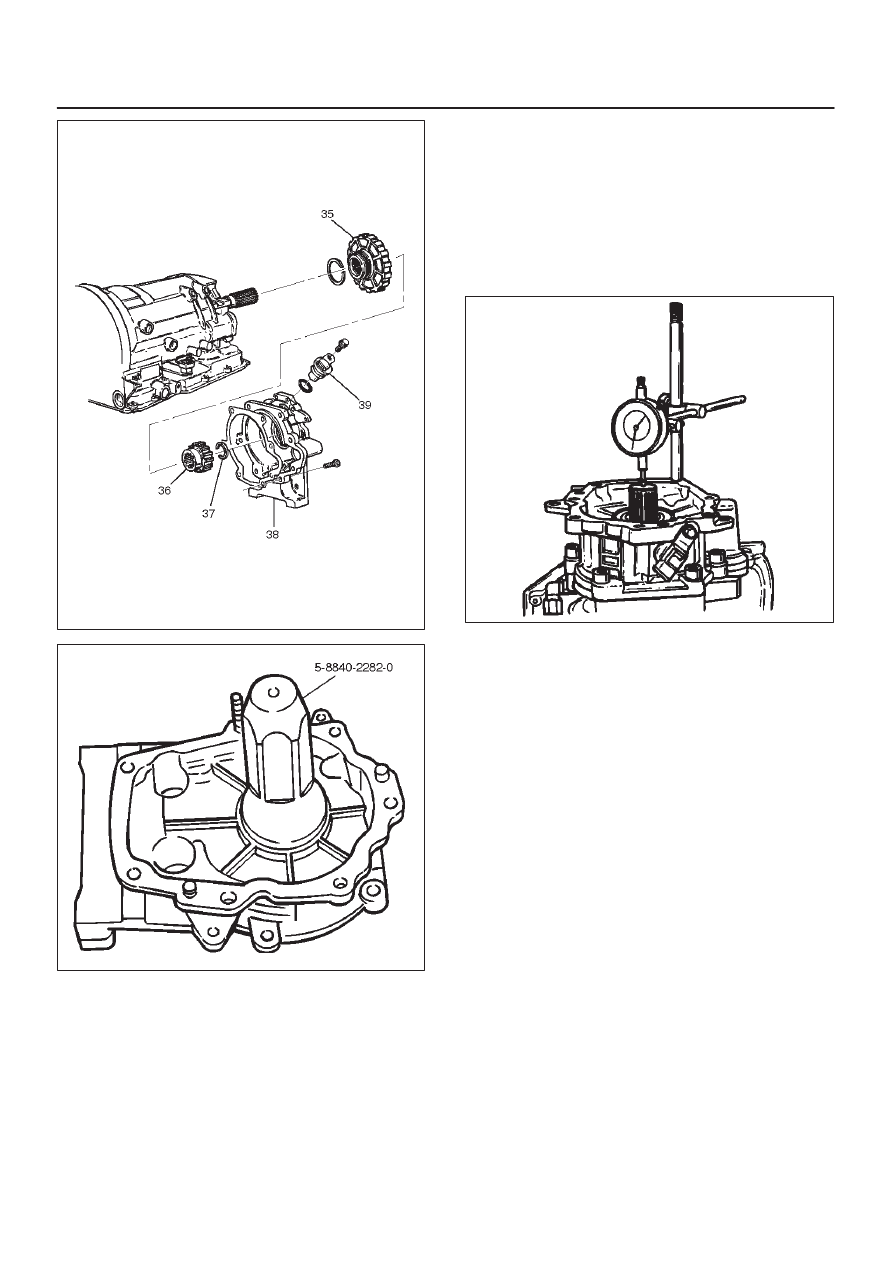

7A–54 AUTOMATIC TRANSMISSION (4L30–E) 24. Install retainer and spring assembly (22) into fourth clutch piston (21). 25. Install snap ring (23) in adapter case. D Install 5–8840–0195–0 (J–23327) and D Seat snap ring in groove. D Remove compressor. 252RW002 252RW007 26. Install selective washer using petroleum jelly. case/main case seal ring (25). 28. Install 5–8840–2268–0 (J–38588) guide pins. D Install adapter case and center support assembly to 242RW007 29. Install thrust washer (26) into adapter case, with tangs pointing downwards. 30. Preassemble overdrive internal gear (27) and thrust bearing assembly (28) onto the turbine shaft and NOTE: Install bearing assembly, black side up. Use 31. Install overdrive carrier (30) and internal gear assembly into adapter case. 32. Install fourth clutch plates (29) in the following order: Steel, Lined, Steel, Steel, Lined, Steel. Steel plates |
