DRIVE LINE CONTROL SYSTEM (TOD)

4B2–16

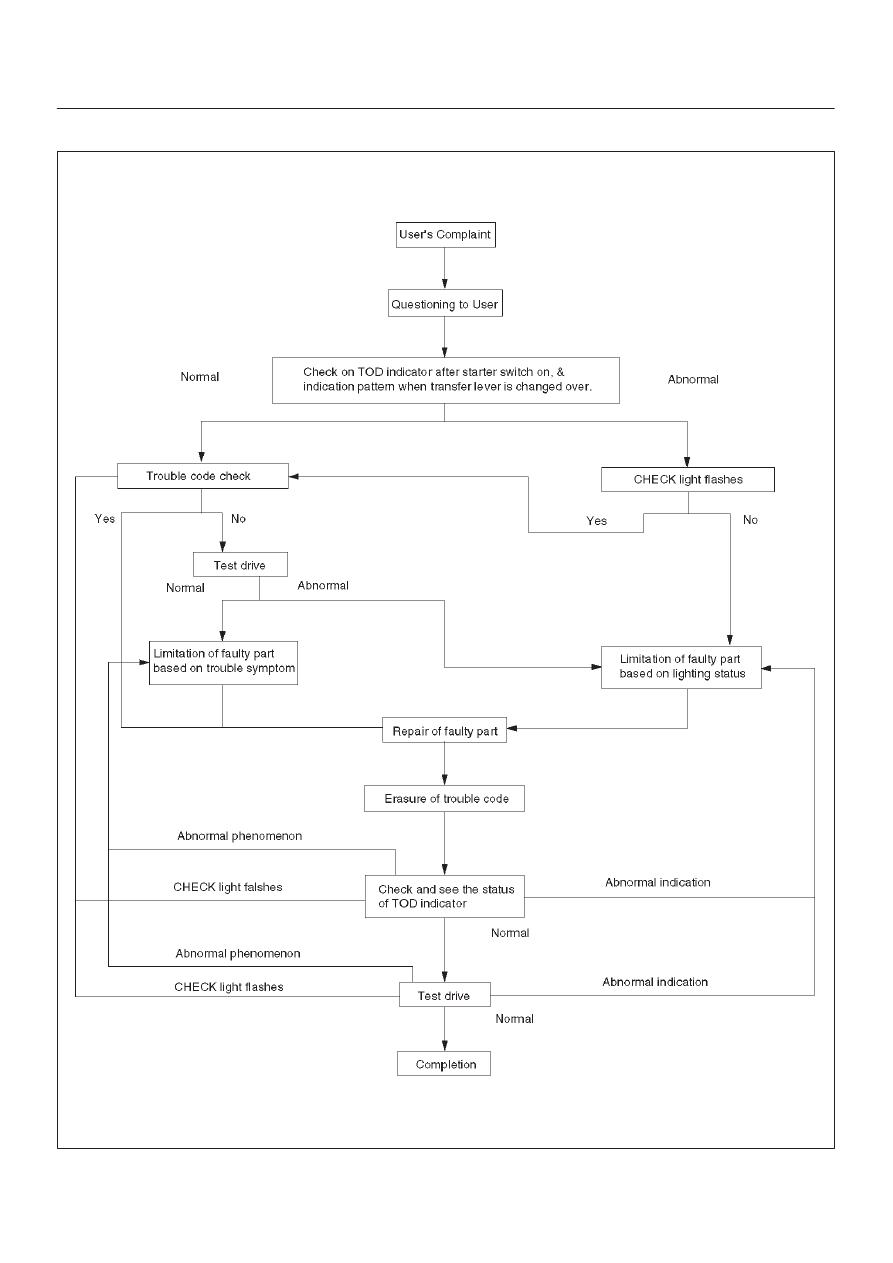

Basic Diagnostic Flow Chart

C07RW023

4B2–17

DRIVE LINE CONTROL SYSTEM (TOD)

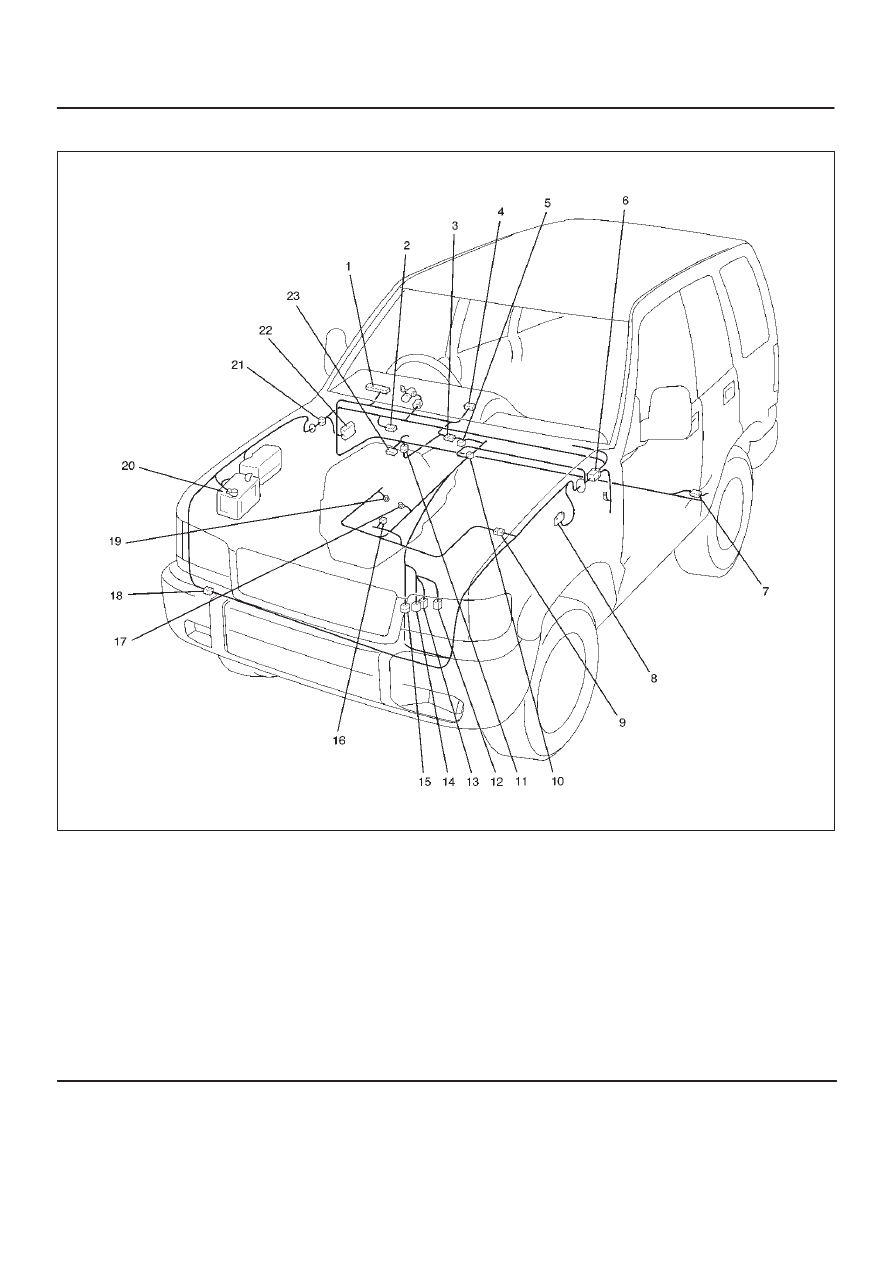

Parts Location

D08RW621

Legend

(1) I–9
(2) B–13 or B–14
(3) H–12
(4) I–12
(5) A–3
(6) H–7, H–8
(7) H–32
(8) C–16
(9) H–5, H–6

(10) C–63

(11) H–49

(12) M–22
(13) M–23
(14) M–24
(15) H–10
(16) E–5
(17) E–29
(18) H–42
(19) E–30
(20) Battery
(21) H–13, H–15, H–26
(22) Fuse Box
(23) B–67, B–68

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–18

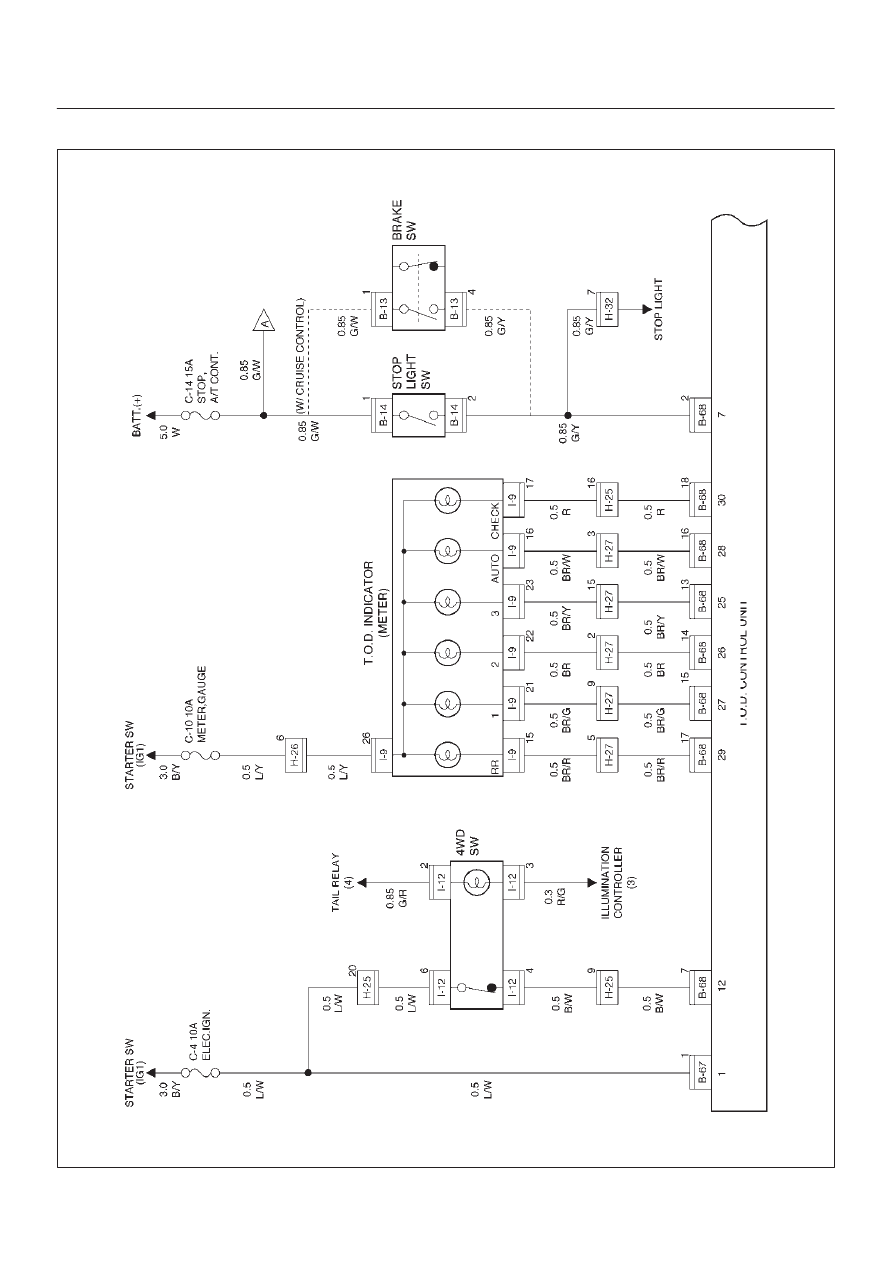

Circuit Diagram

D04RW052

4B2–19

DRIVE LINE CONTROL SYSTEM (TOD)

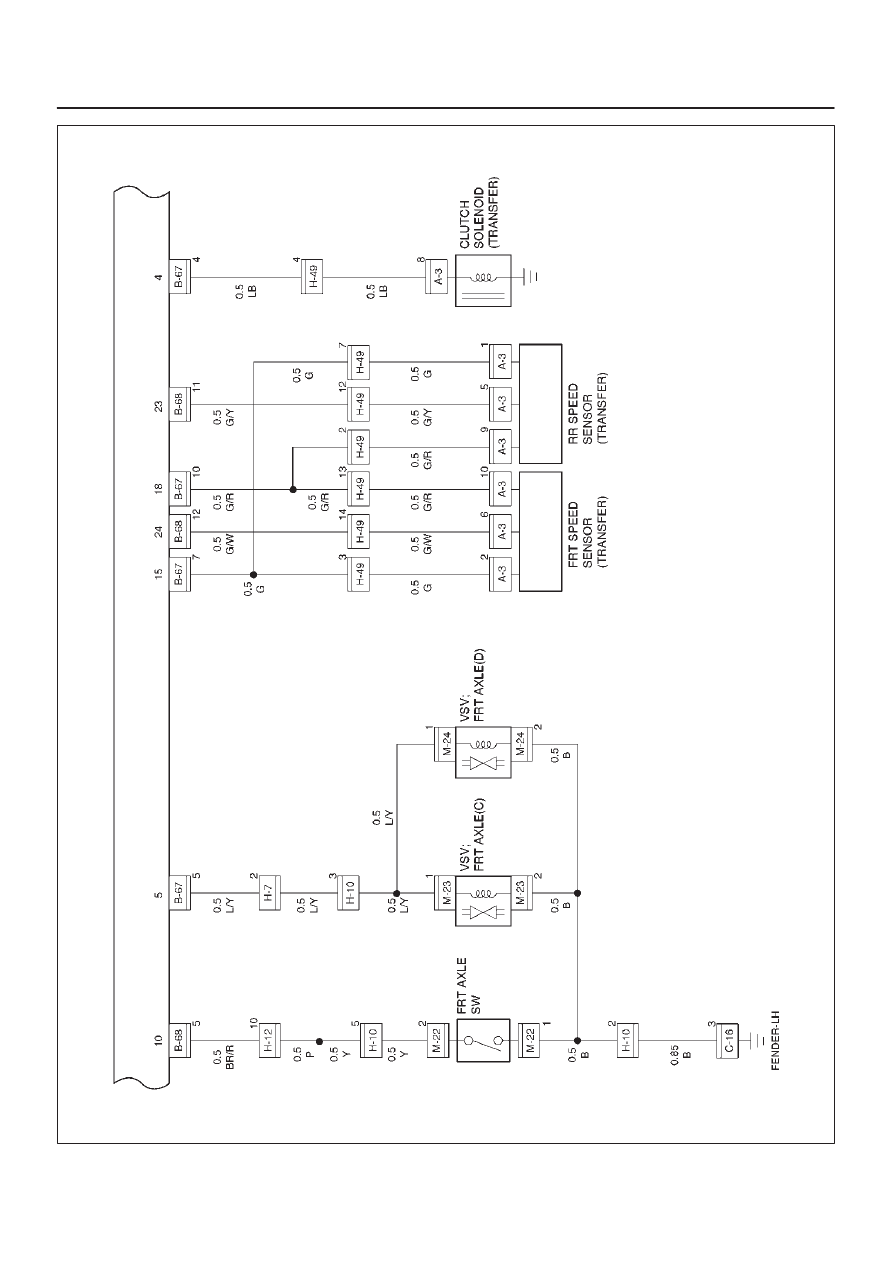

D04RW053
