Opel Frontera UBS. Manual - part 1406





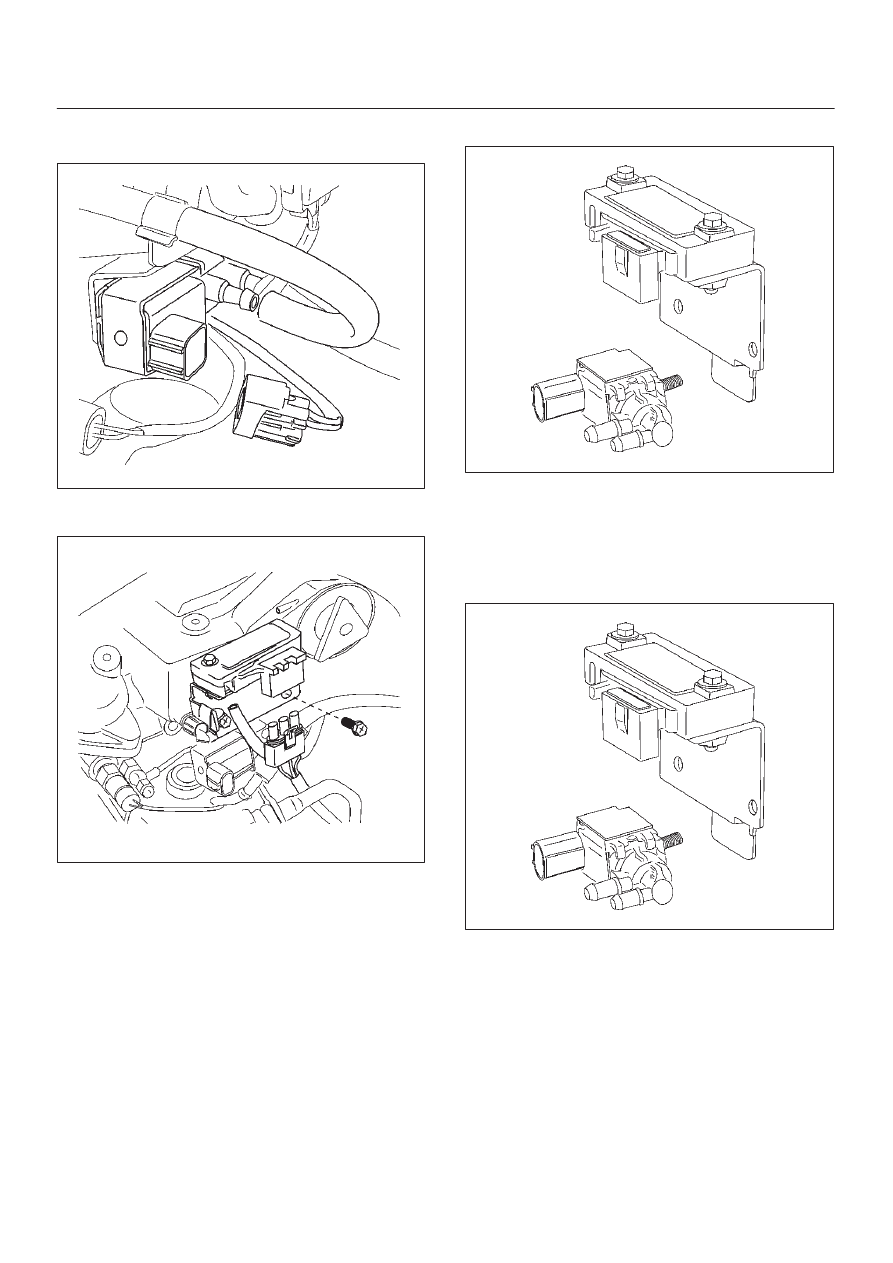

6E–218

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

2. Disconnect the EGR VSV connector and vacuum

hose from the EGR VSV.

035RW063

3. Remove the MAP sensor assembly and EGR VSV.

035RW067

4. Remove the EGR VSV from the MAP sensor bracket.

035RW062

Installation Procedure

1. Install the EGR VSV and tighten nut to specified

torque.

Torque: 8 N·m (69 lb in)

035RW062

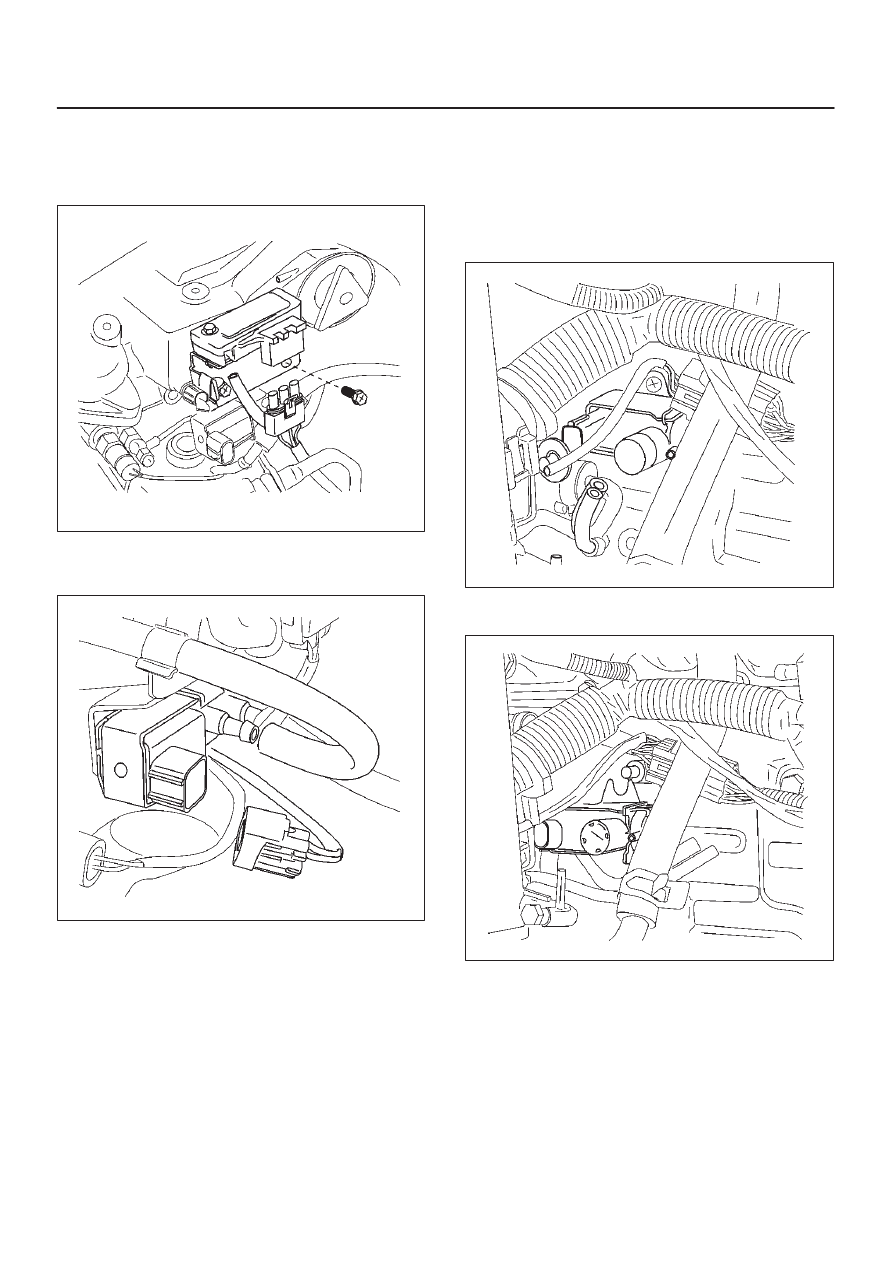

6E–219

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

2. Install the MAP sensor assembly and EGR VSV and

tighten MAP sensor bracket fixing bolts specified
torque.

Torque: 9 N·m (78 lb in)

035RW067

3. Connect the EGR VSV connector and vacuum hose

in the EGR VSV.

035RW063

4. Connect the negative battery cable.

Electronic Vacuum Regurating

Valve (EVRV)

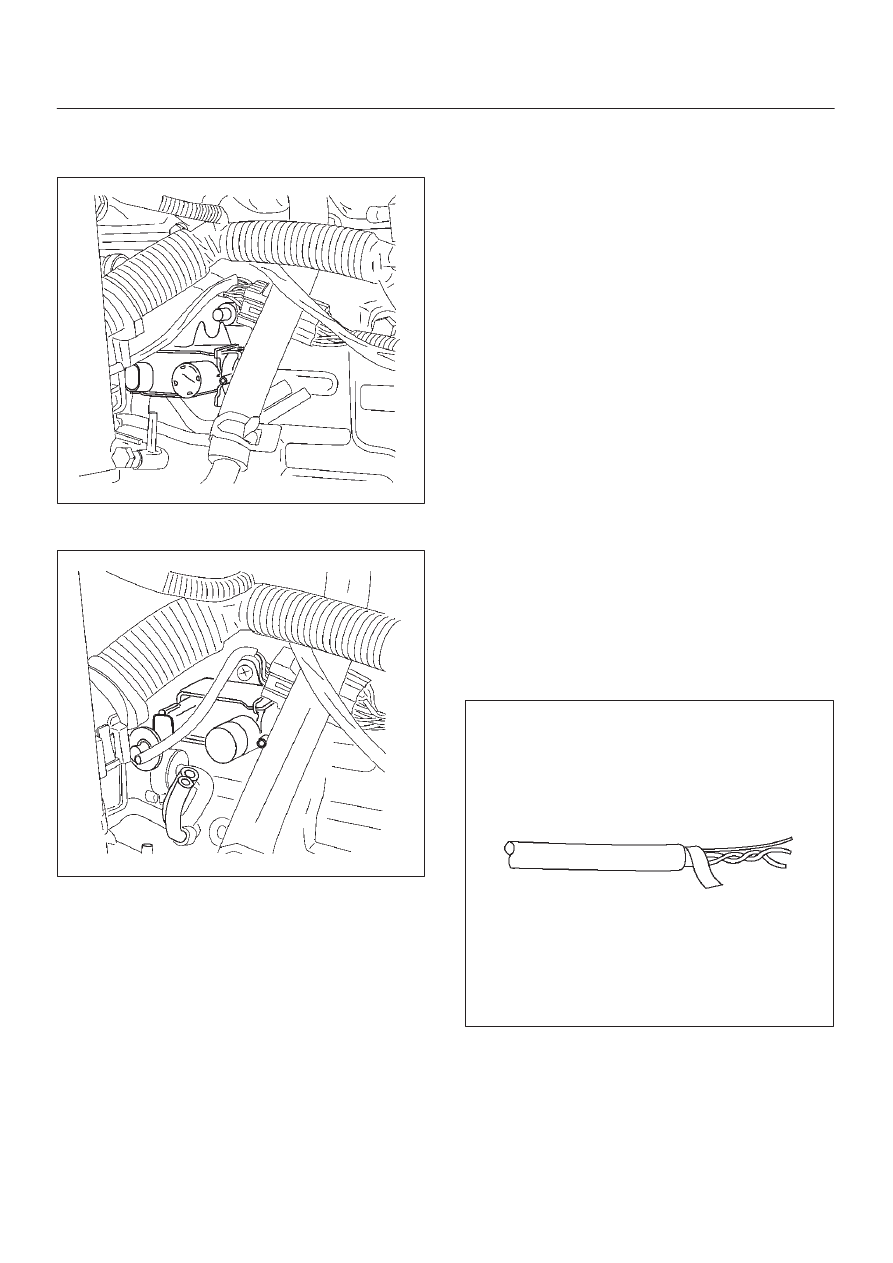

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect the EVRV hose and the EVRV connector.

035RW065

3. Remove the EVRV.

035RW064

6E–220

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

Installation Procedure

1. Install the EVRV.

035RW064

2. Connect the EVRV hose and the EVRV connector.

035RW065

3. Connect the negative battery cable.

Wiring and Connectors

Wiring Harness Service

The ECM harness electrically connects the ECM to the
various solenoids, switches and sensors in the vehicle
engine compartment and passenger compartment.
Replace wire harnesses with the proper part number
replacement.
Because of the low amperage and voltage levels utilized
in powertrain control systems, it is essential that all wiring
in environmentally exposed areas be repaired with crimp
and seal splice sleeves.

The following wire harness repair information is intended
as a general guideline only.  Refer to

Chassis Electrical for

all wire harness repair procedures.

Connectors and Terminals

Use care when probing a connector and when replacing
terminals.  It is possible to short between opposite
terminals.  Damage to components could result.  Always
use jumper wires between connectors for circuit
checking.  NEVER probe through Weather-Pack seals.
Use an appropriate connector test adapter kit which
contains an assortment of flexible connectors used to
probe terminals during diagnosis.  Use an appropriate
fuse remover and test tool for removing a fuse and to
adapt the fuse holder to a meter for diagnosis.
Open circuits are often difficult to locate by sight because
oxidation or terminal misalignment are hidden by the
connectors.  Merely wiggling a connector on a sensor, or
in the wiring harness, may temporarily correct the open
circuit.  Intermittent problems may also be caused by
oxidized or loose connections.
Be certain of the type of connector/terminal before
making any connector or terminal repair.  Weather-Pack
and Com-Pack III terminals look similar, but are serviced
differently.

Wire Harness Repair: Twisted

Shielded Cable

Removal Procedure

1. Remove the outer jacket.
2. Unwrap the aluminum/mylar tape.  Do not remove the

mylar.

047

6E–221

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

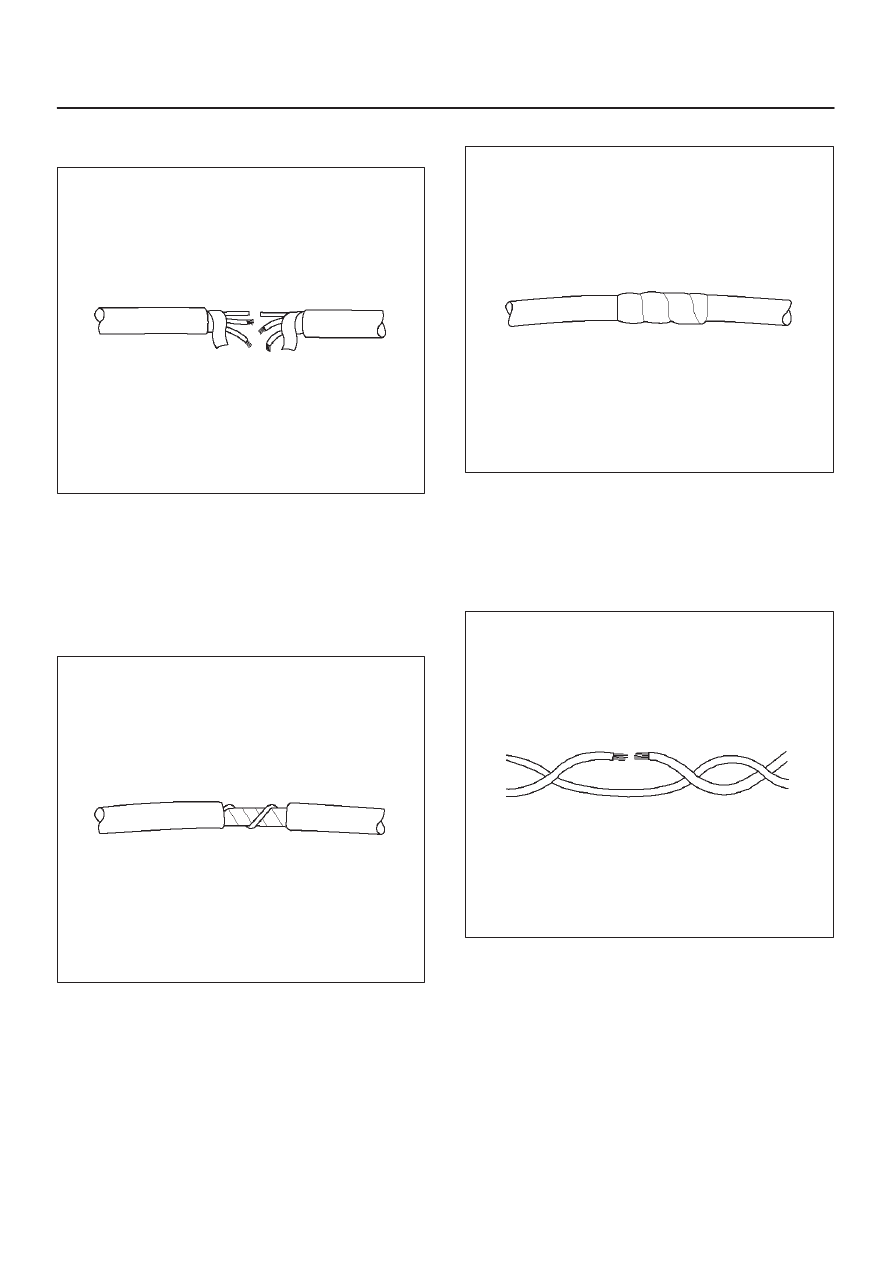

3. Untwist the conductors.
4. Strip the insulation as necessary.

048

Installation Procedure

1. Splice the wires using splice clips and rosin core

solder.

2. Wrap each splice to insulate.
3. Wrap the splice with mylar and with the drain

(uninsulated) wire.

049

4. Tape over the whole bundle to secure.

050

Twisted Leads

Removal Procedure

1. Locate the damaged wire.
2. Remove the insulation as required.

051
