Opel Frontera UBS. Manual - part 1356





6E–18

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

ECM Pinout Table, 5-Way Connector – J3

060RW139

J3

PIN

SIGNAL

1

IGNITION

2

IGNITION

3

PWR GND

4

PWR GND

5

INJECTOR H1

6E–19

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

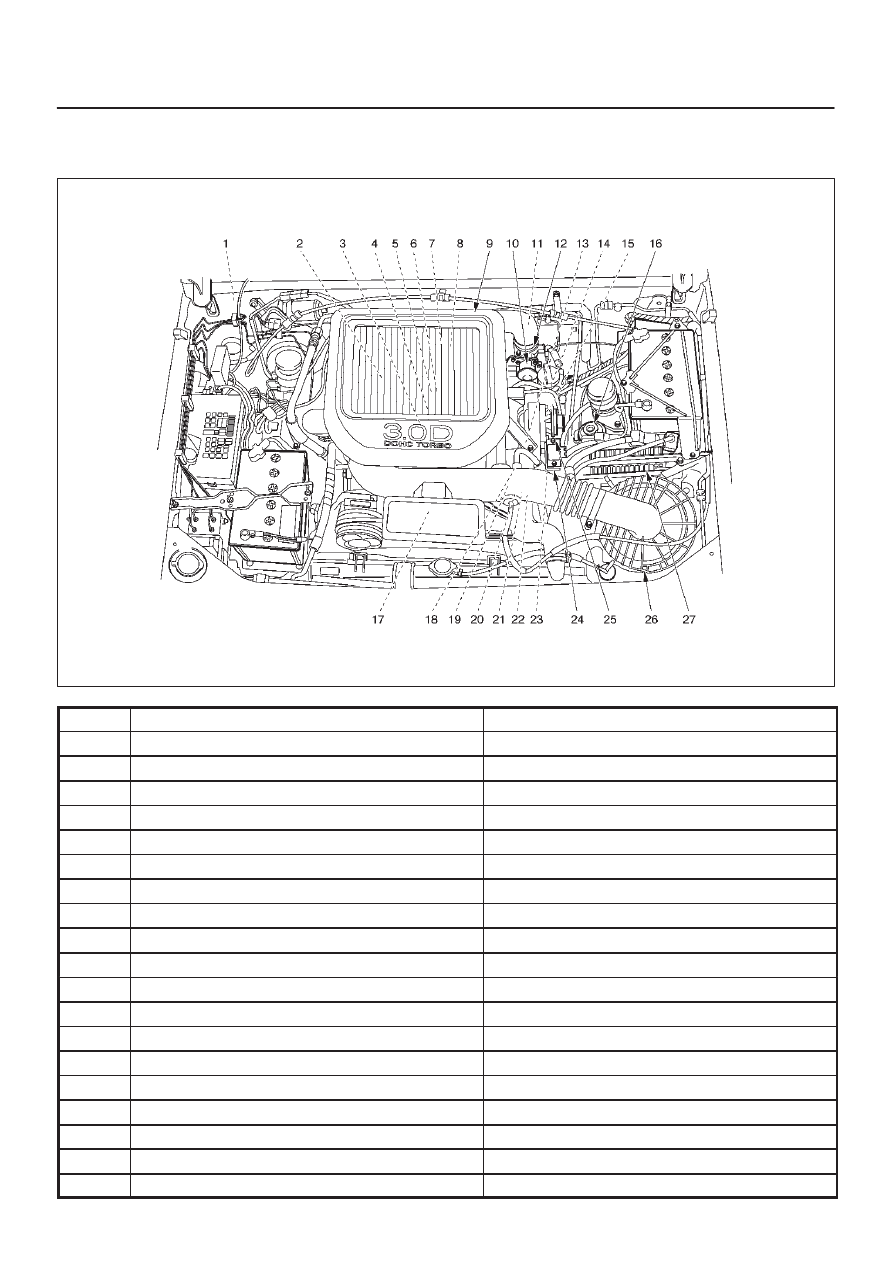

Component Locator

Engine Component Locator Table

F06RW051

Number

Name

Location

1

AP (Accelerator Pedal Position) Sensor

AP Bracket

2

CKP (Crankshaft Position) Sensor

Inside the right front flywheel Housing

3

Oil Rail

Mounted on the camshaft carrier

4

Oil (Rail) Pressure Sensor

Mounted on the Oil Rail

5

OT (Oil Temperature) Sensor

Mounted on the Oil Rail

6

Fuel Injector

In the Cylinder Head Cover

7

Fuel Return Orifice

Inside the Cylinder Head

8

FT (Fuel Temperature) Sensor

Fuel Return Adaptor

9

Intercooler

On the Cylinder Head Cover

10

Intake Throttle Motor

Behind the Intake Manifold

11

Intake Throttle

Behind the Intake Manifold

12

2 Way Check Valve

Below the Intake Manifold

13

VSV (Vacuum Switching Valve)

At the left Cylinder Body

14

EGR Pressure Sensor

Below the Intake Manifold

15

Fuel Filter

At the left Engine Room

16

CMP (Camshaft Position) Sensor

On the forward of Timing Gear Case

17

IAT (Intake Air Temperature) Sensor

Below the Intake Manifold

18

ECT (Engine Coolant Temperature)

Thermostat Housing

19

High Pressure Oil Pump

On the back Timing Gear Case

6E–20

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

Number

Name

Location

20

Rail Pressure Control Valve

In the High Pressure Oil Pump

21

Fuel Pump

In the High Pressure Oil Pump

22

EVRV

On the Intake Manifold

23

MAP (Manifold Absolute Pressure) Sensor

On the Intake Manifold

24

EGR Valve

On the Intake Manifold

25

Air Cleaner

At the left Engine Room

26

ECM

Behind the Air Cleaner

6E–21

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

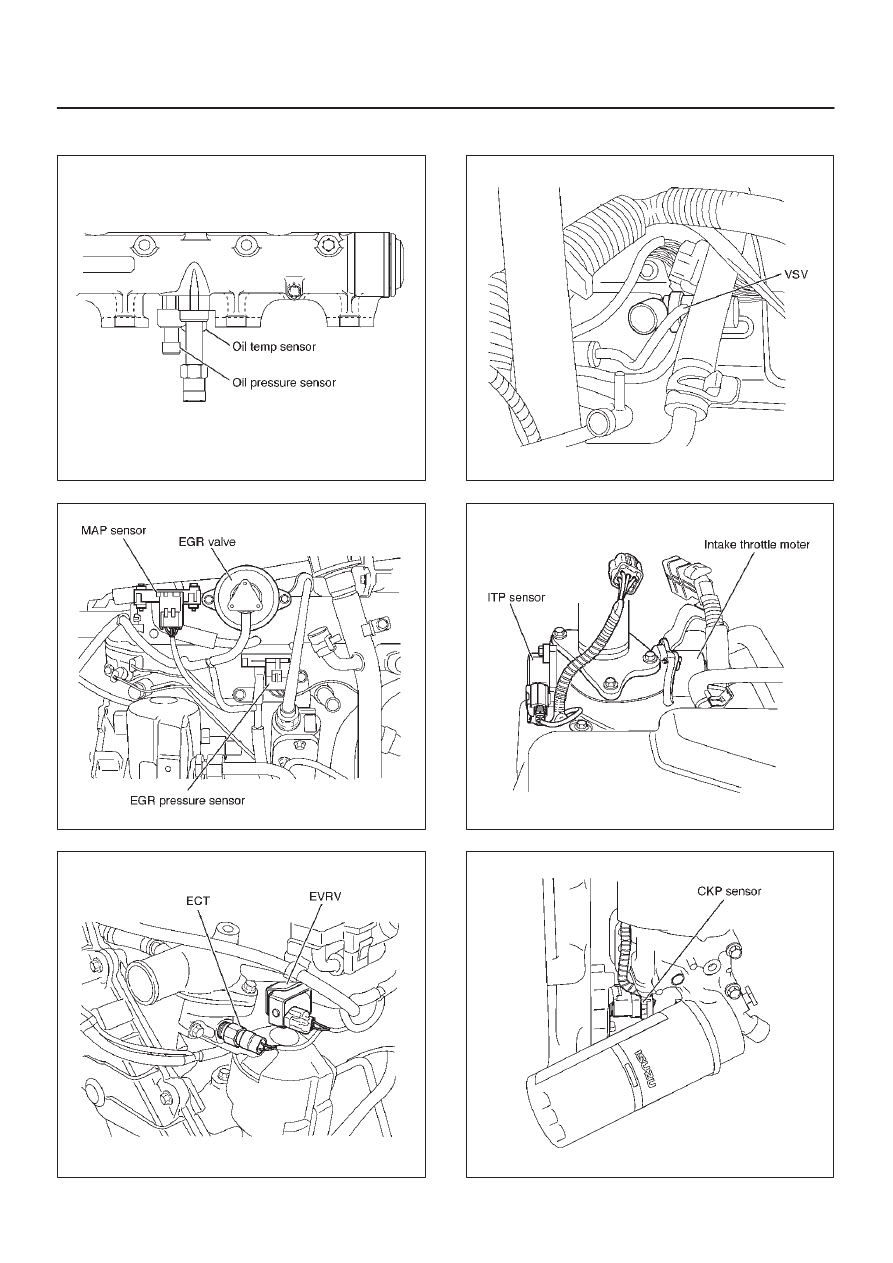

Sensors and Miscellaneous Component Locators

035RW115

035RW117

060RW179

035RW118

035RW119

035RW120
