Opel Frontera UBS. Manual - part 1347





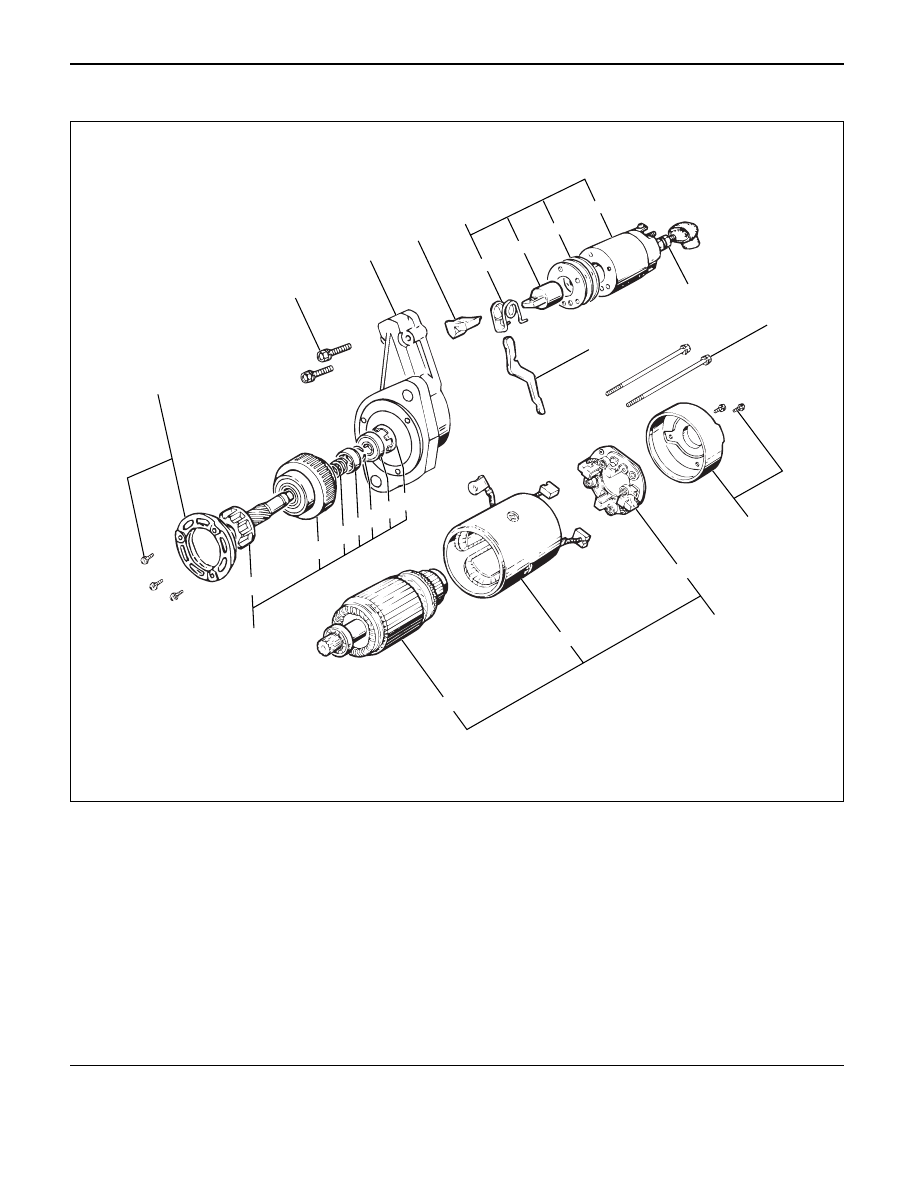

6D – 8 ENGINE ELECTRICAL

UNIT REPAIR

8

24

1

3

23

25

2

14

15

21

22

20

19

18

17

16

10

9

11

13

12

7

6

5

4

Legend

(1)

Terminal

(2)

Bolt

(3)

Magnetic Switch

(4)

Torsion Spring

(5)

Plunger

(6)

Shim

(7)

Magnetic Switch

(8)

Through Bolt

(9)

Rear Cover

(10)

Motor Assembly

(11)

Brush Holder

(12)

Armature

(13)

Yoke Assembly

(14)

Bearing Retainer

(15)

Pinion Assembly

(16)

Bearing Holder

(17)

Bearing

(18)

Clip

(19)

Stopper

(20)

Spring

(21)

Pinion Shaft

(22)

Clutch

(23)

Dust Cover

(24)

Shift Lever

(25)

Gear Case

065RW040

ENGINE ELECTRICAL 6D – 9

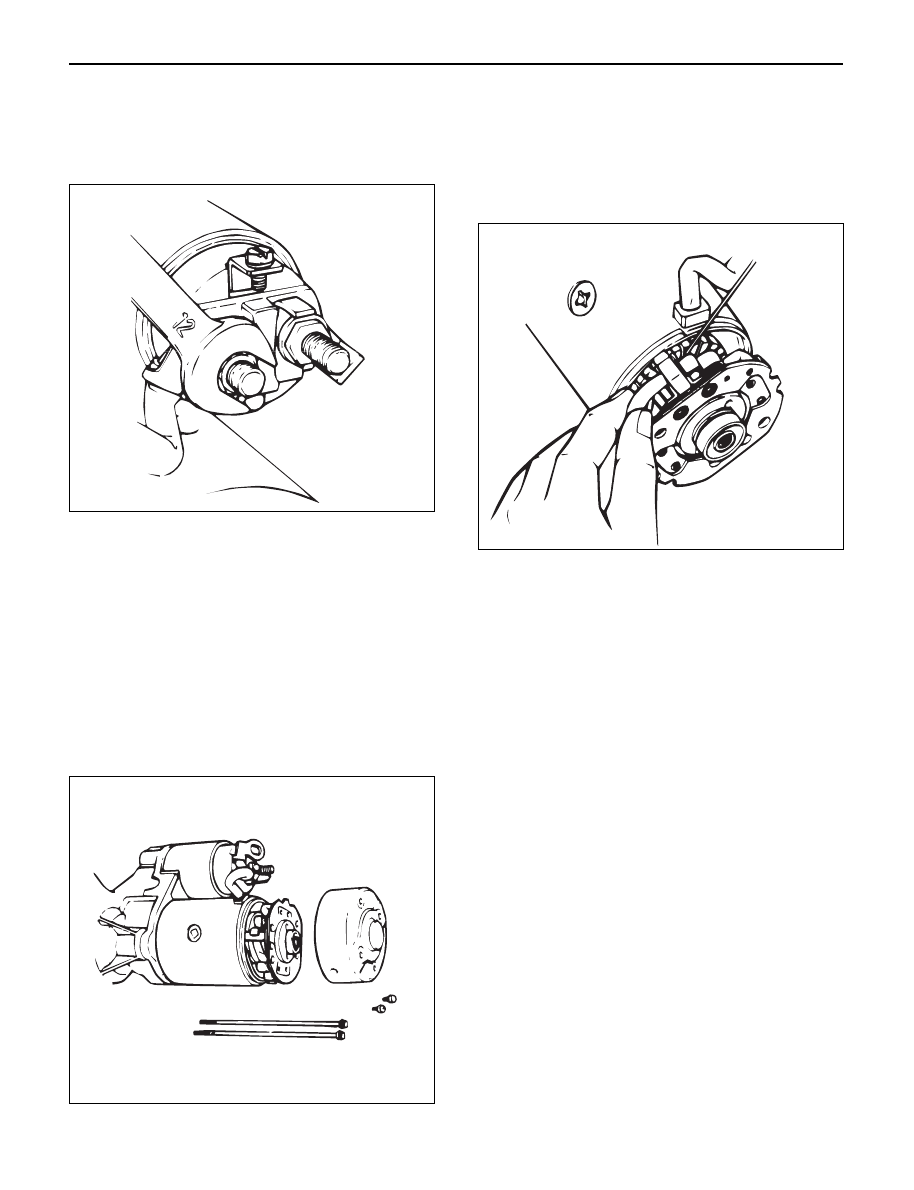

DISASSEMBLY

1. Terminal Nut

1) Loosen the nut on terminal “M” of magnetic

switch and disconnect the connector cable.

2. Bolt (2 pcs)
3. Magnetic Switch Assembly
4. Torsion Spring

1) Remove torsion spring from magnetic switch

assembly.

5. Plunger
6. Shim
7. Magnetic Switch
8. Through Bolt
9. Rear Cover

1) Remove the through bolts, then remove the rear

cover.

10. Motor Assembly
11. Brush Holder

1) Raise a brush spring to detach the negative side

of the brushes (2 pcs) from the commutator face
and remove the positive side of brushes (2 pcs)
from the positive side of brushes (2 pcs) from
the brush holder.

12. Armature
13. Yoke Assembly
14. Bearing Retainer
15. Pinion Assembly
16. Bearing Holder
17. Bearing
18. Pinion Stopper Clip

1) Remove the stopper clip using a screw driver of

equivalent size.

19. Pinion Stopper
20. Return Spring
21. Pinion Shaft
22. Clutch
23. Dust Cover
24. Shift Lever
25. Gear Case

065RW044

065RW043

065RW042

6D – 10 ENGINE ELECTRICAL

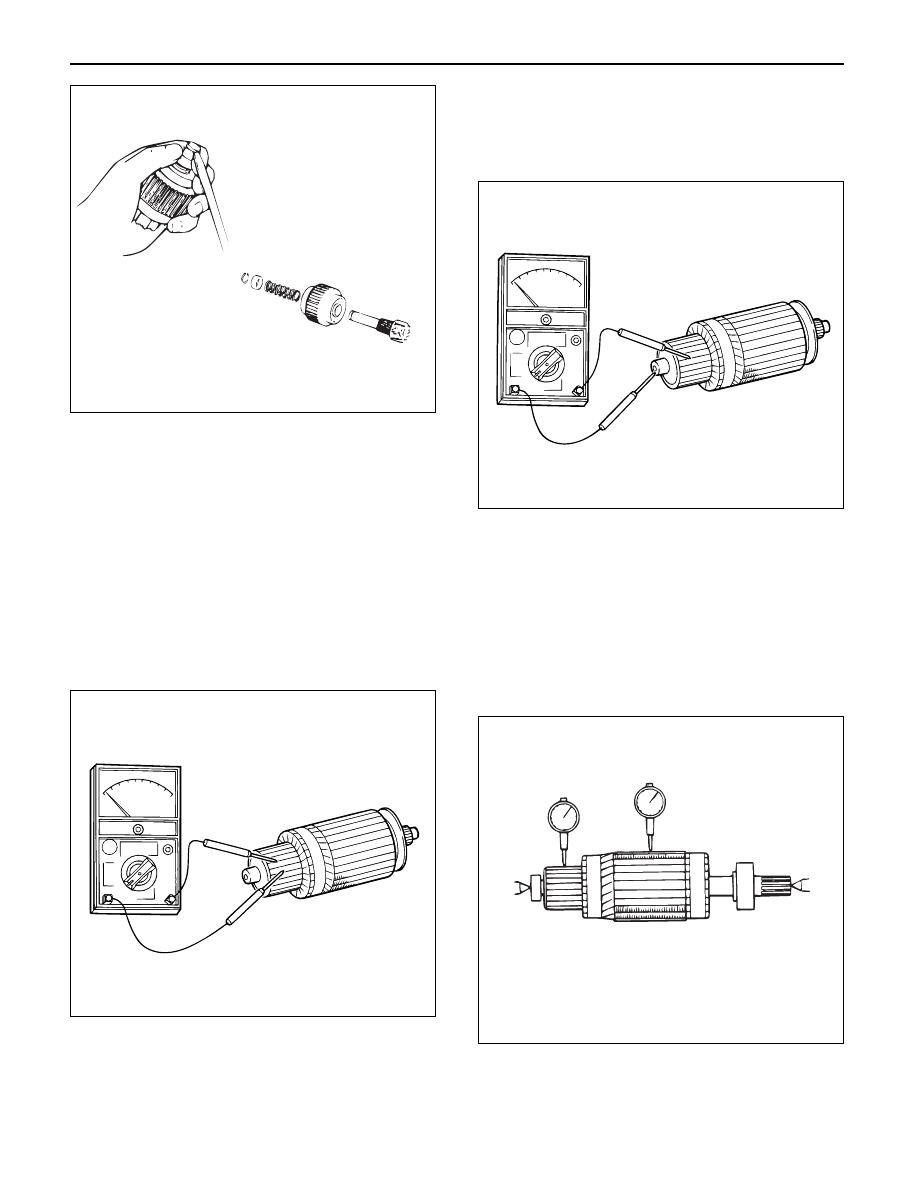

INSPECTION AND REPAIR

Repair or replace necessary parts if extreme wear or
damage is found during inspection.

Armature

1) Measure the outer diameter of commutator, and

replace with a new one if it is out of the limit.

Standard: 38.0 mm (1.50 in)
Limit: 36.5 mm (1.44 in)

2) Check for continuity between commutator and

segments. Replace commutator if there is no
continuity (i.e., disconnected).

3) Check for continuity between commutator and

shaft. Also, check for continuity between
commutator and armature core, armature core and
shaft. Replace commutator if there is continuity
(i.e., internally grounded).

4) Measure runout of armature core and commutator

with a dial gage. Repair or replace, if it exceeds the
limit.

Armature

Standard: 0.05 mm (0.002 in) Max.
Limit: 0.1 mm (0.004 in)

Commutator

Standard: 0.05 mm (0.002 in) Max.
Limit: 0.1 mm (0.004 in)

065RW041

065RS015

065RS016

045RW045

ENGINE ELECTRICAL 6D – 11

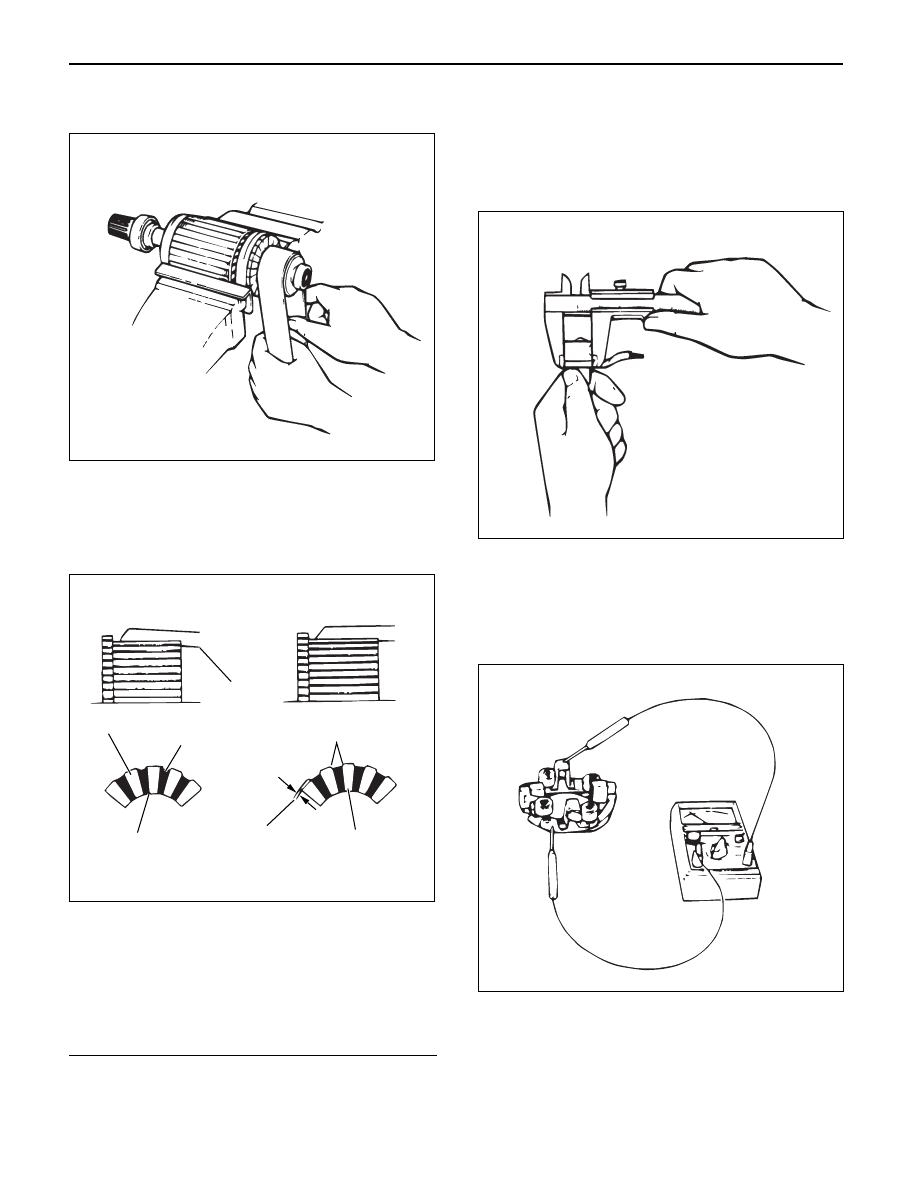

5) Polish the commutator surface with sand paper

#500 to #600 if it is rough.

6) Measure the depth of insulator in commutator.

Repair, if it is below the limit.

Standard: 0.5 – 0.8 mm (0.02 – 0.03 in)

Limit: 0.2 mm (0.008 in)

Legend

(1) Steel Saw
(2) Chamfer
(3) Correct Condition
(4) Depth of Insulator
(5) Incorrect Condition
(6) Insulator
(7) Commutator Segment

Brush

1) Measure the length of brush.

Replace with a new one, if it is below the limit.

Standard: 18.0 mm (0.71 in)

Limit: 11.0 mm (0.43 in)

Brush holder

1) Check for continuity between brush holder (+) and

base (–). Replace, if there is continuity (i.e.,
insulation is broken).

065RW105

1

6

5

3

4

2

7

065RW102

065RW103

065RW104
