6C – 2 ENGINE FUEL

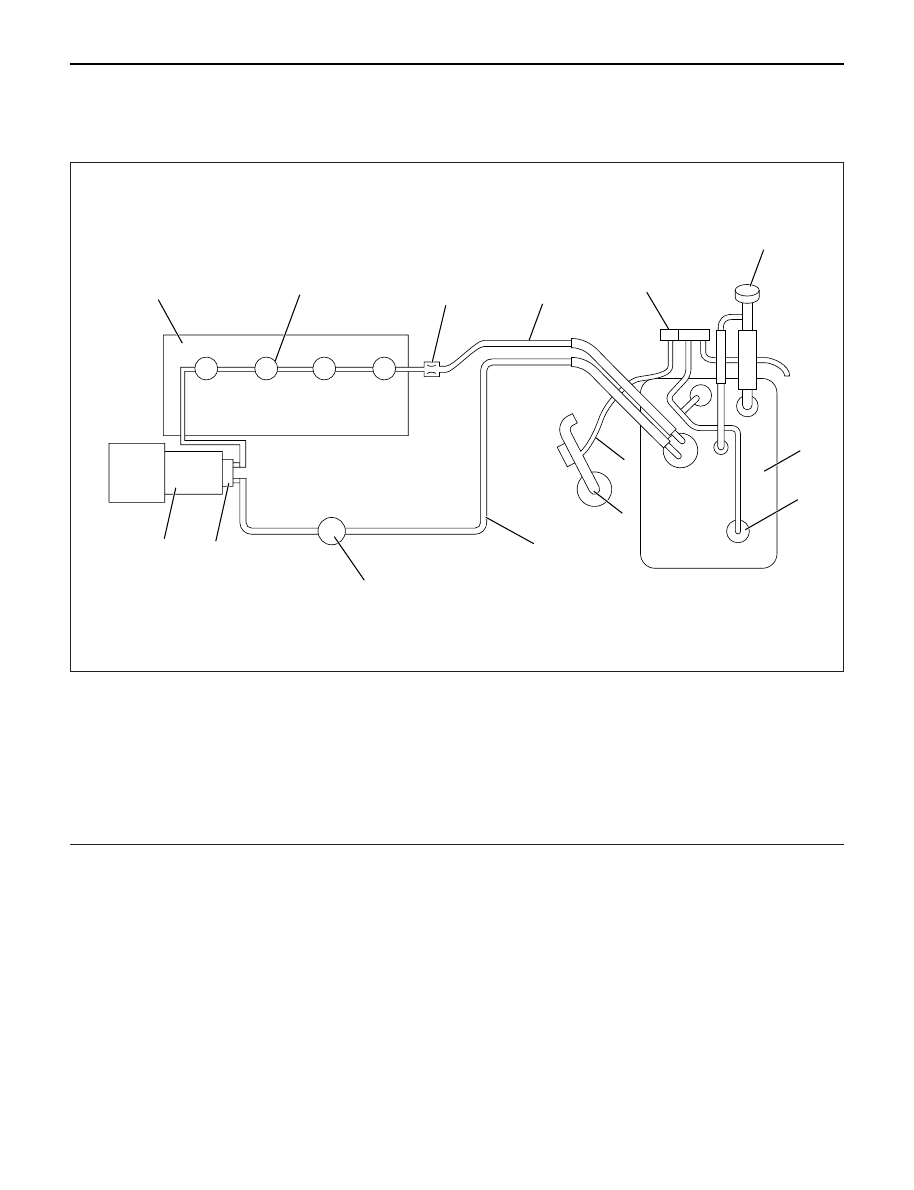

FUEL FLOW

For EC

8

9

10

11

14

1

2

4

12

5

6

7

3

13

Legend

(1)

Fuel Filler Cap

(2)

Fuel Tank

(3)

Rollover Valve

(4)

Fuel Supply Pipe

(5)

Fuel Filter with Priming Pump

(6)

Fuel Pump

(7)

High Pressure Oil Pump

(8)

Cylinder Head

(9)

Injector

(10)

Orifice

(11)

Fuel Return Pipe

(12)

Fuel Tank Pressure Release Hose

(13)

Intake Air Duct

(14)

Fuel Tank Pressure Control Valve

040RX001

ENGINE FUEL 6C – 3

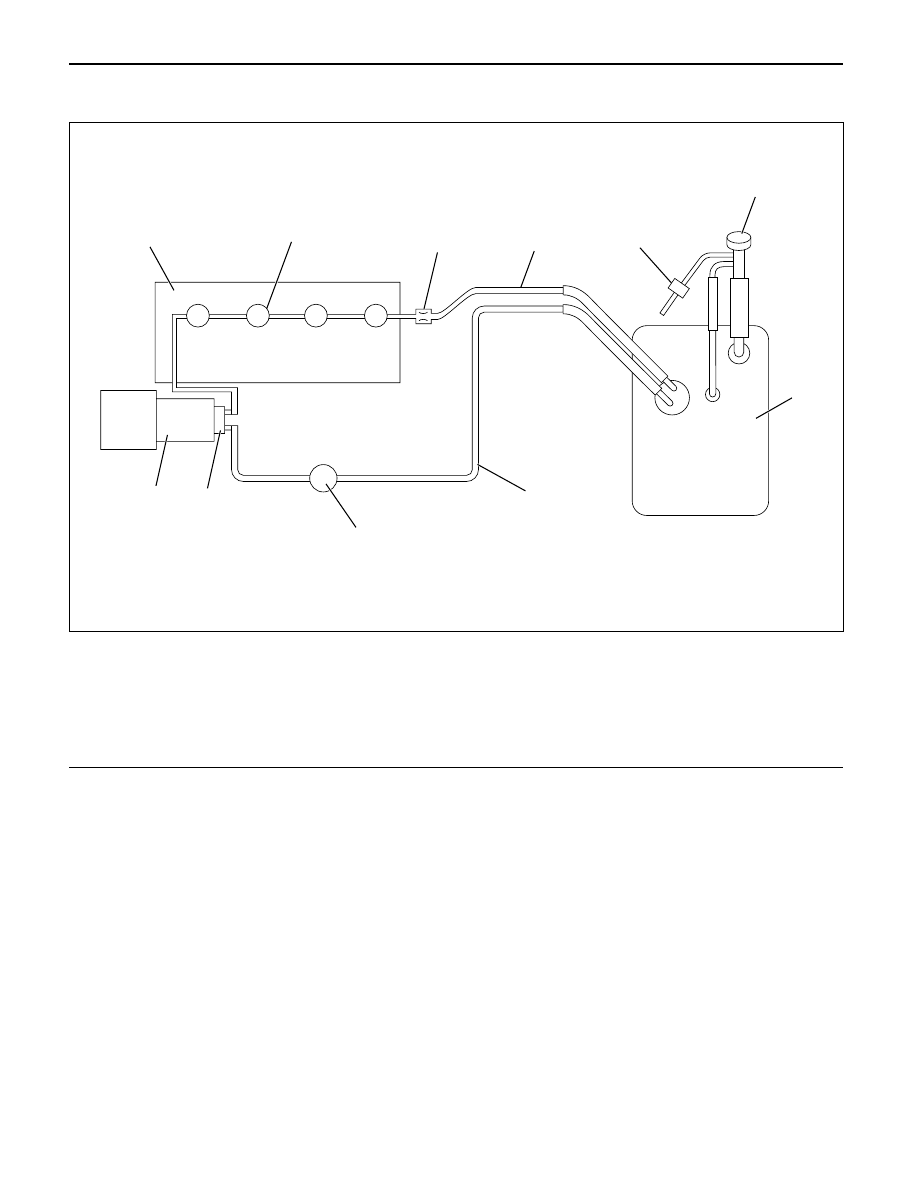

For except EC

7

8

9

10

1

2

3

4

5

6

11

Legend

(1)

Fuel Filler Cap

(2)

Fuel Tank

(3)

Fuel Supply Pipe

(4)

Fuel Filter with Priming Pump

(5)

Fuel Pump

(6)

High Pressure Oil Pump

(7)

Cylinder Head

(8)

Injector

(9)

Orifice

(10)

Fuel Return Pipe

(11)

Fuel Tank Pressure Control Valve

040RX002

6C – 4 ENGINE FUEL

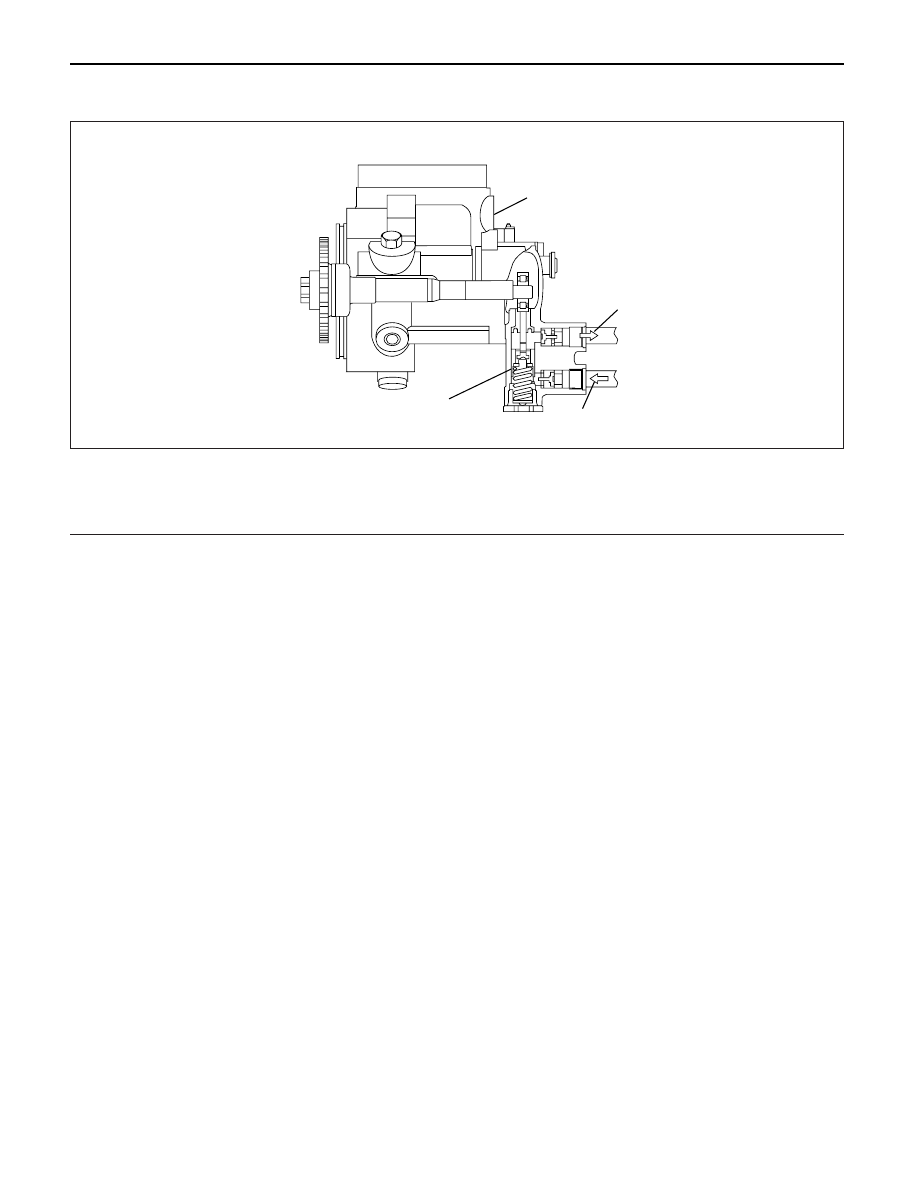

FUEL PUMP

1

2

3

4

Legend

(1)

High Pressure Oil Pump

(2)

To Injector

(3)

From Fuel Tank

(4)

Fuel Pump

140RW041

ENGINE FUEL 6C – 5

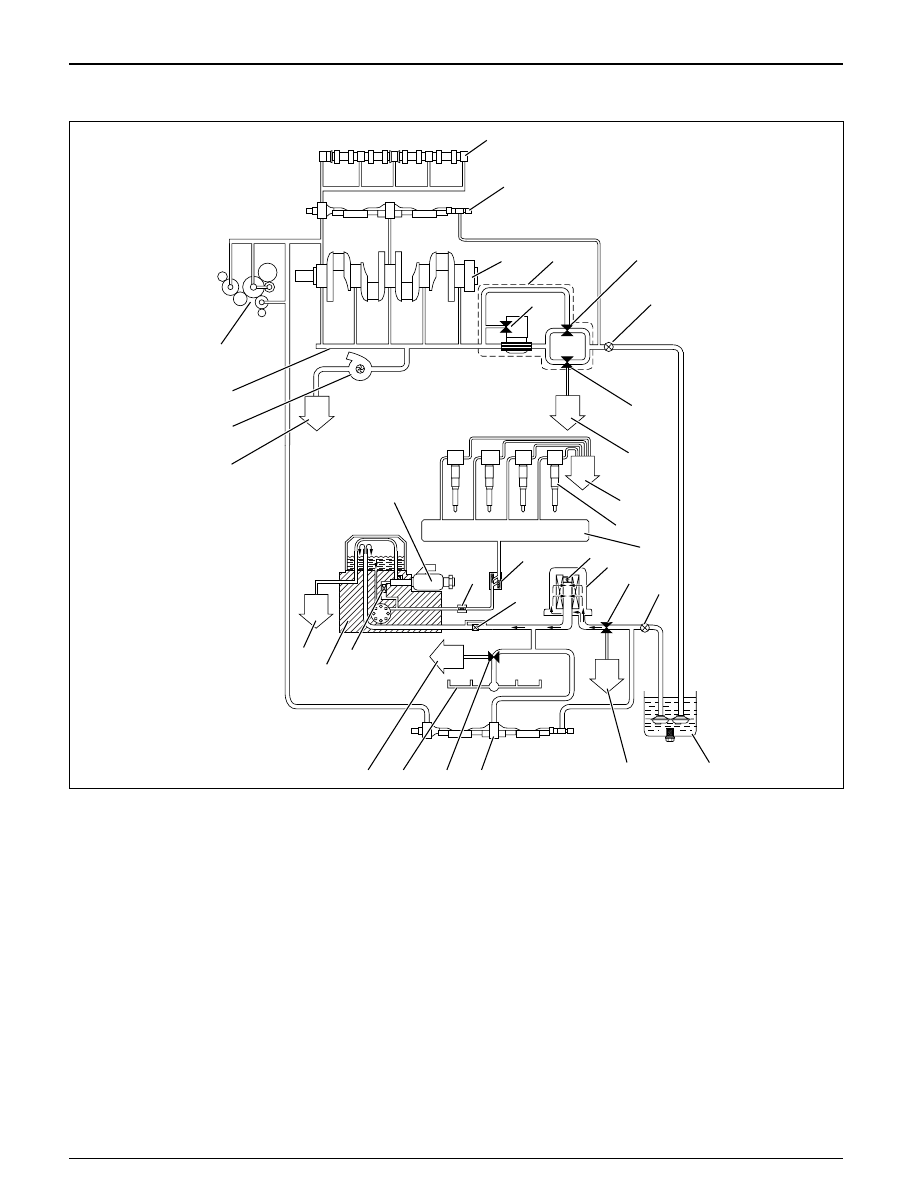

HIGH PRESSURE OIL PUMP, OIL FLOW

P

33

32

31

30

1

2

3

4

5

6

8

9

7

10

11

12

13

14

23

29

25

28

27

26

24

15

16

17

18

19

20

21

22

Legend

(1)

Camshaft

(2)

Balance Shaft

(3)

Crankshaft

(4)

Oil Cooler and Oil Filter Assembly

(5)

Oil Filter Relief Valve 98 Kpa (1 kg/cm

2

/14.2 Psi)

(6)

Oil Cooler Relief Valve 245 Kpa (2.5 kg/cm

2

/

36 Psi)

(7)

First Oil Pump

(8)

Main Oil Relief Valve 588 Kpa (6 kg/cm

2

/ 85 Psi)

(9)

To Oil Pan

(10)

To Oil Pan

(11)

Injector

(12)

Oil Rail

(13)

Sub Oil Filter Relief Valve 98 Kpa (1 kg/cm

2

/

14.2 Psi)

(14)

Sub Oil Filter

(15)

Relief Valve 588 Kpa (6 kg/cm

2

/ 85 Psi)

(16)

Second Oil Pump

(17)

Oil Pan

(18)

To Oil Pan

(19)

Balance Shaft

(20)

Cooling Jet Relief Valve 245 Kpa (2.5 kg/cm

2

/

36 Psi)

(21)

Cooling Jet

(22)

To Oil Pan

(23)

Two Way Check Valve

(24)

Nipple Filter

(25)

Edge Filter

(26)

Edge Filter

(27)

High Pressure Oil Pump Assembly

(28)

To Oil Pan

(29)

Pressure Control Valve

(30)

To Oil Pan

(31)

Turbocharger

(32)

Oil Gallery

(33)

Timing Gear Train

040RW018
