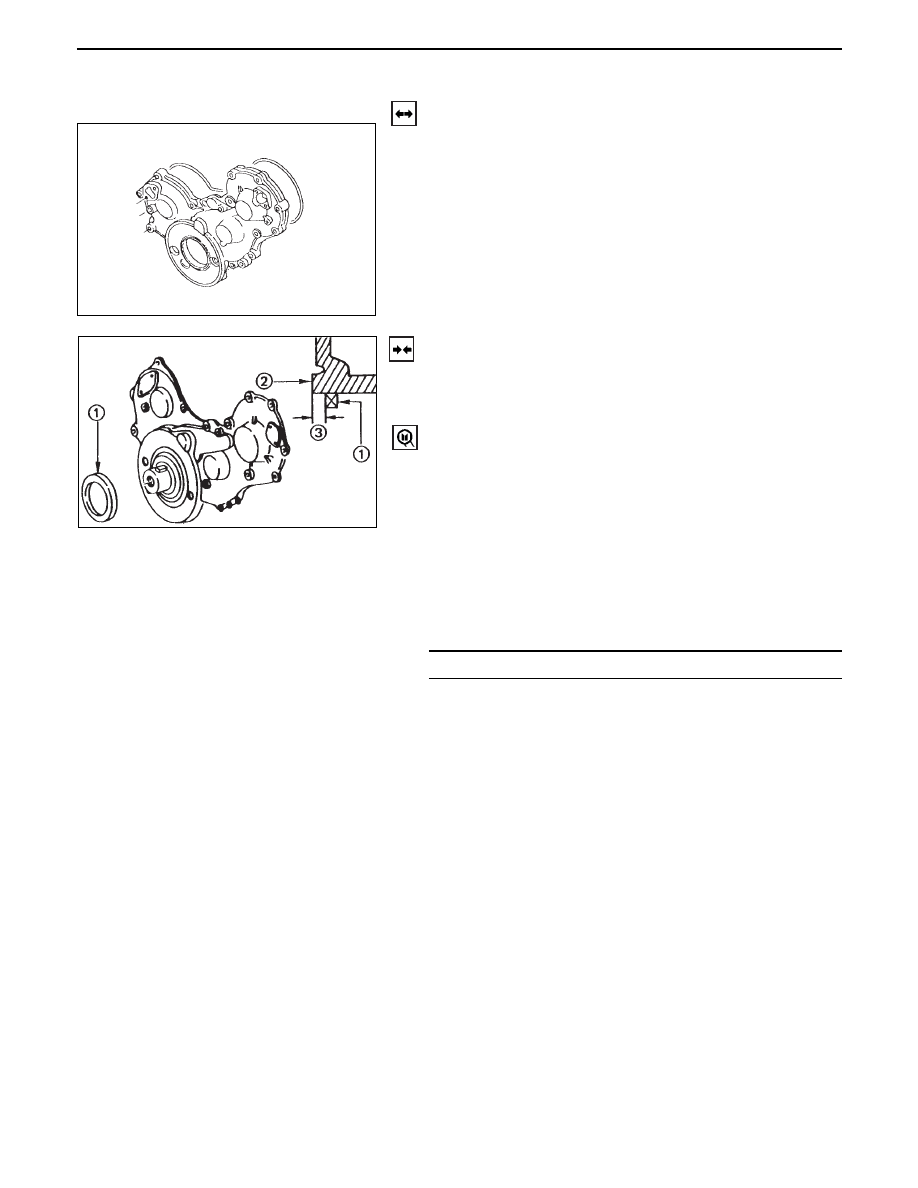

4JG2-NA/4JG2-TURBO ENGINE 6A2 – 45 FRONT OIL SEAL REMOVAL 1. Crankshaft Damper Pulley 2. Timing Gear Case Cover Assembly 3. Front Oil Seal • Remove crankshaft front oil seal using suitable size INSTALLATION 3. Front Oil Seal • Use the installer to install the front oil seal 1 to the Oil Seal Installer: 5-8840-2061-0 Note the oil seal installation depth 3 shown in the Depth 3 = 1 mm (0.039 in). 2. Timing Gear Case Cover Assembly 1) Align the timing gear case cover with the timing gear case dowel pin then install the timing gear case 2) Tighten the timing gear case cover bolts to the specified torque. 8 (0.8/69) N·m(Kg·m/lb·in) 1. Crankshaft Damper Pulley |
