Opel Frontera UBS. Manual - part 119





4A2A–32 DIFFERENTIAL (REAR 220mm)

Main Data and Specifications

General Specifications

Rear axle

Type

Banjo, Semi–floating

Rear axle Size

220mm(8.66in)

Gear type

Hypoid

Gear ratio  (to 1)

4.555(6VD1,4JG2–TC)

4.777(4JG2)

Differential type

Two pinion

Lubricant Grade

GL–5: (Standard differential)

GL–5, LSD: (Limited slip differential)

Locking Differential Lubricant

80W90 GL–5
(USE Limited Slip Differential Gear Lubricant or Friction
Modifier Organic Additive)

Capacity

1.8liter(1.6 Imp qt/1.9 US qt)

DIFFERENTIAL (REAR 220mm) 4A2A–33

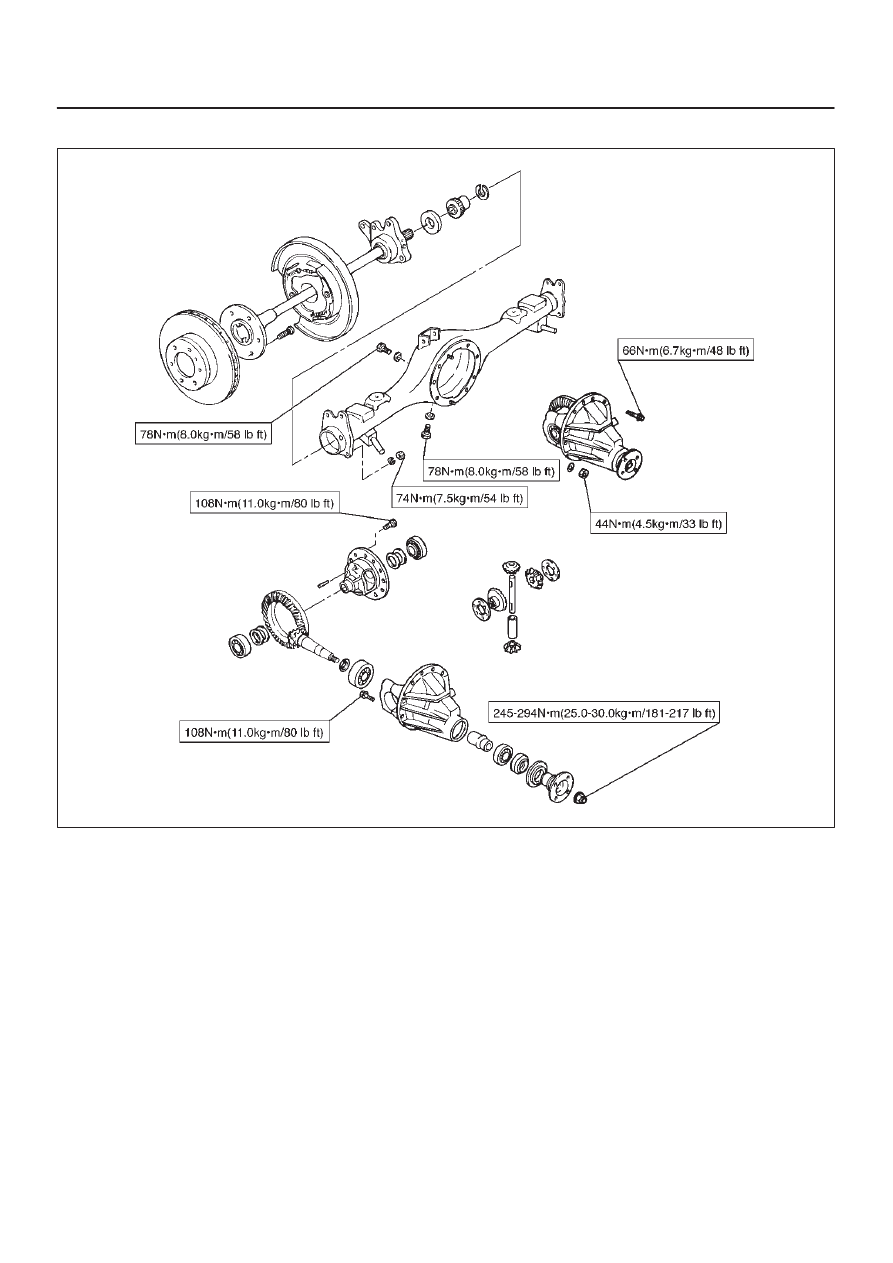

Torque Specifications

E04RW016

4A2A–34 DIFFERENTIAL (REAR 220mm)

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2157–0

(J–37221)

Holder; Pinion flange

5–8840–2294–0

(J–24250)

Installer; Oil seal

5–8840–0275–0

(J–37264)

Differential holding

fixture

(Use with

5–8840–0003–0)

5–8840–0003–0

(J–3289–20)

Holding fixture base

5–8840–0013–0
5–8840–0014–0

(J–22888)

Puller; Side bearing

5–8840–2196–0

(J–8107–2)

Adapter; Side bearing

plug

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2197–0

(J–22912–01)

Separator

5–8840–2164–0

(J–24256)

Installer; Outer bearing

outer race

5–8840–0007–0

(J–8092)

Driver handle

5–8840–2163–0

(J–24252)

Installer; Inner bearing

outer race

5–8840–2085–0

(J–21777–42)

Front Pilot

5–8840–0127–0

(J–23597–9)

Nut and bolt

DIFFERENTIAL (REAR 220mm) 4A2A–35

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2166–0

(J–23597–7)

Gauge plate

5–8840–0126–0

(J–8001)

Dial indicator

5–8840–2167–0

(J–23597–8)

Disc

5–8840–0128–0

(J–23597–1)

Arbor

9–8522–1165–0

(J–6133–01)

Installer; Pinion bearing

5–8840–2293–0

(J–39209)

Punch; End nut lock

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2162–0

(J–24244)

Installer; Side bearing

5–8840–2323–0

(J–39602)

Remover; Outer bearing

5–8840–2165–0

(J–37263)

Installer; Pinion oil seal

5–8840–2381–0

(J–41033)

Holder; Side gear

5–8840–0129–0

(J–23597–12)

Rear pilot
