6E–14

ENGINE DRIVEABILITY AND EMISSIONS

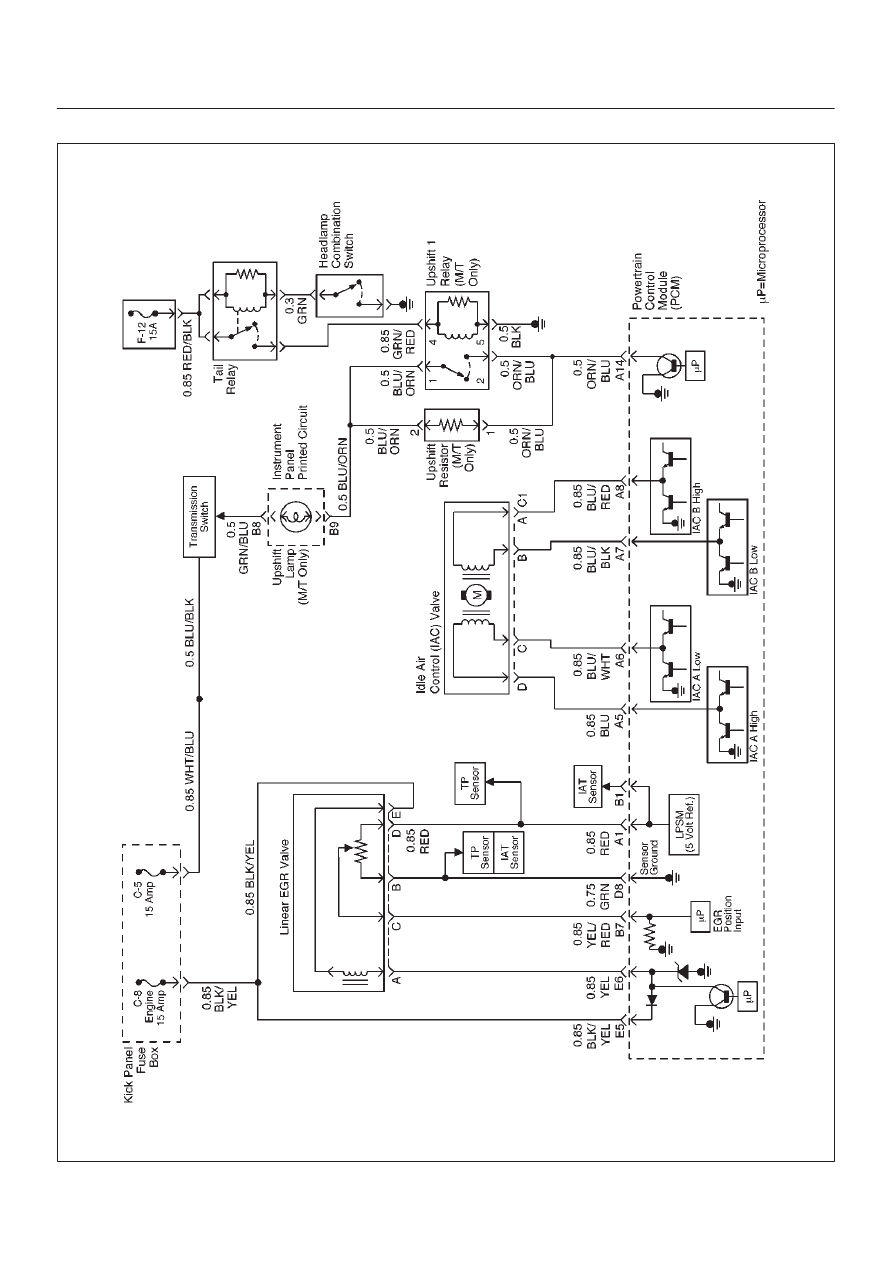

PCM Wiring Diagram (9 of 11) Except EXP and SOUTH AFRICA

D06RW099

6E–15

ENGINE DRIVEABILITY AND EMISSIONS

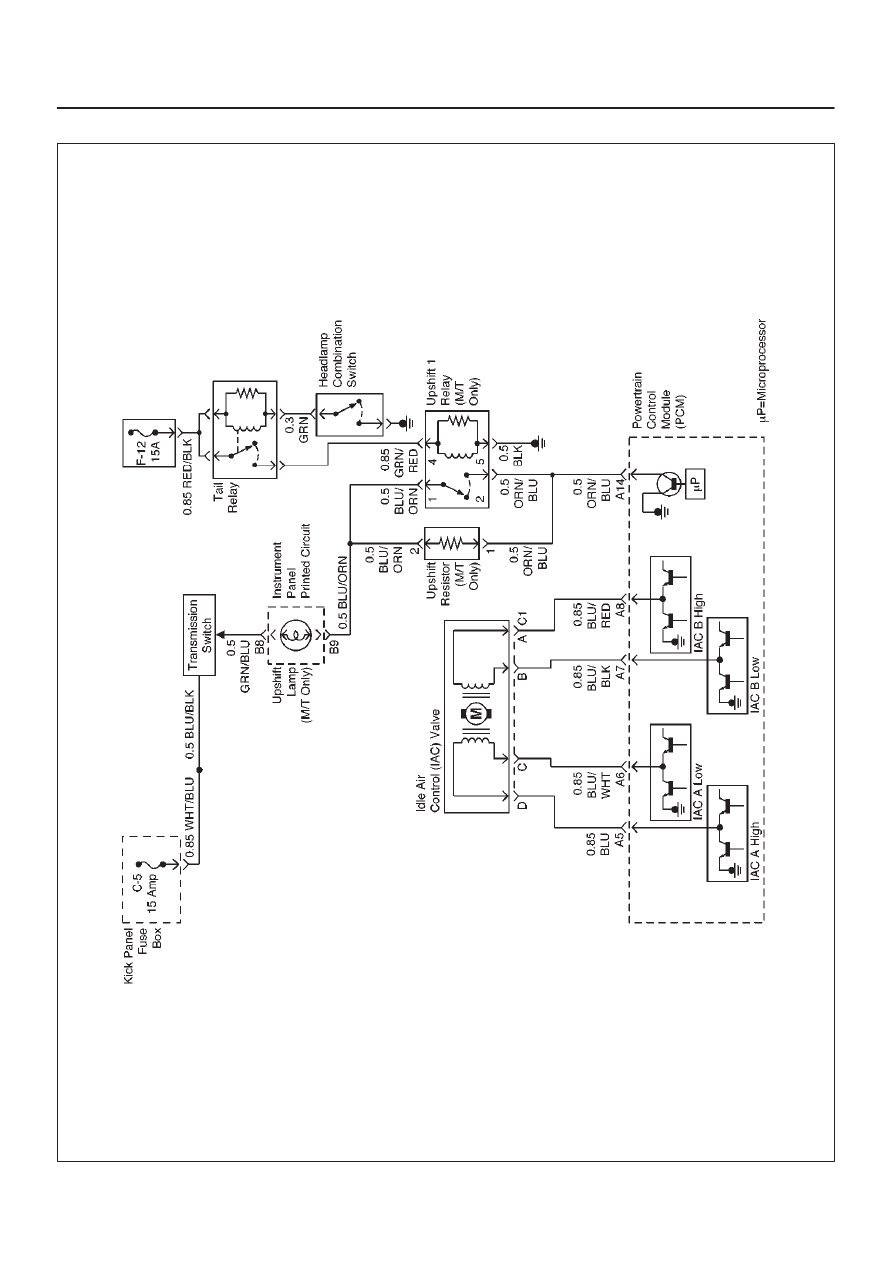

PCM Wiring Diagram (10 of 11) For EXPORT and SOUTH AFRICA

D06RW141

6E–16

ENGINE DRIVEABILITY AND EMISSIONS

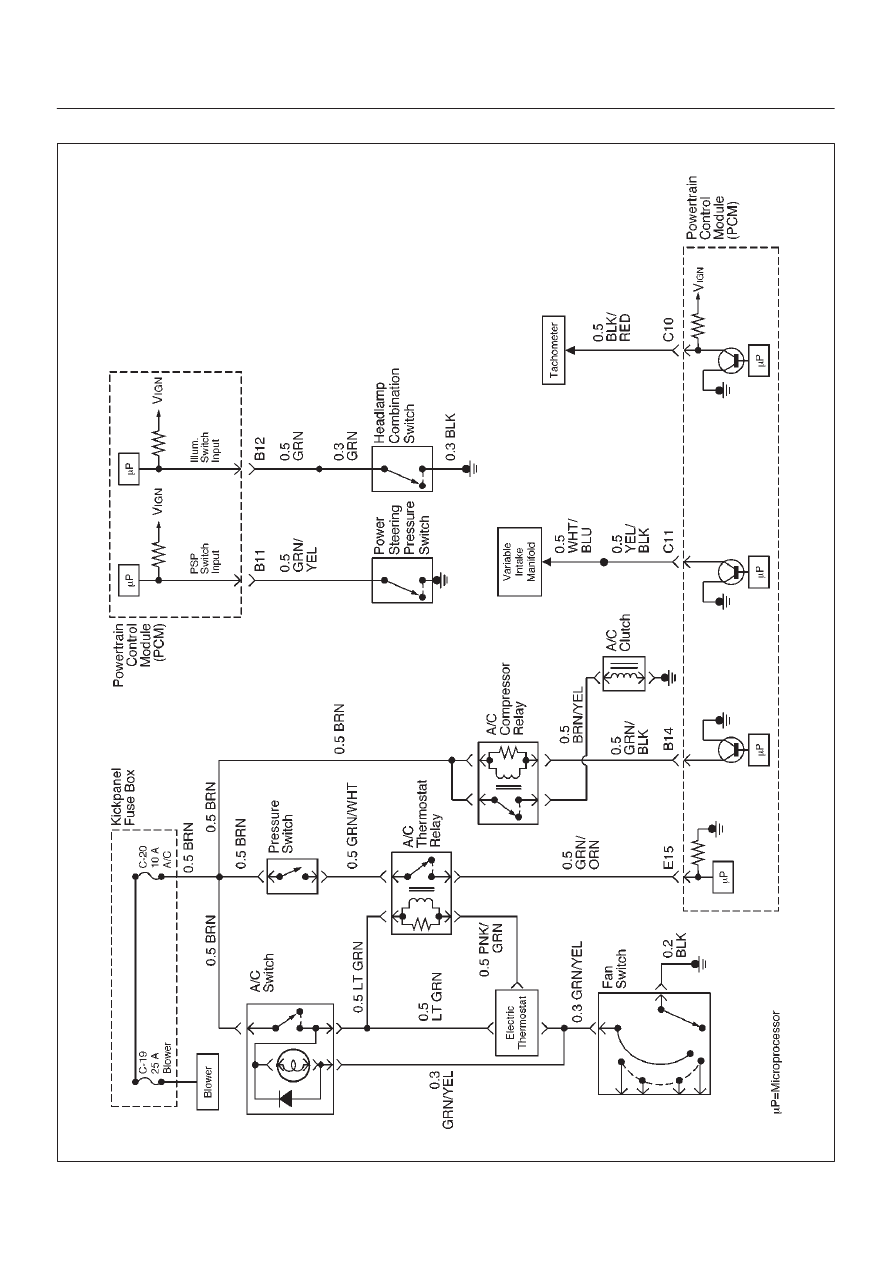

PCM Wiring Diagram (11 of 11)

D06RW136

6E–17

ENGINE DRIVEABILITY AND EMISSIONS

PCM Pinouts

PCM Pinout Table, 32-Way Red Connector – Row “A”

TS23344

PIN

PIN Function

Wire Color

IGN ON

ENG RUN

Refer To

A1

5 Volt Reference “A”

RED

5.0 V

5.0 V

Appropriate Sensor

A2

Knock Sensor

YEL

0.0 V DC

2mV AC

0.0 V DC

18mV AC

(at idle)

General Description and
Operation, Knock Sensor

A3

Not Used

—

—

—

—

A4

Battery Feed

WHT

B+

B+

Chassis Electrical

A5

Idle Air Control (IAC) “A”
High

BLU

B+/0.8 V

B+/0.8 V

General Description and
Operation, IAC

A6

IAC “A” Low

BLU/WHT

B+/0.8 V

B+/0.8 V

General Description and
Operation, IAC

A7

IAC “B” Low

BLU/BLK

B+/0.8 V

B+/0.8 V

General Description and
Operation, IAC

A8

IAC “B” High

BLU/RED

B+/0.8 V

B+/0.8 V

General Description and
Operation, IAC

A9

Automatic Transmission
Fluid (ATF) Lamp

ORN/BLU

B+

B+

Automatic Transmission
(4L30E)

A10

Winter Lamp

PNK/GRN

B+

B+

Automatic Transmission
(4L30E)

A11

Power Lamp

GRY/WHT

B+

B+

Automatic Transmission
(4L30E)

A12

Antilock Brake System
(ABS)

GRY

B+

B+

Antilock Brake System

A13

Malfunction Indicator
(Check Engine or MIL)
Lamp

BLU

0.0 V

B+

Chassis Electrical

A14

“Check Transmission”
Lamp Driver (AT)

ORN/BLK

B+

B+

Chassis Electrical

Up Shift Lamp Driver (MT)

ORN/BLU
