5D – 6 PARKING BRAKES

GENERAL DESCRIPTION

Pulling up the parking brake lever by hand will set the parking brake. Once pulled up, the lever is held by
means of a ratchet type lock until it is released.  The position of the lever is transmitted through
cable/lever systems to the rear wheels.  These parts are designed to obtain sufficient braking force when
parking on slopes.  When the parking brake is set, or when the ignition SW is in the “ON” position, the
brake warning light illuminates. The rear wheel parking brake is a duo-servo brake (mechanical inside
expansion type) built-in to rear disc brake.  Parking brake adjustment is made through the adjusting hole
(bored through back plate).  Parking brake lever stroke should be adjusted to 6 or 7 notches.

OPERATION

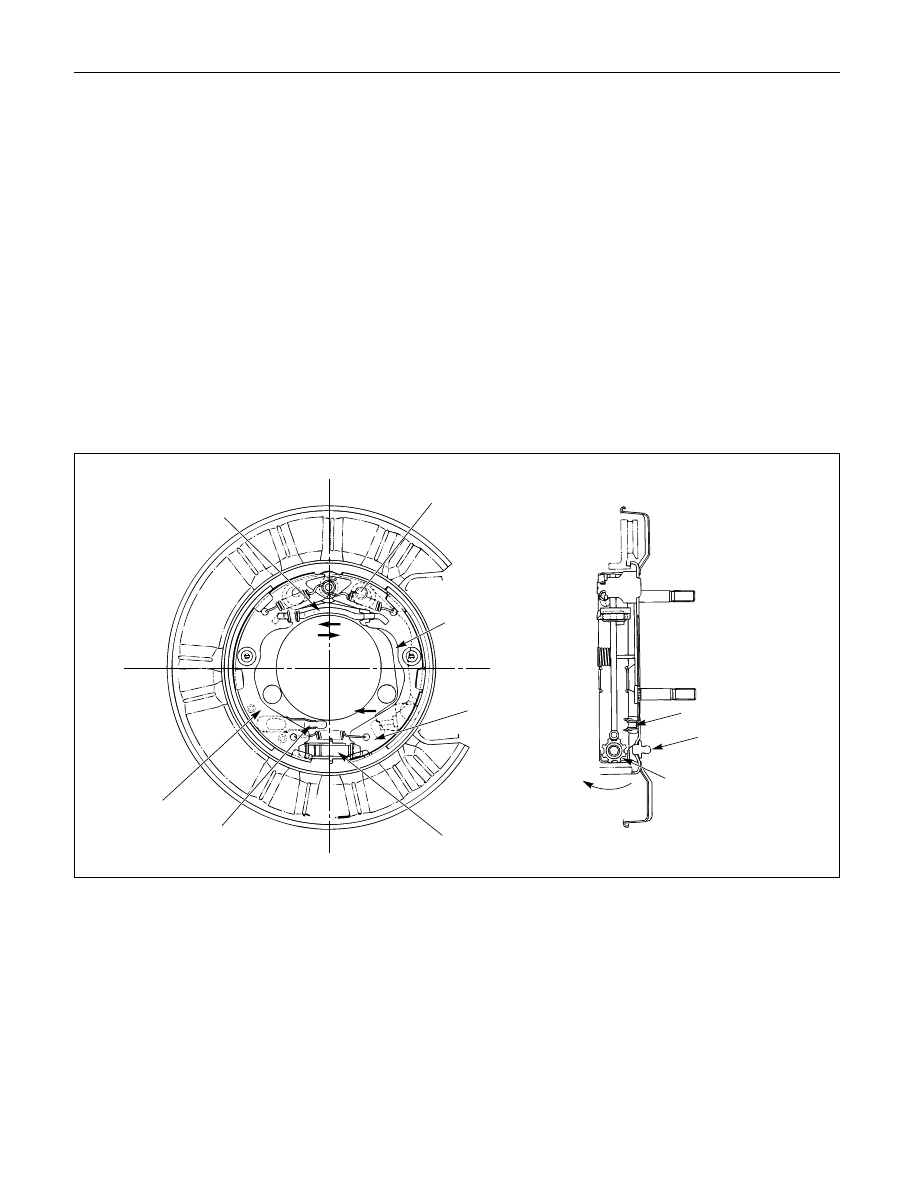

When pulled in the direction “A”, the parking lever presses the secondary shoe against the brake drum
using the lever/shoe joint “B” as a fulcrum and pushes the strut in the direction “C”.  The strut, in turn,
presses the primary shoe against the brake drum.  Counter force “D” to the primary shoe is transmitted
again to the secondary shoe through the fulcrum “B”.  The secondary shoe contacts the drum, thereby
producing braking effect.  Clearance which may result from worn parking brake shoe lining can be
adjusted by turning the adjusting screw

Parking lever

Strut

Primary shoe

Parking cable guide

Adjusting screw notch

Secondary shoe

D

C

A

Fulcrum B

Parking brake cable guide

Adjusting hole plug

Adjusting screw notch

Shoe expanding
direction

PARKING BRAKES  5D – 7

Adjusting nut

Equalizer

ON-VEHICLE SERVICE

PARKING BRAKE LEVER REPLACEMENT

3

5

1

2

4

6

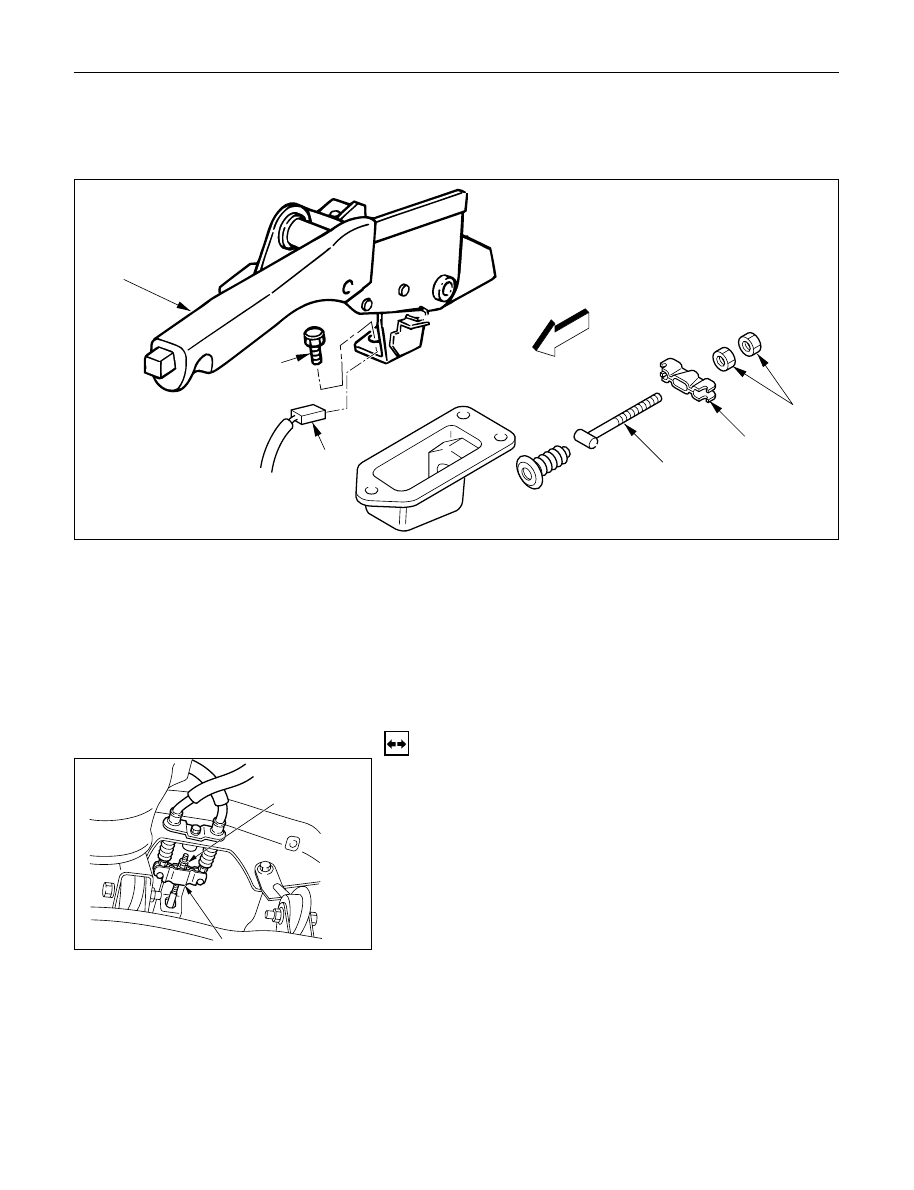

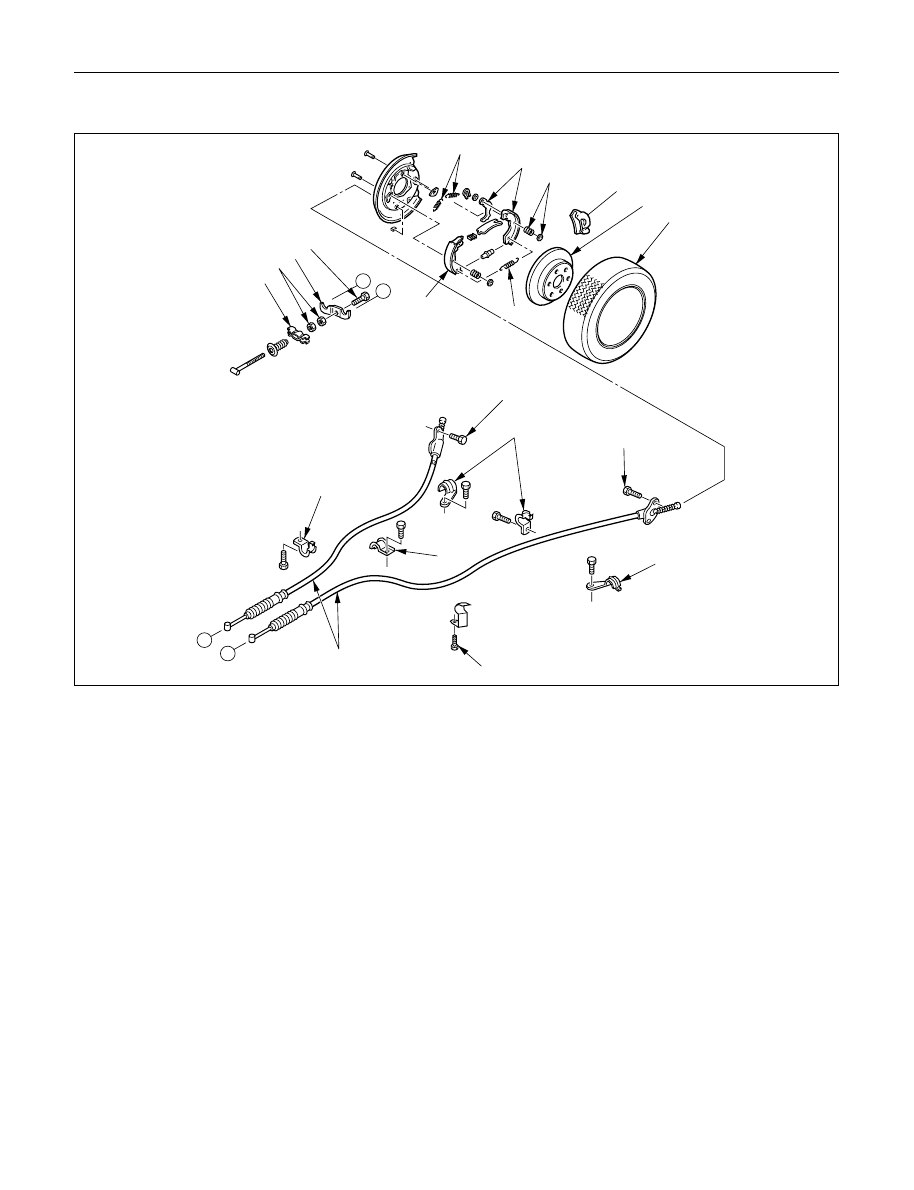

Removal Steps

1.

Ajusting nut

2.

Equalizer

3.

Bolt

4.

Switch connector

5.

Parking brake lever

6.

Parking brake front cable

Installation Steps

To install, follow the removal steps in the
reverse order.

REMOVAL

1. Ajusting Nut

2. Equalizer

3. Bolt

Remove the center console as described in Body
and Accessories section.
Then remove the fixing bolt.

4. Switch Connector

5. Parking Brake Lever

6. Parking Brake Front Cable

331RW007

331RW008

5D – 8 PARKING BRAKES

INSTALLATION

6. Parking Brake Front Cable

5. Parking Brake Lever

Apply grease (BESCO L-2 or equivalent) to front
cable contact point.

4. Switch Connector

3. Bolt

Tighten the parking brake lever fixing bolt to the
specified torque.

Bolt Torque

N·m (kg·m / lb·ft)

15 (1.5 / 11)

Install the center console.

2. Equalizer

1. Adjusting Nut

PARKING BRAKES  5D – 9

PARKING BRAKE CABLE

5

7

4

2

3

1

6

7

12

15

13

14

A

B

10

8

9

10

11

16

9

8

A

B

Removal Steps

1.

Rear wheels

2.

Caliper assembly

3.

Rotor (Drum)

4.

Holding spring

5.

Return spring; upper

6.

Return spring; lower

7.

Shoe assembly

8.

Cable fixing bolt

9.

Clip

10. Clip
11. Clip
12. Adjust nut
13. Equalizer
14. Bolt
15. Retaining plate
16. Parking brake cable

Installation Steps

To install, follow the removal steps in the
reverse order.

331RW009
