5A–17

BRAKE CONTROL SYSTEM

Circuit Diagram (LHD model / 6VD1)

D08RW789

5A–18

BRAKE CONTROL SYSTEM

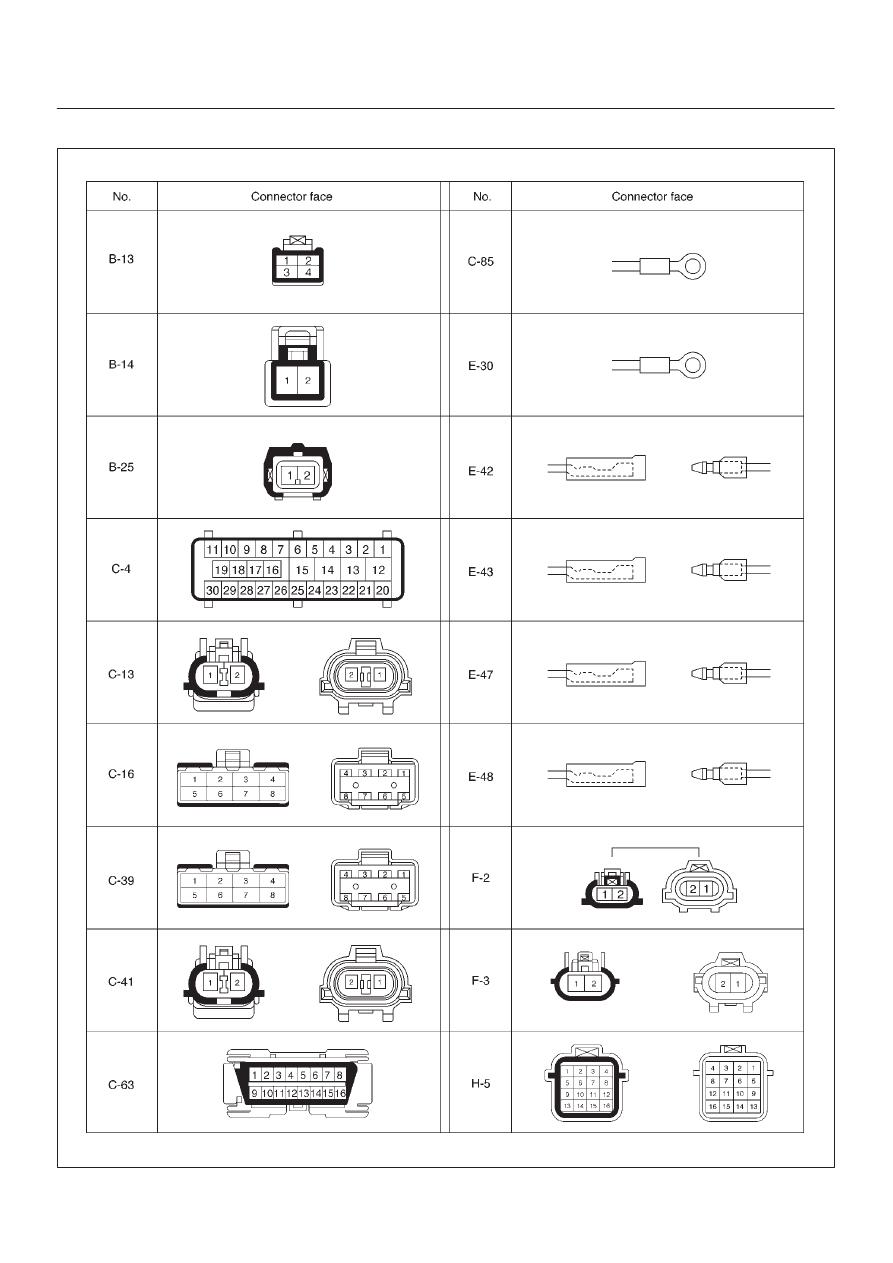

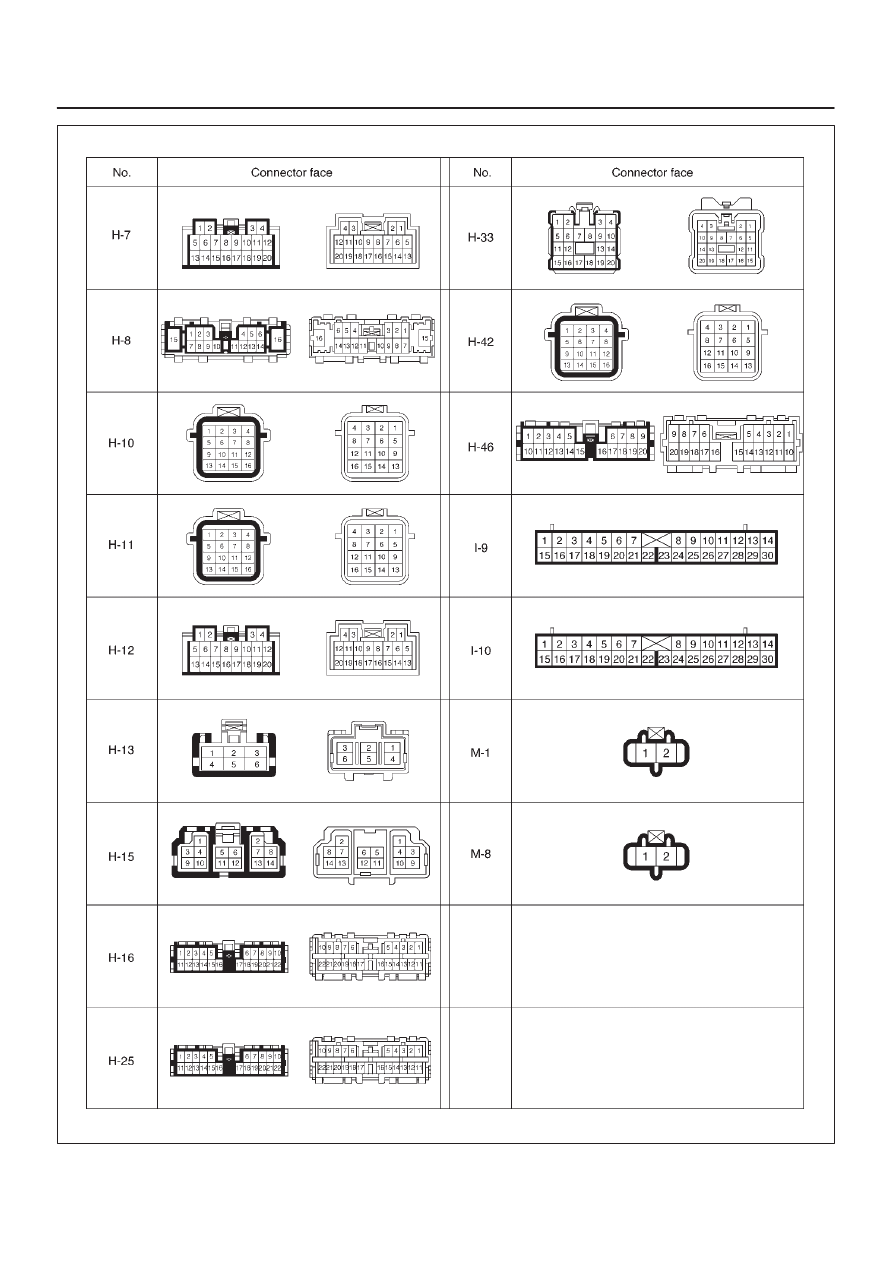

Connector List (LHD model)

5A–19

BRAKE CONTROL SYSTEM

5A–20

BRAKE CONTROL SYSTEM

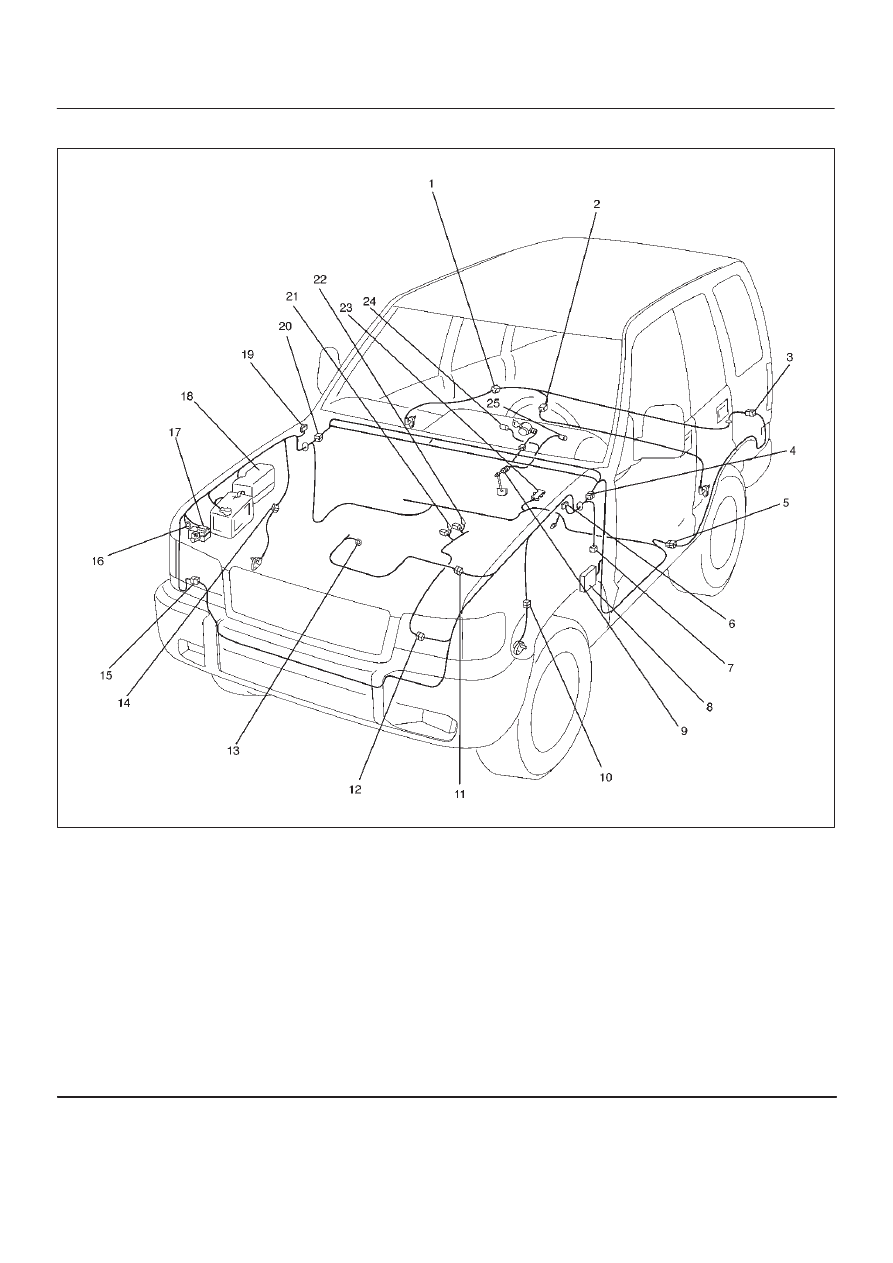

Part Location (LHD model)

D08RW808

Legend

(1) F–2
(2) F–3
(3) H–33
(4) H–7, H–8, H–25
(5) H–46
(6) C–16
(7) C–63
(8) Fuse Box
(9) B–13 or B–14

(10) C–13

(11) H–5

(12) H–10, H–11

(13) E–30
(14) C–41
(15) H–42
(16) C–85
(17) C–4 (EHCU)
(18) Relay & Fuse Box
(19) C–39
(20) H–12, H–13, H–15, H–16
(21) E–47, E–48, M–1
(22) E–42, E–43, M–8
(23) B–25
(24) I–10
(25) I–9
