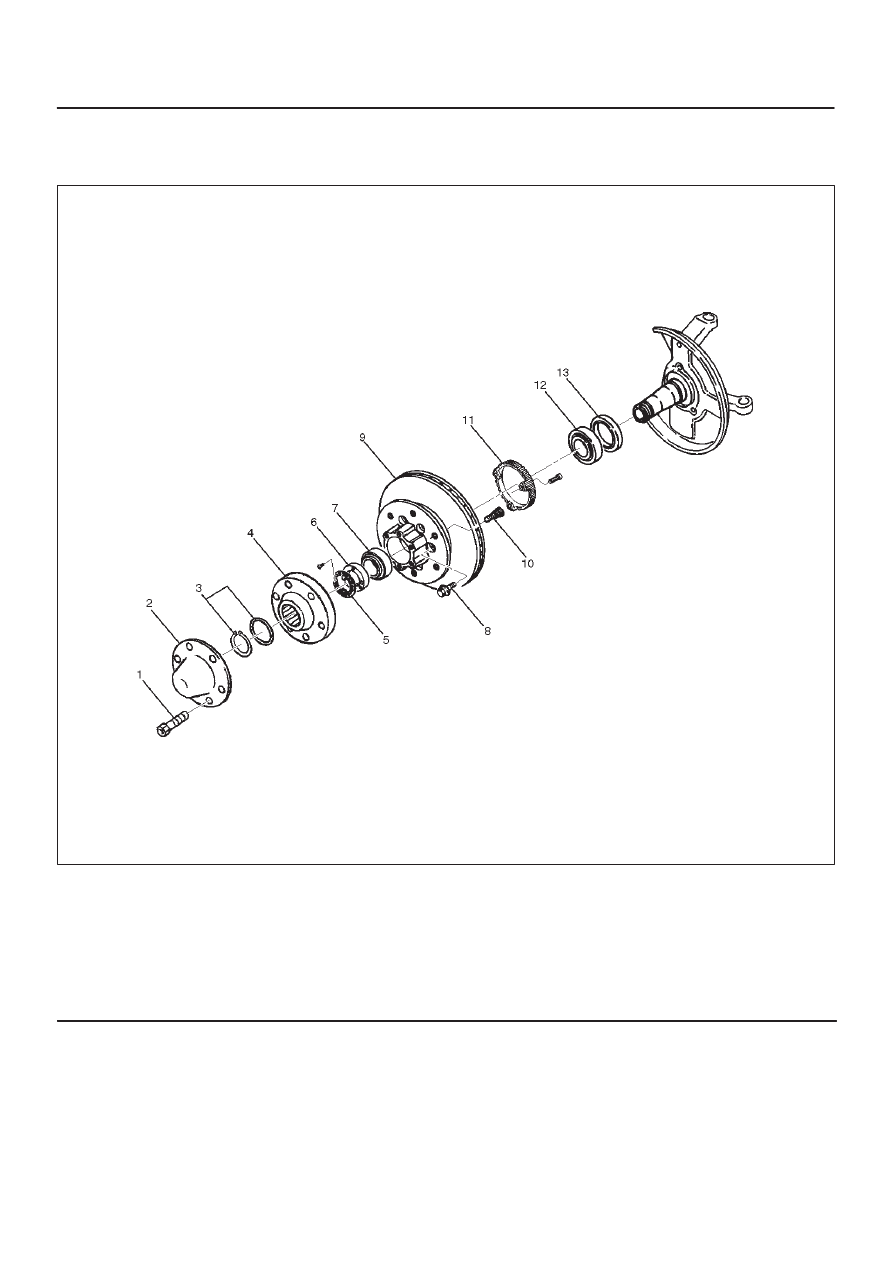

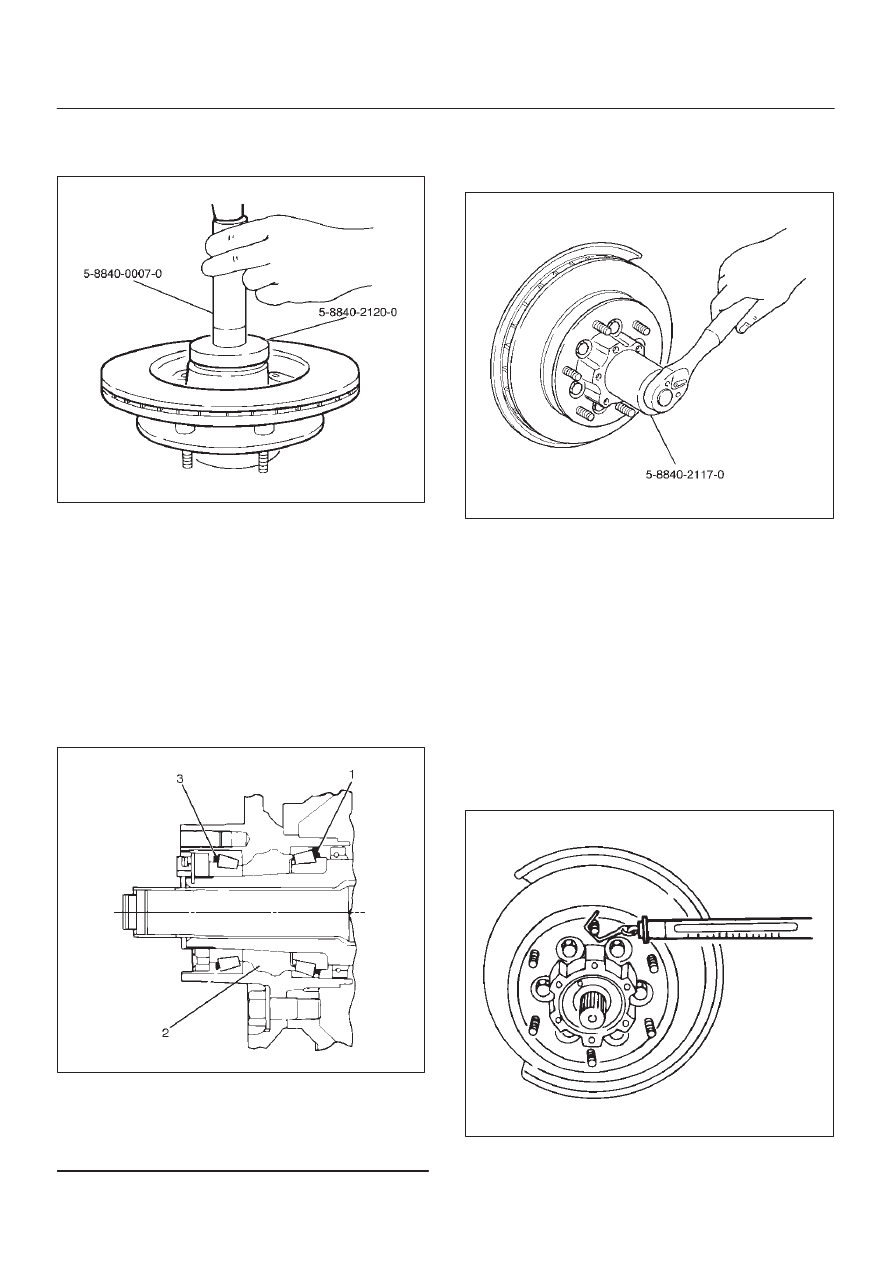

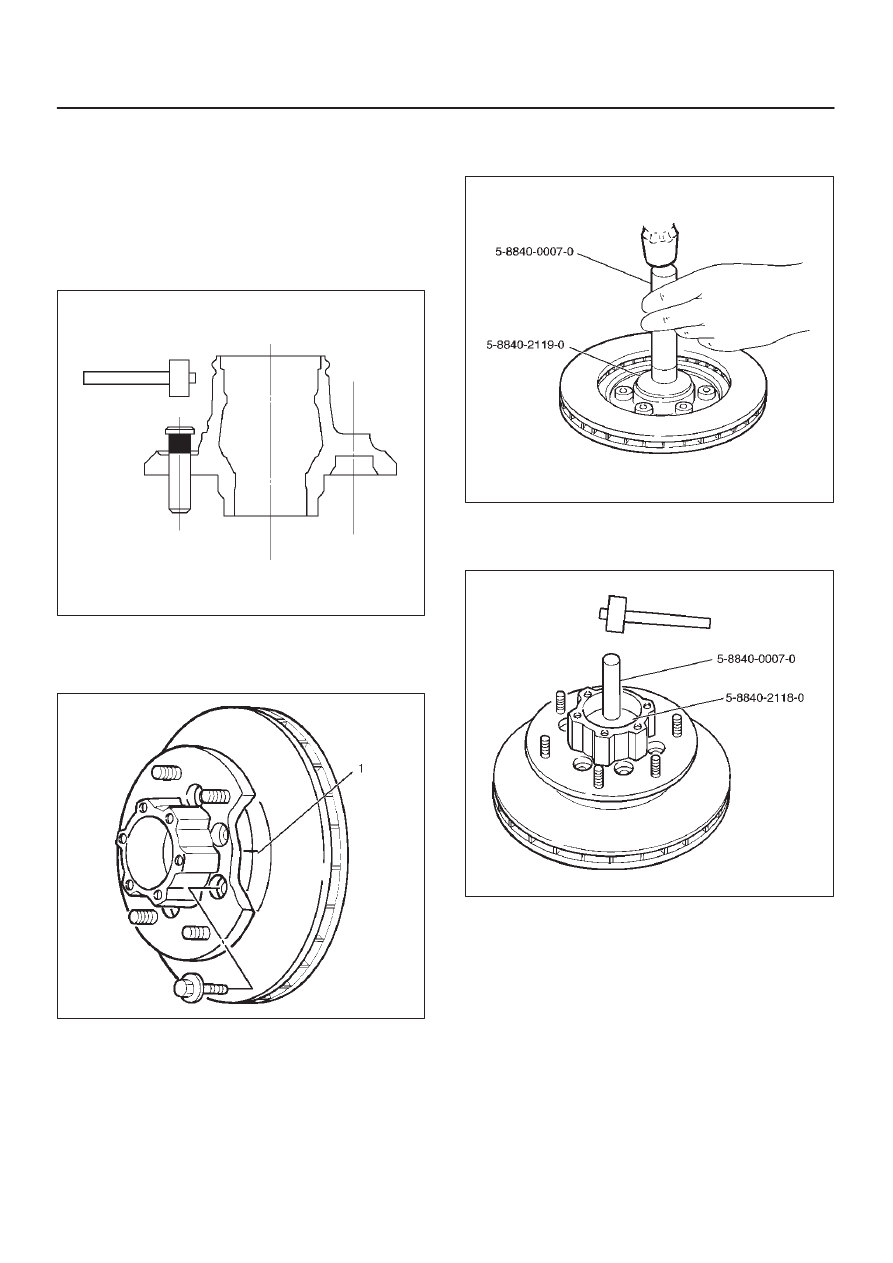

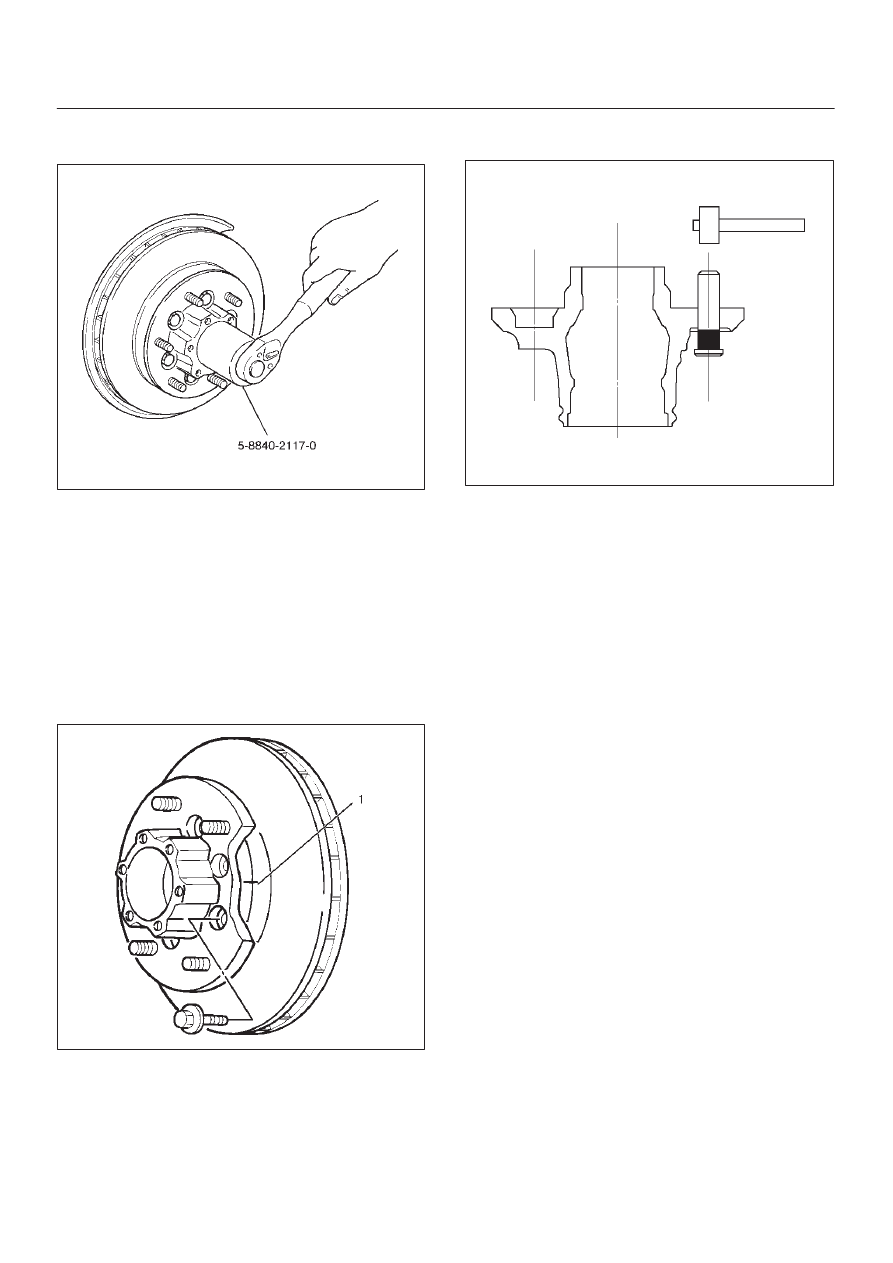

4C–9 DRIVE SHAFT SYSTEM Front Hub and Disc (with Shift on the Fly) Disassembled View 411RW001 Legend (1) Bolt (7) Outer Bearing (10) Wheel Pin (11) ABS Sensor Ring (If equipped) (12) Inner Bearing Disassembly 1. Before disassembly, select the 2WD position. jack stands. 3. Remove the disc brake caliper assembly and hang it on the frame with wires. Refer to Front Disc Brake 4. Remove bolt. |
