Opel Frontera UE. Manual - part 987





6E2–334

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

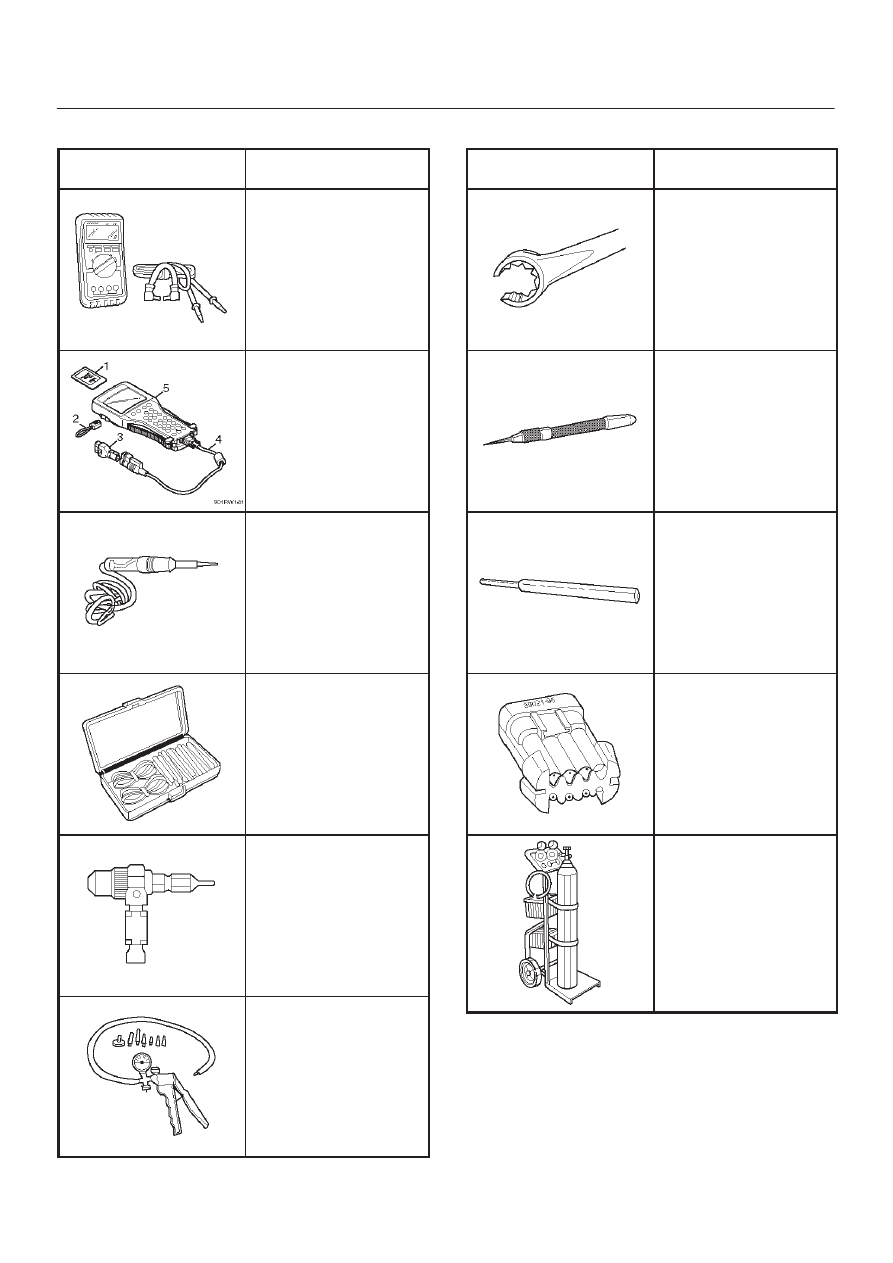

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5-8840-0285-0

High Impedance

Multimeter (Digital

Voltmeter – DVM)

(1) PCMCIA Card

(2) RS232 Loop Back

Connector

(3) SAE 16/19 Adapter

(4) DLC Cable

(5) TECH–2

5-8840-0607-0

Unpowered Test Light

5-8840-0385-0

Connector Test Adapter

5-8840-0383-0

Spark Tester

5-8840-0279-0

Vacuum Pump with

Gauge

ILLUSTRATION

TOOL NO.

TOOL NAME

5-8840-2640-0

Heated Oxygen Sensor

Wrench

5-8840-0632-0

Terminal Remover

5-8840-0388-0

Weather Pack II

Terminal Remover

5-8840-2636-0

Injector Test Light

5-8840-2607-0

EVAP Pressure/Purge

Diagnostic Station

6F–1

ENGINE EXHAUST (6VD1 3.2L)

FRONTERA

ENGINE

ENGINE EXHAUST (6VD1 3.2L)

CONTENTS

Service Precaution

6F–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

6F–2

. . . . . . . . . . . . . . . . . . . . .

Three Way Catalytic Converter RH and
 Forked Exhaust Pipe

6F–3

. . . . . . . . . . . . . . . . . . . .

Three Way Catalytic Converter RH and
 Forked Exhaust Pipe and Associated Parts

6F–3

Removal

6F–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6F–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Three Way Catalytic Converter LH and
 Forked Exhaust Pipe

6F–4

. . . . . . . . . . . . . . . . . . . .

Three Way Catalytic Converter LH and
 Forked Exhaust Pipe and Associated
 Parts

6F–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

6F–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6F–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Forked Exhaust Pipe

6F–5

. . . . . . . . . . . . . . . . . . . .

Forked Exhaust Pipe and Associated Parts

6F–5

Removal

6F–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6F–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Exhaust Silencer

6F–6

. . . . . . . . . . . . . . . . . . . . . . . .

Exhaust Silencer and Associated Parts

6F–6

. . .

Removal

6F–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6F–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Exhaust pipe

6F–7

. . . . . . . . . . . . . . . . . . . . . . .

Rear Exhaust pipe and Associated Parts

6F–7

Removal

6F–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6F–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

6F–8

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).  REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION

6F–2

ENGINE EXHAUST (6VD1 3.2L)

General Description

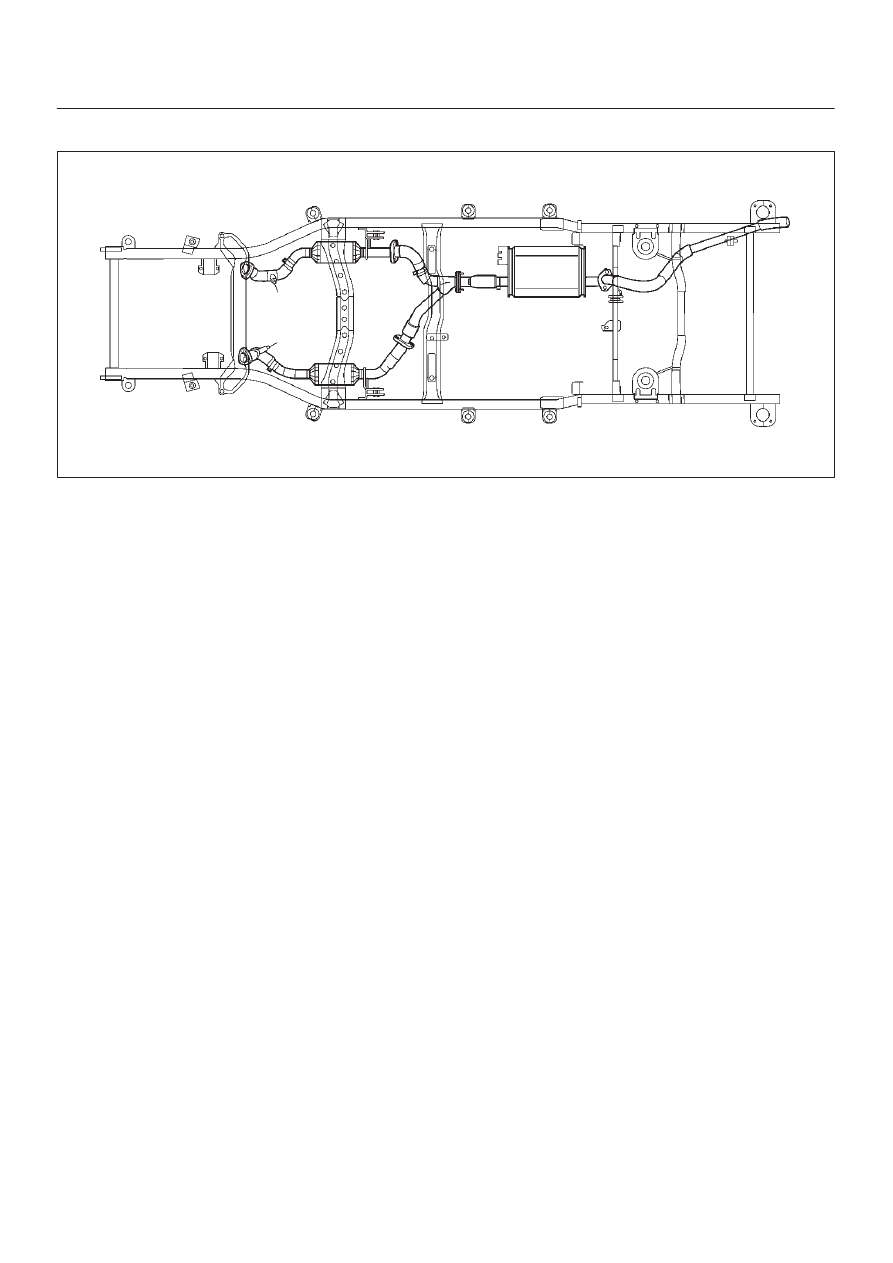

150RX019

When inspecting or replacing exhaust system
components, make sure there is adequate clearance
from all points on the underbody to prevent overheating
the floor pan and possible damage to the passenger
compartment insulation and trim materials.

Check complete exhaust system and nearby body areas
and rear compartment lid for broken, damaged, missing
or mispositioned parts, open seams, holes, loose
connections or other deterioration which could permit
exhaust fumes to seep into the rear compartment or
passenger compartment. Dust or water in the rear
compartment may be an indication of a problem in one of
these areas. Any faulty areas should be corrected
immediately.

Hangers

Various types of hangers are used to support exhaust
system(s). These include conventional rubber straps,
rubber rings, and rubber blocks.

The installation of exhaust system supports is very
important, as improperly installed supports can cause
annoying vibrations which can be difficult to diagnose.

Three Way Catalytic Converter

The three way catalytic converter is an emission control
device added to the exhaust system to reduce pollutants
from the exhaust gas stream.

CAUTION: The catalytic converter requires the use
of unleaded fuel only.
Periodic maintenance of the exhaust system is not
required. If the vehicle is raised for other service, it is
advisable to check the condition of the complete exhaust
system.
A dual bed monolith catalytic converter is used in
combination with three way catalytic converter.

Catalytic Converter Types:
Three way (Reduction/Oxidation) catalyst
The catalyst coating on the three way (reduction)
converter contains platinum and rhodium which lowers
the levels of nitrous oxide (NOx) as well as hydrocarbons
(HC) and carbon monoxide (Co).

Gasket

The gasket must be replaced whenever a new exhaust
pipe, muffler or catalytic converter is installed.

6F–3

ENGINE EXHAUST (6VD1 3.2L)

Three Way Catalytic Converter RH and Forked Exhaust Pipe

Three Way Catalytic Converter RH and Forked Exhaust Pipe and Associated
Parts

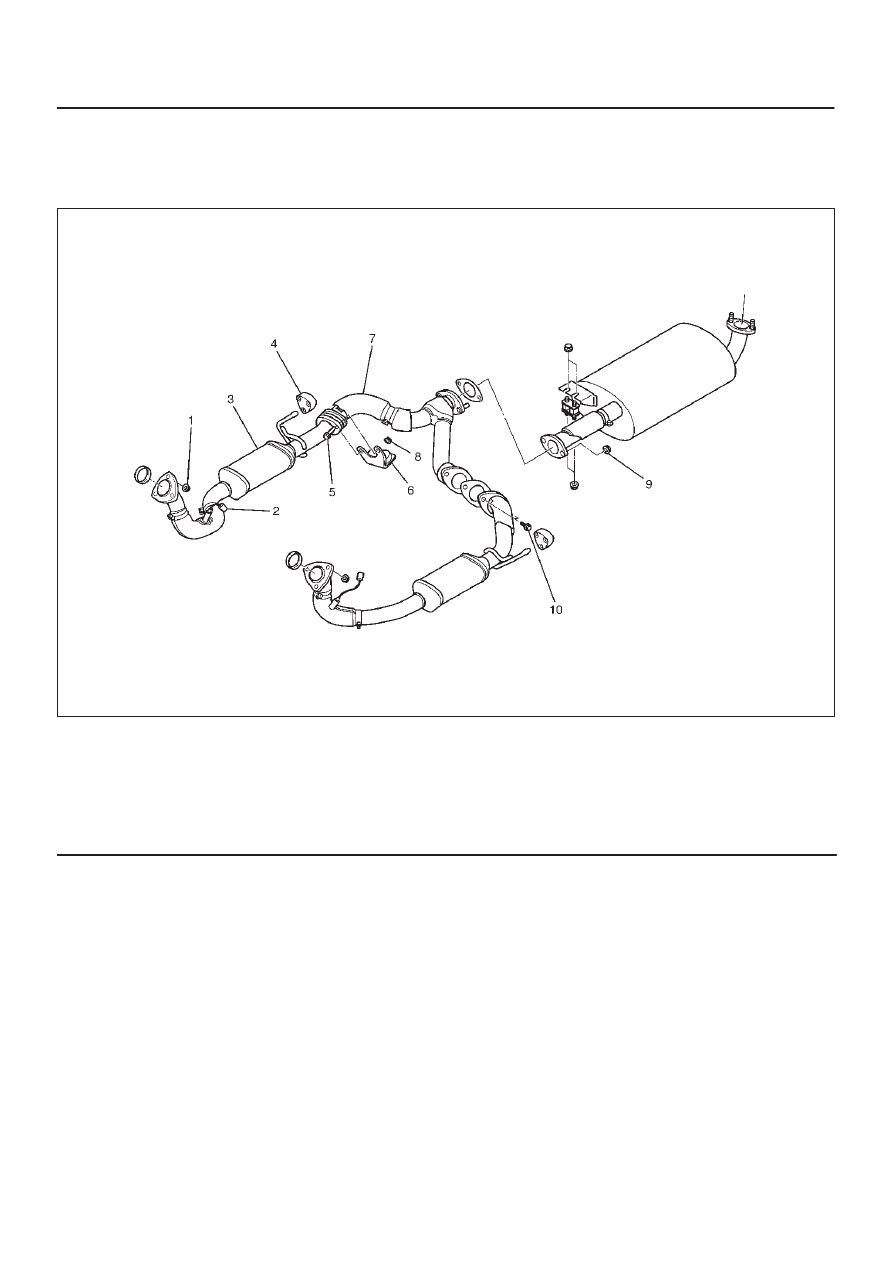

150RX017

Legend

(1) Three Way Catalytic Converter Fixing Nuts
(2) O

2

 Sensor Terminal Connector

(3) Three Way Catalytic Converter RH
(4) Mounting Rubber
(5) Forked Exhaust Pipe Fixing Bolts

(6) Mass Damper
(7) Forked Exhaust Pipe
(8) Forked Exhaust Pipe Fixing Nuts
(9) Exhaust Silencer Fixing Nuts

(10) Forked Exhaust Pipe Fixing Bolts

Removal

1. Disconnect battery ground cable.
2. Lift up the vehicle and support with suitable safety

stands.

3. Disconnect O

2

 sensor harness connectors (2).

4. Remove the forked exhaust pipe fixing bolts and nuts

(5) (8) (10) and the exhaust silencer fixing nuts (9),
then remove the forked exhaust pipe (7) and the
mass damper.

5. Remove the three way catalytic converter fixing nuts

(1) and the mounting rubber (4), then remove the
three way catalytic converter (3).

Installation

1. Install the three way catalytic converter (3) and the

mounting rubber (4), and tighten the fixing nuts (1) to
the specified torque.

Torque
Nuts : 67 N·m (6.8 kg·m/49 lb ft)

2. Install the forked exhaust pipe (7) and the mass

damper (6), and tighten the fixing bolts (5) & nuts (8)
(9) to the specified torque.

Torque
Nuts and Bolts : 43 N·m (4.4 kg·m/32 lb ft)
Nuts : 43 N·m (4.4 kg·m/32 lb ft)

3. Connect the O

2

 sensor connectors (2).
